Locality covered by local tandem

1

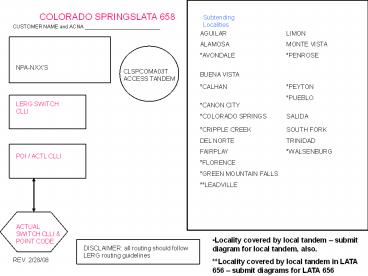

COLORADO SPRINGSLATA 658
CUSTOMER NAME and ACNA

• Locality covered by local tandem submit diagram
  for local tandem, also.
• Locality covered by local tandem in LATA 656
  submit diagrams for LATA 656

REV. 2/28/08
2
INSTRUCTIONS
COLORADO SPRINGS LATA 658

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs
  assigned to the switch and in LATA 658 (full
  NPA-NXXs should go in CNPANXX fields on
  Translations Questionnaire)
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the ICASR page of the ASR)
  and POI/ACTL CLLI (this is the ACTL on the ICASR
  page). If POI/ACTL CLLI is owned by another OCN,
  LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• EITHER enter a single line from POI/ACTL CLLI box
  to each access tandem circle and label 2W SPOP
  COMBINED and include quantity of trunks
  requested OR enter 2 lines from POI/ACTL CLLI box
  to each access tandem circle and label top line
  2W SPOP IXC and bottom line 2W SPOP
  Local/Intra and include quantity of trunks
  requested.
• Indicate the QWEST localities where you will be
  conducting business by changing the color to red.


Full NPA-NXXs also known as Code Holder,
LERG Assignee, or A Record Holder
REV. 2/28/08
3
COLORADO SPRINGSLATA 658
CUSTOMER NAME and ACNA
REV. 2/28/08
4
INSTRUCTIONS
COLORADO SPRINGS LATA 658

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter full NPA-NXXs assigned to
  the switch and in the COLORADO SPRINGS LOCAL
  CALLING AREA (on ASR, full NPA-NXXs should go
  in CNPANXX fields on Translations Questionnaire.
  If no full NPA-NXXs, MAY REQUEST ARLRN.
  http//www.qwest.com/wholesale/clecs/slrn.html)
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the ICASR page of the ASR)
  and POI/ACTL CLLI (this is the ACTL on the ICASR
  page). If POI/ACTL CLLI is owned by another OCN,
  LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• Enter a single line from POI/ACTL CLLI box to
  each local tandem circle and label 2W SPOP
  LOCAL and include quantity of trunks requested.
• Indicate the QWEST localities where you will be
  conducting business by changing the color to red.


Full NPA-NXXs also known as Code Holder,
LERG Assignee, or A Record Holder
REV. 2/28/08
5
COLORADO SPRINGS LATA 658
CUSTOMER NAME and ACNA
REV. 2/28/08
6
INSTRUCTIONS
COLORADO SPRINGS LATA 658

• Use previous slide as a template. Copy all and
  paste to new document
• In top left box enter the full NPA-NXXs
  assigned to the switch and in the PUEBLO LOCAL
  CALLING AREA (on ASR, full NPA-NXXs should go
  in CNPANXX fields on Translations Questionnaire.
  If no full NPA-NXXs, MAY REQUEST ARLRN.
  http//www.qwest.com/wholesale/clecs/slrn.html)
• In center left boxes enter LERG switch CLLI (this
  is always the PSL on the ICASR page of the ASR)
  and POI/ACTL CLLI (this is the ACTL on the ICASR
  page). If POI/ACTL CLLI is owned by another OCN,
  LOA must be provided.
• In lower left hexagon enter actual switch CLLI
  from SHA screen in LERG and point code (actual
  switch CLLI is always the CSL and the point code
  is entered in the CSPC field on the TRUNKING form
  of the ASR). LERG switch CLLI and actual switch
  CLLI may be the same if the actual switch is in
  the same LATA and then PSL and CSL would be the
  same CLLI.
• Enter a single line from POI/ACTL CLLI box to
  each local tandem circle and label 2W SPOP
  LOCAL and include quantity of trunks requested.
• Indicate the QWEST localities where you will be
  conducting business by changing the color to red.


Full NPA-NXXs also known as Code Holder,
LERG Assignee, or A Record Holder
REV. 2/28/08
