Introduction to Database Management

1

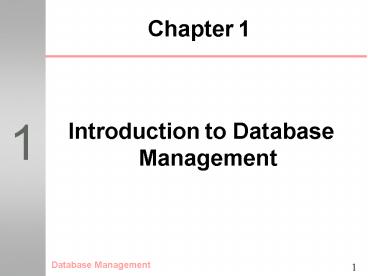

Chapter 1

• Introduction to Database Management

Database Management
2
Objectives

• Provide a general introduction to the field of
  database management
• Introduce basic terminology
• Describe the advantages and disadvantages of
  database processing
• Provide a brief history of database management
• Describe the hierarchical and network database
  models

3
Introduction

• Chapter uses the example of Henry, the owner of
  four bookstores
• Current file system is difficult and costly to
  use
• Interested in different categories of data,
  called entities, including books, authors,
  publishers, and branches, and the relationships
  between these entities

4
Henrys Basic Data

• File - an organized collection of data about a
  single entity
• Record - pertains to a specific person, place,
  thing, or event
• Fields - contain certain facts about that
  specific person, place, thing, or event

5
Figure 1.1 Branch File
6
Figure 1.2 Publisher and Author Files
7
Figure 1.3 Book File
8
Figure 1.4 Book-Author and Book-Branch Files
9
Using a Database Management System (DBMS)

• A DBMS is a program or collection of programs
  whose function is to manage a database on behalf
  of the people who use it.
• Database design is the determination of the
  structure of the database.

10
Figure 1.5 Branch Form
11
Figure 1.6 Book Form
12
Figure 1.7 Book Report
13
Figure 1.8 Main Switchboard
14
Figure 1.9 Maintain Data Switchboard
15
Entities, Attributes, and Relationships

• Entity a person, place, thing, or event
• Attribute a property of an entity
• For the entity Person, attributes could include
  eye color and height
• Relationship an association between entities
• Publishers are related to the books they publish,
  and a book is related to its publisher

16
Figure 1.10 Entities and Attributes
17
Figure 1.11 One-to-Many Relationship
18
Files and Databases

• Data file stores information on a single entity
  and the attributes of that entity
• Database a structure that can store information
  about multiple types of entities, the attributes
  of these entities, and the relationships among
  the entities

19
Database Management System (DBMS)

• DBMS programs manipulate databases either for the
  user, or a program the user is executing
• Mainframe DBMSs have been used since the 1960s
• Since the mid-1980s, DBMSs on PCs possess many of
  the features of their mainframe counterparts

20
Figure 1.12 Using Database Management Systems
21
Database Processing

• Database processing the data to be processed
  are stored in a database and the data in the
  database are being manipulated by the DBMS
• Nondatabase approach
• Duplication of data
• Extremely difficult to fulfill requirements that
  involve data from more than one system

22
Figure 1.13 Nondatabase Approach
23
Database Processing

• Database approach
• Common database managed by a DBMS
• Each entity appears only once in the system,
  reducing the duplication of data
• With all data being in a single database, it is
  possible to list all information concerning the
  entities

24
Figure 1.14 Database Approach
25
Figure 1.15 Advantages of Database Processing
26
Advantages ofDatabase Processing

• Getting more information from the same amount of
  data
• When all the data for various systems are stored
  in a single database, the information becomes
  available, as well as the process of retrieving
  the information can be quick and easy

27
Advantages ofDatabase Processing

• Sharing of data
• Several users can have access to the same piece
  of data
• Balancing conflicting requirements
• A person or group, often called Database
  Administration/Administrator (DBA) can structure
  the database in such a way that it benefits the
  entire organization, not just a single group

28
Advantages ofDatabase Processing

• Controlling redundancy
• Not only saves space, but makes the updating
  process easier
• Consistency
• Consistency is a direct result of redundancy, so
  by reducing redundancy, there is much less
  potential for this sort of inconsistency with the
  database approach

29
Advantages ofDatabase Processing

• Integrity
• An integrity constraint is a rule that must be
  followed by data in the database
• Example Not allowing a persons age to be lower
  than zero
• Security
• The prevention of access to the database by
  unauthorized users

30
Advantages ofDatabase Processing

• Increasing productivity
• A good DBMS comes with many features that allow
  users to gain access to data without having to do
  any programming at all
• Data independence
• A property that allows the structure of a
  database to be changed without the programs that
  access the database having to change

31
Figure 1.16 Disadvantages of Database Processing
32
Disadvantages ofDatabase Processing

• DBMS size
• DBMSs are large programs that occupy a large
  amount of disk space as well as internal memory
• DBMS complexity
• The complexity and breadth of the functions
  provided by a DBMS make it a complex product to
  use

33
Disadvantages ofDatabase Processing

• Greater impact of a failure
• A failure on the part of any one user that
  damages the database in some way may affect all
  the other users on the system
• More difficult recovery
• If the database is being updated by a large
  number of users, all updates must be redone since
  the time of its restoration

34
History ofDatabase Management

• IBM developed the Generalized Update Access
  Method (GUAM) in 1964 for North American
  Rockwell, the prime contractor for the APOLLO
  project
• GUAM was made available for the general public
  under the name Data Language/I (DL/I) in 1966

35
History ofDatabase Management

• DL/I became the data management component for the
  Information Management System (IMS), which was
  the dominant DBMS for many years
• In the mid-1960s, General Electric developed
  Integrated Data Store (I-D-S)

36
History ofDatabase Management

• The COnference on DAta SYstems Languages
  (CODASYL) tackled the problem of providing
  standards for DBMSs in the late 1960s
• In 1971, the CODASYL standards were presented to
  the American National Standards Institute (ANSI)

37
History ofDatabase Management

• Throughout the 1970s, the relational model was
  the subject of intense research
• The 1980s is when the first commercial relational
  DBMSs appeared
• The 1980s saw the development of object-oriented
  database management systems (OODBMSs)

38
Hierarchical and Network Databases

• Four types of data models
• Network
• Hierarchical
• Relational
• Object-oriented

39
Network Model

• Perceived by the user as a collection of record
  types and relationships between these record
  types
• I-D-S and other CODASYL systems are examples of
  DBMSs that conform to the network data model

40
Figure 1.17 Network Database Structure
41
Hierarchical Model

• Perceived by the user as a collection of
  hierarchies, or trees
• More restrictive structure than a network model
• GUAM, DL/I, and IMS are examples of DBMSs that
  conform to the hierarchical model

42
Figure 1.18 Hierarchical Database Structure
