Title: Cookies, Cascading Style Sheets


1

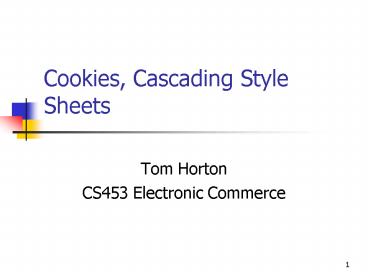

Cookies, Cascading Style Sheets
  • Tom Horton
  • CS453 Electronic Commerce

2
Overview
  • Cookies
  • What, why
  • In JavaScript
  • Style sheets CSS

3
I Want a Cookie!
  • Long long ago
  • Multi-user time-shared computers running only in
    command-line mode
  • E.g. DEC machines running TOPS-10 and the like
  • Run a program in a users account that
  • Prompts I Want a Cookie!
  • Reads the response
  • Only exits if its the right answer
  • Ignores interrupts
  • Ah, simpler times! Those were the good ole days!
    -)
  • Ask me about fish mode (if you dare)

4
Beyond Sesame Street
  • In the past, in general a cookie was
  • Some kind of token or ticket passed from one
    program to another
  • Its contents were often meaningless to the
    recipient
  • But meaningful when passed back to the originator
  • Examples of cookies in real life?

5
Web Cookies (or HTTP Cookies)
  • Browsers allow the storage of limited data on the
    client machine
  • Can be created by the server
  • Or by a client-side scripts
  • Sent back to the server that left it
  • Or ready by a client-side script

6
Whats the Need Behind Cookies?
  • HTTP is a stateless protocol
  • Client requests a page, and server sends it
  • Client later requests a 2nd page it is sent
  • But HTTP doesnt give a way for the server to
    know its from the same user
  • Being stateless is simpler for HTTP
  • But limiting to applications

7
Cookies in Action
  • The scenario is
  • Browser about to send a request for a URL
  • But it first looks for cookies linked to that URL
    that are stored on client machine
  • If found, the cookie is sent to the server with
    the HTTP request for the URL
  • Server uses cookie data
  • E.g. associate this current visit with a previous
    visit
  • Server may then set updated cookie on client
    machine
  • E.g. to be sent back with the next request

8
Purposes of Cookies
  • Authentication
  • User-id, password stored on client
  • Sent on next visit. No login required!
  • Personalization
  • Remember user preference for fonts, colors, skin,
    site-options, etc.
  • Shopping carts
  • Tracking
  • How is our site used?
  • Multi-site tracking by companies looking for
    usage profiles etc.

9
Cookie FAQs and Myths
  • They dont transmit viruses.
  • Cant erase data on client machine.
  • Cant read personal info on client machine.
  • Not used for spamming, pop-ups.
  • Are they spyware? Discuss!

10
Whats in a Cookie? (besides flour)
  • Its just text data as follows
  • NAMEVALUE
  • Name value pairs
  • expiresltdategt (optional)
  • Without a date, deleted when browser closed
  • pathltpathgt (optional)
  • domainltdomaingt (optional)
  • secure (optional)

11
Browser Control of Cookies
  • At least 20 cookies per domain
  • Newer browsers store more
  • But most sites use just one, and have an ID value
    to reference info stored on server
  • Total size limit on all cookies (e.g. 4K for IE)

12
Browser Control of Cookies (2)
  • User can control how theyre handled
  • Dont let server write them to client PC
  • Asks permission (perhaps with a white-list)
  • Always accept them
  • Perhaps except for those on a black-list
  • User can view and manage cookies
  • E.g. Firefoxs Preferences-gtPrivacy-gtShow Cookies

13
Try This at Home!
  • In your browsers address field, type
  • javascriptalert("Cookies "document.cookie)
  • Note javascript pseudo protocol
  • You know alert in JavaScript now
  • Looks like the DOM lets us see a cookie

14
To Do at Home
  • On your machine, explore your own cookies
  • Try to see what some of them might be for
  • Based on what you know of the site
  • Tuesday share your newly found cookie knowledge
  • BTW, feel free to toss your cookies that you
    dont care for (while youre at it)

15
Some History
  • First supported in Netscape Mosaic version
    0.9beta (Oct 1994)
  • Lou Montulli and John Giannandrea
  • Patent applied in 1995, granted in 1998
  • First use visited Netscapes site already?
  • Initially little user knowledge
  • Until controversy in 1996 and 1997

16
Again, How Do I Write One?
  • Clearly important for server-side scripts
  • Server sends an HTTP message to the client
  • Scripting languages simplify this
  • E.g. PHP setcookie(name, value,)
  • More on this later
  • Server-side scripting and Session IDs

17
JavaScript on the Client-Side
  • Can just do this (on one line)
    document.cookieusertomdomaincs.uva.edupath/
    cs453 secure
  • But in Virtual Labs, Adv. Exercise 5, we have
    three functions for your .js library
  • SetCookie(), GetCookie(name), DeleteCookie()
  • These are widely available
  • Original versions attributed to Bill Dortch
  • In various books (including Estrellas)

18
More Reading
  • Wikipedia has a nice article
  • Note issues on laws governing cookies!
  • Why? The White House, the NSA and the CIA have
    used cookies to track users
  • Various websites
  • Check your browser for what it does and what it
    can tell you

19
(No Transcript)
20
Style Sheets
  • Recall design goal to separate structure of
    documents from display
  • But display matters a lot
  • CSS Cascading Style Sheets
  • For us, with HTML
  • Brief details here
  • Web resources many, including
  • http//www.w3schools.com/css/default.asp

21
Ways to Specify Style
  • Multiple ways
  • Put STYLE attribute on elements
  • ltP STYLEfont-size 20pt color 0000ffgt blah
    blah lt/Pgt
  • Use a STYLE element in your HTML file
  • Use an external style-sheet

22
STYLE element in HTML
  • Think of this as an in-line style-sheet
  • Assigns style-rules for element types
  • Defines new style-classes
  • Groups a set of styles and gives them a name.
  • They can be applied to HTML elements.
  • Put in the ltHEADgt
  • ltSTYLE TYPEtext/cssgtlt!-- style rules and
    class in here --gt
  • lt/STYLEgt

23
Example
  • ltstyle type"text/css"gt
  • lt!--
  • body margin-left 0px margin-top 0px
  • background blue color white
  • h1 font-family Arial, sans-serif color
    yellow
  • h1hover color red
  • .strong font-weight bold color red
  • --gt
  • lt/stylegt

24
Example
  • ltHTMLgtltHEADgt
  • ltTITLEgtCSS Demo 1lt/TITLEgt
  • ltstyle type"text/css"gt
  • lt!-- CSS on previous slide goes here --gt
  • lt/stylegt
  • lt/HEADgt
  • ltBODYgt
  • ltH1gtA Headerlt/H1gt
  • ltPgtFirst paragraphlt/Pgt
  • ltP CLASS"strong"gtSecond Paragraph with
  • ltSPAN STYLE"color white"gtsomething that
    overrideslt/SPANgt
  • a style.lt/Pgt
  • lt/BODYgtlt/HTMLgt

25
Output
  • A Header turns red on mouse-over

26
External Style Sheets
  • Want a common look and feel?
  • Write once!
  • Put CSS statements in a .css file
  • In your HTML file
  • ltHEADgt
  • ltTITLEgtCSS Demo 2lt/TITLEgt
  • ltLINK REL"stylesheet" TYPE"text/css"
    HREF"demo1.css"gt
  • lt/HEADgt
  • REL means relationship between two files

27
Another Example
  • The CSS
  • A text-decoration none
  • Ahover text-decoration underline color red
  • background-color CCFFCC
  • LI EM color red font-weight bold
  • UL margin-left 1cm
  • UL UL text-decoration underline margin-left
    3cm

28
HTML for previous CSS
  • ltBODYgtltH1gtDemo 3 More CSSlt/H1gt
  • Here's ltA HREF"http//www.sun.com"gta linklt/Agt
  • to ltEMgtSun's site.lt/EMgt
  • ltULgt
  • ltLIgt Item one. ltEMgtOf course!lt/EMgt
  • ltULgt
  • ltLIgt SubItem one.
  • ltLIgt SubItem two.
  • lt/ULgt
  • ltLIgt Item two.
  • lt/ULgt
  • lt/BODYgt

29
Output
  • Note ltEMgt style governed by nesting
  • Note separate style for nested ltULgts
  • Link displayed different on mouse-over

30
More, Advanced CSS
  • Positioning options not normally possible in HTML
  • Background images
  • Element dimensions
  • Text flow
  • User style sheets can override page authors
  • Compatibility issues

31
References
  • W3C
  • Documentation on various levels of CSS
  • And Wikipedia
  • And many many books
  • See UVas Safari on-line collection

32
Concluding Remarks for this Unit
  • Youve seen the components of DHTML
  • HTML
  • JavaScript
  • CSS
  • Youve got the idea of Cookies
  • You know something more about client/server
    relationships and web pages
  • Ready for server-side activities
  • But first, some security topics
