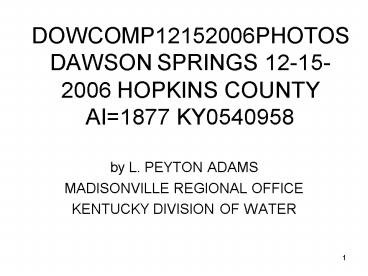

DOWCOMP12152006PHOTOS DAWSON SPRINGS 12-15-2006
HOPKINS COUNTY AI1877 KY0540958

• by L. PEYTON ADAMS
• MADISONVILLE REGIONAL OFFICE
• KENTUCKY DIVISION OF WATER

2
DAWSON SPRINGS WATER TREATMENT PLANT
3
AERATOR
4
RAPID MIX, FLOCCULATION, AND CLARIFICATION
5
CLARIFIERS WITH FILTER ROOM DOWN THE HILL
6
WEST CLARIFIER
7
BACKWASH GRAVITY TANK
8
LAKE BESHEARS THREE LEVEL INTAKE WITH WATER
PULLED OFF THE 8 FOOT LEVEL. IT IS RECOMMENDED TO
EVALUATE THE SEDIMENT PATTERN ON THE BOTTOM OF
LAKE BESHEARS AND WHAT LONG TERM INTAKE UPGRADES
MIGHT HELP FOR THE FUTURE.
9
INTAKE
10
DAM WITH TWO DRILLED CORES AND A BACKHOE WORK
AREA THAT IS NOT AS TIED IN FOR SOIL AS THE REST
OF THE DAM.
11
CORE DRILLED WELLS CROWN AND DOWNSLOPE WITH
PRINCIPLE SPILLWAY VISIBLE AT FOOT OF DAM
12
PRINCIPLE SPILLWAY LAKE BESHEARS
13
CROWN OF DAM WITH TWO CORE MONITORING WELLS
14
INTAKE STRUCTURE FROM PUMPING STATION
15
FENCED WITH LOCKED GATE RAW PUMPS
16
RAW PUMPS AT 2000 GPM
17
K2MNO4 RAW FEED TANKS
18
Day and bulk tanks at raw. Water Withdrawal
number is 0822 for 1.3-1.6 MGD
19
Feeder pumps for K2MnO4 at raw in its insulated
and locked building inside the fence.
20
Logbooks for feeders
21
Feed lines into the raw water line
22
Telemetry
23
Control panels
24
Raw totalizer
25
Raw water control panel
26
Pump 2 totalizer. Pumps are alternated.
27
Terry Messamore at first distribution sampling
station on the main line. It is recommended that
the operators be provided with DPD pocket
colorimeter calibrated meters for field use on
the MOR instead of the color wheels which depend
upon eyesight. MOR tests need to be per 40 CFR
Part 136. Color wheels can be used for process
control.
28
Chlorine sampling in distribution on Walnut Street
29
Terry Messamore getting a chlorine reading within
0.1 of the DOW DPD Colorimeter II
30
Hall Street tank paint job on the exterior is
peeling off
31
Peeling paint exposing primer on the Hall Street
tanks which serve largely South Hopkins Water
District
32
Antenna and gauge for Hall Street tank
33
Control room for Hall Street tank telemetery
34
Sample port and tank totalizer building
35
Hall Street exterior tank paint issues
36
The overflow for the Hall Street tank does not
meet the 10 State Standards for needing to be at
least 10 feet from the base of the tank.
37
Meter reading taken through plate on top of heavy
lid over pit
38
North Hall Street tank with paint peeling
39
Corrosion and paint peeling on Hall Street tank
40
North Hall Street tank ( the older one) with its
overflow not meeting the 10 State Standards for
being 10 feet away from the foundation of the
tank.
41
Terry Messamore at the Dairy Queen sample point
for distribution
42
Sampling out Hwy 109 where the line is due to be
replaced to improve pressure. Line is flushed to
keep it turning over.
43
Sampling the Hwy 109 site
44
New tank
45
Base of the new tank
46
The newest elevated tank
47
Oldest Meadow Hill 300,000 gallon tank. This tank
gets the clearwell pumps and then pumps to fill
the new 500,000 gallon elevated tank. The Hall
Street tanks are used largely by South Hopkins
Water District while the new Meadow Hill and this
old one equipped with a bypass for repairs now
serve the town of Dawson Springs.
48
New tank has a bladder equipped overflow line of
the larger size and pumped at least 10 feet from
the base of the legs. Note the ladder guard.
49
Booster station to the new tank
50
System pressure gauges on the new booster station
51
SCADA readout on the tanks and distribution pumps
52
Booster pump station data
53
Fenced in tanks with a ladder guard for security
54
Bladder type overflow pipe with splash guard
meeting the 10 States Standards
55
Fence at base of oldest tank on Meadow Hill with
rust stains on exterior paint
56
Floor drain on booster station and pit
57
Meadow Hill ground storage tank with air gap to
drain away from foundation with screen intact on
paint damaged overflow pipe.
58
Morton Tank plate for construction in 1967
59
Paint damage near gauge
60
Elevated tank telemetry near booster station to
feed SCADA.
