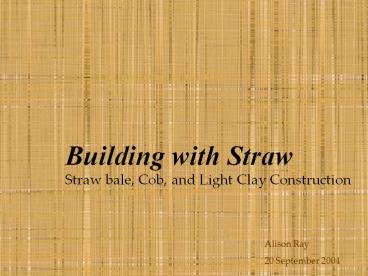

Building with Straw

1
Building with Straw

• Straw bale, Cob, and Light Clay Construction

Alison Ray 20 September 2004
2
An experience with straw Bioconstruindo 2004
Heidi Queen of the Strawbale Pile
Brazilian Cerrado, Rippin the Curl
3
Bioconstruindo bamboo geodesic dome, vigas
reciprocas ferrocement caixa de agua
4
Quick History of Straw Bale Homes

• 1800s Nebraska Settlers
• Lumber expensive and sod too precious but straw
  was extremely abundant!
• Invention of horse-powered baler in mid-1800s and
  later steam-powered made home construction faster
  and more efficient
• Warm in winter and cool in summer, not just a
  temporary thing

5
Constructing a Straw Bale Space

• Straw bales are stacked like blocks to form the
  walls of a structure
• Load-bearing walls
• Infill for post and beam
• Straw bale walls are highly insulative (up to
  R40), sound proof, and when plastered resistant
  to fire, vermin, and decay
• Works great in combination with cob

6
Laying and sewing the bales
7
Binding the bales with wet cob
8
Nearing the top
9
Natural plastering cob and clay
10
Almost done
11
Quick History of Cob

• Cob is an old Devon word for mud wall
• Cob has been Devons traditional construction
  material since 14th century.
• Traditionally, straw and dung, were added to the
  clay sub-soil to reduce cracking
• Cob can last for many years so long as it does
  not accumulate moisture
• Some houses in England are 600 years old and
  still standing

12
Cob Construction

• Cob is a mixture of clay and sand (earth), straw,
  and water
• Cob walls have no structural elements
• Natural plaster or rendering must be applied to
  prevent moisture
• Cob is favored for its freeform quality

Our cob bird-bench
Mixing the clay, sand and water takes muscles!
13
Advantages of Cob

• Abundant, inexpensive and replenishable material
• Free-form, creative and artistic
• Easy to do (and fun!)
• Structurally more stable than conventional homes
  to earth quake
• Cob is a flexible material that moves with the
  Earths movements while staying together
  (allowing for rounded, natural shapes
• Provides thermal mass, storing suns energy and
  releasing it at night but also cool and shaded in
  the day

14
Cob socials! Fun to dance and play with the
earth while creating functional art!
15
Inserting a window into a cob wall
Forming cob bricks from the wet material
16
Cob wall with tree stump decoration
Cob Giant (oven and bench)
Yes, its the same picture, but look at the cob
this time!
17
Taipa Leve Light Clay

• German tradition for over 400 years
• Leichtlehm or Wattle and Daub
• Timber provides most of the load-bearing
  structure
• straw, earth, woodchips, sawdust or any material
  provide insulation and infill
• Panels created to be independent so houses could
  be easily deconstructed and transported

18
Using Light Clay Construction

• Loose straw or other material is coated in a clay
  slip then tamped into temporary forms for infill
  of a wood frame
• The material will dry about 1 per week, an
  applied plaster prevents moisture from entering
  the wall
• Panels are light weight, insulative, non load
  bearing and great sound proofing
• This technique can also make sawable construction
  blocks

19
Creating light clay walls
20
Tamping down the walls
21
Building the Walls
22
Natural Building is good for the environment, for
human health, and community-building, but most of
allits fun!!
