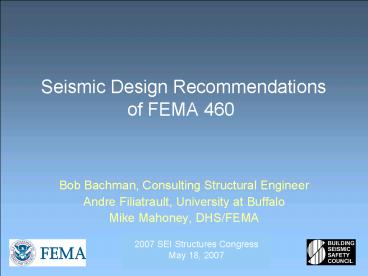

Seismic Design Recommendations of FEMA 460

1
Seismic Design Recommendations of FEMA 460

• Bob Bachman, Consulting Structural Engineer
• Andre Filiatrault, University at Buffalo
• Mike Mahoney, DHS/FEMA

2
Background

• FEMA approached by State of Washington for
  guidance on racks in public retail facilities
• Concern after fatality from falling pallet
• Increased by Nisqually earthquake.
• Current industry standards outdated (94 NEHRP).
• Reports of failures in past earthquakes and in
  industry.
• FEMA contracted with BSSC to study and develop
  guidance (FEMA 460).
• Published in September 2005

3
Who Developed FEMA 460 ?

• BSSC Storage Rack Task Group (11 members)
• Robert Bachman, RE Bachman Consulting Structural
  Engineer
• Victor Azzi, RMI Consultant
• Morrison Cain, Retail Industry Leaders
  Association
• Dan Clapp, Frazier and RMI Spec Committee
• Andre Filiatrault, State University of New York
  and MCEER
• Ron Gallagher, Gallagher and Associates
• Peter Higgins, Peter Higgins Consulting Engineers
• Josh Marrow, Simpson, Gumpertz and Hegger
• Joe Nicolletti, Retired from John Blume and
  Associates
• John Nofsinger, RMI Managing Director
• Maryann Phipps, Estructure

4
Rack Project Task Group - Others Involved

• FEMA Representatives
• Michael Mahoney
• Robert Hanson
• Government Advisory Members
• Richard Eisner, California OES
• George Crawford, Washington EMD
• Jeffery Lusk, FEMA
• Chris Jonientz-Trisler, FEMA
• BSSC Staff and NEHRP Contact
• Bernard Murphy, BSSC
• John Gillengerten, Chair, NEHRP
  TS-8

5
(No Transcript)
6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
Cross-Aisle Collapse at the Santa Clarita Stores
Building Materials Area
10
Cross-Aisle Collapse at the Santa Clarita Stores
Tile Area
11
Cross-Aisle Collapse Note Shrink Wrapping
12
Content Spillage Door and Window Area
13
Content SpillageWood Trim and Moulding Area
14
Content Spillage Paint Area
15
Content Spillage Small Item Area
16
SIGNIFICANT FINDINGS

• Current Seismic Rack Design Criteria based on
  early 1970s approach.. K 1.0 for moment frames
  and K 1.33 for braced frames. Equivalent to R
  5.7 and R 4.3 today
• 2003 NEHRP is R 6 and R 4
• 1997 UBC is R 5.6 and R 4.4
• No detailing requirements in RMI Specification
  no use of Oo
• No publicly available evaluation on the failures
• 2003 NEHRP For Racks in Public Areas I 1.5
• 2003 NEHRP - Minimum Force Vmin 0.14SDSI

17
RMI SPECIFICATION

• Initially developed in early 1970s
• Included 1970s seismic criteria based on K1.0
  and
• K 1.33 No detailing requirements
• Updated routinely includes testing procedures
• Latest update 2002 edition ANSI 2004
• Currently based on 1994 NEHRP Provisions and Base
  Shear Equations (I.e. T 2/3 ) Old Soil Factors
• Has own 1994 NEHRP Maps Do not include Ev in
  load combinations.
• R 4 and 6 Ip 1.5 for racks in public
  accessible areas

18
RACK BEHAVIOR

• Moment Frame Direction Connections highly
  nonlinear
• 1. Rotational Capacity 0.10 to 0.20
  radians
• 2. Nonlinear behavior occurs in the
  connection not the
• column or beam
• 3. Periods in Range of 1.5 to 2.5 seconds
• Braced Frame Direction Connections nonlinear
• 1. Limited nonlinear capacity
• 2. At high seismic loads pallet can
  slide reducing design loads

19
TESTING

• 1980 Blume Shake Table and Component Tests
• 1. Shake Table Tests
• 2. Component Tests
• 3. Calibrate to the UBC at elastic level
  (1/2 El Centro)
• 4. No explicit thoughts how much higher
  levels should
• be able to handle without collapse
• Recent Tests by Filiatrault Home Depot and
  Interlake
• RMI Component Cyclic Testing Remove minimum

20
FEMA 460

• Chapter 1 Introduction
• Chapter 2 Damage in Recent Earthquakes
• Chapter 3 Codes/Standards for Storage Racks
• Chapter 4 Current Seismic Design Practices
• Chapter 5 Performance Expectations
• Chapter 6 Suggested Improvements to Design
  Practices
• Chapter 7 - Guidelines for Specifying, Procuring
  and Installing
• Chapter 8 - Suggestions for Securing Contents
• Chapter 9 - Suggestions for Installation,
  Operation, Inspection and Maintenance
• Chapter 10 - Suggestions for QA Programs
• Chapter 11 - Review of Past Research
• Chapter 12 Inspection of Racks and Contents
  after Earthquakes
• Chapter 13 Summary and Recommendations
• Chapter 14 - References and Bibliography

21
FEMA 460 Suggested Down Aisle Evaluation Approach

• Developed simple displacement-based seismic
  design procedure to verify collapse prevention of
  storage racks in their down-aisle direction under
  MCE ground motions
• Derived simplified expressions for down-aisle
  fundamental period, base shear and top lateral
  displacement of storage racks
• Approach based on observation that at higher
  levels of earthquake ground motion, racks tend to
  respond as nonlinear SDOF systems in the down
  aisle direction

22
Down Aisle Moment Connection BehaviorNonlinear
Behavior in Connection !
Mc
kc
q
Mc kc q
23
Proposed Displacement-Based Procedure to
Evaluate Collapse Margin

• Step 1
• Assume experimental connection curve for
  particular type of beam-to-upright connector
  considered is available
• Step 2
• Compute fundamental period

24
Proposed Displacement-Based Procedure to Verify
Collapse Margin

• Step 3
• Compute maximum first order displacement demand
  at effective height of rack for MCE ground motion
  using equation from 2003 NEHRP Provisions
• Step 4
• Compute maximum displacement demand Dmax by
  adjusting D for second order effects

25
Proposed Displacement-Based Procedure for
Collapse Prevention

• Step 3
• Compute maximum first order displacement demand
  at effective height of rack for MCE ground motion
  using equation from 2003 NEHRP Provisions
• Step 4
• Compute maximum displacement demand Dmax by
  adjusting D for second order effects

26
Proposed Displacement-Based Procedure to
Evaluate Collapse Margin

• Step 5
• Determine maximum rotational demand in
  connectors
• Step 6
• Check whether maximum rotational demand is less
  than maximum rotational capacity. If not, modify
  design and repeat Step 1

27
Displacement Based Approach Summary

• A displacement-based procedure to evaluate
  displacement demand and capacity in down-aisle
  direction of pallet-type steel storage racks
  under MCE ground motions consistent with
  performance objectives of US building codes is
  proposed in FEMA 460
• A simple analytical model captures the down-aisle
  seismic behavior of rack structures
• Predictive capabilities of model verified through
  shake table testing of full-scale pallet-type
  steel storage racks at the University at Buffalo
• Experimental connection curves for of
  beam-to-upright connectors must be developed
• Alternate way of estimating demand which
  correlates well with the displacement procedure
  is being proposed for next addition of the RMI
  specification.

28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
Acknowledgements

• Performance-based design procedure and analytical
  model developed as part of FEMA-460 Project
  Seismic Considerations for Pallet-Type Steel
  Storage Racks and their Contents in Areas
  Accessible to the Public
• Funded by Federal Management Agency (FEMA)
  through National Institute of Building Sciences,
  Building Seismic Safety Council (BSSC).
• FEMA 460 available at www.bssconline.org and from
  FEMA by calling 1-800-480-2520.
