Title: ECE 191: Project 11 Winter 2004


1

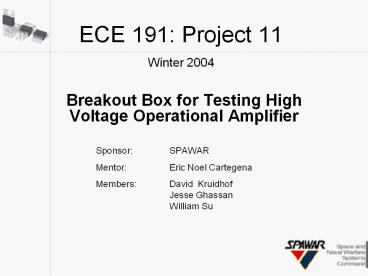

ECE 191 Project 11Winter 2004
  • Breakout Box for Testing High Voltage Operational
    Amplifier
  • Sponsor SPAWAR
  • Mentor Eric Noel Cartegena
  • Members David Kruidhof
  • Jesse Ghassan
  • William Su

2
Agenda
  • Gantt chart
  • Tasks and accomplishments
  • Breakout box design
  • Test board design
  • Future plans
  • Summary

3
Gantt Chart
4
Tasks and Accomplishments
  • Contacted mentor-Jesse
  • Preliminary design of breakout box-David
  • Researched op amp test procedures-Everyone
  • Went to Frys Electronics-William
  • -Collected part information
  • -Submitted part list to mentor
  • Contacted SPAWAR security-Jesse
  • -checked status of clearance

5
Breakout Box Design
6
Breakout Box
7
Breakout Box Description
  • Requirements
  • 3x3 inch box, 1 inch deep
  • 3 coaxial ports
  • 3 banana plug ports
  • Flat pack port on top
  • Problem
  • Socket port is fragile, if the op amp is
    attached/detached too many times, socket is prone
    to breaking
  • Solution
  • Look into ways of reinforcing the socket

8
Test Board Description
  • Board purpose
  • -Tests most of the DC parameters of
    individual op amps
  • Design
  • -6 onboard test circuits used to
    perform 15 measurements
  • Board used to test the following parameters
  • -Input offset voltage, bias current,
    input offset current
  • -Power supply rejection ratio
  • -Output voltage swing, open loop gain,
    slew rate, rise/fall time
  • -Percent overshoot , settling time,
    gain bandwidth product
  • -Phase margin, input noise
  • .

9
Test Board Description
  • 2 layer PCB design
  • Dimensions 6in x 5in
  • Die is placed inside a special 24-pin Dip
  • Dip is placed onto a ZIF (zero insertion force)
    socket
  • ZIF socket allows for any op amp to be tested
  • Circuits can be accessed by switches
  • Only one circuit can be used at a time

10
Future Plans
  • Construct ZIF socket adapter used to interface op
    amp with test board
  • Construct breakout box based upon design.
  • Go to SPAWAR and begin testing of high voltage
    operational amplifiers
  • Next weeks presentation
  • -In depth analysis of test board
  • -Breakout box progress
  • -Initial test results.

11
Summary
  • Breakout Box
  • -Presented design
  • -Conceptual drawings
  • Test board overview
  • Overview of board use and construction
  • Board operation
  • Future plans
