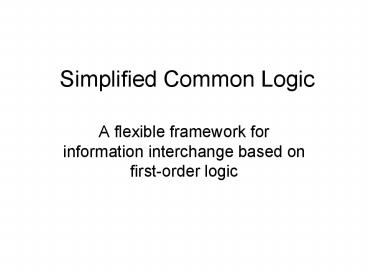

Simplified Common Logic

1
Simplified Common Logic

• A flexible framework for information interchange
  based on first-order logic

2
Simplified Common Logic
SCL ad-hoc working group (formed Dec 2002) Pat
Hayes IHMC, US Christopher
Menzel Texas AM U., USJohn Sowa
VivoMind, USTanel Tammet U.
Goteborg, SwedenBill Anderson
OntologyWorks, USMurray Altheim Open
University, UKHarry Delugach U. of
Alabama, US
3
conventional First-Order Logic

• Lexicon fixed by signature
• Lexicon is pre-sorted into relation/function/indiv
  idual names
• One context-free syntax for expressing logical
  forms
• Only pure logical forms allowed
• No relations in the universe of discourse
• No global naming scheme

4
conventional First-Order Logic (GOFOL)

• Lexicon fixed by signature
• Lexicon is pre-sorted into relation/function/indiv
  idual names
• One context-free syntax for expressing logical
  forms
• Only pure logical forms allowed
• No relations in the universe of discourse
• No global naming scheme

All of this causes problems for interoperability
and information exchange None of it is actually
required by the FO semantics
5
conventional First-Order Logic (SCL)

• Lexicon fixed by signature No signature
  required
• Lexicon is pre-sorted into relation/function/indiv
  idual names Lexical categories implicit
• One context-free syntax for expressing logical
  forms Syntactic options may be user-defined
• Only pure logical forms allowed SCL can be
  intermixed with other content, including XML
  markup
• No relations in the universe of discourse No
  restrictions on universe of quantification
• No global naming scheme Uses WWW standard URI
  conventions

SCL is first-order logic with syntactic
limitations removed and network use in mind.
6
SCL Overview
SCL syntax forms are defined as skins which wrap
the kernel
The Kernel is a minimal language on which the
semantics is defined.
7
SCL Overviewsurface syntax
(forall (?x)(implies (and (P ?x) (R ?x)) (PR
?x))))
Different surface syntax forms all map to the
kernel, which provides a common central notation
for processing and combining information.
_at_every x If P(?x) R(?x) Then PR(?x)
(?x)(P(x)R(x) ? PR(x))
(x)not(P(x) R(x) not PR(x))
8
SCL Overviewontology
Ontology name is URI
name
body

header
Header specifies lexical categories, special
assumptions, name classes
Body contains asserted sentences (axioms)
Both expressed as sets of SCL sentences
9
SCL Overviewontology headers
(( (?x)not(sclRel(?x) sclInd(?x)) GOFOL
syntax sclRel(Married Kissed Boy Girl)
relation names sclInd(Jack Jill) individual
names sclArity(2 Kissed) Kissed can take 2
arguments 2 sclArity(Married) Married must
take 2 arguments 1 sclArity(Boy) end of
header )( Boy(Jack)beginning of
body (?x)not(Boy(?x) (?y)not (Kissed(?x ?y)
Girl(?y) ) every boy kissed a girl Married(Jack
Jill) ))
Header defines syntactic conditions on sentences
in body
Body contains asserted sentences expressing
ontology content
10
SCL Overviewnaming and importing
(sclontology http//purl.org/scl/1.0/FOLheader
(()(?x)not(sclRel(?x) sclInd(?x)) GOFOL
syntax)) ) (( sclimport(http//purl.org/scl/1.0/
FOLheader ) sclRel(Married Kissed Boy Girl)
relation names sclInd(Jack Jill) individual
names sclArity(2 Kissed) Kissed can take 2
arguments 2 sclArity(Married) Married must
take 2 arguments 1 sclArity(Boy) end of
header )( Boy(Jack)beginning of
body (?x)not(Boy(?x) (?y)not (Kissed(?x ?y)
Girl(?y) ) every boy kissed a girl Married(Jack
Jill) ))
11
SCL Overviewontology headers
One can put it all in the body, and always have
an empty header (( )( sclimport(http//purl.o
rg/scl/1.0/FOLheader ) sclRel(Married Kissed
Boy Girl) sclInd(Jack Jill) sclArity(2 Kissed)
2 sclArity(Married) 1 sclArity(Boy)
Boy(Jack) (?x)not(Boy(?x) (?y)not (Kissed(?x
?y) Girl(?y) ) Married(Jack Jill) )) This is
satisfiable iff the original is, but now one
cannot distinguish semantic from syntactic
errors they both appear as logical
inconsistencies. The same semantics handles
headers and bodies in a uniform way.
12
SCL semantics
One universe of discourse all quantifiers range
over it. Relations may be in the universe, or may
not. Functions are treated as a special class of
relations. To allow a fully general syntax, we
distinguish relations from their extensions. This
also allows intensional theories of relations,
providing extra flexibility. (Similar to
treatment in RDF.)
13
SCL semanticsFIT
A lexicon is just a set of names, all with the
same status. Interpretations are required to
provide a meaning for any term which can be
constructed from these names (i.e., in effect,
for the Herbrand universe) this is called the
fitting condition. They are also required to be
extendable so as to satisfy the header (relations
mentioned in the header are not required to be in
the ontology universe). Interpretations which do
not satisfy the header are considered to be
illegal. All of this allows the signature to be
determined by the semantic interpretation, and so
described in a uniform way in SCL itself.
14
The SCL Kernel
Intended for metamathematical use in writing
specifications and processing by software.
Minimal syntax, not very readable, but easy to
define syntactic mappings into and to define
semantics clearly and transparently. Completely
defines the semantics of all SCL surface syntax
forms.
15
The SCL Kernel terms and atoms
No lexical distinction between relation names,
individual names or variables all referring
expressions are treated uniformly. Terms and
atoms formed by applying a term to a sequence of
terms no syntactic restrictions on what symbols
appear where. married(Jack Jill)when(married(Jack
Jill))3pm(thursday(week(12 year(1997))))married
(x) wife(x)JillConjugalStatus(married
Jack)ConjugalStatus(Jill)(Jack)
16
The SCL Kernel terms and atoms
No lexical distinction between relation names,
individual names or variables all referring
expressions are treated uniformly. The same name
may play many roles at the same
time married(Jack Jill)
binary relationwhen(married(Jack
Jill))3pm(thursday(week(12 year(1997))))
binary functionmarried(x) wife(x)Jill
unary predicateConjugalStatus(married
Jack) individual entityConjugalStatus(Jill)(
Jack) value of a function and also
a unary predicate, but not mentioned
explicitly. All of these can be used in the same
ontology, preserving their intended meanings.
17
The SCL Kernel sequence vars
seqVars can be used to indicate an arbitrary
sequence of any finite length. a(x _at_z) stands
for the infinite set a(x) (z) a(x z) (z z)
a(x z z) (z z z) a(x z z z)
18
The SCL Kernel sequence vars
This axiom scheme convention allows a form of
inductive definition to be used at the top level
in SCL, e.g. list()nillist(x _at_y)cons(x
list(_at_y)) entails all sentences like list(a b c
d)cons(a cons(b cons(c cons(d nil)))) So
together with r(_at_y) iff r(list(_at_y)) can be used
to render all argument sequences as explicit
lists and hence defines the standard trick
(used in RDF and OWL, for example) for mapping
n-ary relations into unary predicates.
19
The SCL Kernel logic
andnotforall
(a b c )not a(a) b
That is all.
20
The SCL Kernel headers, etc.
Headers ((header)(body))Definitions
(ontology ltnamegt ((header)(body)) Importations
import(ltnamegt) Special forms numerals,
quoted strings Special names sclArity sclInd
sclRel sclFun intended for use in headers
21
The SCL Core
Extends Kernel to full FO notation with several
convenient features, including

• role-set syntax for atomic sentences eg
  MarriedwifeJill husbandJack
• restricted (sorted) quantifiers egforall
  (xhuman) exists (ydog)

Intended as a canonical SCL syntax for
human-oriented readability. Can be viewed as an
SCL skin. Completely reducible to the kernel
syntax.
22
SCL skin 1 KIF
Most of KIF 3.0 syntax can be immediately
transcribed into the SCL kernel as a simple
skin. (Exceptions definitions quantified
sequence variables (free are OK)
function/relation convention is modified)
23
SCL skin 2 Concept Graphs
CG syntax represented as can be immediately
transcribed into the SCL kernel as a skin, and
indeed vice versa. (sequence variables map into
applications of relations to lists, which are
described in an SCL header.)
24
SCL skin 3 RDF/OWL
RDF(S) maps directly to the conjunctive/existentia
l case of SCL (Datatyped literals are handled by
functions.) OWL-DL maps to the first-order
subcase of SCL using a conventional embedding of
description logics to FOL.
25
SCL work still to do

• Finish specification of XML-based interchange
  syntax
• Write up detailed account of skin-fitting
  algorithm
• Provide general criteria for conformance of
  alternative syntaxes
• Establish clear guidelines for embedding SCL into
  conventional FO syntax using holds/app
  translation, with equality, to provide for SCL
  inference using conventional reasoning engines.

Projected date for draft document is mid-January
2004
