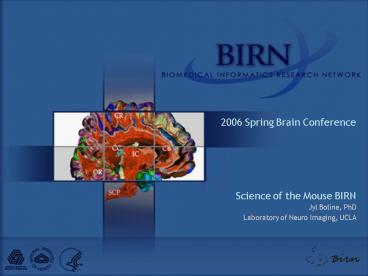

2006 Spring Brain ConferenceScience of the
Mouse BIRN

• Jyl Boline, PhD
• Laboratory of Neuro Imaging, UCLA

2
Goals
Tools to share and mine multi-scale structural
and functional mouse brain data

• Digital Atlases
• Integrate Gene Expression Efforts
• Automated Image Processing
• Integrated Interface Applications
• Focus on
• Neurodegenerative Diseases

3
Participants
UCLA LONI
Informatics Center for Mouse Neurogenetics
(UTHSC, Drexel)
Duke (CIVM)
Caltech (Beckman)
UCSD (NCMIR)
4
Why the Mouse?

• Mouse closely related to humans
• Most human genes have mouse counterparts

Human genome sequenced and published in Nature,
April 2003 Mouse genome sequenced and published
in Nature, December 2002
5
Mouse Models of Neurological Disease

• Disease causing mutations in humans often cause
  similar diseases in mice
• Targeted gene replacement
• mouse models of disease

6
Other Advantages of the Mouse

• Single Strain Models
• Strain is its own control
• Multiple imaging modalities
• Study progression
• Different therapies
• Statistical significance
• Multiple strains genetics and environment

7
Explosion of Data
Financial Anatomy
Research projects and programs supported by
Department of Health and Human Services for mouse
genetics 2001-2006

• Mouse Genetics Initiatives
• NIH Knockout Mouse Project
• NIH Plan for Mouse Genomics Genetics Resources
• NIMH Molecular, Cellular Genomic Neuroscience
  Research Branch
• NINDS Program Area NINDS

GENSAT 2146 genes
Mouse Genome Informatics 1466 genes
Knockout mouse project projected per year 20
million 18 K for microarray analysis of each
line.
8
How to Face the Challenge?
9
Paradigm Digital Atlases

• Highlight Anatomy
• Nomenclature
• Coordinate System
• Informatics Framework
• Multimodal
• Multiscale
• Integrative
• Scaleable
• Atlas as a Database

10
Focus on Neurodegenerative Diseases

• Alzheimers Disease Test Bed
• Beta Amyloid Precursor Protein (APP) Transgenic
  Mouse
• Multiple Sclerosis Test Bed
• Experimental Autoimmune Encephalomyelitis (EAE)
• Parkinsons Disease Test Bed
• Alpha Synuclein (a-syn) Transgenic Mouse

11
a-synuclein Mouse Model of Parkinsons Disease
Assessment of cognitive and motor function
Genetic analyses
Correlation of large-scale mapping of
immunolabeling and MRI studies
Ultrastructural studies using EM
12
Images into 3D Anatomic Structures
Maryann Martone, UCSD
13
Probabilistic Atlas
T2-weighted MRM scans of 25 adult C57/Bl/6J mice
14
Mapping Phenotype to Genotype to Behavior
submission
disappointment
optimism
15
Mouse BIRN Data Integration Framework
1. Create multimodal databases
4. Use mediator to navigate and query across
data sources
2. Create conceptual links to a shared ontology
3. Situate the data in a common spatial framework
16
Data in a Common Spatial Framework
17
Designing this Framework
Spatially Coregistered Images in Database
Ontologies
MOUSE BIRN ATLASING TOOLKIT
Coregistered Atlas Modules
Web Based Resources
18
Mouse BIRN Atlasing Toolkit (MBAT)
19
Delineations
20
Intuitive Link to Databases
GeneNetwork allows access to many kinds of data,
but several steps (shown here) are needed to
find the gene expression level in a single
structure
With MBAT, gene expression levels are quickly
returned and displayed for multiple
areas Comparisons are quick and easy
21
Time for an MBAT Demo?
22
Where to Find Us (nbirn.net)
Jyl Boline jboline_at_loni.ucla.edu
