Title: Architecture of Computational Science Education Portals

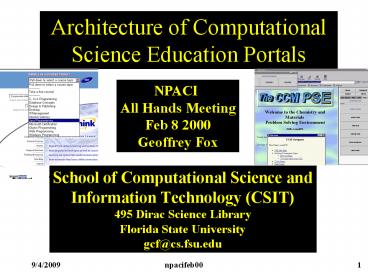

1
Architecture of Computational Science Education
Portals
NPACI All Hands MeetingFeb 8 2000Geoffrey Fox
  • School of Computational Science andInformation
    Technology (CSIT)495 Dirac Science
    LibraryFlorida State Universitygcf_at_cs.fsu.edu

2
Portals in Computational Science Education
  • We are discussing Web-based education or portals
    to a virtual university or virtual corporate
    training center and relation to portals to
    computing
  • Merrill Lynch predicts that Enterprise
    Information portal market will be 15B by 2002
  • So assume that we are building education portals
    in terms of Distributed Educational Objects --
    this is not really an assumption but a statement
    as to language used
  • Portals are built as a customizable set of XML
    components ( e.g. Display a thumbnail of the next
    web-page in lecture or run a Particular Program )

3
Basic Portal Architecture and Inter Relationships
of Education, Computing and other Portals
EnterpriseInformationPortals fromMerrill Lynch
4
Hierarchy of Portals and Their Technology
  • Portal Building Tools and Frameworks (XUL,
    Ninja, iPlanet, E-Speak, Portlets, WebSphere,
    www.desktop.com)

Generic Portals
Collaboration Universal Access Security .
Generic Services
User customization, component libraries,fixed
channels
Information Services
Databases .
Enterprise Portals
Quizzes Grading ...
www.computingportals.org
Compute Services
Education Services
Grid Services Visualization ...
MathML etc
Education andTraining Portals
Science Portals
K-12
University
Biology
Chem Egy
5
Portal Assumptions
  • Portal will be defined by multiple Web Pages made
    up of components defined in (better)portalML to
    define objects, parameters, collaborative
    structure, layout etc.
  • XML Pages access Portal components which at least
    today will mainly HTML

Portal Entry
XML
SubPortal1
SubPortal2
SubPortal4
SubPortal3
XML
SubPortal21
SubPortal22
HTML
Page101
Page211
Page212
Page221
Page301
Page401
6
Computing Portals will build on General Portal
Standards
  • (better)portalML (XUL) -- define the users
    customized portal layout and what they can choose
    from
  • define available objects and layout (number of
    columns etc. generalizes ideas in Flow,..,GridBag
    Object layouts in Java AWT)
  • e.g. ltportal name gtltcolumns3/gtltportalobject
    modeforced sourcegtltplaceat layoutflow1
    position1 gt ...
  • placement of component objects on pages and
    specification of their parameters and location
    e.g. access weather object for suchandsuchcity
    with suchandsuch sensor overlay
  • choice of nifty JavaScript or Java index
  • rendering preferences such as resolutions and
    universal access
  • borders, backgrounds etc.
  • Portal building tools will exist for developers
    (architect template for portal i.e.
    differentiate my.NPACI from my.Netscape) and
    users ( specialize portal template )
  • Such general tools will be competition for
    specialized systems like WebCT for education

7
A Collection of Shared Portal Components
betterportalML document
Web browser
ltsharedportaldefgt . . . lt/sharedportaldefgt
Web page
Regular content
Document Fragments as Shared objects
In W3C DOM, each Web Page (HTML Page)is defined
as a set of Nodes -- You choose which nodes (and
their children) that you wish to share and then
events are exchanged maintaining state
consistency with logic defined by XML page
8
Collaborative Portal Architecture
Content Web Server
XMLContent Pages
Shared Event Service
Style Sheet / User Profile Customization Agent
Events Trapped by Browser and shared by Portal
9
Each Collaborating Client Receives Events
  • Event Stream becomes set of time stamped XML
    messages
  • Pager Cell Phone Email Grid Status Messages
  • Collaboration Control Messages e.g. New
    Participant Joined
  • User Customization specification
  • W3C or Java or Microsoft Client Shared Object
    Definition/Update Messages (e.g. Page Scrolled by
    such and such amount done as XML serialization of
    JavaScript Event object)

Real-Time or off-line (i.e. synchronous
or asynchronous)access of events which
implicitly archive any session
10
Remarks on Event Subsystem
  • Events are messages with typically handlers and
    time stamps
  • Any event subsystem is also a messaging system
  • email, MPI, audio/video streams, W3C Document
    Object Model, any database updates are built on
    events
  • Events are stored in a distributed database (in
    simple cases a queue) supporting necessary
    robustness and performance
  • XML is used to represent all event streams
  • could store in relational tables
  • Must be able to select by key tags such as time,
    source, destination, priority, subject,
    application (multiple tags)
  • body of event must be able to store
    (serialized) objects
  • Must be able both to store permanently, relay
    synchronously (multicast if needed), replay later

11
Distributed Event Subsystem
Java
DistributedServers
DistributedServers
RobustTemporaryActivities
Select/Update
Select/Update
e.g. for routing and caching
e.g. On PC
JavaScript
12
Multiple Modes of Collaboration
Sharing Functionality
Temporal Structure
  • Temporal Structure
  • Synchronous Updates passed on immediately and
    ignored if client not online (Tango, Habanero)
  • Pager Updates passed on immediately if client
    available otherwise queued for later delivery.
    General late-arrival support
  • Push Updates performed at given time interval
    (New York Times web site is updated every 10
    minutes)
  • Asynchronous Client chooses when to access and
    update shared object (You put up a Web Page. I
    eventually look at it)
  • Archive Asynchronous record of one of other
    temporal models.
  • One should integrate support of all models?

13
Collaboration Functionality
  • What features are shared and what can be
    customized on each client and how is sharing
    specified and implemented
  • Collaboration Unaware No effort needed to make
    application collaborative -- this is shared
    display model of VNC, NetMeeting
  • Share desktop or individual windows
  • Share user generated events as well as pixels
  • Shared text or simple web page
  • Collaboration Aware One must explicitly change
    application to specify how each event shared
    (Tango)
  • One can make this easier in particular
    application environments such as Javabeans
  • Collaboration Semi-aware Shared display plus
    special menus which can be customized --
    Promising Direction
  • Collaborative visualization (share 2D or 3D
    Image)
  • Quizzes (support general questions within a fixed
    shared infrastructure)
  • Whiteboard

14
Some Architectural Issues
  • Use the browser mainly for rendering and
    capturing user-interaction events it is not a
    robust virtual machine (container) in which one
    can build WebWindows applications
  • Run an Apache Server on every PC
  • Palm tops are treated as just another browser
  • Where do we need to build new infrastructure and
    cannot re-use existing technology as in CORBA
    Ninja E-Speak etc. ?
  • Event Service
  • Object specification including betterportalML
    properties
  • Collaboration with integrated capabilities
  • Education and Portal Specific Objects/Tools with
    properties such as special collaboration features
  • visualization
  • brainstorming and other learners-teachers
    interaction tool
