Title: Monitoring El Nio With Satellite Altimetry


1

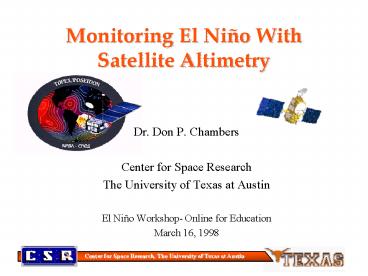

Monitoring El Niño WithSatellite Altimetry
  • Dr. Don P. Chambers
  • Center for Space Research
  • The University of Texas at Austin
  • El Niño Workshop- Online for Education
  • March 16, 1998

Center for Space Research, The University of
Texas at Austin
2
Introduction
  • El Niño has received a lot of attention this
    year, mostly due to the fact that several
    different instruments, both in the ocean and in
    space, detected signals of an impending El Niño
    nearly a year before the warming peaked. One of
    these instruments was a radar altimeter on a
    spacecraft flying nearly 1300 km (780 mi.) over
    the ocean called TOPEX/Poseidon (T/P). T/P was
    launched in September 1992 and is a joint mission
    between the United States and France. It is
    managed by NASAs Jet Propulsion Laboratory and
    the Centre National dEtudes Spatiales (CNES).
  • In this presentation, I will describe in general
    the altimeter measurement and discuss how it can
    be used to monitor El Niño. In particular, I
    will discuss how the altimetry signal is related
    to sea surface temperature, and how it is
    different, and how altimetry can detect El Niño
    signals months before peak warming occurs in the
    eastern Pacific.
  • To begin with, I would like to show two recent
    images of the sea-level measured by
    TOPEX/Poseidon and point out the El Niño
    signatures. Then, I will discuss the
    measurements that went into the image and discuss
    how we know they are really measuring what we
    think they are.

3
  • This is the sea-level anomaly map from the
    TOPEX/Poseidon altimeter, for January 28 to
    February 7, 1998.

4
  • This is the sea-level anomaly map from the
    TOPEX/Poseidon altimeter, for February 7 to
    February 17, 1998. Notice the changes occuring
    in the eastern Pacific.

5
  • A sea-level anomaly is the difference between the
    total sea-level and an average sea-level for this
    time of year. We look at anomalies because the
    total sea-level measurement made by the altimeter
    varies from 100 meters. Most of this is
    constant, though, and is due to the Earths
    gravity and the ocean circulation. Sea-level
    variations caused by El Niño account for less
    than 1 of the total signal. If the constant
    part were not removed, the El Niño signal would
    not be observable.
  • El Niño is evident in the figures on the previous
    page as higher than normal sea-levels in the
    east, and lower than normal sea-levels in the
    west. Sea-level is beginning to drop in the
    east, though, and indications are that El Niño is
    beginning to dissipate. The sea-level is
    actually highest north and south of the equator.
    This is a sign that El Niño is dissipating, and
    will be discussed later. Also, note the high
    sea-levels in the Indian Ocean, which are nearly
    a mirror-image to El Niño in the Pacific. I will
    discuss this later in the presentation as well.
  • The altimeter does not directly produce the image
    shown on the previous slide. Instead, it
    measures the height of the spacecraft above the
    ocean surface, which can be converted into
    sea-level. These sea-level measurements can then
    be mapped to a uniform grid, color coded, and
    displayed. However, the conversion to the
    sea-level measurement is not a simple procedure.

6
  • Recall that TOPEX/Poseidon orbits the Earth at an
    altitude of 1300 km. The altimeter sends several
    thousand radar pulses towards the ocean each
    second then measures the time for the pulse to
    return to the spacecraft. Not only does the
    computer have to match the right transmitted
    pulse with the right received pulse, but it has
    to compute the time of transit properly. An
    error in time of only a microsecond would mean an
    error of tens of centimeters.
  • To get the height of the satellite above the
    ocean, the time for the pulse to return has to be
    converted to range using the speed of light.
    However, the speed of light is constant only in a
    vacuum. The radar pulse travels through the
    atmosphere twice, where it is refracted by air
    molecules, water vapor, free electrons, and is
    partially scattered by surface waves. The size
    of these errors add up to more than 3 meters.
    However, all of them can be measured or modeled.
  • Finally, the precise location of the satellite
    needs to be known, since the sea-level is the
    difference between the satellite location above
    the center of the Earth and the height of the
    satellite above the ocean. If the satellite
    location were only good to 1 meter, then the
    sea-level measurement would only be good to 1
    meter.
  • But, how accurate is the image on the previous
    slide? The accuracy is amazing, considering all
    of these problems listed above about 2 to 3 cm
    (1 in). Thats about the diameter of a quarter.
    We know this because we can compare sea-level
    measured by T/P with sea-level measured at the
    ocean surface with tide gauges.

7
  • Here we have compared altimeter measurements with
    nearby tide gauges at two sites Pohnpei in the
    western Pacific and Baltra in the eastern
    Pacific. Sea-level in these regions are very
    large during El Niño events (indicated by
    arrows). Sea-level is much lower than normal in
    the west and higher than normal in the east as
    will be explained later.
  • If the tide gauges are considered to be perfect
    (which they are not), the accuracy of the
    altimeter is about 3 cm. However, if a more
    realistic error is assumed for the tide gauges
    then the accuracy of the altimeter measurement is
    around 2 cm. Note that we are using the mean
    standard deviation as a measure of error
    differences at some times can be up to 3 times
    this number. Also, comparisons at some tide
    gauges are better or worse. The average is about
    2.5 cm.

Pohnpei in Western Pacific
Baltra in Eastern Pacific
(7N, 158E)
(0, 90W)
Standard Deviation of Differences 3 cm
Standard Deviation of Differences 3.5 cm
Sea-Level Anomaly (cm)
Sea-Level Anomaly (cm)
Year
Year
8
  • T/P flies in a groundtrack that repeats every
    10-days and goes as far north and south as 66
    latitude. This means that it samples
    approximately 400000 points over the ocean every
    10-days. Compare that to ship measurements,
    moored buoys, or tide gauges. However, there are
    still gaps in the data, which means that the
    image in the earlier slide is based on
    interpolating real measurements to a constant
    grid, then smoothing them and plotting them
    graphically and assigning colors based on the
    heights.

Latitude (N)
Longitude (E)
Lines are T/P groundtrack and dots are locations
with more than 24 ship measurements in 3 years.
9
  • Before describing how altimetry can monitor El
    Niño, I would like to discuss how El Niño begins,
    and why El Niño warming causes a sea-level
    variation.
  • During normal conditions, winds blow from east
    to west, due to differences in the atmospheric
    pressure. Normally, a high pressure system sits
    over the eastern Pacific, while a low pressure
    system sits over the western Pacific. Because of
    the low pressure system in the west, there is
    increased upward convection which puts water
    vapor into the atmosphere and results in more
    rainfall in the west than in the east.
  • At the same time, the surface currents along the
    equator generally move east to west. This
    transports water warmed year round by the sun to
    the western Pacific, where it tends to pile up
    before flowing north and south as other currents.
    This pushes down the thermocline, or the region
    where the temperature change with depth is the
    greatest. In the east, cold water upwells, or
    rises up from great depths to
  • replace the warm water which flowed west, and the
    thermocline
  • is shallow.
  • All of this will cause a certain sea-level
    signature, since
  • sea-level is a measure of the integrated water
    density. Warmer
  • water has a lower density than colder water, and
    takes up a
  • greater volume. Thus, sea-level is higher where
    the
  • thermocline is depressed and the upper waters
  • are warm, and sea-level is lower where the
  • thermocline is raised and upper water is cool.
  • Changes in the atmosphere over the
  • western Pacific cause all of this to change.

Figure courtesy of NOAA PMEL
10
  • Several weeks to several months before El Niño
    begins to manifest in the eastern Pacific, a
    dramatic change occurs in the atmosphere over the
    Pacific. The pressure over the western Pacific
    increases while the pressure in the east
    decreases. This causes a change in the wind
    pattern and the convection, as shown in the
    figure below. This atmospheric change is called
    the Southern Oscillation. The Trade Winds
    decrease or even reverse and blow from west to
    east. The equatorial surface current slows, and
    a subsurface current that always exists
    strengthens. This undercurrent has a core at
    about 100 meters depth and always flows west to
    east. Most of the time it dies out in the
    central Pacific. During El Niño, though, the
    current is strong all the way to the Galapagos
    Islands off the coast of South America it
    sometimes surfaces.
  • Thus, there is a change in the ocean associated
    with the
  • Southern Oscillation. In the west, the
    thermocline rises
  • and warm water flows east. In the east, months
    after the
  • initial wind changes, the thermocline gets
    deeper.
  • The upper water column warms, and the sea-level
    rises.
  • This is a simplified model. The ocean takes
  • some time to adjust to the wind changes. One of
  • the primary ways it adjusts during El Niño is
  • through the creation of Kelvin waves. These
  • waves are very different from the surface waves
  • you are probably familiar with and are discussed
  • more in the following slides.

Figure courtesy of NOAA PMEL
11
Cross-Section Looking West Winds east to west
Cross-Section Along Equator, Looking North
  • Although surface currents along the equator
    typically flow east to west, the net transport of
    water in the equator occurs deeper and is away
    from the equator as shown above. This is called
    the Ekman transport, and is named after the
    oceanographer who discovered it. The transport
    is caused by the winds and the Coriolis force,
    which is caused by the rotation of the Earth.
    Ekman found that the net water transport was
    below the surface and that it was perpendicular
    to the wind direction to the right of the wind
    in the north, and to the left of the wind in the
    south. Thus, since the Trade Winds typically
    blow east to west in the equatorial region, the
    net transport is away from the equator. Notice
    the much deeper thermocline, or boundary between
    the warm and cold water, in the west than in the
    east. Most of the sea-level variations measured
    by altimetry are caused by changes in the
    thickness of this layer of warm water.

12
Cross-Section Looking West Anomalous Winds west
to east
Cross-Section Along Equator, Looking North
  • During the Southern Oscillation, winds are weaker
    in the west thus the wind anomaly, or deviation
    from an average wind for that time of year is
    from west to east. This causes a change in the
    Ekman transport in this region. Instead of
    flowing away from the equator, it flows toward
    the equator. To balance this anomalous influx of
    water, the warm water in the upper layer
    downwells to the lower layer. However, the warm
    water is lighter than the cooler water, and is
    naturally more buoyant. The forcing of the
    warmer water into the cooler water will cause an
    oscillation, normally at the steepest density
    gradient, the thermocline. These oscillations
    will propagate away from the source of the wind
    anomaly as very long waves. Along the equator,
    these are called Kelvin waves and they change the
    thickness of warm water in both the west and the
    east, which causes large sea-level changes and
    leads to El Niño.

13
  • Kelvin waves can cross the Pacific in two months.
    They can only exist near the equator due to the
    Earths rotation. The amplitude of the Kelvin
    wave is several tens of meters along the
    thermocline, and the length of the wave is
    thousands of kilometers (1 longitude 111 km)
  • The figure at the right shows Kelvin waves inside
    the ocean, computed with temperature data from
    moored buoys operated by NOAA. It shows the
    depth of the 20C temperature level as a series
    of standard latitude-longitude plots stacked in
    time. The latitude width of each time step is 4
    (2S to 2N) and time is from March 1996 at the
    top to March 1998 at the bottom.
  • Notice the yellow/orange lines which slope across
    the Pacific beginning in January 1997 (marked by
    thick lines). These are Kelvin waves. Eastward
    movement is indicated by the slope in time from
    west to east. These waves set up a change in the
    warm water thickness in the eastern Pacific
    beginning in March. Other Kelvin waves are
    visible after El Niño developed the first two,
    however, were early indicators that an El Niño
    would probably occur this year.

1996
1997
1998
Figure courtesy of NOAA PMEL
14
  • Because a Kelvin wave is associated with density
    fluctuations inside the ocean, it can be seen in
    the sea-level measurements made by altimeters,
    although with a reduced magnitude. The figure to
    the right shows sea-level anomalies determined
    from TOPEX/Poseidon. Notice the two Kelvin waves,
    with amplitudes of 10 and 15 cm in sea-level
    compared to 30 and 40 meters in thermocline
    change. Note that a depression in the
    thermocline (from the previous picture) is
    associated with an increase in sea-level.
  • The Kelvin waves travel east and set up changes
    in the eastern Pacific that lead to El Niño by
    depressing the thermocline there. There are
    smaller Kelvin waves in 1995 and 1996. These are
    seasonal, and do not cause El Niño events.
    However, large Kelvin waves, such as those
    observed in early 1997 almost always lead to El
    Niño events.

A larger version of this image is available
from http//www.csr.utexas.edu/eqpac
15
  • An important thing to realize is that the figures
    on the previous two slide are updated in
    near-realtime they are not figures that are
    produced months to years after the data have been
    processed. This means that the first Kelvin
    wave was noticed by scientists connected with the
    TOPEX/Poseidon project and the TOGA-TAO project
    in early February 1997. Because the Kelvin wave
    was large, it was expected that there would be at
    least a moderate El Niño warming either in the
    late spring or early summer, although at that
    time, no one expected that it would surpass the
    event of 1982-1983. Thus, these scientists were
    not surprised when an official NOAA El Niño
    advisory was issued in April.
  • The plots from the previous slides are still
    updated on a regular basis and are available over
    the World Wide Web. The TOGA-TAO data can be
    accessed from the NOAA Pacific Marine
    Environmental Laboratory
  • http//www.pmel.noaa.gov/toga-tao/realtime.html
  • The TOPEX/Poseidon data can be accessed from the
    University of Texas, Center for Space Research
  • http//www.csr.utexas.edu/eqpac

16
Sea-Level, Ocean Heating, and El Niño
  • I have mentioned several times the correlation
    between sea-level and changes in temperature and
    thickness of the upper layer. Basically, as the
    temperature and thickness of the upper layer
    increases, the sea-level will increase. How well
    does the sea-level follow temperature changes in
    ocean? In the tropical Pacific, the answer is
    very well. One can see this by comparing T/P data
    to data obtained from the TAO moored buoys in the
    Pacific. The buoys measure only temperature at
    various depths, and these can be converted to
    density and then sea-level due to heating
    variations only. The agreement is very good, as
    seen in the figures below. There is more
    disagreement in the western Pacific than in the
    east, due to factors other than heating that
    effect the T/P sea-level measurement in this
    region.

Averaged at TAO Buoys in Eastern Pacific
Averaged at TAO Buoys in Western Pacific
(5S to 5N, 260E - 290E)
(5S to 5N, 150E - 175E)
Standard Deviation of Differences 2.8 cm
Standard Deviation of Differences 3.8 cm
Sea-Level Anomaly (cm)
Sea-Level Anomaly (cm)
Year
Year
17
Sea-Level vs. Sea Surface Temperature
  • Another important type of instrument used to
    measure El Niño is the Advanced Very-High
    Resolution Radiometer (AVHRR). These instruments
    are also based in space, and convert the observed
    infrared radiation into Sea Surface Temperature
    (SST). The SST measured by these satellites is
    really the temperature on the very thin layer at
    the top of the water column. Since sea-level
    change during El Niño is caused mainly by heating
    variations, one would expect that SST and
    sea-level would be very similar.
  • However, there are significant differences.
    Ignoring for a moment the sea-level effects of
    currents, winds, and other forces, recall the
    previous discussion that much of the early El
    Niño signal occurs below the ocean surface. It
    takes some time for heating at 100 m to reach the
    surface. However, the changes will be seen in
    sea-level measured by altimetry or the moored
    buoys which monitor temperatures to a deep level
    as they are happening. This means that altimetry
    can actually see El Niño signals slightly before
    the SST measurements can. The difference in time
    is only slight, about 2 weeks to a month.
    However, by combining the two measurements, one
    can get a more complete picture of how El Niño
    evolves.
  • The next four slides will demonstrate this by
    showing complementary sea-level and SST anomalies
    for each month during 1997. The fifth slide
    following will summarize important events during
    the evolution of the 1997 El Niño.

18
cm
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
  • The T/P data show a Kelvin wave in the central
    Pacific in January, while the SST data indicate
    cooler than normal surface waters in the region.
    By February sea-level and SST were both higher
    than normal in the eastern Pacific after the
    Kelvin wave reached the coast. In March, a
    larger Kelvin wave began forming and can be seen
    in the T/P data again, it is not observable in
    the SSTs.
  • The second Kelvin wave moved across the Pacific
    in April and May, as observed by T/P. By May,
    there was a tongue of warm water extending
    westward past 250E. The T/P data, sensitive to
    heat changes at depth, shows that the warming
    approached below the surface from the west. The
    SST data on the other hand shows the surface
    warming moved west from the coast after the
    Kelvin waves reached the eastern Pacific and
    depressed the thermocline.
  • By July, El Niño had fully developed. Note the
    similarities in sea-level and SST at this point,
    since the heating has mixed throughout the water.
    There are significant differences, though. Peak
    sea-level was to the west of peak SST, and there
    were much larger sea-level changes in the western
    Pacific than SST changes. All of these
    differences were due mainly to sub-surface heat
    changes which the SST data cannot detect.
  • Both sea-level and SST continued to rise through
    the Fall. Both peaked in early December. Note
    the lobes of high sea-level forming north and
    south of the equator in December (indicated by
    arrows). These are indicative of another type of
    internal wave, a Rossby wave. Just like Kelvin
    waves were created when the ocean was adjusting
    to the formation of El Niño, Rossby waves are
    created as it dissipates. These waves move
    westward, and help re-adjust the thermocline in
    the west and east to normal.

23
  • I pointed out the large sea-level anomalies in
    the Indian Ocean at the beginning of this
    presentation. Ill discuss this in more detail
    now. A Quicktime movie that is available
    separately shows the Indian Ocean fluctuations
    more clearly, but the figures below summarize it.
    Sea-level anomalies in the eastern Pacific began
    to move westward from the coast of South America
    in September. Shortly after this, sea-level
    increased suddenly and moved eastward again,
    indicating another Kelvin wave. At the same
    time, large sea-level anomalies developed in the
    Indian Ocean and began to move westward. By the
    end of 1997, sea-level in the southwestern Indian
    Ocean was as anomalously high as it was in the
    eastern Pacific. What was happening?

24
El Niño in the Indian Ocean
/s
  • In October, there was a large eastwardly wind
    burst in the central Pacific. At the same time,
    there was a westwardly wind burst in the central
    Indian Ocean. Wind bursts in these two oceans
    are well correlated during El Niño events as
    shown in the bottom left figure. The wind bursts
    are associated with the Southern Oscillation, as
    shown in the bottom right figure. El Niño events
    are marked with arrows.

)
2
2
SOI
Zonal Wind Stress (m
Zonal Wind-Stress (m
Year
Year
Monthly wind stress anomalies, averaged over the
central Pacific (5N, 180E to 200E) and the
central Indian Ocean (5N, 80E - 100E).
Positive values are eastwardly (Pacific) or
westwardly (Indian). Data are from Florida State
Univ., Center for Ocean-Atmospheric Prediction
Studies.
Difference in Indian and Pacific eastwardly wind
stress, compared against the Southern Oscillation
Index (SOI). The SOI is determined from the
difference in pressure at Darwin, Australia and
Tahiti.
)
2
2
/s
25
  • Recently, several studies have looked at SST
    warming in the southwestern Indian Ocean and the
    eastern Pacific, and have found that there is a
    significant correlation between anomalous warming
    in the Indian Ocean and El Niño (see figure
    below), although SST signals in the eastern
    Pacific are much larger. These studies (Tourre
    and White, 1995 and Nicholson, 1997) have found
    correlations between the Indian Ocean and the
    Pacific for almost every El Niño back to 1946. I
    have looked at the T/P altimeter data and see a
    similar correlation, but the extreme sea-level
    values are closer to the same magnitude (see
    below).

Sea Level Anomaly (cm)
Pacific SST anomaly (C)
Indian SST Anomaly (C)
Year
Year
T/P sea-level anomalies averaged over the same
region.
SST data averaged over southwestern Indian Ocean
and eastern equatorial Pacific. The scale for
Pacific SST anomalies is on the left hand side
the scale for Indian Ocean SST anomalies is on
the right.
26
  • By combining all of these observations with the
    high resolution maps made from the TOPEX/Poseidon
    data, one can begin to see how the Indian Ocean
    warming is related to El Niño.
  • The October wind burst in the Pacific forced a
    Kelvin wave in the eastern Pacific, which caused
    sea-level to peak for a second time off the coast
    of South America. The wind burst in the Indian
    Ocean created Rossby waves which moved westward
    in the Indian Ocean. By December, sea-level in
    the southwestern Indian Ocean was as high as
    sea-level in the eastern Pacific, and was a near
    mirror-image of El Niño in the Pacific. Similar
    variations have been observed during the 1994 El
    Niño. Based on the altimeter observations, it is
    beginning to look like El Niño has a very similar
    mode in the Indian Ocean.
  • Although these results are preliminary, they show
    that there is still a lot about El Niño that we
    do not understand. Continued data from satellite
    altimeters, space-borne AVHRR, and moored buoys
    will all contribute to improving our knowledge.
    Numerical models will also play an important part
    in testing our theories, as I am sure Professor
    OBrien will discuss next week. Understanding
    this apparent El Niño mode in the Indian Ocean
    may help us explain teleconnections between El
    Niño and weather patterns in Asia, Africa,
    Europe, and other sites that are far removed from
    the Pacific.
Write a Comment
User Comments (0)
About PowerShow.com
