Title: Lecture 24 EE743

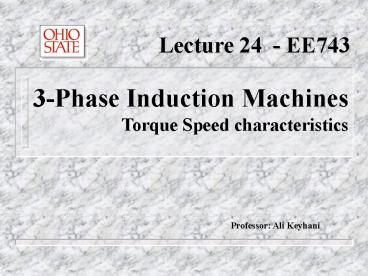

1
Lecture 24 - EE743
3-Phase Induction Machines Torque Speed
characteristics
Professor Ali Keyhani
2
Importance of T-speed characteristics
  • Torque speed characteristic of a motor is
    important from the point of view of its
    applications to specific situations. To calculate
    the torque produced by the machine, first, we
    compute the motor power. The motor power, or the
    mechanical power supplied to the load isThe
    electrical power inputted to the machine can be
    calculated from the eq. circuit given below

3
Importance of T-speed characteristics
4
Machine Torque
  • Power dissipated is
  • Motor power Pem is
  • Motor torque can be calculated from

5
Machine Torque
  • Since Tm can be written as
  • Substituting for I1 in equation (3), we will have

6
Power calculations
  • Figure 2 shows the plot of equation (3) for the
    values of slip from zero to unity. In Fig.1
    . This corresponds to the normal range of the
    speed of an induction motor from starting (?m0,
    s1) to the synchronous speed (?m?sync, s0)

7
smax and Tmax calculation
  • To find smax first set derivative of (4) with
    respect to s equal to zero.
  • Which will results in
  • substituting smax in (4) will result in Tmax

8
Torque-speed characteristic
  • Equation (5) shows that the slip at which the
    maximum torque occurs is proportional to the
    rotor resistance. Equation (6) shows that the
    maximum torque is independent of the rotor
    resistance

9
Torque-speed characteristic
  • The machine is operating as a motor for the range
    of s for which the torque-speed curves are shown
    in fig.1 and fig.2. In this range, torque is
    positive and ?sync is greater than rotor speed
    ?m. Note that the torque is zero at slip equal
    to zero. As was state before, slip is given by
  • Let us consider three different cases

10
Torque-speed characteristic
  • Case 1 ?sync and ?m are rotating in the same
    direction and ?sync is rotating faster than ?m.
  • Case 2 ?sync and ?m are rotating in the same
    direction and ?sync is rotating slower than ?m.
  • Case 3 ?sync and ?m are rotating in different
    directions.

11
Torque-speed characteristic. Case 1.
  • Case 1 ?sync and ?m are rotating in the same
    direction and ?sync is rotating faster than ?m.
  • This case is the normal operation of the
    induction machine. Machine operates as a motor.
    Note also in equation (7) ?sync and ?m are in the
    same direction and the slip is positive for motor
    operation

12
Torque-speed characteristic. Case 2.
  • Case 2 ?sync and ?m are rotating in the same
    direction and ?sync is rotating slower than ?m.
  • If the speed of the machine is increased beyond
    its synchronous speed by an external prime motor,
    but still rotated in the same direction as the
    stator field, the slip will be negative (slt0).
    This region (slt0) corresponds to the generator
    operation. For this region, torque is negative.
    This means that the mechanical power is required
    to drive the machine, which in turn delivers
    electric power at the stator terminals

13
Torque-speed characteristic. Case 3.
  • Case 3 ?sync and ?m are rotating in different
    directions.
  • Suppose an induction motor is operating under
    normal conditions at the same value of positive
    slip in stable region (0ltsltsmax). Now we
    interchange any two terminals of the stator. This
    reverses the direction of the stator rotating
    field. The rotor speed ?m may now be considered
    as a negative with respect to that of the stator
    field. For this case, sgt1 and power loss in the
    variable resistance is negative, indicating
    that mechanical energy is being converted to
    electric energy. Both the power fed from stator
    and power fed from rotor are lost as heat in the
    rotor resistance. This region is called the
    braking region

14
Example 1
  • On no-load a 3-phase delta-connected induction
    motor takes 6.8A and 390W at 220V line to line.
    R10.1?/phase, friction and windage losses are
    120W. Determine Xm,and Rm of the motor equivalent
    circuit.

15
Example 1
16
Example 2
  • The motor of the previous example take 30A and
    480W at 36V line-to-line, when the rotor is
    blocked. Determine the complete equivalent
    circuit of the motor. Assume that X1X2.

17
Example 3
  • An induction motor has an output of 30kW at
    ?0.86. For this operating condition
    Pcoil,1Pcoil,2PcoreProt.Determine the slip

M
18
Example 3
19
Example 4
  • A wound rotor six-pole 60Hz ind. motor has
    R20.8? and runs at 1152 rpm (s0.04) at a given
    load. The load torque remains constant at all
    speeds. How much resistance must be inserted in
    the rotor circuit to change the speed to 960 rpm
    (s0.2). Neglect the motor leakage reactance, X1
    and X2.The air gap power function is

20
Example 4
  • If (see eq. circuit ), the voltage,
    current,air-gap power, and torque conditions
    remain the same, i.e

21
Example 5
  • A 400V, 3-phase WYE connected motor has ,
    and using the approx. eq. circuit. Determine
    the max. electromagnetic power, Pd

22
Example 5
