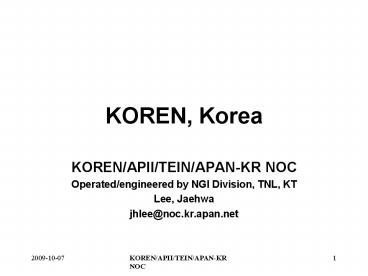

KOREN, Korea

1
KOREN, Korea

• KOREN/APII/TEIN/APAN-KR NOC
• Operated/engineered by NGI Division, TNL, KT
• Lee, Jaehwa
• jhlee_at_noc.kr.apan.net

2
MICs Project 1995-2005

• To help develop information super-highway
  infrastructure technologies
• To help develop applications requiring
  information superhighway infrastruc.
• To help with research and education activities
  more generously
• To make come true information society
• Jointly funded by MIC and KT since 1995

3
Fund by MIC/KT

• 1995-1997
• 7.5M/MIC 11.2M/KT 18.8M/Tot.
• 1998-2000
• 14.7M/MIC 8.5M/KT 23.2M/Tot.
• 2001-2005, almost fixed
• 78.0M/MIC 21.3M/KT 99.2M/Tot.

4
MICs Bigger Information Superhighway Project

• 3 networks
• KOREN Advanced research network
• KII-G/Pubnet National public network
• Commercial networks
• Technology development
• 1995-2000 ATM
• 2001-2005 Optical networking
• Fund
• 1995-1997 2.3B(409.5M/MIC)
• 1998-2000 5.8B(515.5M/MIC)
• 2001-2005 15.0B(1.6B/MIC), almost fixed

5
Network Features

• 1999 New technologies
• IPv4 with MPLS/QoS/native multicast
• Native IPv6
• 2001
• Full ATM except for 2 GbE members
• 155M(member) 155/310/622M(backbone)
• 2002
• Dark Fiber/GbE/SONET/DWDM-based
• 1GbE/10GbE for member
• N(2.5G10G) GbE/SONET for backbone

6
Network Features

• 2002
• Production RE network
• Test program for domestically manufactured
  optical networking equipment under the MICs
  optical networking technology development
• DWDM, OADM, OXC, Gigabit Router
• Projects are planned for e-Education and
  e-Science

7
Peering with other RE Networks

• 2001
• Peering with HPCNet/KREONet2 at 5 nodes
• Peering with KIX/NCA
• 2002
• Peering with KREN and PUBnet
• The whole RE community can use KOREN for
  research
• KOREN as backbone, others as PoP connected to
  KOREN

8
Peering with other RE Networks

• 2002
• A trial for a true regional RE network in
  Kwangju metropolitan city
• Community dark fiber
• Regional IX
• Regional sponsorship for collaboration higher and
  secondary education institutions

9
Peering with other RE Networks in AP Region

• 2001
• APII - APAN Tokyo XP 8Mbps
• APII - SingAREN 2Mbps
• APII - STAR TAP 45Mbps
• TEIN/Renater2 2Mbps
• 2002
• QGPOP 2 1GbE
• SingAREN ?
• TEIN/Renater2 20Mbps or more
• China ?

10
Peering with other RE Networks in AP Region

• 2002
• MIC plans to propose an Asia-wide RE network,
  APREN, which will build upon APII test beds
• TEIN is open to collaboration from other Asian
  countries

11
Peering with other RE Networks in AP Region

• 2002
• Korea-Kyushu Gigabit Network Project
• KJCN between Pusan and Fukuoka/Kitakyushu
• 2 1GbE links between KOREN Pusan node and
  Kyushu Gigapop(QGPOP)
• Hope this can be extended into China from Seoul
• An initiative by APAN-KR in KR and
  QGPOP/ISIT/APAN-JP in JP
• First and great model for Asia

12
Cross-Pacific Connectivity

• 2001
• STAR TAP 45Mbps
• 2002
• STAR TAP 45Mbps
• Via Kyushu-Korea Gigabit Network
• KOREN - QGPOP - Tokyo XP - StarLight

13
International Science Collaboration

• 2001
• Mainly for networking technologies
• 2002
• Since 2001 science has become one of the targets
• International Collaboration Program by NCA

14
Key Science Drivers for Networking

• 2001
• Mainly networking technologies including
  domestically developed networking equipment
• 2002
• Science research using KOREN
• GRID, HEP,
• e-Education, e-Science

15
Deploying Advanced Technologies

• 2001
• Deployed IPv6, multicast, MPLS, QoS
• But members are lagging behind
• 2002
• More members with GbE campus network
• Starting point for a true/complete deployment
• KOREN Measurement Program
• Measurement Framework, Tool for KOREN including
  E2E performance
• Research on MPLS TE policy

16
Members

• 2001
• More than 32 members
• HPCNet/KREONet members via its regional centers
• 2002
• More directly connected members
• KREN/PUBnet members via its regional centers

17
Network Map 2001
KIX
2M
Seoul XP
APAN Tokyo XP
8M
2M
45M
STAR TAP
ATM
ATM/SONET 155Mbps/310Mbps
ATM/SONET 622Mbps
18
Network Map 2002
KIX
34M
APAN Tokyo XP
8M
Seoul XP
2M
STAR TAP
45M
21 GbE
Kyushu Gigapop
Kwangju IX/ Kwangju RE Network
N2.5G or N10G GbE/SONET
ATM
ATM/SONET 155Mbps
19
Plan for Year 2002

• Network upgrade
• N2.5G(SONET/DWDM) for part of KOREN
• 1015 members can have a 1GbE link
• KAIST and KPNU already have a 1Gbe link
• 10GbE experiment for Year 2003
• Korea-Kyushu Gigabit Network Project
• GbE b/w Pusan/KOREN and QGPOP/APAN
• Plan to increase bandwidth of TEIN
• This requires both sides agreement

20
Plan for 2002 - continued

• Covering the whole RE community
• Outreach program for additional members
• Peering with KREN and PUBnet
• Create PoPs in any carriers network with their
  contribution to members link

21
Plan for 2002 - continued

• GRID program
• Members clusters will be connected with a Gbps
  link
• Measurement program
• Toolset, E2E performance, MPLS TE
