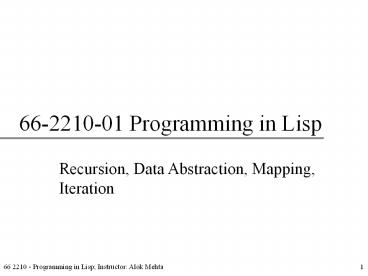

Title: 66-2210-01 Programming in Lisp

1
66-2210-01 Programming in Lisp

Recursion, Data Abstraction, Mapping, Iteration

2
Example Both-ends

Define a procedure that gives both ends of a list
gt (setf itinerary (Albany NYC Chicago Seattle
Anchorage))
gt (both-ends itinerary)
(ALBANY ANCHORAGE)
Three steps
Get first element
gt (first itinerary)
ALBANY
Get last element
gt (first (last itinerary))
ANCHORAGE
Combine the two
gt (list (first itinerary) (first (last
itinerary)))
Define procedure
gt (defun both-ends (l) (list (first l) (first
(last l))))

3
Error handling

Both-ends with error handling
(defun both-ends (l)
(if (listp l)
(case (length l)
(0 NIL)
(1 (list (first l) (first l)))
(t (list (first l) (first (last l)))))
NIL))

4
DoTimes

DOTIMES is Lisps way of doing iteration
C/C
for (i0 iltn i)
ltbodygt
Lisp
(dotimes (i n) ltbodygt)
First parameter is a list with three elements
counter variable (e.g. i)
number of times to iterate (e.g. n)
Counter variable (i) ranges from 0 to n-1
Optional return value can be specified (default
is NIL)
(dotimes (i n return_value) ltbodygt)

5
Factorial

Definition of Factorial
C Implementation
int factorial (int x)
int i,f
f 1
for (i1 iltx i) f f i
return f
Lisp Implementation
(defun factorial (n)
(let ((f 1))
(dotimes (i n)
(setf f ( f ( i 1))))
f
)
)
Tip Compute factorial(100) using C/C and Lisp

6
Recursively Calculating Factorial

Mathematical Definition of Factorial
C/C Implementation
long Factorial (long X)
if (X lt 1)
return 1
else
return X Factorial(X-1)
Lisp Implementation
(defun recursive-factorial (x)
(if (lt x 1)
1
( x (recursive-factorial (- x 1)))))

7
Recursive calls

Show recursion when calling (recursive-factorial
4)
Begin (recursive-factorial 4)
Since 4gt1, evaluate 4 (recursive-factorial
3)
Begin (recursive-factorial 3)
Since 3gt1, evaluate 3
(recursive-factorial 2)
Begin (recursive-factorial 2)
Since 2gt1, evaluate
2(recursive-factorial 1)
Begin (recursive-factorial 1)
Since 1lt1, return 1
End (recursive-factorial 1),
returns 1
2 (recursive-factorial 1) 2 1
2
End (recursive-factorial 2), returns 2
3 (recursive-factorial 2) 3 2 6
End (recursive-factorial 3), returns 6
4 (recursive-factorial 3) 4 6 24
End (recursive-factorial 4), returns 24

8
Fibonacci Numbers

Mathematical Definition of Fibonacci Numbers
Sequence
X 0 1 2 3 4 5 6 7 8
Fib(X) 0 1 1 2 3 5 8 13 21
Recursive Solution
(defun fib (x)
(cond (( x 0) 0)
(( x 1) 1)
(t ( (fib (- x 1)) (fib (- x 2))))))

9
Fib(6) Function calls
10
Recursive Definition of Length

Length
(defun mylength (l)
(if (endp l)
0
( 1 (mylength (rest l)))))
Alternate definition
(defun mylength2 (l)
(mylength2-aux l 0))
(defun mylength2-aux (l count)
(if (endp l)
count
(mylength2-aux l ( count 1))))
Note
All recursive calls simply return the final value
evaluated.
No additional computations

11
Tail Recursion

Tail Recursion
The final expression of a function is a recursive
call
No additional computations are done to that
expression
That is, return value is JUST the result of the
recursive call
Lisp handles tail recursion efficiently
Mylength is not tail recursive
Mylength2 is tail recursive
Example
Write a function to produce N atoms with value
A.
gt (produce-list-of-a 5) Example call
(A A A A A)

12
Produce-list-of-a

Using dotimes
(defun produce-list-of-a (n)
(let ((la NIL))
(dotimes (i n la) (push 'A la))))
Recursion, not tail recursive
(defun produce-list-of-a (n)
(if ( n 0)
nil
(cons 'A (produce-list-of-a (- n 1)))))
Recursion, with tail recursion
(defun produce-list-of-a (n)
(produce-list-of-a-aux n NIL))
(defun produce-list-of-a-aux (n list-so-far)
(if ( n 0)
list-so-far
(produce-list-of-a-aux
(- n 1)
(cons 'A list-so-far))))

13
Count-Atoms

Write function to count number of atoms in an
expr
(sqrt ( (expt x 2) (expt y 2)))
has eight atoms
(defun count-atoms (l)
(cond ((null l) 0)
((atom l) 1)
(t ( (count-atoms (first l))
(count-atoms (rest l))))))

14
Tower of Hanoi

Three pegs, S(start), T(temp), E(end)
N disks
Goal Move disks from peg S to peg E
Restriction Larger disk cant be placed on top
of smaller disk
S T E

15
Tower of Hanoi

Solution to Tower of Hanoi
(defun hanoi-aux (n start end temp)
(if (gt n 1) (hanoi-aux (- n 1) start temp
end))
(print (list start end))
(if (gt n 1) (hanoi-aux (- n 1) temp end
start)))
(defun hanoi (n) (hanoi-aux n 'S 'E 'T))
Example Runs
gt (hanoi 2)
(S T)
(S E)
(T E)
NIL

gt (hanoi 3) (S E) (S T) (E T) (S E) (T S) (T
E) (S E) NIL
16
Optional

Produce-list-of-a function(s)
(defun produce-list-of-a (n)
(produce-list-of-a-aux n NIL))
(defun produce-list-of-a-aux (n list-so-far)
(if ( n 0)
list-so-far
(produce-list-of-a-aux
(- n 1)
(cons 'A list-so-far))))
Redefined with optional parameters
(defun produce-list-of-a (n optional
list-so-far)
(if ( n 0)
list-so-far
(produce-list-of-a
(- n 1)
(cons 'A list-so-far))))
Note optional values are bound to NIL, by default

17
Optional Parameters (cont)

Solution to Hanoi
(defun hanoi-aux (n start end temp)
(if (gt n 1) (hanoi-aux (- n 1) start temp
end))
(print (list start end))
(if (gt n 1) (hanoi-aux (- n 1) temp end
start)))
(defun hanoi (n) (hanoi-aux n 'S 'E 'T))
Revised with optional parameters
(defun hanoi (n optional (start 'S) (end 'E)
(temp 'T))
(if (gt n 1) (hanoi (- n 1) start temp end))
(print (list start end))
(if (gt n 1) (hanoi (- n 1) temp end start)))
Note notice the syntax for initializing optional
parameters

18
Rest

Rest - Specifies a variable number of arguments
Example Assume only accepts 2 arguments.
Define Plus, a function that adds an arbitrary
number of arguments)
gt (plus 2 3)
gt (plus 2 3 4 5 8)
Solution
(defun plus (arg1 rest other_args)
(plus-aux arg1 other_args))
(defun plus-aux (arg1 other_args)
(if (null other_args)
arg1
(plus-aux ( arg1 (first other_args))
(rest other_args))))

19
Key Parameters
