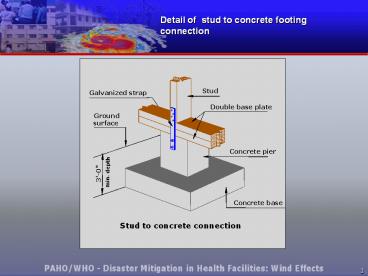

Detail of stud to concrete footing connection

1
Detail of stud to concrete footing connection
2
Stud and top plate connection
3
Rafters and top plates should be anchored with
galvanized straps
4
Anchorage of timber beams to concrete beams
Use of galvanized hurricane straps is recommended
5
Anchorage details between steel joist and masonry
walls
6
Interaction between structural and nonstructural
elements
7
Considerations for infilling masonry partitions
If the infilling masonry wall acts as part of the
structural system, it will undergo great
deformations and failures
8
Reinforcement method addition of (interior or
exterior) walls
9
Retrofitted wall in childrens hospital in Santo
Domingo
10
Details of retrofitted wall sections
11
Construction method details of retrofitted wall
12
Front view of retrofitted wall
13
Lateral view of retrofitted wall
14
