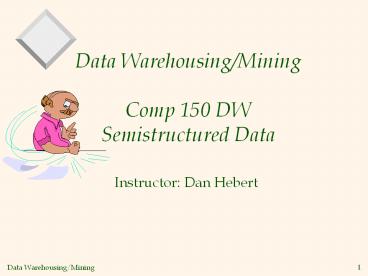

Data Warehousing/Mining Comp 150 DW Semistructured Data

1
Data Warehousing/MiningComp 150 DW
Semistructured Data

• Instructor Dan Hebert

2
Semistructured Data

• Everything that has no rigid schema
• Schema is contained within the data
  (self-describing), OR
• No separate schema, OR
• Schema exists but places only loose constraints
  on data
• Emerged as an important topic for a variety of
  reasons
• Many data sources like WWW which we would like to
  treat as databases but cannot for the lack of
  schema
• Desirable to have an extremely flexible format
  for data exchange between disparate databases
• May want to view structured data as
  semistructured data for the purpose of browsing

3
Motivation

• Some data really is unstructured/semistructured
• World Wide Web,
• Data exchange formats
• Some exotic database management systems, e.g.,
  ACeDB, popular with biologists
• Data integration
• Browsing

4
Motivation - World Wide Web

• Why do we want to treat the Web as a database?
• To maintain integrity
• To query based on structure (as opposed to
  content)
• To introduce some organization.
• But the Web has no structure. The best we can say
  is that it is an enormous graph.

5
Motivation - Data Formats

• Much (probably most) of the worlds data is in
  data formats
• These are formats defined for the interchange and
  archiving of data
• Data formats vary in generality. ASN.1 and XDR
  are quite general
• Scientific data formats tend to be fixed
  schemas
• The textual representation given by data formats
  is sometimes not immediately translatable into a
  standard relational/object-oriented representation

6
Motivation - Data Integration

• Goal is to integrate all types of information,
  including unstructured information
• Irregular, missing information, structure not
  fully known, dynamic schema evolution, etc.
• Traditional data models and languages not well
  suited
• Cannot accommodate heterogeneous data sets
  (different types and structures), etc.
• Difficult to build software that will easily
  convert between two disparate models
• OEM (Object Exchange Model)
• Semistructured data model from TSIMMIS project at
  Stanford
• Internal data structure for exchange of data
  between DBMSs
• Used by other systems e.g., Windows 95 registry,
  Lotus Notes

7
Motivation - Browsing

• To query a database one needs to understand the
  schema.
• However schemas have opaque terminology and the
  user may want to start by querying the data with
  little or no knowledge of the schema.
• Where in the database is the string Casablanca
  to be found?
• Are there integers in the database greater than
  216 ?
• What objects in the database have an attribute
  name that starts with act?
• While extensions to relational query languages
  have been proposed for such queries, there is no
  generic technique for interpreting them.

8
The Model

• Represent data as some kind of graph-like or
  tree-like model
• Cycles are allowed but usually refer to them as
  trees
• Several different approaches with minor
  differences (easy to convert)
• Data on labels or edges, nodes carry information
  or not
• Straightforward to encode relational and
  object-oriented databases
• Issue object identity

9
Querying Semistructured Data

• There are (at least) three approaches to this
  problem
• Add arbitrary features to SQL or to your favorite
  query language
• Find some principled approach to programs that
  are based on the type of the data
• Represent the graph (or whatever the structure
  is) as appropriate predicates and use some
  variety of datalog on that structure

10
The Extend SQL Approach

• In fact it is an attempt to extend the philosophy
  of OQL and comprehension syntax to these new
  structures
• It is the approach taken in the design of UnQL
  and also of Lorel
• Looks very similar to OQL (path expressions)

11
Example

• select Entry.Movie.Title
• from DB
• where Entry.Movie.Director...

12
Syntax Issues

• Need (path) variables to tie paths and edges
  together
• Paths of arbitrary length
• Find all strings in db
• Find whether Allen acted in Casablanca
• Need regular expresions to constrain paths
• Rich set of overloadings for operators to deal
  with comparisons of objects with values and of
  values with sets

13
Underlying Computational Strategy

• Model graph as a relational database and use
  relational query language.
• Database large relation (node-id, label, node-id)
• Used by Stanford group in LORE/LOREL
• Complications
• Labels are from heterogeneous set of types, need
  more than one relation
• Additional relations if info to be stored in
  nodes
• Various navigation issues

14
Semistructured Data - Case StudyObject Exchange
Model
15
OEM Features

• Common model for heterogeneous information
  exchange, self-describing
• Each object

OID
Label
Type
Value

• OID unique identifier or NULL
• Label character string descriptor
• Type atomic data type or set
• Value atomic value or set of object references

• Help pages for labels
• Query language OEM-QL

16
Representing Semistructured Data Using OEM
Label
ltcollection, b1, a1, ...gt b1 ltbook, t, agt
t lttitle, Database and ...gt a
ltauthor, n, pgt n ltname, Jeff Ullmangt p
ltpicture, /gifs/ullman.gifgt a1 ltarticle, v,
w, xgt v ltauthor, Gio Wiederholdgt w lttitle,
Mediators in the gt x ltjournal, IEEE
Computergt
Set Value
Memory Addresses
Atomic Value
...
17
An OEM Query Language OEM-QL

• Logic-based language for OEM
• Match object patterns, generate variable
  bindings, construct new OEM objects from existing
  ones
• Get articles published in IEEE Computer
• P -
• Pltarticles ltjournal IEEE Computergtgt
• Get titles of books by Jeff Ullman
• ltanswer_title Tgt -
• ltbook ltauthor Jeff Ullmangt lttitle Tgtgt

18
Semistructured Data - Case StudyWWW Extraction
19
Problem

• Lots of valuable information on the Web
• irregular structure
• highly dynamic
• Embedded in HTML
• Limited query facilities

20
Data Extraction Tool

• Flexible, easy to use
• Accommodate virtually any HTML source
• Interface with existing system, e.g., data
  warehouse, user interface for querying

Query
Data Warehouse
World Wide Web
Extractor
WH Integrator
Specification
21
Approach

• Extract Web data into OEM format
• Query using OEM-QL
• Python-based, configurable parser
• Declarative description of HTML source
• location of data on page
• how to package data into OEM
• Regular expression-like syntax
• Human intelligence rather than A.I.

22
Extractor Specification
Consists of commands of the form
23
HTML Source File
ltHTMLgt ltHEADgt . . . ltTABLEgt ltTRgt ltTHgtltIgt
header 1 lt/Igtlt/THgt ltTHgtltIgt header 2
lt/Igtlt/THgt ltTHgtltIgt header 3 lt/Igtlt/THgt lt/TRgt
ltTRgt ltTDgt text 1 lt/TDgt ltTDgtltA
HREFhttp//www.stuff/gt text 2 lt/Agtlt/TDgt
ltTDgt text 3 lt/TDgt lt/TRgt . .
. lt/TABLEgt . . . lt/BODYgt lt/HTMLgt
24
Specification File
root, get('http//www.example.test/'),
, __tempvar1, root,
lttablegtlt/tablegt , __tempvar2, split
(__tempvar1,lt/trgt), , rows,
__tempvar21-1, , header1,header2_url
,header2,header3, rows,
lttdgtlt/tdgtltahrefgtlt/agtlttdgtlt/tdgt
25
Result OEM Object
26
Basic SyntaxVariable

• variable(lpt)
• optional parameters for specification of
  corresponding OEM object
• l label name
• t type
• p parent object
• _variable
• temporary data structure, does not appear as OEM
  object

27
Basic Syntax Source

• split(variable,token)
• creates a list with multiple elements using token
  as the element separator
• get(URL)
• obtain contents of HTML file at address URL

28
Basic Syntax Patterns

• token1 token2
• match and store current input (between tokens)
• token1 token2
• match, dont store current input (between tokens)

29
Syntactic Sugar

• Functions for extracting commonly used HTML
  constructs
• extract_table(variable),pattern
• split_table_row(variable)
• split_table_column(variable)
• extract_list(variable),pattern
• split_list(variables)

30
Advanced Features

• Customization of output
• structure, label names, data type, ...
• Extraction across multiple HTML pages
• Graceful recovery from parse errors
• resume parsing using next input from source
• Multiple patterns in single command
• follow different parse tree depending on
  structure in source

31
Sample Extraction Scenario
. . .
32
Extracted OEM Data
OEM-QL query ltcity C lthigh Hgt lt low Lgtgt -
lttemperature ltcity_temp ltcountry
Germanygt ltcity Cgt lthigh_today Hgt ltlow_today
Lgtgtgt
33
Evaluation

• Better than
• writing programs
• YACC, PERL, etc.
• A.I.
• Can do better
• GUI tool to simplify the generation of extractor
  specification
• Machine learning or data mining techniques to
  automatically infer structure...
