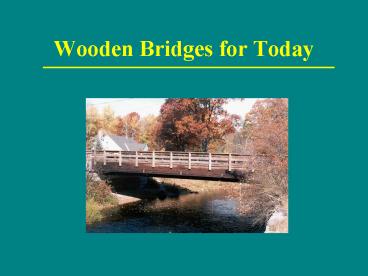

Wooden Bridges for Today

1
Wooden Bridges for Today

2
New Hampshires Transportation Heritage
Swift River Bridge, Albany, NH
Recently refurbished by NH Department of
Transportation
3
New Hampshires Transportation Heritage
Newport, NH Railroad Bridge
(Carol Harootian, photo)
4
NH Bridges in Trouble
Concrete deteriorates Steel rusts
5
NH Bridges in Trouble

• 10 years ago over 50 of the bridges in NH were
  listed as being structurally deficient,
  functionally obsolete, or red listed.
• State of New Hampshire Ten Year Transportation
  Improvement Program for 2001-2010, August 1999

6
NH Bridges in Trouble

• Of 1,959 state owned bridges, 311 red listed or
  structurally deficient or obsolete.
• Of 1,556 non-state owned bridges, 653 either red
  listed or structurally deficient or obsolete.
• State of New Hampshire Ten Year Transportation
  Improvement Program for 2001-2010, August 1999

7
The Usual Route

• Typical reinforced concrete and steel bridge in
  need of total replacement

8
A Road Less Traveled

• New Boston, NH
• Lyndeborough Road
• Completed August 2000
• Installed by New Boston Highway Crew

9
A Road Less Traveled
New Boston, NH Depot Street Near Town Center

• Completed 1993

10
A Road Less Traveled
Newport, NH Corbin Bridge, 1994

• Designed and constructed by Arnold M. Graton
  Associates, Inc.

11
A Road Less Traveled

• Plymouth, NH
• Smith Bridge

Strongest covered bridge in the world 176-foot
span Under construction, 2001
Designed and constructed by Stan Graton II, 3-G
Construction, Ashland, NH
12
A Road Less Traveled

• Plymouth, NH Smith Bridge

250,000 board feet of timber First covered bridge
using glue lamination technology Timbers supplied
by Unadilla Laminated Products, NY
13
A Road Less Traveled

• Gilford, NH
• Tannery Hill Bridge
• Pedestrian bridge
• Built in early 1990s by a volunteer crew

14
New Technology Helps a Traditional Material

• Types of Bridges
• Glue lamination
• Nail lamination or doweled
• Stress lamination

15
New Technology Helps a Traditional Material

• EPA-approved
• Preservation Protection Options
• Creosote
• Pentachlorophenal
• Copper naphthenate
• Chromated copper arsenate

16
Glue Laminated Bridge
1990 Glu-laminated bridge in New Hampton, NH.
Bridge from Laminated Concepts, Elmira, NY.
17
Glue Laminated Bridge
New Boston Lyndeborough Road Bridge, August 2000
Modern Glu-laminated bridge by Laminated
Concepts, Inc.
18
Nail Laminated Bridge

• Jefferson Notch Road, 1990
• Wheeler Bridge Company

19
Nail Laminated Bridge

• Bartlett, NH
• 1990

Agent for town was Bergeron Engineering, North
Conway, NH
20
Stress Laminated Bridge
Chichester, NH 1990 Constructed of southern
yellow pine. Treated with Pentachlorophenal.
21
Stress Laminated Bridge
Chichester, NH, 1990 Constructed of
southern yellow pine. Treated with
Pentachlorophenal Stressing rods compress
individual planks together with pressure
22
Stress Laminated Bridge
North Weare, NH 1991 Constructed with local
wood material
Designed and constructed by Kent Ruesswick of
Canterbury, NH
23
Other Wooden Transportation Structures
Timber bin retaining wall, Campton, NH Bin wall
system is also suitable for bridge abutments
Constructed with eastern hemlock, commercially
treated with chromated copper arsenate
24
Why wooden bridges?
The public demands a safe and efficient transpor
tation system Traffic increases through 80s
and 90s Engineers and community leaders must
find new ways to upgrade bridges with fewer
resources
25
Why wooden bridges?
Hundreds of bridges in NH need replacing Aestheti
cs appearance Ease of construction
26
Why wooden bridges?
Performance When properly treated Cost Cost
competitive, especially when life cycle and
maintenance costs are included.
27
Why wooden bridges?
Maintenance Long life cycle with fewer
maintenance requirements Not susceptible to salt
corrosion Potential new markets for NH
wood Potential new secondary manufacturing
industry for NH
28
Why wooden bridges?

Why not?
