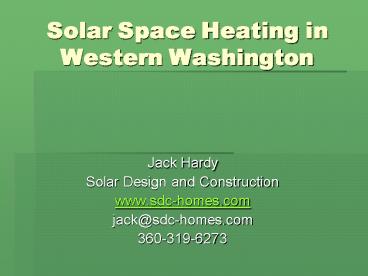

Solar Space Heating in Western Washington
  • Jack Hardy
  • Solar Design and Construction
  • www.sdc-homes.com
  • jack_at_sdc-homes.com
  • 360-319-6273

2
Its possible to resist an invasion of an army,
but not an idea whose time has come.Victor
Hugo
3
Has the time come for solar energy?
  • 1973
  • Arab Oil Embargo
  • U.S. gas rose from 39 to 55 cents per gallon
  • Stock Exchange lost 97 billion in 6 weeks
  • Today
  • Fuel costs increasing
  • Peak oil approaching

4
Topics
  • Passive Solar Space Heating
  • Active Solar Space Heating
  • Economics of Solar Space Heating

5
The Greenhouse Effect
6
Passive Solar Heating
  • The simplest and most economical approach
  • No fans, pumps, or active circulation of heat

7
Passive Solar Heatingdirect gain
8
Passive Solar Heating
  • Lets design a passive solar home (shall we?)
  • Eight steps

9
Passive Solar Heating1) Select a building site
with a mostly unobstructed southern exposure
10
Passive Solar Heating2) Place a large percentage
of the windows on the south side of the house to
maximize heat gain
11
Passive Solar Heating3) Use tight construction
and good insulation to reduce heat loss
12
Passive Solar Heating4) Place thermal mass
within the house to store heat
13
Passive Solar Heating5) Design roof overhangs
plantings for winter sun and summer shade
14
Passive Solar Heating6) Estimate glass to mass
ratio
  • Assume a 2240 sq ft home, with 1700 sq ft of
    floor exposed to direct sun 400 sq ft of
    thermal mass wall
  • Initially plan 7 of floor space as south windows
    157 sq ft
  • Add an additional 1 sq ft of south glass for
    every
  • 5.5 sq ft of sunlit floor mass 309 sq ft
  • 40 sq ft of floor not in direct sun 14 sq ft
  • 8.3 sq ft of thermal mass wall 48 sq ft
  • Total south glass 528 sq ft or 23.6 of total
    floor space

15
Passive Solar Heating 7) Model the Monthly Heat
Budget
16

17
(No Transcript)
18
Passive Solar Heating8) Adjust design based on
modeling and construct home
19
Solar Design Construction 2005-B
20
Solar Design Construction 2005-B
21
Passive Solar Heatingindirect gain
22
Active Solar Heating
  • Air or liquid collectors concentrate solar heat
    gain
  • Heated air or liquid is circulated through pipes
    or ducts using pumps or fans
  • Heat is transferred directly to interior space or
    to storage for later use
  • Differential thermostats are used to control heat
    flow

23
Active Solar Heatingair collectors - plates
24
Active Solar Heatingair collectors - plates
Enermodel Engineering Panel
25
Active Solar Heatingair collectors attic to
rock bed
26
Active Solar Heatingair collectors sun space
to rock bed
27
Active Solar Heatingair collectors to plenums
28
Active Solar Heatingliquid collectors
29
Active Solar Heatingliquid collectors
30
Does it work?
31
Does it work?
32
Economics of Solar Heating
33
Economics of Solar HeatingHow much does it cost?
  • Added costs of construction
  • Passive - glazing
  • Active - collectors
  • Thermal mass
  • Extra insulation
  • For example
  • add about 5 per sq ft or 10 K for a 2000 sq ft
    home
  • For a 300,000 home 3.3 percent

34
Economics of Solar HeatingDoes it pay?
  • Winter heating costs expected to soar up 50
    percent nationwide
  • By H. Josef Hebert, Associated Press Writer
    October 11, 2005
  • WASHINGTON --Heating bills are headed through the
    roof, expected to average 50 percent higher this
    winter for homes that use natural gas. People in
    parts of the Midwest are likely to pay even more
    -- as much as 1,600 for the winter months if the
    weather is especially bad.

35
Economics of Solar HeatingDoes it pay?
  • Heating bills
  • With good design, heating costs (gas) for a 2000
    sq ft home in western Washington can be reduced
    from 852 to 148 per year, an initial savings of
    704 per year
  • Natural gas costs are predicted to increase about
    14 per year
  • Over a 15 year period a solar home will save more
    than 35,000 in heating costs
  • Incentives (for active systems)
  • Federal Tax Credit 30 up to 2000 (years 2006
    2007)
  • Mortgage advantages
  • Energy efficient mortgages may receive up to 4
    additional borrowing limit and discounts on
    closing costs and fees
  • Increased home value
  • selling price of homes increases 20.73 for every
    1 decrease in annual fuel bills (The Appraisal
    Journal, Oct 1998)
  • Using the above example, a solar home would have
    an added value of 14,593 compared to a
    traditional home

36
Summary Solar Space Heating
  • Western Washington is an ideal location
  • Its time has come
  • It is not complicated
  • It will pay you
  • It will reduce greenhouse gas emissions

37
Solar Space Heating Information
  • Jack Hardy
  • Solar Design and Construction
  • www.sdc-homes.com
  • jack_at_sdc-homes.com
  • 360-319-6273
  • http//www.eere.energy.gov/solar/
  • Chiras, D.D. 2002. The Solar House. 274 pp.
    Chelsea Green Publishing. White River Junction,
    Vermont 05001
  • Kachadorian, J. 1997. The Passive Solar House.
    210 pp. Chelsea Green Publishing. White River
    Junction, Vermont 05001
  • Watson, D. 1977. Designing and building a solar
    house. 282 pp. Garden Way Publishing,
    Charlotte, Vermont 05445
  • Watson, D. and Labs, K. 1983. Climatic
    building design. 288 pp. McGraw Hill, New York.
