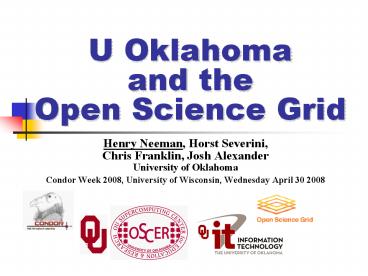

U Oklahoma and the Open Science Grid

1
U Oklahomaand theOpen Science Grid

• Henry Neeman, Horst Severini,
• Chris Franklin, Josh Alexander
• University of Oklahoma
• Condor Week 2008, University of Wisconsin,
  Wednesday April 30 2008

2
Outline

• Context OU Hardware
• OU and the Open Science Grid
• Oklahoma Cyberinfrastructure Initiative
• OU NSF CI-TEAM Project

3
ContextOU Hardware
4
Pentium4 Xeon Cluster

• 1,024 Pentium4 Xeon CPUs (Irwindale 3.2 GHz
  EM64T)
• 2,176 GB RAM (800 MHz FSB)
• 23,000 GB disk (NFSLustre)
• Infiniband Gigabit Ethernet
• OS Red Hat Linux Enterp 4
• Peak speed 6,553.6 GFLOPs

topdawg.oscer.ou.edu
5
Pentium4 Xeon Cluster
DEBUTED 6/2005 54 WORLDWIDE, 9
AMONG US UNIVERSITIES, 4 EXCLUDING
BIG NSF CENTERS CURRENTLY 289 WORLDWIDE,
29 AMONG US UNIVERSITIES, 20
EXCLUDING BIG 4 NSF CENTERS
topdawg.oscer.ou.edu
www.top500.org
6
Condor Pool _at_ OU

• OU IT has deployed a large Condor pool
  (775 desktop PCs in dozens
  of labs around campus).
• OUs Condor pool provides a huge amount of
  computing power more than OSCERs big
  cluster in terms of Condorized PCs
• if OU were a state, wed be the 12th largest
  state in the US
• if OU were a country, wed be the 10th largest
  country in the world (other than
  unknown).
• Also, weve been seeing empirically that lab PCs
  are available for Condor
  jobs about 80 of the time.

7
Proposed New Hardware

• The following information is public.
• RFP issued March 19, closed April 3
• Architecture described
• quad core, dual socket, x86-64
• 5 times as fast as topdawg (similar compute node
  count)
• 4 times as much RAM (probably 1333 MHz FSB)
• 4 times as much disk (100 TB)
• high performance interconnect (probably IB) plus
  GigE
• Red Hat Enterprise Linux 5 (assumed)
• OU Board of Regents meets May 8-9.

8
OU andthe Open Science Grid
9
OU and the Open Science Grid

• Currently, OUs relationship with the OSG
  primarily benefits High Energy Physics
• D0 project
• ATLAS project
• DOSAR project cross disciplinary grid
  organization with members in other OSG VOs
  (including D0 and ATLAS)
• We have 5 OSG resources
• OSCERs large cluster (topdawg) general purpose
• OSCERs Condor pool (currently D0 only) general
  purpose
• OUHEPs Tier2 cluster dedicated to HEP projects
• OUHEPs desktop cluster dedicated to HEP
  projects
• OUHEPs OSG Integration TestBed (ITB) 8 nodes,
  used to test new pre-production OSG releases. We
  recently installed OSG 0.9.0 and bestman-xrootd
  (a Storage Resource Manager) as part of the
  integration effort.

10
OU and D0
11
OU D0 Breakdown

• OSCERs big cluster (topdawg)
• 8,020,250 events (6th in the US), 0.66 TB
• OSCER Condor pool
• 6,024,000 events (6th in the US), 0.49 TB
• Dedicated OU HEP Tier3 cluster
• 2,472,250 events (9th in the US), 0.16 TB
• Notes
• Without OSCERs Condor pool, OU would be 4.
• Without OSCERs cluster, OU would be 6.
• Without OU HEPs dedicated Tier3 cluster, OU
  would still be 2.

12
OU and ATLAS
http//gratia-osg.fnal.gov8880/gratia-reporting/
Note A buggy version of gratia ran on OUs
resources until 4/3/2008.
13
OU First in the World

• OU was the first institution in the world to
  simultaneously run ATLAS and D0 grid production
  jobs on a general-purpose, multi-user cluster.
• Most grid production jobs run on dedicated
  clusters that are reserved for one or the other
  of these projects, or on Condor pools.

14
OUs Collaborations

• OU plays key roles in
• Oklahoma Center for High Energy Physics (OCHEP)
• Collaboration between OU, Oklahoma State U and
  Langston U (HBU)
• Funded by a Dept of Energy EPSCoR grant
• ATLAS Southwest Tier2 OU, Langston U, U Texas
  Arlington
• DOSAR (Distributed Organization for Scientific
  and Academic Research)
• OU, Langston U, U Arizona, Iowa State, Kansas
  State, U Kansas, Louisiana Tech,
  Louisiana State, Rice, U
  Mississippi, U Texas Arlington, Universidade
  Estadual Paulista (Brazil), Cinvestav (Mexico)

15
OU Helps with Condor

• OU has helped set up Windows/coLinux/Fedora
  Condor pools at
• Oklahoma State U
• U Texas Arlington

16
Oklahoma Cyberinfrastructure Initiative
17
OK Cyberinfrastructure Initiative

• Oklahoma is an EPSCoR state.
• Oklahoma recently submitted an NSF EPSCoR
  Research Infrastructure Proposal (up to 15M).
• This year, for the first time, all NSF EPSCoR RII
  proposals MUST include a statewide
  Cyberinfrastructure plan.
• Oklahomas plan the Oklahoma Cyberinfrastructure
  Initiative (OCII) involves
• all academic institutions in the state are
  eligible to sign up for free use of OUs and
  Oklahoma State Us centrally-owned CI resources
• other kinds of institutions (government, NGO,
  commercial) are eligible to use, though not
  necessarily for free.
• OCII includes building a Condor flock between OU
  (775 PCs) and OSU (300 PCs). Weve already
  helped OSU set up their Condor pool they just
  need to roll out the deployment, and then well
  be able to use it for HEP/OSG.

18
OUs NSF CI-TEAM Project
19
OUs NSF CI-TEAM Project

• OU recently received a grant from the National
  Science Foundations Cyberinfrastructure
  Training, Education, Advancement, and Mentoring
  for Our 21st Century Workforce (CI-TEAM) program.
• Objectives
• Provide Condor resources to the national
  community
• Teach users to use Condor and sysadmins to deploy
  and administer it
• Teach bioinformatics students to use BLAST over
  Condor

20
OU NSF CI-TEAM Project
Cyberinfrastructure Education for Bioinformatics
and Beyond
Objectives
OU will provide

• Condor pool of 775 desktop PCs (already part of
  the Open Science Grid)
• Supercomputing in Plain English workshops via
  videoconferencing
• Cyberinfrastructure rounds (consulting) via
  videoconferencing
• drop-in CDs for installing full-featured Condor
  on a Windows PC (Cyberinfrastructure for FREE)
• sysadmin consulting for installing and
  maintaining Condor on desktop PCs.
• OUs team includes High School, Minority
  Serving, 2-year, 4-year, masters-granting 18 of
  the 32 institutions are in 8
  EPSCoR states (AR, DE, KS, ND, NE, NM, OK, WV).

• teach students and faculty to use FREE Condor
  middleware, stealing computing time on idle PCs
• teach system administrators to deploy and
  maintain Condor on PCs
• teach bioinformatics students to use BLAST on
  Condor
• provide Condor Cyberinfrastructure to the
  national community (FREE).

21
OU NSF CI-TEAM Project

• Participants at OU
• (29 faculty/staff in 16 depts)
• Information Technology
• OSCER Neeman (PI)
• College of Arts Sciences
• Botany Microbiology Conway, Wren
• Chemistry Biochemistry Roe (Co-PI), Wheeler
• Mathematics White
• Physics Astronomy Kao, Severini (Co-PI),
  Skubic, Strauss
• Zoology Ray
• College of Earth Energy
• Sarkeys Energy Center Chesnokov
• College of Engineering
• Aerospace Mechanical Engr Striz
• Chemical, Biological Materials Engr
  Papavassiliou
• Civil Engr Environmental Science Vieux
• Computer Science Dhall, Fagg, Hougen,
  Lakshmivarahan, McGovern, Radhakrishnan
• Electrical Computer Engr Cruz, Todd, Yeary, Yu
• Industrial Engr Trafalis

• Participants at other institutions
• (62 faculty/staff at 31 institutions in 18
  states)
• California State U Pomona (masters-granting,
  minority serving) Lee
• Colorado State U Kalkhan
• Contra Costa College (CA, 2-year, minority
  serving) Murphy
• Delaware State U (masters, EPSCoR) Lin, Mulik,
  Multnovic, Pokrajac, Rasamny
• Earlham College (IN, bachelors) Peck
• East Central U (OK, masters, EPSCoR)
  Crittell,Ferdinand, Myers, Walker, Weirick,
  Williams
• Emporia State U (KS, masters-granting, EPSCoR)
  Ballester, Pheatt
• Harvard U (MA) King
• Kansas State U (EPSCoR) Andresen, Monaco
• Langston U (OK, masters, minority serving,
  EPSCoR) Snow, Tadesse
• Longwood U (VA, masters) Talaiver
• Marshall U (WV, masters, EPSCoR) Richards
• Navajo Technical College (NM, 2-year, tribal,
  EPSCoR) Ribble
• Oklahoma Baptist U (bachelors, EPSCoR) Chen,
  Jett, Jordan
• Oklahoma Medical Research Foundation (EPSCoR)
  Wren
• Oklahoma School of Science Mathematics (high
  school, EPSCoR) Samadzadeh
• Purdue U (IN) Chaubey

22
Okla. Supercomputing Symposium
Tue Oct 7 2008 _at_ OU Over 225 registrations
already! Over 150 in the first day, over 200 in
the first week, over 225 in the first month.
2003 Keynote Peter Freeman NSF Computer
Information Science Engineering Assistant
Director
2004 Keynote Sangtae Kim NSF Shared Cyberinfrastr
ucture Division Director
2005 Keynote Walt Brooks NASA Advanced Supercompu
ting Division Director

• 2006 Keynote
• Dan Atkins
• Head of NSFs
• Office of
• Cyber-
• infrastructure

2007 Keynote Jay Boisseau Director Texas
Advanced Computing Center U. Texas Austin
2008 Keynote José Munoz Deputy Office Director/
Senior Scientific Advisor Office of Cyber-
infrastructure National Science Foundation
FREE! Parallel Computing Workshop Mon Oct 6 _at_
OU FREE! Symposium Tue Oct 7 _at_ OU
http//symposium2008.oscer.ou.edu/
23
To Learn More about OSCER

• http//www.oscer.ou.edu/

24
Thanks for your attention!Questions?
