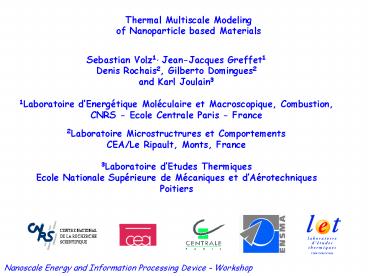

Thermal Multiscale Modeling of Nanoparticle
based Materials
Sebastian Volz1, Jean-Jacques Greffet1 Denis
Rochais2, Gilberto Domingues2 and Karl Joulain3
1Laboratoire dEnergétique Moléculaire et
Macroscopique, Combustion, CNRS - Ecole Centrale
Paris - France 2Laboratoire Microstructrures et
Comportements CEA/Le Ripault, Monts,
France 3Laboratoire dEtudes Thermiques Ecole
Nationale Supérieure de Mécaniques et
dAérotechniques Poitiers
Nanoscale Energy and Information Processing
Device - Workshop
2
Content
1 Intro
2 Thermal Conductance Between Two Nanoparticles
3- Near field and Clustering
3
Clustering
DECREASE THERMAL CONDUCTIVITY Aerogels SiO2
amorphous particle 10nm in diameter Porosity
90, open paths 100nm-1micron 15 mW/mK in
ambient and 5 mW/mK at primary vacuum
4
Near Field
INCREASE THERMAL CONDUCTIVITY
Colloidal solution
Uniformely dispersed Nanoparticles
5
2-Thermal Conductance between two Particles
d
T1
T2
L wvlength
L
Interaction between 2 Bodies o Classical
Radiation Far Field L,d gtgtL o Near-Field
Radiation LltdltL GNFgt106 W.m-2.K-1 Not done
yet for NPs o Conduction GCDl/d1010
W.m-2.K-1
6
Modeling
7
Near-Field
1 NP 1 DIPOLE 1 polarisation, 1 Local Field EL
Sphere
8
Physical Mechanism
d-6 dipole-dipole interaction - aV gt G R6
p
9
Molecular Dynamics
ATOM MASS POINT
fij in SILICA BKS POTENTIAL U(rij)qiqje2/r
ij Aij exp(-Bij.rij) - Cij/rij6
COULOMB SHORT RANGE VdW and REPULSIVE
60nm 1nm
POSITIONS Beta-cristobalite lattice cell
1800K
10
MD Experiment
? COMPUTE THE NET POWER BETWEEN NP1 and NP2 AT
EQUILIBRIUM
11
MD Output
FLUX- FORCE
DISSIPATION
W.K-2
FD THEOREM
Puech 1986, Barrat 2003
12
Results
Atom Heat Capacity / Atomic Period x Number of
Atoms 3kB x f x N 3 x 1.38.10-23 x 3.1013 x
3000 4 10-6 W/K
13
Near FieldgtThermal Conductivity Increase
Unifomely dispersed NPs
q2i
q4i
i
q1i
3D
q3i
PROBLEM Gji 10-20 to 10-3 W/K gt ITERATIONS
14
Convergence
1 Week Calculation on 1 CPU 1000 NPs
T
Lx
LY
Lx
LZ
15
Volume Fraction
16
Aerogels Thermal Modeling
Heat Conduction
Near-Field Radiation neglected
10Volume Fraction lt Percolation Thermal Pathes
ltgt Structure
17
Aerogel Skeleton
Aggregates with realistic fractal dimension
1.8 Kolb-Botet-Jullien Model (PRL, 51, 1123,
1983) Particles with inital random
positions Particles move one by one Make a
cluster with neighbours The clusters move as
particle (no rotation)
18
Results
2D structure Df1.4 3D structure Df1.77
19
Scattering of Contact Resistance
50 MD experiments with different NPs contact gt
50 R values Random choice of R
20
Effective Thermal Conductivitiy
Hot Plate experiment
21
Results
25000 particles, 2D
50 MD experiments with different NPs contact gt
50 R values Random choice of R
22
Conclusion
Clusters in Air
Experiments
Numerical
Near-Field
Clusters in Vacuum
Air
23
Conclusion

• o Modeling/Experiments agree in Aerogels (no NF
  paths)
• o Uniform NPs Dist. early NF percolation gt
  many percolation paths
• Application Heat Sink/Dirty Material
• Coupling clustering and Near-Field
• Fractal dimension and Thermal Conductivity

24
THANK YOU !
