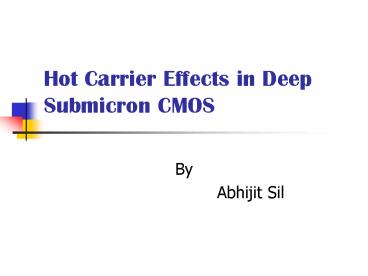

Hot Carrier Effects in Deep Submicron CMOS

1
Hot Carrier Effects in Deep
Submicron CMOS

• By
• Abhijit Sil

2
Out Lines

• CMOS Scaling, different types ,Limiting factors .
• Hot carrier Effect reason behind that.
• Different type of hot carrier injection
• Different type charge generation inside gate
  oxide
• Degradation in N-MOS PMOS performance
• Hot Carrier Induced Punch through
• Effect of oxide field in hot carrier injection
• Hot Carrier Effect in Low temperature
• How we can suppress this effect
• Different Suppression Techniques

3
CMOS Scaling

• Defines as reduction of the dimension of
  different parameters of MOSFET .
• Why Scaling ??
• Increase device packing density.
• Improve speed or frequency response (1/L)
• Improve current drive (Transconductance Gm )
• Decrease Power consumption

4
Types of Scaling

• Constant field scaling Requires to reduce power
  supply voltage with the reduction of
  feature size .
• Constant voltage scaling
• Provides voltage compatibility with older circuit
  technologies .
• Increasing electric field leads to velocity
  saturation , mobility degradation , sub threshold
  leakage

5
Parameter Trends
6
Limiting Factors of CMOS scaling

• Punch Through
• Drain Induced Barrier Lowering (DIBL)
• Gate Induced Barrier Lowering (GIBL)
• Hot Carrier Effect

7
Hot Carrier Effect

• As feature size decreases , Electric field in
  channel region increases which leads to gain high
  kinetic energy by holes electron (Hot carrier)
  .
• High kinetic energy helps them to inject inside
  gate oxide and form interface states , which in
  turns causes degradation of circuit performance .
  This effect is called Hot Carrier Effect .

8
Cause of Hot Carrier Effect

• In submicron device , channel doping is increased
  to reduce the channel depletion region (DLBL
  effect ) .
• High doping increases threshold voltage .
• Gate oxide thickness reduces to control the
  threshold voltage .
• Due to channeling doping concentration ,
  decreased channel length reduced gate oxide
  thickness , hot carrier generated injected to
  gate oxide.

9
Different type of Hot carrier Injection

• Drain Avalanche Hot carrier (DAHC) Injection
• Channel Hot Electron (CHE) Injection
• Substrate Hot Electron (SHE) Injection
• Secondary generated hot electron (SGHE) injection


10
Substrate Hot Electron (SHE) Injection

• Occurs when the substrate back bias is very
  positive or very negative
• Carriers of one type in the substrate are driven
  by the substrate field toward the Si-SiO2
  interface.
• Gain high kinetic energy from and injected to
  SiO2.

11
Channel Hot Electron (CHE) Injection

• When both VG VD very higher than source voltage
  , some electrons driven towards gate oxide .

12
Drain Avalanche Hot carrier (DAHC) Injection

• When VDgtVG , the acceleration of channel carrier
  causes Impact Ionization .
• The generated electron holes pair gain energy to
  break the barrier in Si-SiO2 interface

13
Charge Generation inside SiO2

• Negative charge generation
• Interface State Generation
• Positive charge Generation

14
Negative Charge Generation

• Hot electron trapping results negative charge
  buildup in the oxide near the drain
• Forming an extension of the p drain region

15
Interface State Generation

• At SiO2 interface , some Si-H , SiSi and Si-O
  bonds only need less energy to break.
• XH e ---gt Xo He e
• Xo e ----gt X -
• Any electron with energy gt 2eV capable to release
  H2 and create interface states .
• The degradation is caused by electron trapping by
  acceptor type Interface traps at the Si- SiO2
  interface

16
Positive Charge Generation

• Injection of holes into the oxide generates
  positive charge .
• The source of holes is impact ionization by
  electrons in the high field region near drain .

17
P-MOSFET Degradation

• Channel length Degradation
• Transconductance Degradation
• Threshold Shift

18
Continue..

• Interface state generation is most prominent
  threat for deep submicron P-MOSFET
• The max allowable voltages for 10 change in 10
  yrs are 4.7v for ve , 4.2 for Ve 3.3 v for
  interface state generation

19
N-MOS Degradation

• Trapped electrons in the oxides result in the
  increase of Vth Leff.

20
Hot Carrier Induced Punch through

21
Effect of Oxide Field

• As the oxide field increases , initially VG
  shifts increases (electron charge trapping ).
• When field becomes 6MV/cm , VG shifts towards
  negative .(positive charge trapping)(considering
  n-mos)

22
Continue..
23
Hot Carrier Effect in Low Temperature

• Low Temperature technology is required in Space
  Technology .
• Hot carrier effects significantly worst in low
  temp .
• Primary reason for the huge reduction of device
  performance is that a given amount of damage
  (induced at high or low temp ) induces greater
  reduction on device performance in low temp .

24
N-MOS Hot Carrier Effect in Low Temperature
25
Reason Behind Degradation

• Damaged increased due to Columbic scattering at
  low temp . Increase scattering leads to mobility
  degradation .
• At low temp , inversion fermi level lies closer
  to conduction band .Hot carrier induced interface
  which located near the the conduction level will
  have great impact on device performance.

26
P-MOS Hot Carrier Effect in Low Temperature
27
Suppression of Hot Carrier Effect (Device
structure aspect )

• Reductionof Hot-Carrier Generation
• Reduce the high drain field
• Separate main current path away from maximum
  field .
• Reduction of Hot-Carrier Injection
• Push impact ionization region deep into silicon.
• Position the injection inside the gate edge .

28
Suppression of Hot Carrier Effect (Processing
aspect )

• Reduction Hot Carrier Trapping
• Use High quality gate oxide
• Maintain good oxide during processing by reducing
  radiation damage
• Reduce bond breakage rate during hot carrier
  injection

29
Hot Carrier Reduction Technique

• Gate Oxide thickness reduction
• Lightly Doped MOSFET structure
• Double Diffused MOSFET structure
• Incorporating Si3N4 as the gate oxide
• Deuterium Post Metal Annealing

30
Gate Oxide thickness reduction
31
Continue..

• As the oxide thickness is reduced , the point of
  peak of electron injection moves further into the
  drain region , the damage region over the channel
  is reduced .

32
Lightly Doped MOSFET structure

• As the drain edge has less carrier concentration
  , reduces the drain induced depletion width
  lateral electric field .

33
Different type of LDD structure

• Ppoly gate buried channel N-LDD device -Broader
  conduction channel resulting deeper position of
  maximum avalanche generation .
• Buried LDD (B-LDD) Retrograde LDD profile with
  peak concentration below the Si- surface which
  suppress hot carrier injection by driving current
  away from the surface .
• Inverse T-gate LDD Improve current capability
  hot carrier resistance .

34
Double Diffused MOSFET structure

• Deeper n- phosphorous profile than NAs profile .
• The path of maximum current away from the
  position of the maximum field to reduce the
  impact ionization .

35
Continue..
36
Incorporating Si3N4 as the gate oxide

• High die electric gate insulator can
  significantly reduce gate leakage because of the
  fact higher k has higher physical thickness for
  the same electrical oxide thickness .
• Compatible with silicon technology
• The Si-N bonds are harder to break than Si-H
  bonds

37
Deuterium Post Metal Annealing

• Low temperature post metalization anneals in
  hydrogen ambient are critical in reducing Si-Sio2
  interface trap .
• Under Hot Carrier stress , bond to deuterium are
  more difficult to break than bonds to protium

38
Conclusion

• Three types of hot carrier Injection (DAHC)
  Injection, (CHE) Injection, (SHE) Injection,
  (SGHE) injection
• Three types of charge generation inside gate
  oxide . Negative charge generation Interface
  State Generation Positive charge Generation
• Interface state generation is most prominent
  threat for P-MOSFET Hot electron is for
  N-MOSFET

39
Continue ..

• In low temperature , same amount of damage
  (induced at high or low temp ) induces greater
  reduction on device performance.
• Different reduction techniques proposed- Gate
  Oxide thickness reduction ,Lightly Doped MOSFET
  structure ,Double Diffused MOSFET structure ,
  Si3N4 as the gate oxide ,Deuterium Post Metal
  Annealing

40
References

• Hot-Electron and Hole-Emission Effects in Short
  n-Channel MOSFETs - KARL R. HOFMANN, MEMBER,
  IEEE, CHRISTOPH WERNER, WERNER WEBER, AND GERHARD
  DORDA , IEEE TRANSACTIONS ON ELECTRON DEVICES,
  VOL. ED-32, NO. 3 , MARCH 1985
• Effect of oxide field on hot carrier induced
  degradation in CMOS gate oxide-
• S.P. Zhao and S.Tayfor , 1995 IEEE 91 5th
  IPFA '95 Singapore
• Performance and Hot-Carrier Reliability of 100 nm
  Channel Length Jet Vapor Deposited Si3N4 MNSFETs
  S. Mahapatra, Student Member, IEEE, V. Ramgopal
  Rao, Member, IEEE, B. Cheng, M. Khare, Chetan D.
  Parikh, J. C. S. Woo, and Juzer M. Vasi, Senior
  Member, IEEE , IEEE TRANSACTIONS ON ELECTRON
  DEVICES, VOL. 48, NO. 4, APRIL 2001
• Suppression of Hot-Carrier Effects in
  Submicrometer CMOS Technology
• MIN-LIANG CHEN, MEMBER, IEEE, CHUNG-WAI
  LEUNG, MEMBER, IEEE,
• W. T. COCHRAN, MEMBER, IEEE, WERNER
  JUNGLING, MEMBER, IEEE,
• CHARLES DZIUBA, AND TUNGSHENG YANG, IEEE
  TRANSACTIONS ON ELECTRON DEVICES, VOL. 35, NO.
  12. DECEMBER 1988

41
References

• Comparison of NMOS and PMOS Hot Carrier Effects
  From 300 to 77 K -Miryeong Song, Kenneth P.
  MacWilliams, Member, IEEE, and Jason C. S. Woo,
  IEEE TRANSACTIONS ON ELECTRON DEVICES, VOL. 44,
  NO. 2, FEBRUARY,1997
• Deuterium Post-Metal Annealing of MOSFETs for
  Improved Hot Carrier Reliability -I. C.
  Kizilyalli, J. W. Lyding, and K. Hess , IEEE
  ELECTRON DEVICE LETTERS, VOL. 18, NO. 3, MARCH
  1997
• An As-P(n-n-) Doublk Diffused Drain MOSFET for
  VLSIS -EIJI TAKEDA, MEMBER, IEEE, HITOSHI KUME,
  YOSIIINOBU NAKAGOME, TOHACHI MAKINO, AKIHIRO
  SHIMIZU, AND SHOJIR.0 ASAI, MEMBER, IEEE , IEEE
  TI. TRANSACTIONS ON ELECTRON DEVICES, VOL. ED-30,
  NO. 6 , JUNE 1983
• A New Mode of Hot Carrier Degradation in 0.18pm
  CMOS Technologies- C.T. Liu, E.J. Lloyd, C.P.
  Chang, K.P.Cheung, J.I. Colonell, W.Y.C. Lai, R.
  Liu, C.S. Pai, H. Vaidya, and J.T. Clemens Bell
  Laboratories, Lucent Technologies, 700 Mountain
  Ave., Murray Hill, NJ 07974

42
References

• Three hot-carrier degradation mechanisms in
  deep- Submicron PMOSFET's , Woltjer, Paulzen,
  Pomp, Lifka, Woerlee, IEEE transactions on
  electron devices, Jan 1995.
• , Positive Oxide charge generation during .25µm
  PMOSFET hot carrier degradation Woltjer, Paulzen,
  Pomp, Lifka, Woerlee, , IEEE Electron Device
  Letters, Oct 1994.
• Analysis of gate oxide thickness hot Carrier
  effects in surface channel P-MOSFET's Doyle,
  B.S.   Mistry, K.R.   Cheng-Liang Huang, IEEE
  Transactions on Electron Devices, Jan 1995.
• Hot-carrier degradation of submicrometer
  p-MOSFETs wit Thermal/LPCVD composite oxide Lee,
  Yung-Huei , IEEE transactions on electron
  devices, Jan 1993
• http//www.semiconfareast.com/hotcarriers2.htm

43

• Thank You For Your Time
