Title: Doxcelerate Engineering

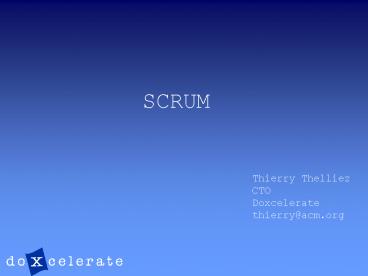

1
SCRUM
Thierry Thelliez CTO Doxcelerate thierry_at_acm.org
2
Subtitle
  • Society for the Complete Ruination of Universal
    Mankind
  • The Art of Possible, Ken Schwaber
  • Real Time Process Improvement, Jeff Sutherland
  • From Scrum user group
  • A Practical Team Methodology
  • All-at-once Development
  • My own definition
  • Extreme Accountability
  • A syncretic form of Process

3
Agenda
  • Background
  • IT observations and outrageous ideas leading to
    Agile process thinking
  • Scrum overview
  • Scrum details and lessons learned
  • Bootstrapping
  • Certification, Performance Review, Meta-Scrum
  • Benefits / To improve

4
Who we are
  • Start-up company, founded in 2001 and located in
    Los Alamos, NM
  • Primary product (RevCom) is based on software we
    created at LANL and subsequently licensed out
  • Customers include several U.S. Government
    agencies

5
What we do
  • RevCom Web based application for collaborative
    review and commenting of large regulatory
    documents (directives, technical standards,
    manuals, compliance) 2000 users reviewing
    200-page documents in two months
  • Application characteristics Continuous evolution
    and customization, 5th version
  • Hybrid Workflow Content Management
  • Hierarchical Visibility Rules
  • Embedded surveys
  • Customer specific security
  • Business Characteristics
  • Development
  • Hosting
  • Packaged application
  • Support, training
  • Consulting

6
Personal Background
France
USA
Small Family Business
Software Engineering
Computer Science
Team Leader
Chief Software Architect
CTO Co-Founder
Post Doc
TransPlastic
Hyperlog
Small Business
Medical RD
IT
RD
Educational
Science/IT
Industrial
IT
Scrum
Sky is the limit
CMM
OOA/OOD
Outsourcing
Use Cases
Waterfall Model
Objects
Design Patterns
Fusion
UML
RUP
7
Scrum's Origins
  • Lessons from Fuji-Xerox, Canon, Honda, NEC,
    Epson, Brother, 3M, Xerox, HP
  • The relay race approach to product
    developmentmay conflict with the goals of
    maximum speed and flexibility. Instead a holistic
    or rugby approachwhere a team tries to go the
    distance as a unit, passing the ball back and
    forthmay better serve todays competitive
    requirements.
  • The New New Product Development Game, Hirotaka
    Takeuchi, Ikujiro Nonaka in Harvard Business
    Review, 1986.

8
Rugby - Origins
Soccer origins William Webb Ellis Rugby School
England 1823
9
Rugby Team Oriented
Rugby symbol for team based activities
(especially in Europe) No prima donna
quarterback, everyone depends on their teammates
10
Rugby
Ball flows continuously between players
11
Rugby - Scrum
12
Rugby Team Support
Reaching higher with your teammates!
Interesting positions
13
IT Status No good news
  • Pick your Analyst
  • Out of a total cost of 37B for the sample set,
    75 of Department of Defense projects failed or
    were never used, and only 2 were used without
    extensive modification
  • Jarzombek. The 5th Annual JAWSS3 Proceedings,
    1999
  • Gartner Group reports that 70 of Java projects
    fail. 2004
  • Standish Group We're losing ground
  • IT Success 2002 34 2004 28
  • IT projects canceled before completion
  • 2002 15 2004 18
  • Remaining 51 seriously late, over budget and
    lacking expected features
  • Conclusions
  • Big projects more likely to fail
  • Big projects means less iterations
  • Lack of executive support and involved users
  • -gt Keep projects smaller

Same data also used in CMM TSP and PSP
presentation!
14
Process Improvement
Agile
Conventional
CMMI
Scrum
TSP
PSP
XP
ISO 9000
DSDM
Crystal Clear
Six Sigma
iDesign
Fusion
Pick one! But no silver bullet
RUP
15
Fear of Changes
  • Recent Example
  • U.S. Government Computer Blunders are Common and
    Expensive
  • The FBI said earlier it might shelve its
    custom-built, 170 million Virtual Case File
    project because it is inadequate and outdated.
  • Technology Review, Ted Bridis, January 2005
  • A project representative who defended the debacle
    said In software development, everyone knows
    that changing requirements is a recipe for
    disaster.
  • NPR, February 2005

16
Unpredictable World
  • Examples
  • 9/11
  • Asian financial crisis
  • Internet/Web
  • ERP
  • Euro
  • Supply-chain integration
  • Consequences of deregulation (CA energy crisis)

17
Change is Imperative
  • Wasserman's Seven Factors Driving Change
  • Criticality of time to market
  • Shift in computing economics
  • More powerful desktop computers
  • Extensive networks and the Web
  • Growing availability of object technology
  • WIMP (windows, icons, menus, pointers)
  • Unpredictability of the waterfall model of
    software development
  • Tony Wasserman. Toward a Discipline of Software
    Engineering. IEEE Software 13623-31, Nov 1996

18
Coping with Change
  • Idea 1 Reduce Changes
  • Prescriptive Planning
  • Upfront Requirements/Analysis/Design
  • Customers Sign-off
  • Idea 2 Reduce Cost Of Change
  • Iteration
  • Lean Manufacturing Thinking (cut waste)
  • Empirical Process

19
Prescriptive Planning
  • Pros
  • Management friendly
  • (Illusion of) Control
  • Many available tools
  • (MS Project, Open Source)
  • Cons
  • Hard to predict predefined tasks
  • Hard to involve all parties
  • Typically, activity-focused instead of
    deliverables
  • Parkinsons law -gt explicit permission to use all
    the time
  • Work expands so as to fill the time available
    for its completion. 1957
  • Late activity cannot be made up by the next
    activity (not independent)
  • Huge safety buffer added
  • Work is prioritized for plan convenience
  • Forthcoming book Agile Planning, Mike Cohn

Gantt Chart
20
Planning Issues
  • What if Activity 2 finishes early?

How do you maximize resources?
Forthcoming book Agile Planning, Mike Cohn
21
Student Syndrome
Procrastination
Forthcoming book Agile Planning, Mike Cohn
22
Details First Feature Creeps
Asking requirements to be agreed and signed-off
upfront generates feature creeps by fear of
missing an opportunity. Features and functions
used in a typical system Often or always
used 20 Rarely or never used
64 Standish Group Study, 2002
23
Details vs. Decisions
  • Heart Attack Prediction
  • Problem How to accurately refer patients to
    coronary and intermediate units?
  • Common practice Diagnosis accurate between 75
    - 89, following taking extensive medical history
  • Lee Goldmans decision tree (Cook County Hospital
    emergency room in Chicago)
  • Only four factors/questions
  • Two year study Accurate at more than 95 (70
    improvement)
  • Safer
  • The secret is knowing which information to
    discard and which to keep

24
Wicked Problems Righteous Solutions
  • Wicked problems have no definitive formulation.
    Each attempt at creating a solution changes your
    understanding of the problem.
  • No stopping rule. The problem-solving process
    ends when resources are depleted, stakeholders
    lose interest or political realities change.
  • Solutions are not true-or-false, but good-or-bad
    getting all stakeholders to agree that a
    resolution is "good enough" can be a challenge.
  • No immediate or ultimate test of a solution.
  • Every implemented solution has consequences.
  • No well-described set of potential solutions.
    Various stakeholders have differing views of
    acceptable solutions.
  • Each problem is essentially unique. Part of the
    art of dealing with wicked problems is the art of
    not knowing too early what type of solution to
    apply.
  • Each problem can be considered a symptom of
    another problem. A wicked problem is a set of
    interlocking issues and constraints that change
    over time, embedded in a dynamic social context.
  • The causes of a wicked problem can be explained
    in numerous ways.
  • The planner (designer) has no right to be wrong.
  • Conclusions All-at-once development
  • Rittel, H and Webber M. Dilemmas in a General
    Theory of Planning. Policy Sciences, Vol. 4.
    Elsevier,1973.
  • Degrace and Hulet's book, Wicked Problems,
    Righteous Solutions, Prentice Hall, 1990

25
Lean Development
  • The approach to product development exemplified
    by Honda and Toyota in the 1980s, typically
    called lean development, was adapted by many
    automobile companies in the 1990s. Today the
    product development performance gap among
    automakers has significantly narrowed.
  • Lean Software Development, Mary Tom Poppendick,
    2003

26
Lean Development
  • Proven Lean thinking principles applied to
    Software Development
  • Eliminate Waste Only add value for customers, no
    delay. Learn to see waste.
  • Learn Constantly Frequent Iterations, regular
    releases.
  • Delay Commitment Decisions at last responsible
    moment.
  • Deliver Fast Respond to customer need, fast.
  • Build Integrity In Initial delivery and Over the
    long term.
  • Empower the Team No one understands the details
    better than the people who actually do the work.
  • See the Whole Measurements and Incentives
    focused on achieving the overall goal.
  • Lean Software Development, Mary Tom
    Poppendick, 2003

27
Lean Development Waste
  • The Seven Wastes of Manufacturing The Seven
    Wastes of Software Development
  • Inventory Partially Done Work
  • Extra Processing Extra Processes
  • Overproduction Extra Features
  • Transportation Task Switching
  • Waiting Waiting
  • Motion Motion
  • Moving artifacts from one group to another
    is
  • a huge source of waste in software
    development.
  • Defects Defects
  • Test immediately, integrate often, and
    release to production as soon as possible.
  • Lean Software Development, Mary Tom
    Poppendick, 2003

28
Team Motivation
  • Based on psychological research from the past 70
    years, these are the six things that motivate
    people
  • 1. Recognition
  • 2. Challenging work
  • 3. A sense of belonging
  • 4. Feeling heard and acknowledged
  • 5. Contributing ideas, expertise, and creativity
  • 6. Creating something meaningful and significant
  • Erika Jones, ABQ SPIN, March 2005

29
Team (De)Motivation
Forced Ranking Could Improve Business Performance
Forced-ranking systems, where a predetermined
percentage of low-performing employees is fired
every year, can improve a companys workforce,
according to a new study. The results were
published in the latest issue of Personnel
Psychology, from Blackwell Publishing.
One thing the study did not cover is the effect
of a forced-ranking system on employee morale or
on a companys reputation, positively or
negatively. "We recognized thats a critical,
important variable, but we werent really able to
put our finger on it and say, This is how morale
would be affected, " Scullen says.
Workforce Management, March 2005
  • But most often with forced ranking
  • People working to protect themselves.
  • People not taking risks -- risk exposes the very
    real possibility of being fired.
  • Managers consciously hiring not-so-great
    employees every so often, so they'd have someone
    to fire.
  • People working to maximize their
    review/evaluation, not for the good of the
    company or the product.
  • Johanna Rothman, March 2, 2005

30
The (dream) team
Bronze medal
Team vs. Group
31
Team Size
  • Sweet spot is 5-7 people
  • 491 medium sized projects with 35,000-95,000
    SLOC (source lines of code)
  • Putnam, Lawrence H. and Myers, Ware. Familiar
    Metrics Management Small is Beautiful-- Once
    Again. IT Metrics Strategis IV812-16, Cutter
    Information Corp., August 1998.

Development time in months
32
Accountability and Trust
  • Accountability ? Blame
  • Accountability "required to render account".
  • Accountability a way of creating trust.
  • The business world uses accountability a lot. For
    example, it is very common for sales people to
    have sales quotas.
  • Many business people think that developers hold
    themselves accountable to certain things (whereas
    most of the developers still don't do this).
  • Offshoring trend programming jobs searching for
    accountability
  • Kent Beck pointed out that the main requirement
    for companies to achieve CMM Level 5 is for these
    companies to be able to render account.
  • Kent Beck's November 17, 2004 Presentation at
    SDForum

33
Organization Structure
  • Conways Law
  • Organizations which design systems are
    constrained to produce designs which are copies
    of the communication structures of these
    organizations. This first appeared in the April
    1968 issue of Datamation. The law was named after
    Melvin Conway.

34
Multitasking
  • Clark and Wheelwright (1992) studied
    multi-tasking and determined that when working on
    more than two tasks, a persons time spent on
    value-adding work drops rapidly.

35
Models
Waterfall
Assumes that the underlying development processes
are defined and linear.
Requirements Analysis Design Coding Test
Spiral
Iterative
36
Iterative and Incremental Development (IID)
  • 1960 Weinberg teaching IID at IBM Systems
    Research Institute
  • 1977-1980 IBM FSD builds NASA Space Shuttle
    software in 17 iterations over 31 months,
    averaging 8 weeks per iteration
  • 1996 Larman meets with principal author of
    DD-STD-2167
  • David Maibor expressed regret for the creation of
    the waterfall-based standard. He had not learned
    of incremental development at the time and based
    his advice on textbooks and consultants
    advocating the waterfall method. With the
    hindsight of iterative experience, he would
    recommend IID.

37
Defined vs Empirical Process
  • It is typical to adopt the defined (theoretical)
    modeling approach when the underlying mechanisms
    by which a process operates are reasonably well
    understood. When the process is too complicated
    for the defined approach, the empirical approach
    is the appropriate choice..
  • Process Dynamics, Modeling, and Control,
    Ogunnaike and Ray, Oxford University Press, 1992

38
Defined Process
  • Light (direct/indirect/flash)
  • Film speed/grain
  • Lens Aperture
  • Motion (subject/camera)
  • Composition (static/dynamic)
  • Depth of field
  • Subjectivity

Photography
?


Film Camera
Light Meter
39
Empirical Process
Film Camera
Digital Camera
Shorten Feedback Loop Reduce Change Cost
Control is through inspection and adaptation
40
Emergent Behavior
  • Funded by NASA, Attila was built in the early
    1990s to move over unknown territory without any
    human input. The concept was used for the rover
    "Sojourner" that sent back photos from the Mars
    Pathfinder mission.

41
Agile and Fixed Price?
  • Fixed Price, Time and Scope
  • What about the value?
  • How to maximize value? vs. How to minimize cost?
  • Software value is greater than cost
  • Other costs
  • Cost 20 at delivery, 80 after that
  • Peoples time on project
  • Opportunity cost
  • Contractors use strategy of low bids expensive
    change requests
  • Fixed Price and Time
  • We have x to spend and we need a release on Dec
    1st. We will collaborate together to come up with
    the best set of features to go live on that
    date.
  • Deliver better product that can be currently
    envisioned because we will learn more as the
    project proceeds
  • Or cancel the project early
  • Martin Fowler

42
Estimation Recommendations
  • Dont get tricked into making an instant
    estimate ask for time to think about (a week,
    a day, even an hour)
  • State the estimate in terms of confidence levels,
    or ranges, etc.
  • Jim McCarthy (formerly of Microsoft, author of
    Dynamics of Software Development) make the
    customer, or other members of the organization,
    share some of the uncertainty.
  • Project manager I dont know precisely when
    well finish but Im more likely to be able to
    figure it out than anyone else in the
    organization. I promise that as soon as I have a
    more precise estimate, Ill tell you right away.
  • Do some reading and research to become better at
    this area, e.g.
  • Bargaining for Advantage Negotiating
    Strategies for Reasonable People, by G. Richard
    Shell (reissue edition, Penguin Books, June 2000)
  • Getting Past No Negotiating Your Way from
    Confrontation to Cooperation, by William Ury
    (Bantam Doubleday Dell, 1993)
  • Ed Yourdon

43
Agile Manifesto
  • Official definition from the Agile Manifesto
  • (www.agilemanifesto.org)
  • "We are uncovering better ways of developing
    software by doing it and helping others do it.
    Through this work we have come to value
  • Individuals and interactions over processes and
    tools
  • Working software over comprehensive documentation
  • Customer collaboration over contract negotiation
  • Responding to change over following a plan
  • That is, while there is value in the items on the
    right, we value items on the left more."

44
Agile Processes Books
  • Extreme Programming (1999) Kent Beck et. al.
  • Crystal (2001) Alistair Coburn
  • Scrum (2001) Ken Schwaber
  • Lean Software Development (2003) Tom Mary
    Poppendieck

45
Scrum
  • Developed with the assistance of the DuPont
    Advanced Research Facility and presented to the
    Object Management Group in 1995.
  • Key developers and promoters of Scrum are Jeff
    Sutherland, Ken Schwaber, and Mike Beedle.

46
Scrum has been used in
  • Independent Software Vendors (ISVs)
  • Fortune 100 companies
  • Small startups
  • Internal development
  • Contract development

Source An Introduction to Scrum by Mike Cohn
47
Scrum is being used in
  • FDA-approved, life-critical software for x-rays
    and MRIs
  • Enterprise workflow systems
  • Financial payment applications
  • Biotech
  • Call center systems
  • Tunable laser subsystems for fiber optic networks
  • Application development environments
  • 24x7 with 99.99999 uptime requirements
  • Multi-terabyte database applications
  • Media-neutral magazine products
  • Web news products

Source An Introduction to Scrum by Mike Cohn
48
Scrum Principles
  • Scrum is founded upon two basic principles
  • Team Empowerment. The project team is divided
    into self-managing, multi-function units called
    Sprint Teams, consisting of up to seven people.
    The team is empowered to use whatever development
    methods or tools they think best to prepare their
    deliverables.
  • Iterative Development. The project deliverables
    are built over several iterative development
    cycles, each adding additional features, and each
    resulting in demonstrable results working code,
    written documentation, viewable designs, etc.

Source An Introduction to Scrum by Mike Cohn
49
Scrum Process
24 hours
Daily Scrum Meeting
15 or 30 days
Backlog tasks expanded by team
Sprint Backlog
Potentially Shippable Product Increment
Product Backlog As prioritized by Product Owner
Source Adapted from Agile Software Development
with Scrum by Ken Schwaber and Mike Beedle.
50
Scrum Team
  • Committed
  • Accountable
  • Ready to learn
  • Problem solvers

51
Scrum Team Lessons Learned
  • Cross-functional
  • Development, Test, Support, Infrastructure,
  • Specialists vs. Generalists
  • Generalizing Specialists, Scott Ambler, 2003
  • Good grasp of how everything fits together
  • New ways to work for many coaching needed
  • Not hierarchical

52
Product Backlog
  • A list of all desired work on the project
  • Usually a combination of
  • story-based work (let user search and replace)
  • task-based work (improve exception handling)
  • List is prioritized by the Product Owner
  • Typically a Product Manager, Marketing, Internal
    Customer, etc.

Source An Introduction to Scrum by Mike Cohn
53
Product Backlog
  • I always think of the ideal product backlog item
    as something incredibly vague "Wouldn't it be
    neat if we could...." Ideally that very vague
    statement could be turned into potentially
    shippable software by a highly cross-functional
    team that worked together to figure out what it
    means and then build it.
  • Mike Cohn, Users Stories

54
Product Backlog Lessons Learned
  • Use a central repository
  • System used Request Tracker
  • EVERYBODY can contribute, anywhere, any time, any
    idea, any request
  • Easy report access (by priority, date,)
  • Define common vocabulary
  • Issue ranking Scream gt Critical gt Severe gt
    Important gt Major gt Minor gt NTH
  • In practice only three levels for Product backlog
    reviews A, B and C.
  • Product Backlog Reviews
  • We do not have a real Product Manager
  • Product Management Steering is difficult in a
    startup-like company
  • Choosing Most bang for the buck vs. Reacting to
    Sales Opportunistic approach
  • Every actor involved in the review/prioritization
    should be present (Sales, Support, Development,)
  • Be ready to make a case for your request
  • Conduct Frequent Reviews (monthly)
  • To avoid long list of items
  • To keep people engaged in the process
  • Keep Backlog item titles as self-describing as
    possible
  • Very useful to buffer latest Sales requests
  • Urgent today -gt NTH two weeks later

55
Sprint
  • Sprint Team Contract
  • List of items from Product Backlog
  • Commitment
  • Accountability
  • Deliver completed tasks
  • Strict length definition

56
Sprint
  • Depend on others to execute their part/commitment
  • Cannot be interrupted

57
Sprint Lessons Learned
  • 2 weeks iterations
  • Long enough to stay focused on mission and
    deliver valuable increments
  • Short enough to keep Sales/Customers engaged in
    the process
  • Early signs of issues, no more than two weeks
    wasted
  • Pace yourself One sprint every two weeks!
  • Build process and Configuration management are
    essential
  • CVS, ANT
  • Explicit Sprint Goals
  • Example Author User Interface
  • Team can add/remove tasks to meet Sprint goals
  • Clear indicator of noise level
  • Finishing tasks is not trivial
  • Obstacles will happen
  • Disk crash, Sickness,
  • Bad Sprints will happen (few a year)
  • Adapt during the Sprint

58
Sprint Planning
  • Team fills the next sprint with top backlog items
  • Team members commitment
  • Bottom Up
  • How can I contribute to the sprint?
  • Who can volunteer to this task?
  • Game plan Stick with the collaborative call
  • Outcome Sprint backlog
  • Only team members

59
Sprint Backlog Example
Source An Introduction to Scrum by Mike Cohn
60
Sprint Planning Lessons Learned
  • We added an explicit reflective part in the
    meeting for the team only (vs. Sprint Review)
  • How was the last sprint?
  • What can we work better together?
  • Estimating is always hard but lower granularity
    helps
  • Staff not necessarily 100 available
  • Support

61
Tasks
  • 1 to 16 hours
  • Done
  • Shippable

62
Tasks Done?
Pick your definition
"Testing? What's that? If it compiles, it is
good, if it boots up it is perfect." Linus
Torvalds
Tasks are only "done" when it's released and the
team have received the first mail from a user
saying what great a feature it is and how well it
works. In other words, it has been delivered and
starts to return benefits. from Scrum
users group
  • Our Done definition
  • Implemented and Committed
  • Tested by peer
  • Refactored and Documented

63
Tasks Lessons Learned
  • It does not have to be code
  • Technical development
  • Feasibility Study, Design
  • End users documentation
  • Server update
  • Marketing collaterals
  • Vendor comparison
  • Shippable ? Released

64
Scrum Master
  • Manage the process
  • Responsible for setting the team up for success
  • Inverted Management Serves the team
  • Organize meetings
  • Daily Scrum
  • Sprint Planning
  • Sprint Review
  • Shield from Noise

65
Scrum Master Lessons Learned
  • Tough Role
  • Shielding the team from noise, politics,
  • Development Manager vs. Scrum Master hats
  • Very Disciplined and Demanding Role
  • No bad day allowed
  • Similar to a sports coach
  • Soft skills are always hard
  • How do you develop, grow, and maintain a
    functioning self-organizing team?

66
Daily Scrum Meetings
  • Daily meeting
  • 15 minutes
  • Standup (to avoid too long meeting)
  • Not for problem solving
  • Three questions
  • What did you do yesterday?
  • What obstacles are in your way?
  • What will you do today?
  • Chicken and Pigs are invited
  • Only Pigs talk
  • Report to the team, not to the Scrum Master
  • Eye contact for commitment (no emails)

67
Daily Scrum Meetings Lessons Learned I
  • Remember that you are doing it every day!
  • Keep it short and in time
  • Team Motivation, Erika Jones
  • Accountability and Trust, Kent Beck
  • Day-to-day verifiable progress
  • Hard to keep short
  • We started at 40 minutes, Still above 20 minutes
  • Scrum Master
  • Watch for noise
  • Length is ok as long as people time is not lost
  • Sometimes use a big count down clock
  • Watch recipient of message

68
Daily Scrum Meetings Lessons Learned II
  • 93000
  • Keep it at precise time Better rhythm for
    everybody
  • Forces people to make it to the office at a
    decent time!
  • Every pig involved in delivering value
  • System administrator gradually involved in the
    team effort.
  • Amazing emergent behaviors
  • Constant adaptation (Attila like)
  • Random first speaker, clockwise after that
  • Team members will not always be available
  • You will need a teleconference system
  • Experimented on rare occasions with IM. Not a
    good substitute for eye contact.
  • Finish meeting with Any other issues?
  • Usually reduce need for other meetings
  • Great on-the-fly training

69
Sprint Burndown Chart
  • Hours Remaining by Date
  • Ideally, the burndown chart drops one day per
    team member every day
  • Updated daily
  • How much is left to be done
  • Decision tool to adjust the Sprint
  • Visible to all the team

70
Sprint Burndown Chart Lessons Learned
  • Updated daily Keep the chart administration to
    the minimum
  • Keep it highly visible
  • Shape more important than actual numbers
  • We estimate by tasks, not by hours
  • Each task counts for three points
  • Team pattern identification
  • Velocity calculation
  • Student syndrome
  • Added new/unexpected tasks count for Sprint
    review (noise measurement)

71
War Room
Only a recommendation
Burndown Chart
Issue Criteria
Done Definition
930 three item Agenda
Architecture Overview
Top Backlog Summary
Release Calendar
Issue Metrics Critical/Severe Others
Obstacles
Parking Lot
Speakerphone
Tasks with completion status
72
War Room Lessons Learned
  • Could not live without it!
  • Team memory
  • Burndown chart raw data
  • Digital picture for the Sprint Reviews
  • Tasks status tracking
  • Nothing to hide

73
Sprint Review
  • Team presents Sprint accomplishments
  • No PowerPoint Slides, light preparation
  • Mandatory Demonstrations
  • Team
  • Scrum Master
  • Customers
  • Management
  • Product Owner
  • Team Celebration/Show-off

74
Sprint Review Lessons Learned
  • Demonstrations are essential
  • Better understanding of where the engineering
    team is
  • Never skip a demonstration! Real accountability
  • Feel good (or bad)
  • Early Victory Sociologist Karl Weick calls this
    "small wins
  • Constant learning
  • Sales team always impressed!
  • Celebrate

75
Releases and Responsibilities
Feedback cycles
Roles
Months
Release Plan
  • Product Manager
  • Manage the Vision
  • Manage the ROI
  • Manage the Release
  • Scrum Master
  • Manage the Process
  • Team
  • Manage the development iteration

Weeks
Iteration Plan
Days
Customer Tests
1 Day
Daily Meeting
Hours
Story Conversations
Minutes
Programmer Tests
Seconds
Pair Programming
76
How we bootstrapped
  • Finishing features every month seemed unrealistic
  • Started with Product Backlog
  • Added daily meetings
  • Huge Deliverable Started Official Sprints.
    Picked two weeks for three months. Stuck with
    that since.
  • Initially used Staff meeting for Sprint Reviews.
    Now split

77
Scrum Implementation
Weeks
78
Performance Review
  • How to perform individual performance reviews in
    the context of a team based effort?
  • Our development organization came up with a
    review process in 2004 where everyone had six
    goals. Two were team based and were evaluated
    based on team performance. Namely
  • Achievement of Sprint goals and
  • Adhering to scrum practices (keeping burndown
    charts, daily Scrum meetings, team members
    working outside their role etc..)
  • Goals 3 and 4 were functionally oriented and
    evaluated the team member's performance as it
    relates to their primary functional area
    (programming, testing , tech writing, etc..).
  • And the final two goals ( 5 6) were individual
    goals selected by the individual generally
    related to learning or knowledge sharing
    objectives.
  • Bill McMichael, Primavera, Scrum Users Group,
    April 2005

79
Large teams Meta Scrum
Source An Introduction to Scrum by Mike Cohn
80
Miscellaneous
  • Certification
  • CSM Certified Scrum Master
  • Growing Rapidly
  • Decertification
  • CMM
  • Scrum compared to CMM level 3

81
Benefits
  • Productivity
  • Metrics
  • Subjective We did not have real metrics to start
    with
  • Mike Cohn measured about six-fold improvement
    compared to more traditional approach
  • Spectacular Delivery
  • Example Delivered a complex new workflow engine
    in less than three months
  • Implicit improvement focus and cut waste
  • Transparency
  • More predictable
  • Team building
  • Company communication
  • Sales I cannot believe it. This is exactly what
    I need to know.
  • External assessment
  • VCs You are a lot more mature than the other
    startups we usually see.

82
To improve
  • Finish Sprints
  • Tempted to apply Scrum to other areas (Sales,
    Marketing)
  • Product Management
  • Pacing
  • How to renew ourselves?
  • Short term Sprints vs. longer term RD
  • Testability of the application
  • Test Driven Development (unit, FIT)

83
References
  • Scrum
  • http//www.controlchaos.com/
  • Users group
  • scrumdevelopment_at_yahoogroups.com
  • Agile Alliance
  • http//www.agilealliance.org/

84
The end
  • Questions?
Write a Comment
User Comments (0)
