DIAGNOSTICS Prof. Ivo Hrazdira, MD., DSc. WHAT IS

1

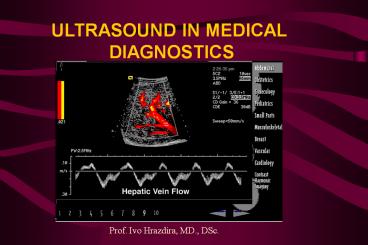

ULTRASOUND IN MEDICAL DIAGNOSTICS
Prof. Ivo Hrazdira, MD., DSc.
2
WHAT IS ULTRASOUND?

• Acoustic vibrations of frequencies higher than 20
  kHz, non audible by human ear
• According to the type of interaction with cells
  and tissues
  - ACTIVE ULTRASOUND
  high intensity (applications in physical
  therapy and surgery)
  - PASSIVE ULTRASOUND low intensity
  (applications in medical diagnostics)

3
ACOUSTIC PARAMETERS

• Source

• - FREQUENCY
  - INTENSITY
• Medium
  - SPEED OF PROPAGATION
  - ACOUSTIC IMPEDANCE
  - ATTENUATION -
  absorption



  .
  - scattering

4
DIAGNOSTIC ULTRASOUND

• PHYSICAL PRINCIPLE
  ULTRASONIC WAVES PASSING THROUGH THE BODY
  ARE PARTIALLY REFLECTED ON TISSUE INTERFACES.
  REFLECTIONS (ECHOES) ARE RECEIVED, PROCESSED AND
  DISPLAYED

5
HISTORY OF ULTRASOUND

• PREPARATORY PERIOD
• 1842 - DOPPLER PRINCIPLE OF FREQUENCY
• SHIFT
• 1880 - BROTHERS CURIE DISCOVERY OF
• PIEZOELECTRIC PHENOMENON
• 1916 - LANGEVIN AND CHILOWSKI
• CONSTRUCTION OF THE FIRST
  ULTRASOUND
• GENERATOR (SONAR)
• 1929 - SOKOLOV BASIS OF NON-DESTRUCTIVE
• ULTRASOUND MATERIAL TESTING

6
HISTORY OF DIAGNOSTIC ULTRASOUND

• FIRST ATTEMPS
• 1942 - DUSSIK HYPERPHONOGRAPIE (TRANSMISSION
  METHOD)
• 1949 - KEIDEL HEART VOLUME MEASUREMENT
• 1949 - UCHIDA A-MODE ENCEPHALOGRAPHY
• 1950 - WILD TISSUE DIFFERENTIATION
• 1951 - WAGAI BILL STONE DETECTION

7
HISTORY OF DIAGNOSTIC ULTRASOUND

• 1942 - FIRST ATTEMP - UNSUCCESSFUL
• CLINICAL APPLICATIONS
• 1950 - 1D IMAGING (A- MODE)
• 1954 - ECHOCARDIOGRAPHY (M-MODE)
• 1955 - 2D - IMAGE OF ABDOMEN (B - MODE)
• 1958 - 2D - IMAGING IN OBSTETRICS
• 1958 - 2D - IMAGING IN OPHTHALMOLOGY
• 1968 - TRANSRECTAL EXAMINATION
• 1968 - FIRST CONTRAST IMAGING (SALINE)

8
HISTORY OF DIAGNOSTIC ULTRASOUND

• CLINICAL APPLICATIONS (CONTINUED)
• 1978 - TRANSESOPHAGEAL EXAMINATION
• 1990 - BROAD-BAND TRANSDUCERS
• 1992 - 3D IMAGING IN OB/GYN
• 1992 - TRANSPULMONARY ECHOCONTRAST
• AGENTS
• 1996 - NATIVE HARMONIC IMAGING
• 1998 4D (3D imaging in real time)

9
DIAGNOSTIC DEVICE

• MAIN PARTS OF A DIAGNOSTIC DEVICE
• ELECTROACOUTIC TRANSDUCER
• GENERATOR OF ELECTRIC IMPULSES
• PROCESSING OF RECEIVED ECHOES
• DISPLAY
• RECORDING SYSTEM

10
DIAGNOSTIC DEVICES
11
TRANSDUCERS (imaging lines)
12
TRANSDUCERS
sector
convex
linear
transvaginal/transrectal
transesophageal
13
DIAGNOSTIC ULTRASOUND

• IMAGING METHODS
  - A MODE (one-dimensional)
  - B MODE (two-dimensional,
• three-dimensional)

• DOPPLER METHODS
  - CW
  - PULSED

  - COLOUR
• COMBINED METHODS (duplex, triplex)

14
PRINCIPLE OF A- AND B- IMAGING
15
DIAGNOSTIC FREQUENCIES

• 2 - 6 MHz
  abdominal ultrasound, obstetrical
  and gynaecological exam, echocardiography,
  transcranial Doppler
• 7.5 - 14 MHz
  small parts, vascular Doppler,
  musculoskelatal ultrasound

16
DIAGNOSTIC FREQUENCIES

• 10 - 20 MHz
  ophthalmology, special vascular exam
• 20 - 50 MHz
  endoluminal exam, ultrasound biomicroscopy
  (ophthalmology, dermatology)

17
A- AND B- MODE IN OPHTHALMOLOGY
18
B- MODE IN ABDOMINAL REGION
19
B- MODE IN OBSTETRICS
20
B- MODE IN MUSCULOSKELETAL ULTRASOUND
Meniscal Tear
21
B- AND M- MODE IN CARDIOLOGY
22
PROGRESS IN ULTRASONOGRAPHY

• IMPROVED IMAGE DISPLAY
• - digital technology
• - 3D/4D imaging
• IMPROVED SIGNAL DETECTION
• - echo-enhancing agents

• - harmonic imaging

23
PROGRESS IN ULTRASONOGRAPHY

• NOVEL METHODS
• - anisotropic imaging
• - perfusion imaging
• - elastography
• NOVEL APPLICATIONS
• - intraoperative
• - intraluminal

24
DIGITAL TECHNOLOGY

• BROADBAND SCANHEADS/ BROADBAND BEAMFORMING
• - captures full tissue signature
• EXTENDED SIGNAL PROCESSING
• - digitally preserves entire signal
• TISSUE SPECIFIC IMAGING
• - improves signal/noise ratio for detection
• of small, low-contrast lesions

25
DIGITAL TECHNOLOGY
26
BROADBAND TECHNOLOGY
27
BROADBAND TECHNOLOGY IMAGES
28
WHAT ARE ECHOCONTRAST AGENTS?

• AIR OR GAS MICROBUBBLES, FREE OR INCAPSULATED IN
  A POLYMER COVER
• ACCORDING TO THEIR HIGHER DIFFERENCE IN ACOUSTIC
  IMPEDANCE, CONTRAST AGENTS ENHANCE THE
  ECHOGENICITY OF THE BODY SPACE IN WHICH THEY WERE
  INTRODUCED

29
ECHOCONTRAST AGENTS

• CATEGORY OF ECHOCONTRAST AGENTS
• GAS BUBBLES INTRODUCED INTO THE ORGANISM
  (ECHOVIST, LEVOVIST, ALBUNEX, ECHOVIEW)
• GAS BUBBLES FORMED IN THE ORGANISM (ECHOGEN)

30
ECHOCONTRAST AGENTS

• IN VASCULAR IMAGING
• - enhance weak signals resulting from deep
  vessels or slow flow (hyperaemia, ischaemia)
• - improve signals from malignant
  neovascularization
• IN NON-VASCULAR IMAGING
• - increase the reflectivity of particular normal
  or pathologic tissues (targeted agents)
• - delineate body cavities and communications

31
INCAPSULATED BUBBLES(scanning electronmicrograph)
32
HARMONIC IMAGING

• NEW MODE OF ULTRASOUND IMAGING, IN WHICH THE
  FUNDAMENTAL FREQUENCY OF RETOURNING ECHOES IS
  SUPPRESSED AND SIGNALS OF HARMONIC FREQUENCY ARE
  RECEIVED, PROCESSED AND DISPLEYED

33
FORMS OF HARMONIC IMAGING

• CONTRAST HARMONIC IMAGING
• microbubbles of echo enhancing agents are able
  to resonate and emit harmonic signal
• NATIVE HARMONIC IMAGING
• harmonic signal is produced by oscillation of
  tissue structures due to the non-linear
  propagation of ultrasound

34
PRINCIPLE OF HARMONIC IMAGING
supression
35
HARMONIC IMAGING
stone
FUNDAMENTAL HARMONIC
36
3-D IMAGING

• 3-D IMAGING TECHNOLOGY ALLOWS PHYSICIANS TO
  VIEW PATIENTS NORMAL AND PATHOLOGIC ANATOMY AS A
  VOLUME IMAGE
• IT IS SUGGESTED THAT 3-D IMAGING WILL PROVIDE A
  CENTRAL INTEGRATING FOCUS IN ULTRASOUND
  DIAGNOSTICS

37
3-D IMAGING

• PHYSICAL PRINCIPLE
• THE TRANSDUCER IS MOVED DURING EXPOSURE (linear
  shift, swinging, rotation)
• RECEIVED ECHOES ARE STORED IN THE MEMORY
• THE IMAGE IN THE CHOSEN PLAIN IS RECONSTRUCTED
  MATHEMATICALY

38
3D IMAGING
39
3-D COLOUR DOPPLER SONOGRAPHY

• REPRESENTS A COMBINATION OF 3-D AND POWER DOPPLER
  TECHNOLOGY transducer elements are
  electronically or manually sectored during
  exposure
• 3D CDS ALLOWS DEPICTION OF THE OVERALL
  VASCULARITY IN THE AREA OF INTEREST (esp.
  tumours)

40
3D COLOUR DOPPLER IMAGING
41
ANISOTROPIC IMAGING

• PHYSICAL PRINCIPLE
• IN ULTRASOUND TECHNOLOGY, ANISOTROPY REPRESENTS A
  DIRECTIONAL DEPENDENCY OF BACKSCATTERED WAVES
• THIS MODALITY CAN BE USED FOR DIFFERENTIATING
  NORMAL ANISOTROPIC TISSUES FROM ISOTROPIC
  ABNORMALITIES

42
ANISOTROPIC IMAGING

• AREAS OF CLINICAL APPLICATIONS
• CARDIOLOGY MYOCARDIUM EXAMINATION
• NEPHROLOGY EXAMINATION OF RENAL CORTEX
• MUSCULOSKELETAL ULTRASOUND EXAMINATIONS OF
  TENDONS AND CARTILAGES

43
ELASTOGRAPHY

• METHOD FOR IMAGING THE ELASTIC PROPERTIES OF
  TISSUES
• REPRESENTS AN IMAGING ANALOGY TO PHYSICAL
  EXAMINATION BY TOUCH
• DIFFERENCES IN MECHANICAL PROPERTIES OF TISSUES
  CAN BE IMAGED IN 2D- OR 3D- COLOUR-SCALE MANNER

44
ELASTOGRAPHY
MODEL MIMICING CONTRAST LESION IN PROSTATE
45
ELASTOGRAPHY(benign and malignant lesion of the
breast)
46
ENDOLUMINAL IMAGING
Transversal view of oesophageal sphincter
1 mucosa, 2 submucosa, 3 circular muscle, 4
intermuscular connective tissue, 5 longitudinal
muscle, 6 adventitia
2D and 3D image of advanced oesophageal cancer
47
DOPPLER ULTRASOUND

• A.Ch. Doppler (1803-1853)
• DOPPLER PRINCIPLE (1842) - frequency shift due to
  the movement of the source or reflector
• DOPPLER METHODS SERVE IN MEDICINE FOR

  - DETECTION OF TISSUE MOVEMENTS

  - MEASUREMENT OF BLOOD FLOW VELOCITY AND
  DIRECTION

48
MILESTONES OF DOPPLER ULTRASOUND

• 1960 - CONTINUOUS WAVE DOPPLER (CWD)
• 1974 - PULSE WAVE DOPPLER (PWD)
• 1982 - TRANSCRANIAL DOPPLER (TCD)
• 1986 - COLOUR FLOW MAPPING (CFM)
• 1992 - CONTRAST HARMONIC IMAGING (CHI)
• 1994 - POWER DOPPLER (PD)
• 1996 - TISSUE DOPPLER IMAGING (TDI)

49
DOPPLER EQUATION 1 (Doppler shift)
50
DOPPLER EQUATION 2 (velocity)
51
CONVENTIONAL DOPPLER METHODS
52
FLOW DIRECTION
53
MAIN VELOCITY CURVES
Low vascular impedance
High vascular impedance
54
COLOUR FLOW MAPPING(right renal artery)
55
COLOUR FLOW MAPPING(common carotid artery)
56
COLOUR FLOW MAPPING
57
NEW COLOUR DOPPLER IMAGING MODALITIES

• POWER DOPPLER (Colour Doppler Energy, Colour
  Doppler Angio)
• TISSUE DOPPLER IMAGING (TDI)
• 3-D COLOUR DOPPLER SONOGRAPHY (3D CDS)

58
POWER DOPPLER

• NEW TECHNOLOGY OF DOPPLER SIGNAL PROCESSING, IN
  WHICH ITS ENERGY ISTEAD OF ITS AMPLITUDE IS
  RECORDED
• THE ENERGY IS RELATED TO THE SQUARE OF THE
  AMPLITUDE OF THE SIGNAL
• USING THIS TECHNOLOGY, EVEN WEAK SIGNALS
  (CORRESPONDING TO LOW FLOW RATES) CAN BE RECORDED

59
DOPPLER SIGNAL ENERGY
60
POWER DOPPLER(renal perfusion)
61
POWER DOPPLER(increased thyroid perfusion)
62
POWER DOPPLER(kinking of internal carotid artery)
63
POWER DOPPLER

• ADVANTAGE
• - detection of very low blood flow
• - more complete displaying of the vascular bed

• - absence of aliasing and only little angle
• dependence
• DISADVANTAGE
• - loss of directional and partial loss of
  velocity
• information

64
TISSUE DOPPLER IMAGING

• NEW COLOUR DOPPLER IMAGING MODALITY IN WHICH THE
  DOPPLER SIGNAL IS DERIVED FROM SLOW TISSUE
  MOVEMENTS
• THE SYSTEM SUPRESSES FAST VELOCITIES OF BLOOD
  FLOW AND RECORDS ONLY SLOW MOVEMENTS IN THE RANGE
  1 - 10mm/s

65
CLINICAL IMPORTANCE OF TDI

• ASSESSMENT OF MYOCARDIUM MOVEMENTS DURING HEART
  CONTRACTION
• ASSESSMENT OF DISTENSIBILITYAND COMPLIANCE OF
  VESSEL WALL
• ASSESSMENT OF SKELETAL MUSCLES CONTRACTIBILITY
  AND TENDON MOVEMENTS

66
TDI - HEART
Colour imaging of blood flow
TDI- Colour imaging of heart movements
67
TDI - ARTERY
68
FUTURE OF ULTRASONOGRAPHY

• In the medical imaging world, it is hard to
  beat ultrasound in following terms
• COST - EFFECTIVENESS
• RANGE OF APPLICATIONS
• SAFETY

69
FUTURE OF ULTRASONOGRAPHY

• ACCORDING TO RECENT ADVANCES IN POWER DOPPLER,
  3-D IMAGING, CONTRAST AGENTS, HARMONIC IMAGING
  AND INTERVENTIONAL APPLICATIONS, ULTRASONOGRAPHY
  BECOMES THE PREFERRED DIAGNOSTIC IMAGING MODALITY
  OF THE 21TH CENTURY
