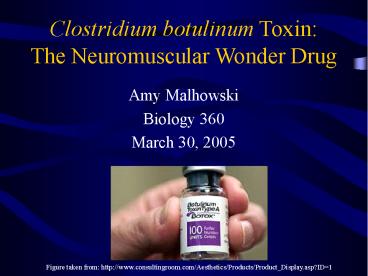

Clostridium botulinum Toxin: The Neuromuscular Wonder Drug

1
Clostridium botulinum ToxinThe Neuromuscular
Wonder Drug

• Amy Malhowski
• Biology 360
• March 30, 2005

Figure taken from http//www.consultingroom.com/A
esthetics/Products/Product_Display.asp?ID1
2
Public Perception of Botulinum Toxin
Bioterrorism!
Figures taken from http//www.safetycentral.com/b
ottoxfacin.html http//archives.cnn.com/2002/ALLPO
LITICS/06/12/bush.terror/
3
And of courseBotoxAka The Fountain of Youth
Figure taken from http//lingua.utdallas.edu7000
/1442/
4
Outline of Talk

• Historical background of C. botulinum
• Transmission of Botulinum toxin
• Molecular pathogenesis
• Therapeutic uses of Botulinum toxin
• Concluding remarks

5
What is Botulism?

• Flaccid paralysis of muscles
• by toxin from Clostridium botulinum
• Three types via route of entry of bacteria
• Foodborne, infant, wound
• Mainly foodborne outbreaks
• Now bioterrorism threat

6
The History of Botulinum Toxin

• botulism from botulus (sausage) from outbreak
  of consuming improperly cooked sausage
• Published 1st case studies on botulinum
  intoxication
• Accurately described neurological symptoms
• 1st to propose therapeutic use of toxin

Figure adapted from Erbguth, 2004.
7
Symptoms of Botulism
Figure taken from Caya, et al., 2004.
8
Finding the Culprit

• Emile Pierre van Ermengem (1895)
• 1st to connect botulism to bacterium from raw,
  salted pork postmortem tissues of botulism
  victims
• Isolated bacterium, naming it Bacillus botulinus

9
Clostridium botulinum

• Strict anaerobe
• Gram-positive
• Bacillus (rod) shape
• Ubiquitous in terrestrial environment
• Virulence factor Botulinum toxin
• Released under specific conditions

Figure taken from http//www.jhsph.edu/Publication
s/Special/cover2.htm
10
Botulism and Bioterrorism

• Great potential in toxicity
• Toxin tested as bioweapon during WWII
• aborted when toxin did not affect test animals
  (donkeys)
• BoNT no longer considered good bioweapon

11
Mass Producing Botulinum Toxin

• Fort Detrick (1946) bioweapon research
• 1st time mass produce toxin
• Nixon terminates all research on biowarfare
  agents (1972)
• Schantz produces batch 79-11 (1979)
• used until 1997
• Batches made in 1991
• Botox by Allergan Inc., Irvine, CA

12
So what?Importance of C. botulinum Research

• Bioterrorism/outbreaks
• Kerner use in therapeutics
• Recently BoNT as therapeutic agent for
  neuromuscular disorders

13
Outline of Talk

• Historical background of C. botulinum
• Transmission of Botulinum toxin
• Molecular pathogenesis
• Therapeutic uses of Botulinum toxin
• Impediments in Treatment
• Concluding remarks

14
Transmission of Botulinum Toxin

• Mostly via improperly cooked food
• Conditions to produce toxin not completely
  understood
• Complex route of transmission
• Ingestion/injection
• Progenitor toxin complex
• Absorbed into tissue ? circulated in blood
• Dock onto receptors of neuron ? transcytosis ?
  binds up acetylcholine ? paralysis

15
Classes of Botulinum Toxin

• Seven different subtypes of botulinum toxin
• A, B, C1, D, E, F, and G
• Same general mechanism for muscular paralysis
• Vary in structure, target site, toxicity
• Only two manufactured for commercial use
• A and B

16
Target Proteins of Botulinum Toxins
Serotype Cellular Substrate Target Cleavage Site
A SNAP-25 Gln197-Arg198
B VAMP/Synaptobrevin Cellubrevin Gln76-Phe77 Gln59-Phe60?
C1 Syntaxin 1A, 1B SNAP-25 Lys253-Ala254 Lys252-253
D VAMP/Synaptobrevin (18, 181) Cellubrevin (181) Lys59-Leu60 Ala67-Asp68 Lys42-Leu43?
E SNAP-25(46) Arg180-Ile181
F VAMP/Synaptobrevin (181, 182) Cellubrevin Gln58-Lys59 Gln41-Lys42?
G VAMP/Synaptobrevin Ala81-Ala82
Figure adapted from Aoki. 2004. Curr Med Chem.
11 3085-3092.
17
Outline of Talk

• Historical background of C. botulinum
• Transmission of Botulinum toxin
• Molecular pathogenesis
• Therapeutic uses of Botulinum toxin
• Impediments in Treatment
• Concluding remarks

18
Molecular Pathogenesis of BoNT

• BoNT synthesized as single-chain polypeptide
• (inactive form)
• Polypeptide cleaved by protease to create dichain
  structure (active form)
• BoNT binds to epithelium, transcytosed, reaches
  general circulation
• Receptor-mediated endocytosis at peripheral
  cholinergic nerve endings
• In cytosol, toxin cleaves target, blocking
  neurotransmitter release flaccid paralysis

19
Major Steps in BoNT Action
Figure taken from Simpson. 2004. Annu. Rev.
Pharmacol. Toxicol. 44 161-193.
20
Genetic Organization of Botulinum Locus in
Clostridium botulinum
v
RNAP Core
BotR/A
5
3
ha operon
ntnh-bont/A operon
botR/A
ntnh
bont/A
ha34
ha17
ha70
Figure adapted from Raffestin, S., et al., 2005.
Molec. Microbiol. 55 235-249.
21
Botulinum Toxin Type A
Aoki. 2004. Curr Med Chem. 11 3085-3092.
Simpson. 2004. Annu. Rev. Pharmacol. Toxicol.
44 161-193.
22
Figure taken from Arnon, et al. 2001.
23
Uses of Botulinum Toxin

• Bioterrorism agent Category A
• Local paralytic agent Botox
• Therapeutic agent
• Neuromuscular disorders
• Pain management

24
BoNT as Local Paralytic Agent

• Use Botulinum toxin type A (Botox)
• Many cosmetic uses
• Few clinical side effects
• Fast acting 6 hours post injection
• Effects last 3-6 months
• Serial injections required to maintain results

25
BoNT/A Induces Local Paralysis

• Local effects dose dependent
• Injection site affects physical outcome

After Botox
Before Botox
Figures adapted from Mendez-Eastman. 2003.
Plast. Surg. Nurs. 2364-70.
26
Outline of Talk

• Historical background of C. botulinum
• Transmission of Botulinum toxin
• Molecular pathogenesis
• Therapeutic uses of Botulinum toxin
• Impediments in Treatment
• Concluding remarks

27
BoNT as a Therapeutic Agent

• Botox used in aesthetics
• ? therapeutic use in neuromuscular disorders
• BoNT/A Botox - Allergan, Inc.
• BoNT/B MYOBLOC - Elan Pharmaceuticals

28
BoNT as Therapeutic Agent in Neuromuscular
Disorders

• Purified BoNT/A Botox
• Treat medical conditions characterized by muscle
  hyperactivity/spasm
• blepharospasm, strabismus, cervical dystonia,
  glabellar lines, spastic dystonia, limb
  spasticity, tremors, chronic anal fissure,
  hyperhidrosis, etc.
• Currently only FDA approved for 4 disorders
• Blepharospasm (focal dystonia)
• Strabismus
• Cervical dystonia
• Hyperhidrosis

29
BoNT/A Muscle Hyperactivity Cervical Dystonia
(CD)

• CD involuntary contractions of neck and
  shoulder muscles
• FDA approved injections with BoNT/A (2000)
• BoNT/A injected into affected muscles to reduce
  muscle contraction
• BoNT/A effectively reduces muscle spasticity and
  pain associated with CD

30
Cervical Dystonia Study with Botox by Allergan,
Inc.

• Phase 3 randomized, multi-center, double blind,
  placebo-controlled study on treatment of CD with
  Botox (1998)
• 170 subjects (88 in Botox group, 82 in placebo
  group), analyzed until 10 wks post-injection
• Study suggests majority of patients had
  beneficial response by 6th week

31
Cervical Dystonia Study with BoNT/A as Dysport

• Multicenter, double-blind, randomized, controlled
  trial with Dysport to treat CD in the USA (2005)
• Patients (80) randomly assigned to receive
  Dysport (500U) or placebo
• Dysport significantly more effective than
  placebo at weeks 4, 8, and 12
• Dysport group had 38 with positive treatment
  response, with median duration of response of
  18.5 weeks

32
BoNT/A Pain Management

• BoNT use in controlling pain-associated disorders
• Data suggests BoNT acts in complex manner not
  just controlling overactive muscle
• BoNT inhibits the release of neurotransmitters
  (glutamate and substance P) involved in pain
  transmission

33
Peripheral and Central Nervous System
Sensitization
Figure taken from Aoki, 2003.
34
Botulinum Toxin A Affects Sensitization of PNS
CNS
Figure taken from Aoki, 2003.
35
Antinociceptive Activity of BoNT/A

• Acute pain (phase 1) - not relieved by BoNT/A
• Inflammatory pain (phase II) - relieved by BoNT/A
• Increasing doses decrease phase II pain
  appreciably
• Antinociceptive activity maintained longer with
  higher dose of BoNT/A

Figure taken from Aoki, 2003.
36
BoNT/A Injection Reduces Formalin-induced Pain

• Formalin challenge 5 days post-injection with
  BoNT
• ? dose-dependent decrease in Glut release
• BoNT/A prevents increase of formalin-induced Glut
  release

Figure taken from Aoki, 2003.
37
BoNT/A Reduces Pain

• Antinociceptive
• Activity of BoNT/A in
• formalin-challenged rats.

B) Subcutaneous BoNT/A injection reduces
formalin-induced glutamate release in rat paw in
a formalin-challenged inflammatory pain animal
model.
Figures taken from Aoki, 2003.
38
Conclusions on Therapeutics

• BoNT mechanism specific
• Uses are diverse
• Local flaccid paralysis
• Reducing muscle spasticity
• Reducing pain
• Currently use of BoNT
• muscle disorders and associated pain

39
Outline of Talk

• Historical background of C. botulinum
• Transmission of Botulinum toxin
• Molecular pathogenesis
• Therapeutic uses of Botulinum toxin
• Impediments in Treatment
• Concluding remarks

40
Impediments in Treating with BoNT

• FDA approval pending for many disorders
• Fleeting effects need repeated injections
• Socioeconomics less expensive than surgery BUT
  not permanent
• Social constraints
• More research needed
• stigma in using deadly toxin for good use

41
Concluding Remarks

• Toxin great therapeutic agent!
• Research needed to understand mechanism of
  release of BoNT from C. botulinum
• Few impediments in therapeutics
• Future with Botox is bright!

42
And remember
Sometimes wrinkles arent all that bad!
43
Thank you!

• Chris White-Ziegler
• My readers Caitlin Reed Natalia Grob
• Bio 360 students

Figure taken from http//www.jwolfe.clara.net/Hum
our/MedMiscel.htm
44
References

• Aoki, K.R. 2001. A Comparison of the Safety
  Margins of Botulinum Neurotoxin Serotypes A, B,
  and F in Mice. Toxicon. 39 1815-1820.
• Aoki, K.R. 2003. Evidence for Antinociceptive
  Activity of Botulinum Toxin Type A in Pain
  Management. Headache. 43 S9-S15.
• Aoki, K.R. 2004. Botulinum Toxin A Successful
  Therapeutic Protein. Curr. Med. Chem. 11
  3085-3092.
• Arnon, et al. 2001. Botulinum Toxin as
  Biological Weapon. JAMA. 285 1059- 2081.
• Bossi, P., A. Tegnell, A. Baka, F. Van Loock, J.
  Hendriks, A. Werner, H. Maidhof, and G. Gouvras.
  2004. Bichat Guidelines for the Clinical
  Management of Botulism and Bioterrorism-related
  Botulism. Eurosurveillance. 9 1-4.
• Breldenbach, M.A. and A.T. Brunger. 2004.
  Substrate Recognition Strategy for Botulinum
  Neurotoxin Serotype A. Nature. 432 925-929.
• Casadevall, A., E. Dadachova, and L. Pirofski.
  2004. Passive Antibody Therapy for Infectious
  Diseases. Nat Rev Microbiol. 2 695-703.
• Casadevall, A. and L. Pirofski. 2004. The
  Weapon Potential of a Microbe. Trends
  Microbiol. 12 259-263.
• Caya, J.G., R. Agoi, and J.E. Miller. 2004.
  Clostridium botulinum and the Clinical
  Laboratorian A Detailed Review of Botulism,
  Including Biological Warfare Ramifications of
  Botulinum Toxin. Arch Pathol Lab Med. 128
  653-662.

45
References

• CDC Botulism Emergency Preparedness Response.
  http//www.bt.cdc.gov/agent/botulism/ Accessed
  3/25/05.
• Chaddock, J.A., J.R. Purkiss, L.M. Friis, J.D.
  Broadbridge, M.J. Duggan, S.J. Fooks, C.C.
  Shone, C.P. Quinn, and K.A. Foster. Inhibition
  of Vesicular Secretion In Both Neuronal and
  Nonneuronal Cells by a Retargeted Endopeptidase
  Derivative of Clostridium botulinum Type A.
  Infect. Immun. 68 2587-2593.
• Coffield, J.A., N.M. Bakry, A.B. Maksymowych, and
  L.L. Simpson. 1999. Characterization of a
  Vertebrate Neuromuscular Junction That
  Demonstrates Selective Resistance to Botulinum
  Toxin. J. Pharmacol. Exp. Ther. 289 1509-1516.
• Coffield, J.A., N.M. Bakry, R.-d. Zhang, J.
  Carlson, L.G. Gomella, and L.L. Simpson. 1997.
  In Vitro Characterization of Botulinum Toxin
  Types A, C and D Action on Human Tissues
  Combined Electrophysiologic, Pharmacologic and
  Molecular Biologic Approaches. J. Pharmacol.
  Exp. Ther. 280 1489-1498.
• Cui, M., S. Khanijou, J. Rubino, and K.R. Aoki.
  2004. Subcutaneous Administration of Botulinum
  Toxin A Reduces Formalin-Induced Pain. Pain.
  107 125-133.

46
References

• De Paiva, A., F.A. Meunier, J. Molgo, K.R. Aoki,
  and J.O. Dolly. 1999. Functional Repair of
  Motor Endplates After Botulinum Neurotoxin Type
  A Poisoning Biphasic Switch of Synaptic Activity
  Between Nerve Sprouts and their Parent
  Terminals. Proc. Natl. Acad. Sci. USA. 96
  3200-3205.
• Erbguth, F.J. 2004. Historical Notes on
  Botulism, Clostridium botulinum, Botulinum
  Toxin, and the Idea of the Therapeutic Use of the
  Toxin. Mov Dis. 19 S2-S6.
• Fernandez-Salas, E., H. Ho, P. Garay, L.E.
  Steward, and K.R. Aoki. 2004. Is the Light
  Chain Subcellular Localization an Important
  Factor in Botulinum Toxin Duration of Action?
  Mov. Dis. 19 S23-S34.
• Fernandez-Salas, E., L.E. Steward, H. Ho, P.E.
  Garay, S.W. Sun, M.A. Gilmore, J.V. Ordas, J.
  Wang, J. Francis, and K.R. Aoki. 2004. Plasma
  Membrane Localization Signals in the Light Chain
  of Botulinum Neurotoxin. Proc. Natl. Acad. Sci.
  USA. 101 3208-3213.
• Foran, P.G., N. Mohammed, G.O. Lisk, S. Nagwaney,
  G.W. Lawrence, E. Johnson, L. Smith, K.R. Aoki,
  and J.O. Dolly. 2003. Evaluation of the
  Therapeutic Usefulness of Botulinum Neurotoxin
  B, C1, E, and F Compared with the Long Lasting
  Type A Basis for Distinct Durations of
  Inhibition of Exocytosis in Central Neurons. J.
  Biol. Chem. 278 1363-1371.

47
References

• Franciosa, G., M. Pourshaban, A. De Luca, A.
  Buccino, B. Dallapiccola, and P. Aureli. 2004.
  Identification of Type A, B, E, and F Botulinum
  Neurotoxin Genes and of Botulinum Neurotoxigenic
  Clostridia by Denaturing High-Performance Liquid
  Chromatography. App Env Microbiol. 70
  4170-4176.
• Hall, Y.H.J., J.A. Chaddock, H.J. Moulsdale, E.R.
  Kirby, F.C.G. Alexander, J.D. Marks, and K.A.
  Foster. 2004. Novel Application of an in vitro
  Technique to the Detection and Quantification of
  Botulinum Neurotoxin Antibodies. J. Immun. Met.
  288 55-60.
• Hong, B., L. Jiang, Y. Hu, D. Fang, and H. Guo.
  2004. J. Microbiol. Met. 58 403- 411.
• Jathoul, A.P., J.L. Holley, and H.S. Garmory.
  2004. Efficacy of DNA Vaccines Expressing the
  Type F Botulinum Toxin Hc Fragment Using
  Different Promoters. Vaccine. 22 3942-3946.
• Johnson, E.A. and M. Bradshaw. 2001.
  Clostridium botulinum and Its Neurotoxins A
  Metabolic and Cellular Perspective. Toxicon. 39
  1703- 1722.
• Johnston, M.D., S. Lawson, and J.A. Otter. 2005.
  Evaluation of Hydrogen Peroxide Vapour as a
  Method for the Decontamination of Surfaces
  Contaminated with Clostridium botulinum Spores.
  J. Microbiol. Met. 60 403-411.

48
References

• Lacy, D.B., W. Tepp, A.C. Cohen, B.R. DasGupta,
  and R.C. Stevens. 1998. Crystal Structure of
  Botulinum Neurotoxin Type A and Implications for
  Toxicity. Nat. Struct. Biol. 5 898-902.
• Lew, M.F. 2002. Review of the FDA-Approved Uses
  of Botulinum Toxins, Including Data Suggesting
  Efficacy in Pain Reduction. Clin. J. Pain. 18
  S142-S46.
• Lovenklev, J. E. Holst, E. Borch, and P.
  Radstrom. 2004. Relative Neurotoxin Gene
  Expression in Clostridium botulinum Type B,
  Determined Using Quantitative Reverse
  Transcription-PCR. App Env Microbiol. 70
  2919-2927.
• Maksymowych, A.B. and L.L. Simpson. 1998.
  Binding and Transcytosis of Botulinum Neurotoxin
  by Polarized Human Colon Carcinoma Cells. J.
  Biol. Chem. 273 21950-21957.
• Maksymowych, A.B., M. Reinhard, C.J. Malizio,
  M.C. Goodnough, E.A. Johnson, and L.L. Simpson.
  1999. Pure Botulinum Neurotoxin Is Absorbed
  from the Stomach and Small Intestine and Produces
  Peripheral Neuromuscular Blockade. Infect.
  Immun. 67 4708-4712.
• Marvaud, J.C., S. Raffestin, M. Gibert, and M.R.
  Popoff. 2000. Regulation of the Toxigenesis in
  Clostridium botulinum and Clostridium tetani.
  Biol. Cell. 92 455-457.
• McLaughlin, J.B., J. Sobel, T. Lynn, E. Funk, and
  J.P. Middaugh. 2004. Botulism Type E Outbreak
  Associated with Eating a Beached Whale, Alaska.
  Emerg. Infect. Dis. 10 1685-1687.

49
References

• Mendez-Eastman, S.K. 2003. BOTOX A Review.
  Plast Surg Nurs. 23 64-70.
• Merrison, A.F.A., K.E. Chidley, J. Dunnett, and
  K.A. Sieradzan. 2005. Lesson of the Week
  Wound Botulism Associated with Subcutaneous Drug
  Use. BJM. 325 1020-1021.
• Park, J. and L.L. Simpson. 2003. Inhalational
  Poisoning by Botulinum Toxin and Inhalation
  Vaccination with Its Heavy-Chain Component.
  Infect Immun. 71 1147-1154.
• Park, J. and L.L. Simpson. 2004. Progress
  Toward Development of an Inhalation Vaccine
  Against Botulinum Toxin. Expert Rev. Vacc. 3
  477- 487.
• Purkiss, J., M. Welch, S. Doward, and K. Foster.
  2000. Capsaicin-Stimulated Release of Substance
  P from Cultured Dorsal Root Ganglion Neurons
  Involvement of Two Distinct Mechanisms.
  Biochem. Pharm. 59 1403- 1406.
• Raffestin, S. B. Dupuy, J.C. Marvaud, and M.R.
  Popoff. 2005. BotR/A and TetR are Alternative
  RNA Polymerase Sigma Factors Controlling the
  Expression of the Neurotoxin and Associated
  Protein Genes in Clostridium botulinum Type A
  and Clostridium tetani. Molec. Microbiol. 55
  235-249.
• Rohrich, R.J., J.E. Janis., S. Fagien, and J.M.
  Stuzin. 2003. The Cosmetic Use of Botulinum
  Toxin. CME Plast. Reconstr. Surg. 112 S177-S187.

50
References

• Sahai, A, M. Khan, C.J. Fowler, and P. Dasgupta.
  2005. Botulinum Toxin for the Treatment of
  Lower Urinary Tract Symptoms A Review.
  Neurourology. 24 2-12.
• Scott, A.B. 2004. Development of Botulinum
  Toxin Therapy. Dermatol. Clin. 22 131-133.
• Simpson, L.L. 1986. A Preclinical Evaluation of
  Aminopyridines as Putative Therapeutic Agents in
  the Treatment of Botulism. Infect. Immun. 52
  858-862.
• Simpson, L.L., A.B. Maksymowych, and S. Hao.
  2001. The Role of Zinc Binding in the
  Biological Activity of Botulinum Toxin. J. Biol.
  Chem. 276 27034-27041.
• Simpson, L.L., H. Zepeda, and I. Ohishi. 1988.
  Partial Characterization of the Enzymatic
  Activity Associated with the Binary Toxin (Type
  C2) Produced by Clostridium botulinum. Infect.
  Immun. 56 24-27.
• Simpson, L.L., J.A. Coffield, and N. Bakry.
  1993. Chelation of Zinc Antagonizes the
  Neuromuscular Blocking Properties of the Seven
  Serotypes of Botulinum Neurotoxin as well as
  Tetanus Toxin. J. Pharmacol. Exp. Ther. 267
  720-727.
• Simpson, L.L., Y. Kamata, and S. Kozaki. 1990.
  Use of Monoclonal Antibodies as Probes for the
  Structure and Biological Activity of Botulinum
  Neurotoxin. J. Pharmacol Exp Ther. 255 227-232.

51
References

• Sobel, J., N. Tucker, A. Sulka, J. McLaughlin,
  and S. Maslanka. 2004. Foodborne Botulism in
  the United States, 1990-2000. Emerg. Infect.
  Dis. 10 1606-1611.
• Thakker, M.M. and P.A.D. Rubin. 2004.
  Pharmacology and Clinical Applications of
  Botulinum Toxins A and B. Int. Opthamol. Clin.
  44 147-163.
• Ting, P.T. and A. Freiman. 2004. The Story of
  Clostridium botulinum from Food Poisoning to
  Botox. Clin. Med. 4 258-261.
• Truong, D., D.D. Duane, J. Jankovic, C. Singer,
  L.C. Seeberger, C.L. Comella, M.F. Lew, R.L.
  Rodnitzky, F.O. Danisi, J.P. Sutton, P.D.
  Charles, R.A. Hauser, G.L. Sheean. Efficacy and
  Safety of Botulinum Type A Toxin (Dysport) in
  Cervical Dystonia Results of the First US
  Randomized, Double-blind, Placebo-controlled
  Study. 2005. Mov. Dis.
• Yoneda, S., M. Shimazawa, M. Kato, A. Nonoyama,
  Y. Torii, H. Nishino, N. Sugimoto, S. Kozaki,
  and H. Hara. 2004. Comparison of the
  Therapeutic Indexes of Different Molecular Forms
  of Botulinum Toxin Type A. Eur. J Pharm. 508
  223-229.
• Yowler, B.C. and C. Schengrund. 2004.
  GlycosphingolipidsSweets for Botulinum
  Neurotoxin. Glycoconjugate. 21 287-293.
• Zhang, L., W. Lin, S. Li, and K.R. Aoki. 2003.
  Complete DNA Sequences of the Botulinum
  Neurotoxin Complex of Clostridium botulinum Type
  A-Hall (Allergan) Strain. Gene. 315 21-32.
