Homeland Security

1

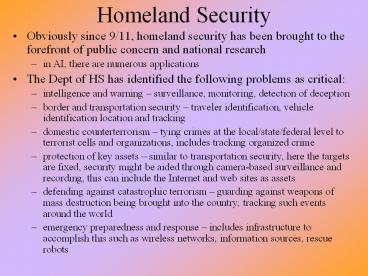

Homeland Security

• Obviously since 9/11, homeland security has been
  brought to the forefront of public concern and
  national research
• in AI, there are numerous applications
• The Dept of HS has identified the following
  problems as critical
• intelligence and warning surveillance,
  monitoring, detection of deception
• border and transportation security traveler
  identification, vehicle identification location
  and tracking
• domestic counterterrorism tying crimes at the
  local/state/federal level to terrorist cells and
  organizations, includes tracking organized crime
• protection of key assets similar to
  transportation security, here the targets are
  fixed, security might be aided through
  camera-based surveillance and recording, this can
  include the Internet and web sites as assets
• defending against catastrophic terrorism
  guarding against weapons of mass destruction
  being brought into the country, tracking such
  events around the world
• emergency preparedness and response includes
  infrastructure to accomplish this such as
  wireless networks, information sources, rescue
  robots

2
Threats and Needs

• Terrorism
• Monitor terrorist/extremist organizations
• financial operations, recruitment, purchasing of
  illegal materials, monitoring borders and ports,
  false identity detection, cross-jurisdiction
  communication/information sharing
• Global pandemics SARS, avian flu, swine flu
• Monitor national health trends
• symptom outbreaks, mapping travel for infected
  patients, large scale absences from work/school,
  monitoring drug usage, simulation and training
  for emergency responders and better communication
  between emergency response organizations
• Cyber security
• Monitor Internet intrusions
• denial of service attacks on national/internationa
  l corporation websites, new viruses, botnets,
  zombie computers, e-commerce fraud
• How much can AI contribute?

3
A Myriad of Technologies

• To support homeland security problems, many
  technologies are combined, not just AI, although
  many have roots in AI
• Biometrics identify potential terrorists or
  suspects based on biometric signatures (faces,
  fingerprints, voice, etc) using various forms of
  input
• Clustering data mining
• Decision support KBS, agents, semantic web, DB
• Event monitoring/detection telecommunications,
  databases, intelligent agents, semantic web, GIS
• Knowledge management and filtering KBS, data
  mining, DB processing, semantic web
• Predictive modeling data mining, KBS, neural
  networks, Bayesian approaches, DB
• Semantic consistency ontologies, semantic web
• Multimedia processing DB, indexing/annotations,
  semantic web
• Visualization DB, data mining, visualization
  techniques, VR

4
Intelligence Processing
5
NSA Data Mining

• NSA obtained approximately 1.9 trillion phone
  records to use in data mining
• Looking for phone calls between known terrorists
  and others
• Note this does not involve wire tapping but the
  legality of obtaining the records is being
  questioned
• More recently, the NSA has pruned down their
  records to a few million
• What they are looking for are links
• Add frequently called people to their list of
  potential terrorist suspects
• One approach is to count the number of edges that
  connect a particular individual to known
  terrorists
• Another is to look for chains of links to see the
  closeness between a suspect and known terrorists
• This work follows on from research done on the 19
  9/11 terrorists to show that each of them was no
  more than 2 links away from a known al-Qaida
  member and to show that terror suspect Mohamed
  Atta was a central figure among the 19 terrorists
• They are also using trained neural networks to
  detect call patterns and classify such patterns

6
The Dark Web

• Goal collect relevant web pages from terrorism
  web sites and make them accessible for specific
  terrorism-related queries and inferences
• Starting from reliable URLs, use a web crawler to
  accumulate related web pages
• link analysis and human input are both applied to
  prune irrelevant pages

• Automatically collect the pages from the URLs and
  annotate the pages
• including those with multimedia and multilingual
  content
• Content analysis performed by humans using domain
  specific attributes of interest

7
UA Dark Web Collection

• University of Arizona is creating a dark web
  portal
• Contains pages from 10,000 sites
• Over 30 identified terrorist or extremist groups
• Content primarily in Arabic, Spanish, English,
  Japanese
• Includes web pages, forums, blogs, social
  networking sites, multimedia content (a million
  images and 15,000 videos)
• Aside from gathering the pages via crawlers, they
  perform
• Content analysis (recruitment, training,
  ideology, communication, propaganda) usually
  human-labeled with support from software
• Web metric analysis technical features of the
  web site such as ability to use tables, CGI,
  multimedia files)
• Sentiment and affect analysis some web sites
  are not directly related to a terrorist/extremist
  organization but might display sentiment (or
  negativity) toward one of these organizations
  by tracking these sites, the researchers can
  determine how infectious a given site or cause
  is
• Authorship analysis determine the most likely
  author of a given piece of text

8
Dark Web Testbed

• The idea is to create a portal for terrorism
  researchers
• The Dark Web content is collected and made
  available
• Analysis is a combination of human and machine
  routines

• Data mining
• Link analysis (similar to Googles page ranking
  techniques)
• Types of information present
• Degree of Internet sophistication

9
Multilingual Indexing

• In order to automate search, each web page/text
  message found must be indexed
• Arizona Noun Phraser program applied to English
  pages
• Uses a part-of-speech tagger and linguistic rules
  to find nouns
• Mutual Information applied to Spanish and Arabic
  pages
• Uses statistically-based methods to identify
  meaningful phrases in any language
• Once identified, nouns were sent to a concept
  space program to extract pairs of co-occurring
  keywords that appeared on the same page
• Pairs were then placed into a thesaurus
  demonstrating related terms
• Queries in one language meant for pages in
  another language would undergo simple translation
• Queries were limited to keywords so context,
  generally, would not be required for translation
• Translation was performed by using two
  English-Arabic dictionaries
• This is a rudimentary form of machine
  translation, but it was felt sufficient for
  keyword querying

10
Dark Web Continued

• With web pages annotated, the Dark Web can now be
  used for document retrieval based on search
  queries (including cross-lingual searches)
• SOM mapping
• link analysis
• content analysis
• Activity scale(c, d)
• c cluster
• d attribute of interest
• wi,j 1 if attribute i is in site j, 0 otherwise
• m total number of web sites, n total number
  of attributes

11
Clustering on the Dark Web
Clustering and classification algorithms are run
on web site data, here are some results
Middle East terror organizations sites
Domestic web sites of US hate groups
Clustering performed using statistical
hierarchical clustering, features include those
derived through social analysis, link analysis,
and patterns derived through groups of links and
sites
12
Internet Sophistication

• Based on
• HTML techniques (lists, tables, frames, forms)
• Embedded multimedia (background images,
  background music, streaming A/V)
• Advanced HTML (dhtml, shtml), script functions
• Dynamic web programming (cgi, php, jsp/asp)
• Content richness is computed based on
• Number of hyperlinks
• Number of downloadable items
• Number of images, video and audio files
• Amount of web interactivity
• Email feedback, email list, contact address,
  feedback form
• Private messages, online forums/chat rooms
• Online shopping, payment, application form
• Why is determining Internet sophistication
  important?

13
MUC Information Extraction

• Obviously to succeed in the face of so much data
  (text), some automated processing is required to
  extract relevant information for
  indexing/cataloging
• DARPA sponsored a series of conferences
  (competitions) in which participants would
  compete to perform Information Extraction (IE)
  on test data
• These conferences are referred to as MUC
  message understanding conferences
• IE tasks
• Named entity recognition search text for given
  list of names, organizations, places of interest,
  etc
• Coreference identify chains of reference to the
  same object
• Terminology extraction find relevant terms for
  a given corpus (domain of interest)
• Relationship extraction identify relations
  between objects (e.g., works for, located at,
  associate of, received from

14
IE Strategies

• First, the NLU input needs to be put into a
  usable form
• If speech (oral), it must be transcribed to text
• Text might be simplified by removing common words
  and seeking roots of words (known as stemming)
• NLU processing to tag the parts of speech (noun,
  verb, adjective, adverb, etc) through statistical
  or parsing techniques
• Use of a word thesaurus to determine word
  similarities and concept thesaurus to determine
  relationships between words (e.g., WordNet might
  be applied)
• Traditional data mining (e.g., clustering)
• Support vector machines
• These are statistical/Bayesian based learning
  approaches which derive a hyperplane to separate
  data in a class from data not in a class (similar
  to a perceptron)
• Semantic translation using a domain model
  (possibly an ontology) to map concepts from one
  representation (e.g., the input) to another
  (e.g., target concepts)
• Template filling

15
Hybrid Syntax-Semantics Tag

• To simplify the semantic analysis in NLU, one
  approach has been to combine syntactic parsing
  and semantic parsing within a restricted domain
• Here, the idea is to identify not just the noun
  of a sentence, but to at the same time tag it as
  the type of noun based on the context

You can see that syntax tags are specialized not
only based on the type of concepts related to the
domain (e.g., Location being of importance) but
also what type of location noun proper
noun general semantic noun semantic
location general proper noun plural noun, etc
16
Template Based Information Extraction

• One IE approach is to provide templates of events
  of interest and then extract information to fill
  in the template
• Templates may also be of entities (people,
  organizations)
• In the example on the next slide
• a web page has been identified as a job ad
• the job ad template is brought up and information
  is filled in by identifying such target
  information as employer, location city,
  skills required, etc
• Identifying the right text for extraction is
  based on
• keyword matching
• using the tags provided by syntactic and semantic
  parsing
• statistical analysis
• concept-specific (fill) rules which are provided
  for the type of slot that is being filled in
• for instance, the verb hire will have an agent
  (contact person or employer) and object (hiree)

17
(No Transcript)
18
ltTEMPLATEgt DOC_NR "NUMBER" CONTENT
ltscenario-specific-objectgt ltORGANIZATIONgt
ORG_NAME "NAME"- ORG_ALIAS "ALIAS"
ORG_DESCRIPTOR "DESCRIPTOR"- ORG_TYPE
GOVERNMENT, COMPANY, OTHER ORG_LOCALE
LOCALE-STRING LOC_TYPE ORG_COUNTRY
NORMALIZED-COUNTRY COUNTRY-STRING
ORG_NATIONALITY NORMALIZED-COUNTRY-or-REGION
COUNTRY-or-REGION-STRING OBJ_STATUS
OPTIONAL- COMMENT " "- ltPERSONgt PER_NAME
"NAME" PER_ALIAS "ALIAS" PER_TITLE
"TITLE" OBJ_STATUS OPTIONAL- ltARTIFACTgt
ART_ID "ID"- ART_DESCRIPTOR "DESCRIPTOR"-
ART_TYPE scenario-specific-set-fill
OBJ_STATUS OPTIONAL- COMMENT " "-
LOC_TYPE CITY, PROVINCE, COUNTRY, REGION,
UNK
Sample Templates
19
The IE Approach from TerrorNet

• In order to support automated IE from the Dark
  Web Portal, UA has put together the following
  approach, which combines
• Regular expression matching for specific types of
  data (dates, numbers, dollar amounts)
• NLU syntactic parsing and syntactic/semantic
  tagging
• Phrase tagging (determining what words make up a
  phrase such as Ohio State Buckeyes)
• Phrase level identification
• References within the document to tagged and
  identified phrases
• Relation extraction based on verbs and verb
  templates
• Template filling

20
Using TerrorNet

• Given one or more documents, a network of
  coreferences and relationships is generated
• As an experiment, given 200 documents from the
  DarkWeb portal and the IE program from the
  previous slide, they generated a network, a
  portion of which is shown to the right
• Notice how it is similar to a semantic network in
  that the links are relationships
• But in this case, the relationships are
  discovered via IE text processing

21
Authorship Identification

• Another pursuit is to identify the author of
  Internet web forum messages
• In Arabic or English
• Attributes
• Lexical word (or character for Arabic) choice
• Syntactic choice of grammar
• Structural organization layout of the message
• Content-specific topic/domain
• Approaches were to perform classification using
  C4.5 and SVMs
• English identification uses 301 features used
  from a test set (87 lexical, 158 syntactic, 45
  structural and 11 content-specific)
• Arabic identification uses 418 features used from
  a test set (79 lexical, 262 syntactic, 62
  structural and 15 content-specific)
• used web spider to collect test set of documents
  from various Internet forums

22
Experimental Results

• In the experiments, different combinations of the
  attributes were used
• F1 lexical attributes
• F2 syntactic attributes
• F3 structural attributes
• F4 content specific
• C4.5 is a decision tree algorithm
• SVM is a support vector machine

23
Arabic Feature Set
Elongation words gt 10 characters are rare in
Arabic, so words that were overly long
were considered to be no more than 10 characters
so that word length distribution was not distorted
24
Link Discovery Through Data Mining
In this case, the data sets are compiled
terrorist databases, not web pages the
approach taken for pattern analysis is based on
hypothesization and testing
25
Details

• Start with databases that contain
• Transactions of known associations
• One or more patterns of terrorist activities
• Knowledge about terrorist groups/members
• Patterns of activities, probabilistic information
  on transactions
• The process
• Partial pattern matching to generate hypotheses
  of activities (e.g., development of chemical
  weapon, planned attack on location, etc) along
  with likely participants
• Hypotheses are used to generate queries to the
  DBs to grow the hypotheses and find additional
  support
• Hypotheses are evaluated using a Bayesian network
  of threat activities, the network is constructed
  from the hypotheses found and templates
• Highly ranked and related hypotheses are merged
  (relations based on Hamming distances and
  user-input rules) and the most compelling joint
  hypothesis is output

26
Beyond Link Analysis CADRE

• Continuous Analysis and Discovery from Relational
  Evidence
• Threat patterns represented as hierarchically
  nested templated events (like scripts)
• Given DBs that include threat activities, perform
  data mining and abductive inference to generate
  plausible hypotheses and evaluate them
• Specifically, the process is one of
• Triggering rules search the DBs for relatively
  rare events, any given rule might trigger one or
  more hypotheses
• Hypotheses are templates and additional searching
  is performed to fill in slots of the template(s),
  this is known as hypothesis refinement
• Link analysis is used to aid in the template
  filling similar to previous examples, but the
  process is more involved and utilizes KBS/rule
  based approaches as well

27
Continued

• At this point, each hypothesis is known as a
  local hypothesis and is evaluated
• An HMM is used to score a given hypothesis H by
  computing P(V H), P(PT H), P(PNT H)
• The probability that the hypothesis contains
  evidence from a vulnerability exploitation case
  (V), a productivity exploitation case by a threat
  group (PT) or a productivity case by a non threat
  group (PNT) using probabilistic models of
  time-tagged events (communications, acquisitions,
  target visitations, assets, group memberships,
  previous events)
• There are 3 HMMs, one for each probability, each
  HMM built on submodels, where the submodels are
  selected based on what evidence has been found
  (e.g., communications, known vistations, etc)

• After HMM scoring, poorly scored hypotheses are
  discarded and related high scoring hypotheses are
  merged into a global hypothesis

28
Deception Detection

• Another tool is to detect deception to be used
  when a suspect is being interviewed (whether by
  law enforcement, or say at an airport)
• The idea is to analyze hand and face motion and
  orientation (via video) to determine degree of
  truth or deception during an interview
• Capture video features
• head position, head velocity
• left/right hand position, left/right hand
  velocity
• distance from left/right hand to head, from hand
  to hand
• Use features as input to classify on four
  classifiers

• trained neural network
• support vector machine (perform non-linear
  classification using linear classification
  techniques)
• alternative decision trees (an ensemble)
• discriminant analysis
• NN and SVM had highest accuracy in experiments

29
Recommender Systems for Intelligence

• Another idea to support intelligence analysis for
  terrorism is the use of recommender systems to
  help point analysts toward useful documents
• An analyst develops a user profile
• types of information needed
• specific key words of use
• data sets to search through
• alert condition models
• previously used documents (that is, documents
  found to be useful for the given case being
  studied)
• The profile could also include items found not to
  be useful
• The analyst would probably have multiple
  profiles, one for each case being worked on
• Multiple profiles could be linked through
  relationships in the cases

30
Types of Recommenders

• Collaborative recommenders
• Make suggestions based on preferences of a set of
  users
• Given the current profile, find similar profiles
• Create a list of documents that the other users
  have used
• Rank the documents (if possible) and return the
  ranked list or the top percentage of the ranked
  list
• Content-based recommenders
• Each item (document) is indexed by its content
  (usually keywords)
• Based on the current task at hand (the content of
  documents retrieved so far), create a list of
  documents that similarly match, rank them and
  return the ranked list
• Hybrid recommenders
• Use both content-based and collaborative, merging
  the results, possibly using a weighted average or
  a voting scheme to rank the list of documents
  returned

31
Learning Component

• To be of most use, the recommender must adapt as
  the user uses the system
• Explicit feedback is provided when the user
  indicates which returned documents are of
  interest and which are not
• In the content-based system, the list of keywords
  can be refined by adding words found in documents
  of interest and removing words that were found in
  documents not of interest but not in the
  documents of interest
• In the collaborative system, document selection
  can be refined by increasing the chance of
  selecting a document that was of interest
  lessening the chance of selecting a document not
  of interest
• In addition, if possible, modify the users
  current profile
• Implicit feedback can only occur by continuing to
  watch what the user has requested in an attempt
  to modify what the system thinks the user is
  looking for

32
Example

• Query terrorism with backpacks
• Discovery system (e.g., Google) finds all
  relevant documents and passes result to
  recommender system
• Recommender finds users with similar profiles (4)
  and matches documents that they have used
• User provides feedback by clicking on one or both
  recommended documents

33
Ontology for Bioterrorism Surveillance

• This research deals with an ontology and problem
  solving agents to monitor health threats
• BioStorm includes a central ontology of
  domain-specific and task-specific knowledge for
  reasoning about bioterrorism events and two-tier
  medication to reconcile heterogeneous data
• Ontology includes sources of data and data
  transforms to take raw data from various
  surveillance platforms and place them into a form
  usable by the entire system
• E.g., some algorithms work at the population
  level, others at the level of individuals

34
BioStorm Processing

• BioStorms goal is to monitor health data and
  draw conclusions
• Shown here is how conclusions are drawn
  (evaluation analysis)
• Subtasks include obtaining surveillance data,
  looking for outbreaks of diseases and looking for
  aberrations among data, categorizing various
  results, aggregating data, etc

35
Problem Solvers

• Low level statistical problem solvers
• Count raw data (number of diseases, location of
  symptoms, etc)
• Knowledge-based qualitative reasoners
• Perform pattern recognition
• Correlation reasoners
• Find aggregates among the data across locations
• Perform data abstraction
• Perform spatial and temporal reasoning

• Modeling of the problem solvers themselves allows
  the system to reason about what reasoners should
  participate and at what time of the problem
  solving
• Model performance characteristics, data
  requirements, assumptions of each of the problem
  solving methods

36
Temporal Aberrancy Detection Process
Each process step can be handled by one or
more methods For instance, C1, C2, C3 (as used
by the CDC), Holt- Winters, and A hybrid method
are available for temporal aberrancy detection
37
Surveillance of San Francisco 911 Emergency
Dispatch Data
38
BioPortal

• Built on BioStorm, contains tools for
• Symptom
• surveillance
• Hotspot analysis
• Phylogenetic tree
• analysis
• Complaint
• classifier
• Social network
• analysis to
• examine the
• spread of disease
• Using visualization
• and data mining
• tools including
• spatial and temporal
• clustering

39
Comparing Biomedical and Intelligence Domains
40
Health in the Workplace

• A system called EASE (Estimation and Assessment
  of Substance Exposure) was developed to assess
  risks in the workplace
• A knowledge-based system
• Knowledge was acquired using CommonKADS

• A European approach to building a domain model so
  that the generation of the knowledge based system
  was simplified or even automated

EASE decision model
41
EASE Knowledge

• There were 83 concepts built into EASE
• Chemical compounds
• Exposure types
• Patterns of control (ways to reduce exposure)
• Patterns of use (how substances can be used, the
  processes that might use or create substances)
• Physical states of substances and substance
  properties
• Vapor pressure values
• The model includes
• Which physical states may cause the different
  types of exposures
• Hierarchy of substances and taxonomy of exposure
  types
• I/O relationships between tasks and vapor
  pressures
• Incompatibility knowledge (between patterns of
  use and patterns of control)
• Inference process
• Combines rule-based reasoning
• Shallow (associational reasoning)
• Both data-driven and goal-driven
• OOP to represent substance hierarchy and
  processes
• Implemented in CLIPS

42
Dynamic Interoperability of 1st Responders

• Test implemented on Philadelphia Area Urban
  Wireless Network
• Idea is to test ability of mobile communication
  network and devices (PDA, laptop, tablet
  computers, etc) to register agents and services
  for first responders who might be mobile as well
  to acquire information during an emergency
• Need

• service registration
• service discovery
• service choreography
• Solution use OWL-S service registry for manets
  (mobile ad hoc networks)

Simulated Manet topology Agent x is looking for
a host with service e but x is only aware of
hosts A, B and D
43
Experiment

• Researchers ran two experiments, first on a
  simulation and second on a small portion of a
  network in Philly using mobile devices (in about
  a 2 block area)
• agents had various options of when to consult
  host registries and how to migrate to another
  host (as packets or bundles)
• Findings
• cross-layered design where agents reason about
  network and service dynamics worked well
• using static lists, performing random walks,
  using inertia (following the path of the last
  known location of a service) all had problems
  leading to poor performance from either too many
  hops or not succeeding in locating the desired
  service
• p-early binding agent would consult local
  hosts registry to identify nearest host that
  contained needed service and would migrate to
  that host as a packet
• b-early binding agent would consult local
  hosts registry to identify nearest host that
  contained needed service and would migrate to
  that host as a bundle
• late binding agent would consult a local
  registry at each step as it migrated, always
  selecting the nearest host with the available
  service

44
Distributed Decision Support Approach

• The following was proposed for coordinating
  response to a bio-chemical attack or situation
• Sensible agent architecture
• Perspective modeler explicit models of the
  given agents world viewpoint and other agents
• Behavioral model current state and possible
  transitions to other states
• Declarative model represented facts (what is
  known by the agent)
• Intentional model goal structures
• Action planner interprets domain-specific
  goals, contains plans to achieve these goals, and
  executes plan steps
• Autonomy reasoner determines an appropriate
  decision making framework for each goal, and
  applies constraints based on whether or how much
  it is collaborating with other agents
• Conflict resolution advisor identifies possible
  conflicts between agents and attempts to resolve
  them through specialized strategies including
  voting, negotiation and self-modification

45
Example

• Consider the following timeline
• Day 0 large public event occurs, contagious
  respiratory disease released in the crowd
• Day 1 disease incubates with no visible
  indicators (symptoms)
• Day 2 many students are absent from school, EMS
  dispatches for respiratory problems are
  abnormally high
• Day 3 pharmacies sales on decongestants are
  abnormally high
• EMS information, school student attendance
  records, pharmacy sales information exist in
  disparate and unrelated databases
• A sensible agent able to communicate between the
  databases can begin to generate a model
• The agent must be able to
• identify the utility of data from any source (how
  trustworthy is it)
• how to transform and disambiguate data
• how to handle conflicting reports from different
  agents
• initiate queries for additional data

46
Example Continued

• Our sensible agent will use its perspective
  modeler to build a perspective of the current
  problem solving
• What agents (agencies) are involved? What
  knowledge sources are contributing? How
  trustworthy are these sources?
• The action planner will formulate a plan of
  attack
• Perhaps acquiring additional information to test
  out hypotheses, confirm data by sending queries
  to other sources
• e.g., several school records show absenteeism of
  students who attended a special concert, check to
  see if other schools whose students attended the
  same concert have similar absenteeism
• The autonomy reasoner will become active when
  there are other agents actively working on the
  same problem (whether human or software)
• The reasoner can propose actions based on
  deadlines, situation assessment, mandated rules,
  etc
• e.g., one agent has discovered that this may be a
  potential pandemic, the autonomy reasoner can be
  used to determine how this should be handled
  bring in more expertise? contact officials?

47
INCA

• An ontology for representing mixed initiative
  tasks (planning)
• Issues outstanding problems, plan flaws,
  opportunities, tasks
• Nodes activities in an emergency response plan
  (or components of an artifact under development)
• May be organized hierarchically
• Constraints temporal or spatial, or
  relationships between nodes
• Node constraints nodes that must be included in
  a plan, other node constraints
• Critical constraints ordering and variable
  constraints
• Auxiliary constraints constraints on auxiliary
  variables, world-state constraints, resource
  constraints
• Annotations human-centric information
• INCA can be thought of as a representation for
  partial plan descriptions
• Uses of INCA
• Automated and mixed-initiative generation/manipula
  tion of plans
• Human/system communication about plans
• Knowledge acquisition for planning
• Reasoning over plans

48
I-X

• Using the INCA ontology, permit shared models for
  planning and communication
• I-X has two cycles
• Handle issues
• Manage domain constraints
• I-X system or agent carries out a process which
  leads to the production of a synthesized artifact
  (plan or plan step)
• Constraints associated with artifact are
  propagated
• The space for the model being generated is shared
  as follows
• Shared task model (tasks to be accomplished,
  constraints on the model)
• Shared space of options (plan steps)
• Shared model of agent capabilities (handlers for
  issues, capabilities and constraints for managers
  and handlers)
• Shared understanding of authority
• Shared product model (using constraints)

49
I-X/INCA Example FireGrid

• The FireGrid ontology models fire-fighter
  concepts and situations
• State parameters measurable quantities to
  describe a situation at a given location
• maximum temperature, smoke layer height, etc
• Events instantaneous and singleton occurrences
  at a given location
• collapse, explosion
• Hazards states represented by specific state
  parameters and occurrences which impinge on
  safety
• defined with a hazard level parameter (green,
  amber, red)
• Space and time
• INCA is used to model the ontology and
  constraints
• I-X agents then communicate to each other using
  the ontology as a shared description of the world
  and use individual knowledge to generate belief
  states
• This allows an agent to be able to cope with
  contradictory information coming from multiple
  sources
• FireGrid would use communication to derive an
  interpretation of the current status of the
  situation in order to alert on-site responders

50
Experiment

• FireGrid was tested in a controlled experiment
• 3-room apartment with 125 sensors rigged for a
  fire
• Sensors tested temps, heat flux, gas levels and
  concentrations, deformation of structural
  elements
• Sensors tested at roughly 3 second intervals and
  fed to an off-site DB
• The model was tested for an the event flashover
• When the temperature in a small region rises to
  above 500 degrees, all material in the area can
  ignite simultaneously
• FireGrid used a number of different models of the
  environment to generate interpretations and
  predictions
• The different models included different scenarios
• People being trapped and different structural
  problems
• The decision making aspect was whether to send
  fire-fighters into the building to conduct a
  search
• Experts who monitored the models felt that the
  experiment was a success FireGrid made the
  correct interpretations and made the proper
  decisions

51
e-Response

• A larger scale system which used I-X/INCA as
  components
• In this case, the system incorporates many
  technologies and people to provide an emergency
  response platform
• Tools and technologies
• 3Store centralized knowledge bases based on RDF
  triples including OWL ontologies and can
  accommodate SPARQL queries
• Compendium concept mapping tool to link various
  documents/sources together real time
• I-X/INCA to implement issues, nodes, constraints,
  and annotations for reasoning about disaster
  plans
• Armadillo real-time construction of a
  repository of useful available local resources
  using a number of services itself including
  search engines, crawlers, indexers, trained
  classifiers and NLP
• CROSI mapping performs semantic mapping and
  reference resolution to support interoperability
• Photocopain and ACTive Media annotation of
  photographs and other media
• OntoCoPI identifies communities of practice
  among ontology instances of human specializations
  to assess availability and usefulness
• Commitment Management System recommend
  allocations of resources by varying constraints
  and using a utility function

52
Example Demonstration

• Incident reported Fire downtown London
• Incident node created by hand (support officer at
  command center), tagged automatically as from the
  sending agent
• Command center queries the scale of incident
• Fire Brigade arrives
• Message contains details of allocation of
  resources, support officer adds new hyperlink to
  working map of current situation
• Support officer starts Armadillo to look for
  available local resources
• Message from fire brigade on scene
• A fire fighter reports using acronyms, somewhat
  cryptic, support officer uses CROSI to understand
  the message including terms ACFO and SSU
• The message is of a new incident, deployment of a
  specialized unit, which is tagged and added to
  the map
• Message from police on scene request details of
  burn care units in area
• Message added to map, support officer uses web
  browser and Armadillo to respond

53
Continued

• Control center message BBC broadcast
• A member of the control center liaison team
  describes media coverage of the scene
• Support officer uses Photocopain to upload and
  annotate images which includes an image of a fire
  of a building a quarter mile away
• Support officer alerts fire brigade of new fire,
  which respond that they are sending resources to
  the new site
• New incident is added and the map is modified
• Fire brigade requests details of upper floors of
  new building, specifically exit routes
• Support officer queries triplestore for images of
  the location
• Triplestore responds with images of the building,
  each of which is added as a link to the map
• Images include plans, photographs, some of which
  have meta-knowledge and annotations

54
Concluded

• Fire Brigade message regarding first site is
  cryptic
• Message includes the term creeping
• Support officer uses CROSI and the buildings
  ontology to understand to infer that the
  statement is about concrete cracking
• Control center requires expert advise, OntoCoPI
  is used to locate experts in the area regarding
  structural integrity of concrete building and
  they contact the nearest expert by phone who
  states that the creep does not constitute an
  immediate threat and can be ignored for now
• Fire brigade reports new fire but requests
  resources to be allocated
• While this is similar to the previous report from
  fire brigade about a new fire, here the fire
  brigade is not able to respond, so central
  command must examine available resources in the
  area to determine who can respond

55
DrillSim

• Multi-agent simulation of emergency responders
• Agent behavior shown below, much like ordinary
  agents but with an extra information abstraction
  step and a cycle available between decision
  making and planning to allow for more
  sophisticated forms of plan actions
• Agents can take on the role of an evacuee or
  response person and can utilize data from
  visual, auditory or other sources, monitor
  health and motor profiles
• Agents will contain spatial models of the
  environment (indoor, outdoor, both)
• Agents can obtain information from sensors,
  cameras, people and other devices (e.g., fire
  alarm, sprinkler, etc)
• Agent actions vary from evacuate, medical triage,
  disaster mitigation, damage assessment all in an
  attempt to reduce death and injury and prevent
  secondary disasters caused by effects of the
  first disaster
• e.g., people being trampled during an evacuation

56
Dynamic Changes of Sensors

• How do we reason over dynamic changes to sensors?
• One approach is to use Bayesian probabilities
• Assume a network of sensors (cameras, maybe
  others) of a viewing area with sensors at
  different locations/orientations
• Collect data from all sensors for the same time
  period
• Extract relevant data (e.g., a movement in a
  camera)
• Unify data from sensors selecting data that
  corresponds to the same region
• Compute the likelihood of each known and unknown
  object being at each location in the space for
  that time period as
• P(Hi Or, Lk) P(Hi Lk) wkr P P(Rj, Lk,
  Cq Hi)
• Where Hi is object i and Lk is location k, Or are
  the set of entities that could be found at the
  given time unit and Rj are the observations for
  time j and Cq is a given sensor (all sensors are
  C), and wkr is the possibility of object j being
  at location k
• To obtain wkr, we either need prior probabilities
  (say if the object is a worker, the worker can
  tell us the likelihood of being at location k at
  time j) otherwise they must be estimated based on
  detecting movements

57
Using This Approach

• Obviously, aside from the probabilistic approach,
  one needs to have adequate sensor interpretation
• To collect the relevant features from the input
• And to unify the data
• The idea is to use this approach for indoor
  surveillance where a number of sensors are
  available
• Such as in a suite of rooms at a hotel,
  convention center, etc
• A pilot experiment used 8 video cameras and four
  known people with up to 50 unknown people
• System was able to identify about 59 of the
  movement occurrences correctly without domain
  knowledge, and 74 with domain knowledge
• Prototypes have been developed for
• Search and browsing of the event repository
  database of a web browser
• Creating a people localization system based on
  evidence from multiple sensors and domain
  knowledge
• Creating a real-time people tracking system using
  multiple sensors and predictive behavior of the
  target(s)
• Creating an event classification and clustering
  system

58
TARA

• Terrorism Activity Resource Application
• Used to disseminate terrorism-related information
  to the general public
• Uses modified ALICEbots
• ALICE terrorism domain knowledge base
• the system was tested out on a variety of
  undergraduate and graduate students to see ifthey
  were able to use it to obtain reasonable and
  relevant information
• The idea is to use TARA as a conversational
  search engine specific to terrorism inquiries and
  news
• knowledge is added to ALICE in the form of XML
  rules along with perl code for additional pattern
  matching
• sample XML rule

ltcategorygtltpatterngtWHAT IS AL QAIDA
lt/patterngt lttemplategt'The Base.' An international
terrorist group founded in approximately 1989 and
dedicated to opposing non-Islamic governments
with force and violence. lt/templategtlt/categorygt
59
Poseidon

• Used to monitor swimmers in an attempt to save
  possible drowning victims
• System comprises
• Poolside workstation
• Centralized computer
• Underwater robot
• Submerged and above-water cameras
• System looks uses the multiple cameras to examine
  each shape in the pool in 3-D
• Poseidon makes note of any shape that is prone,
  sinking or motionless

• If the shape is found on the pool floor for more
  than 5 seconds, it notifies the lifeguard sitting
  poolside via the poolside workstation
• Poseidon has been at use since 1999 at a number
  of pools worldwide and has a false negative alarm
  of about one instance per two days of use

60
Law Enforcement Uses

• More and more cities are using AI
• placing cameras around their downtown areas to
  watch for cars that run red lights
• visual understanding used to obtain description
  of car
• and optical character recognition is used to read
  license plate numbers
• placing sensors on highways to detect speeders
• In LA, an automatic license-plate reader scans
  car license plates looking for stolen vehicles
• cameras placed in various locations around the
  city including inside of police cruisers
• in one night, 4 different cameras found 7 stolen
  cars resulting in 3 arrests
• To further support these types of activities
• infrared cameras are being mounted onto patrol
  car light bars that can read 500-800 plates an
  hour even at speeds of up to 35 mph
• false positives are practically non-existent
