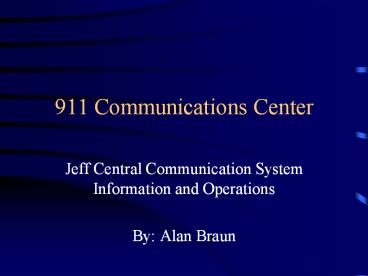

Title: 911 Communications Center


1
911 Communications Center
  • Jeff Central Communication System Information and
    Operations
  • By Alan Braun

2
The system
  • The cad system works as a main software that
    looks up information in 5 different files.
  • Cad is an address specific information system.
  • Cad color codes Red high priority, Yellow
    second priority, Green low priority.
  • Flags are address specific notes added into the
    system for later use, and can be found on the
    call run sheets.

3
The center
  • Four consoles in the main room, one spare in
    another for training, data entry, or back up use.
  • Three computer screens that allow the operator to
    control the system. Radio, Cad, Enhanced 911.

4
(No Transcript)
5
The Operation
  • The center is set up for three personnel
    normally, but two during slower hours.
  • Position 1 is for Law Enforcement.
  • Position 2 is Cole County Sheriff and during slow
    hours is County Fire dispatch, and the call
    taker.
  • Position 3 is the call taker and County Fire
    dispatch.

6
The job
  • Provide radio communications to Jefferson City
    Police, JC Fire, Cole County Sheriff, Cole
    County Fire, Osage Fire, Regional West Fire,
    Russellville Fire.
  • They are also are in radio contact with the
    Conservation Department, Missouri Park Rangers,
    Taos and Wardsville City Police Marshals, as well
    as the Fire Marshals Office on Fire Mutual Aid.

7
The Weather
  • Jeff Central monitors the weather channel as well
    as Nex-Rad radar from KC.
  • They have the capability to contact the St. Louis
    weather center or the Jefferson City Airport for
    specific weather for us on the scene.
  • The national weather service alert system is also
    monitor from the panel.

8
Nex-Rad
9
Weather Channel
10
The Console
  • Three computer screens. First is the Enhanced 911
    phone operations to the right.
  • Second is the Cad system in the middle.
  • Third is the radio touch screen on the left.

11
(No Transcript)
12
Radio system
  • The screen is a touch screen and it has five
    different screens to be on.
  • Each screen is set up for specific operations for
    one of the agencies the center has communications
    with.

13
(No Transcript)
14
Cad System and 911
  • The 911 is a computer that taps into the phone
    company files to give dispatch the information of
    the caller.
  • The information is then transferred by two button
    pushes into cad.
  • Then the dispatcher enters the call code and
    presses send, the tones are then sent.

15
(No Transcript)
16
(No Transcript)
17
Alpha Pagers
  • The text is entered by the dispatchers and sent
    when the cad system assigns a call or run number
    to the call.
  • If we are dispatched to assist or mutual with
    someone we are not assigned a call number and
    therefore will not received a page on the alpha
    pagers.

18
(No Transcript)
19
Back up communications
  • Communications are done by computer and in the
    event of system failures they have a back up
    phone and radio system.
  • Two mobile radios are installed in the
    communications room for use in case of a system
    failure.

20
(No Transcript)
21
Multiple calls
  • Usually the dispatchers will try to split the
    calls if possible.
  • Sometimes their will be talk over from one
    dispatcher helping another if it is really busy
    in the center.

22
Directions
  • Directions by cad have been entered and are
    entered on the street address as a whole.
  • Cross streets to specific places are only given
    if the address is past a cross street.
  • 1906 Rt. E will not show a cross street if the
    cross street is at 1908 or 1920
  • Dispatchers have to look at a map like the rest
    of us. There are no specific directions on the
    cad system to give to us on the radio.

23
(No Transcript)
24
Hydrant information
  • This information is on the call run sheets.
  • You also can have the dispatchers query the cad
    system to help us on scene.
  • The downfall to this is there may be a hydrant on
    a cross street nearby that wont show up because
    the query is on the scene address only not on the
    area.

25
Ems Calls
  • These calls are handled the same as the others,
    however Jeff Central also three way calls Capitol
    Region EMS.
  • This is done in case there is a need for another
    agency to respond with ems.
  • Doing this speeds up response during these events.

26
The call Procedure
  • Order of a call being taken.
  • First the call is received.

27
Call procedure cont
  • The caller information is brought onto Cad from
    the 911 phone computer on the right.
  • The center computer, cad, then needs a command of
    the help or need of the caller.
  • Narratives can be added by the dispatcher of
    things they have heard on the phone. They are on
    the faxed call run sheets.
  • Cad searches its files then displays agency
    information needed to respond.

28
Call procedure cont
  • The dispatcher then uses the left touch screen to
    dispatch the proper agency.
  • Radio communications are done for them by foot
    pedals at their feet. The channels they speak on
    are done by the touch screen.

29
(No Transcript)
30
(No Transcript)
31
Radio response
  • Dispatch Jeff Central
  • Cole County and the number of the person or unit
    that is responding.

32
Apparatus Radio Response examples
  • Jeff Central Cole Co. 1101 responding
  • Jeff Central Cole Co. 1101 on scene
  • Jeff Central Cole Co. 1101 clearing scene
  • Jeff Central Cole Co. 1101 in quarters
  • Jeff Central Cole Co. 1101 in service on special
    detail
  • Jeff Central Cole Co. 1101 out of service for
    maintenance

33
Personnel Radio Response examples
  • Personnel do not address Jeff Central unless
    there is emergency traffic that they need to
    transfer, i.e. Jeff Central Cole Co. 144 on the
    scene, nothing showing, two story residential
    structure. Will be investigating, establishing
    Rt. E Command.
  • When a response from Jeff Central is needed you
    must start your transmission with Jeff Central.
  • Cole Co. 144 responding (No Jeff Central Needed)
  • First on scene person needs to mark them self on
    scene with a size up. All others do not mark them
    selves on scene, in service, clear scene or
    anything else. Only chief officers and Apparatus
    do this.

34
Call or Run sheets
  • These sheets are faxed at the time of dispatch to
    each station.
  • The information on them include Caller name,
    address, routing instructions, Hydrant locations,
    narrative of what was said during phone
    conversation with dispatcher and a history on all
    calls to the address

35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
Cad Call Information Sheet
  • This sheet is sent by fax when Jeff Central is
    requested to send the fax information.
  • When the first in engine or report taker goes
    back in quarters simple say Jeff Central Cole
    County 1101 is in quarters. Please fax times to
    1101.
  • This sheet contains the call number and
    information needed to fill out the report.

39
(No Transcript)
40
(No Transcript)
41
Radio and Response SOP
  • Cole County Fire Protection District

42
Radio Terms
  • Responding Accepting a call and proceeding to
    the location as given.
  • On-the-air Apparatus is not in quarters, but is
    available by radio for a run, if needed
  • On-the-scene Arrival at the incident location,
    either as given, or as discovered

43
Radio Terms Cont
  • Incident under control emergency situation has
    been contained and generally is an indication
    that no more emergency apparatus will be needed
  • Out of service Not available for a call/run
  • In service Available for a call or run, maybe
    qualified by a further statement relating to
    equipment, manpower,ect.

44
Radio Terms Cont
  • Remaining on the scene Maybe qualified by saying
    in or out of service, but remaining at the
    location
  • Full Alarm Full Box, complete run card
    assignment
  • Still Alarm Generally a single company response
    such as a car fire, stuck elevator, ect.

45
Radio Terms Cont
  • Clear Understood, received, an affirmative
    acknowledgement
  • Clear of the scene Apparatus reporting that they
    have left the location of the incident
  • Public Service To call by phone
  • Command Officer in charge of the incident

46
Radio Terms Cont
  • Special Assignment/Detail Public education,
    company may or may not remain in service and NO
    incident number is required unless requested.

47
Response Guidelines
  • Structure Fire 3 Engines, 3 Tankers, Air and
    Light truck, and all personnel from the three
    closest stations. All other Apparatus and
    personnel on standby.
  • Vehicle Fire 1 Engine, 4 personnel
  • Brush Fire 1 Engine, Brush and Tankers
  • Power Line Down 1 Engine, 3 personnel
  • Assist Ambulance with accident 1 Engine, 1
    air/light, 6 personnel
  • Extrication 2 engine with rescue equipment, 1
    air/light, 7 personnel

48
Response Guidelines Cont
  • Assist Ambulance 1 Engine, 3 personnel
  • CO Alarm 1 Engine, 3 personnel
  • Fire Investigation 1 Engine
  • Fuel spill 1 Engine, 1 air/light
  • Wash down 1 Engine
  • Haz-mat 2 Engines, Air and Light truck
  • Flue Fire 2 engines, 1Tanker, 1 air/light
  • Aircraft Standby (Landing zone) 1 Engine
  • Aircraft Accident 2 Engines, 2 Tankers, Air and
    Light, 1 Brush truck

49
Response Guidelines Cont
  • Water Shuttle (In District) 1 Engine, 4 Tankers
  • Water Shuttle (out of District) 1 Engine, 2
    Tankers
  • Unusual Request 1 Engine
  • Water Rescue Watercraft, Air and Light truck, 1
    Engine
  • Drowning Watercraft, Air and Light truck, 1
    Engine

50
Response Guidelines Cont
  • Mutual Aid What is asked for or
  • 1 Engine, 2 Tankers, air/light
  • Out of District 1 Engine, 2 Tankers
