Glebe Mines Ltd

1

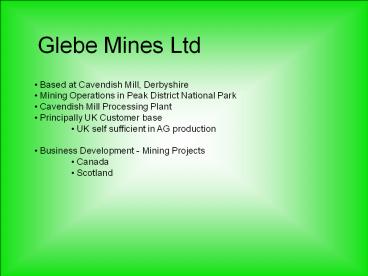

Glebe Mines Ltd

• Based at Cavendish Mill, Derbyshire
• Mining Operations in Peak District National Park
• Cavendish Mill Processing Plant
• Principally UK Customer base
• UK self sufficient in AG production
• Business Development - Mining Projects
• Canada
• Scotland

2
Cavendish Mill No.1 Tailings Dam
3
Glebe Mines Ltd

• Commercial
• 7M/a Turnover
• 2.5M/a contribution to local economy
• Employment
• 57 Direct Staff
• 25 Direct Contract Staff
• Total 130 Direct and Indirect Jobs

4
Glebe Mines Ltd

• Products
• Acid Grade Fluorspar 60-65kte/a
• Barytes 15-20kte/a
• Lead Concentrate 1kte/a
• Limestone Aggregate 150kte/a

5
(No Transcript)
6
Glebe Mines Ltd

• Geological Setting
• Carboniferous Limestone Host
• Vertically Orientated Fissure Fill Deposits
• 6km Length
• Up to 30m wide
• Worked to 150m bgl
• Veins Truncated by Volcanics/ Shales
• Replacement Deposits also significant
• Peak District NP is only UK source of Fluorspar

7
Glebe Mines Ltd

• Crude Ore Supply
• Surface Underground Extraction
• 98 Supplied from GML Operations
• Operational Management
• Planning
• HS
• Environmental

8
Watersaw Mine
Arthurton West
No.4 Tailings Lagoon
Bow Rake
Longstone Edge 2001
Deep Rake
9
Watersaw Mine
10
Glebe Mines Ltd

• Underground Operations
• Milldam - CM (under review)
• Watersaw - Active
• Trackless Sub-Level caving method
• 16te rubber tyred u/g dump trucks
• 25,000 te/a (5 of supply to Cavendish Mill)
• 6 men employed by GML
• 5y Plan - 25 of overall supply

11
Watersaw Mine Compound
12
Watersaw Mine - Access
13
Watersaw Mine - Drilling
14
Watersaw Mine - Drilling
15
Watersaw Mine - Load/ Haul
16
Glebe Mines Ltd

• Surface Open Pits
• Principal GML Operations
• Arthurton West (150,000te/a)
• Bow Rake (50,000 te/a)
• Winster (100,000 te/a)
• No.1 Dam (100,000 te/a)
• 30 - 45 te 360o Hydraulic Excavators
• 25 - 40 te Articulated Dump Trucks

17
Deep Rake
Bow Rake
Longstone Edge
18
Arthurton West
19
Arthurton West
20
Bow Rake
21
Glebe Mines Ltd

• Surface Open Pits - Management
• Sensitive Environment (Peak District National
  Park)
• Overburden Minimisation
• Narrow Open Pits
• Increased Operating Costs
• Geotechnical Assessments
• Pre-shear blasting
• Rock bolts/ mesh
• High Access Scaling Teams
• High Degree Management Control

22
Bow Rake High Wall Pre-Shear Face
23
Glebe Mines Ltd

• Typical Open Pits - Sustainable Developments
• Small scale, transient and of limited duration -
  a temporary land-use
• Full restoration, often with added bio-diversity
• Minimal environmental impacts verses significant
  local and national economic contribution
• Guaranteed restoration (3-fold management)

24
Glebe Mines Ltd

• Restoration Mechanisms
• Progressive (direct operating cost)
• Accounting Provision (FRS12 - levied on each
  tonne)
• Insurance Bonds (ring fenced from company
  accounts)

25
Deep Rake Restoration
26
Landform Restoration
Deep Rake
27
Glebe Mines Ltd

• Planning
• National Park Environment
• National Significance of Minerals
• Relatively Small Nature of Deposits
• Frequent Planning Applications
• EIA Requirements
• Monitoring
• e.g Winster Moor Open Pit

28
Glebe Mines Ltd

• Winster Moor Open Pit
• 4 years from exploration to consent
• 7.1Ha, 376,000 tonnes
• 4 years extraction with progressive restoration
• 1 year final restoration to agriculture
• Restoration bond
• S106 - Surrender of Mineral Rights on Longstone
  Edge

29
Glebe Mines Ltd

• Cavendish Mill Process
• 500,000 te/a crude ore
• Crushing
• Dense Media Separation
• Grinding
• Froth Flotation
• Filtration
• Drying

30
Cavendish Mill Crude Ore Stockpile
31
Crushing
32
Dense Media Separation
33
Grinding
34
Froth Flotation Fluorspar Lead
35
Flotation Cell Lead
36
Vacuum Filtration
37
Bagging
38
No.4 Tailings Dam
39
No.4 Tailings Lagoon
Deep Rake
Longstone Edge 2001
40
Deep Rake 2003
41
Glebe Mines Ltd

• Research Development
• FIESTA 750k (3 years)
• POLYTRANS 5.5M (2 years)
• MIRO
• MAUK
• University of Leicester
• University of Leeds

42
Glebe Mines Ltd
