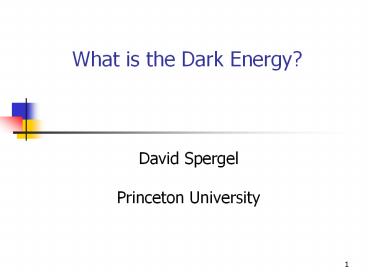

What is the Dark Energy?

1
What is the Dark Energy?

• David Spergel
• Princeton University

2
One of the most challenging problems in Physics

• Several cosmological observations demonstrated
  that the expansion of the universe is
  accelerating
• What is causing this acceleration?
• How can we learn more about this acceleration,
  the Dark Energy it implies, and the questions it
  raises?

3
Outline

• A brief summary on the contents of the universe
• Evidence for the acceleration and the implied
  Dark Energy
• Supernovae type Ia observations (SNe Ia)
• Cosmic Microwave Background Radiation (CMB)
• Large-scale structure (LSS) (clusters of
  galaxies)
• What is the Dark Energy?
• Future Measurements

4
Contents of the universe (from current
observations)
Baryons (4) Dark matter (23) Dark energy 73
Massive neutrinos 0.1 Spatial curvature very
close to 0
5
A note on cosmological parameters

• The properties of the standard cosmological model
  are expressed in terms of various cosmological
  parameters, for example
• H0 is the Hubble expansion parameter today
• is the fraction of the
  matter energy density in the critical
  density(Gc1 units)
• is the fraction of the
  Dark Energy density (here a cosmological
  constant) in the critical density

6
Evidence for cosmic acceleration Supernovae type
Ia
7
Evidence for cosmic acceleration Supernovae type
Ia

• Standard candles
• Their intrinsic luminosity is know
• Their apparent luminosity can be measured
• The ratio of the two can provide the
  luminosity-distance (dL) of the supernova
• The red shift z can be measured independently
  from spectroscopy
• Finally, one can obtain dL (z) or equivalently
  the magnitude(z) and draw a Hubble diagram

8


Evidence for cosmic acceleration Supernovae type
Ia
9

10
Evidence from Cosmic Microwave Background
Radiation (CMB)

• CMB is an almost isotropic relic radiation of
  T2.7250.002 K
• CMB is a strong pillar of the Big Bang cosmology
• It is a powerful tool to use in order to
  constrain several cosmological parameters
• The CMB power spectrum is sensitive to several
  cosmological parameters

11
This is how the Wilkinson Microwave Anisotropy
Probe (WMAP) sees the CMB
12
ADIABATIC DENSITY FLUCTUATIONS
13
ISOCURVATURE ENTROPY FLUCTUATIONS
14
Determining Basic Parameters
Baryon Density Wbh2 0.015,0.017..0.031 also
measured through D/H
15
Determining Basic Parameters
Matter Density Wmh2 0.16,..,0.33
16
Determining Basic Parameters
Angular Diameter Distance w -1.8,..,-0.2 When
combined with measurement of matter density
constrains data to a line in Wm-w space
17
Simple Model Fits CMB data
Readhead et al. astro/ph 0402359
18
Evolution from Initial Conditions I
WMAP team assembled
WMAP completes 2 year of observations!
DA leave Princeton
WMAP at Cape
19
Evidence from large-scale structure in the
universe (clusters of galaxies)

• Counting clusters of galaxies can infer the
  matter energy density in the universe
• The matter energy density found is usually around
  0.3 the critical density
• CMB best fit model has a total energy density of
  1, so another 0.7 is required but with a
  different EOS
• The same 0.7 with a the same different EOS is
  required from combining supernovae data and CMB
  constraints

20
Cosmic complementarity Supernovae, CMB, and
Clusters
21
What is Dark Energy ?
Most embarrassing observation in physics
thats the only quick thing I can say about dark
energy thats also true. Edward Witten
22
What is the Dark Energy?

• Cosmological Constant
• Failure of General Relativity
• Quintessence
• Novel Property of Matter
• Simon Dedeo astro-ph/0411283

23
COSMOLOGICAL CONSTANT??

• Why is the total value measured from cosmology so
  small compared to quantum field theory
  calculations of vacuum energy?
• From cosmology 0.7 critical density 10-48 GeV4
• From QFT estimation at the Electro-Weak (EW)
  scales (100 GeV)4
• At EW scales 56 orders difference, at Planck
  scales 120 orders
• Is it a fantastic cancellation of a puzzling
  smallness?
• Why did it become dominant during the present
  epoch of cosmic evolution? Any earlier, would
  have prevented structures to form in the universe
  (cosmic coincidence)

24
Anthropic Solution?

• Not useful to discuss creation science in any of
  its forms.

Dorothy we are not in Kansas anymore
25
Quintessence

• Introduced mostly to address the why now?
  problem
• Potential determines dark energy properties (w,
  sound speed)
• Scaling models (Wetterich Peebles Ratra)
• V(f) exp(-f)

matter
r
Zlatev and Steinhardt (1999)
Most of the tracker models predicted w gt -0.7
26
Current Constraints
Seljak et al. 2004
27
Looking for Quintessence

• Deviations from w -1
• BUT HOW BIG?
• Clustering of dark energy
• Variations in coupling constants (e.g., a)
• lfFF/MPL
• Current limits constrain l lt 10-6

If dark energy properties are time dependent, so
are other basic physical parameters
28
Big Bang Cosmology
Homogeneous, isotropic universe
(flat universe)
29
Rulers and Standard Candles
Luminosity Distance
Angular Diameter Distance
30
Flat M.D. Universe
D 1500 Mpc for z gt 0.5
31
Volume
32
Techniques

• Measure H(z)
• Luminosity Distance (Supernova)
• Angular diameter distance
• Growth rate of structure

.
Checks Einstein equations to first order in
perturbation theory
33
What if GR is wrong?

• Friedman equation (measured through distance) and
  Growth rate equation are probing different parts
  of the theory
• For any distance measurement, there exists a w(z)
  that will fit it. However, the theory can not
  fit growth rate of structure
• Upcoming measurements can distinguish Dvali et
  al. DGP from GR (Ishak, Spergel, Upadye 2005)

34
Growth Rate of Structure

• Galaxy Surveys
• Need to measure bias
• Non-linear dynamics
• Gravitational Lensing
• Halo Models
• Bias is a function of galaxy properties, scale,
  etc.

35
A powerful cosmological probe of Dark Energy
Gravitational Lensing
Abell 2218 A Galaxy Cluster Lens, Andrew
Fruchter et al. (HST)
36
The binding of light
37
Gravitational Lensing by clusters of galaxies
From MPA lensing group
38
Weak Gravitational Lensing
Distortion of background images by foreground
matter

Unlensed Lensed Credit SNAP WL group
39
Gravitational Lensing
Refregier et al. 2002

• Advantage directly measures mass
• Disadvantages
• Technically more difficult
• Only measures projected mass-distribution

Tereno et al. 2004
40
Baryon Oscillations
CMB
C(q)
Baryon oscillation scale
q
1o
Galaxy Survey
Limber Equation
C(q)
(weaker effect)
Selection function
q
photo-z slices
41
Baryon Oscillations as a Standard Ruler

• In a redshift survey, we can measure correlations
  along and across the line of sight.
• Yields H(z) and DA(z)!
• Alcock-Paczynski Effect

42
Large Galaxy Redshift Surveys

• By performing large spectroscopic surveys, we can
  measure the acoustic oscillation standard ruler
  at a range of redshifts.
• Higher harmonics are at k0.2h Mpc-1 (l30 Mpc).
• Measuring 1 bandpowers in the peaks and troughs
  requires about 1 Gpc3 of survey volume with
  number density 10-3 galaxy Mpc-3. 1 million
  galaxies!
• SDSS Luminous Red Galaxy Survey has done this at
  z0.3!
• A number of studies of using this effect
• Blake Glazebrook (2003), Hu Haiman (2003),
  Linder (2003), Amendola et al. (2004)
• Seo Eisenstein (2003), ApJ 598, 720 source of
  next few figures

43
Conclusions

• Cosmology provides lots of evidence for physics
  beyond the standard model.
• Upcoming observations can test ideas about the
  nature of the dark energy.
