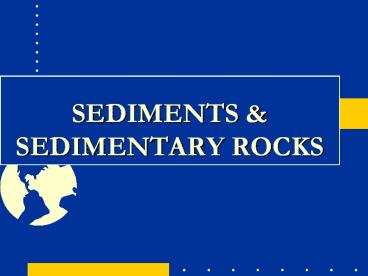

SEDIMENTS & SEDIMENTARY ROCKS

1
SEDIMENTS SEDIMENTARY ROCKS
2
ROCK CYCLE
3
Relative Percentages of Sedimentary Rocks
4
SEDIMENT

• From
• Weathering Erosion
• Precipitation from saturated solution
• calcite, quartz
• Product of evaporation
• halite, gypsum
• Unconsolidated- NOT cemented

5
SEDIMENT

• Particle size
• Pebbles, cobbles, boulders
• Gravel- gt 2mm
• Sand- 2mm - 0.063mm
• Silt - 0.063mm - 0.004mm
• Clay- lt 0.004
• Deposition Clay-sized particle vs. clay mineral

6
SEDIMENT

• Transportation
• Abrasion
• Rounding
• Sorting
• Deposition
• Environment of deposition- specific
• Preservation

7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
SEDIMENT

• Transportation
• Abrasion
• Rounding
• Sorting
• Deposition
• Environment of deposition- specific
• Preservation

11
(No Transcript)
12
(No Transcript)
13
SEDIMENT

• Lithification
• Compaction
• Decrease in pore space
• for very fine grain size (clay)
• Cementation
• Clastic texture
• Cements- silica, calcite, iron oxide
• Crystallization
• Crystalline texture

14
(No Transcript)
15
SEDIMENT

• Lithification
• Compaction
• Decrease in pore space
• for very fine grain size (clay)
• Cementation
• Clastic texture
• Cements- silica, calcite, iron oxide
• Crystallization
• Crystalline texture

16
(No Transcript)
17
SEDIMENT

• Lithification
• Compaction
• Decrease in pore space
• for very fine grain size (clay)
• Cementation
• Clastic texture
• Cements- silica, calcite, iron oxide
• Crystallization
• Crystalline texture

18
(No Transcript)
19
TYPES OF SEDIMENTARY ROCKS

• Clastic or Detrital
• Chemical- inorganic precipitation or evaporation
• Biochemical- Organic remains
• shells, charcoal, plant fragments

20
CLASTIC (Detrital) ROCKS

• Breccia and Conglomerate (gt 2mm)
• Sedimentary Breccia- angular fragments
• Conglomerate- rounded fragments
• Sandstone (2mm - 0.063mm)
• Quartz sandstone
• Arkose (feldspar)
• Graywacke (appreciable amounts of silt/clay)
• Fine-grained Matrix
• Usually from turbidity currents

21
(No Transcript)
22
(No Transcript)
23
CLASTIC (Detrital) ROCKS

• Breccia and Conglomerate (gt 2mm)
• Sedimentary Breccia- angular fragments
• Conglomerate- rounded fragments
• Sandstone (2mm - 0.063mm)
• Quartz sandstone
• Arkose (feldspar)
• Graywacke (appreciable amounts of silt/clay)
• Fine-grained Matrix
• Usually from turbidity currents

24
Quartz Sandstone
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
CLASTIC ROCKS

• Fine-grained Rocks
• Shale- fissile (in sheets)
• Siltstone
• Claystone
• Mudstone (silt and clay)

29
(No Transcript)
30
(No Transcript)
31
CHEMICAL SEDIMENTARY ROCKS

• Carbonate Rocks
• Limestone- made of calcite
• Inorganic varieties
• micrite, oolites, travertine
• Dolomite
• Recrystallization
• Chert- silica
• Evaporites
• Rock gypsum
• Rock salt

32
(No Transcript)
33
(No Transcript)
34
BIOCHEMICAL SEDIMENTARY ROCKS

• Coal
• Develops from peat
• plant fragments
• Lignite
• Bituminous Coal
• Carbonate Rocks
• Limestone- made of calcite
• organic varieties
• Coquina
• Fossiliferous Limestone
• Chalk

35
(No Transcript)
36
BIOCHEMICAL SEDIMENTARY ROCKS

• Coal
• Develops from peat
• plant fragments
• Lignite
• Bituminous Coal
• Carbonate Rocks
• Limestone- made of calcite
• organic varieties
• Coquina
• Fossiliferous Limestone
• Chalk

37
(No Transcript)
38
(No Transcript)
39
(No Transcript)
40
SEDIMENTARY STRUCTURES

• BEDDING-
• Principle of Original Horizontality
• Bedding plane
• Cross-bedding
• Graded bed
• Mud cracks
• Ripple marks
• Fossils

41
(No Transcript)
42
(No Transcript)
43
SEDIMENTARY STRUCTURES

• BEDDING-
• Principle of Original Horizontality
• Bedding plane
• Cross-bedding
• Graded bed
• Mud cracks
• Ripple marks
• Fossils

44
DUNES
45
(No Transcript)
46
(No Transcript)
47
SEDIMENTARY STRUCTURES

• BEDDING-
• Principle of Original Horizontality
• Bedding plane
• Cross-bedding
• Graded bed
• Mud cracks
• Ripple marks
• Fossils

48
(No Transcript)
49
(No Transcript)
50
SEDIMENTARY STRUCTURES

• BEDDING-
• Principle of Original Horizontality
• Bedding plane
• Cross-bedding
• Graded bed
• Mud cracks
• Ripple marks
• Fossils

51
Mudcracks
52
(No Transcript)
53
(No Transcript)
54
(No Transcript)
55
SEDIMENTARY STRUCTURES

• BEDDING-
• Principle of Original Horizontality
• Bedding plane
• Cross-bedding
• Graded bed
• Mud cracks
• Ripple marks
• Fossils
• Body Fossils
• Trace Fossils

56
(No Transcript)
57
(No Transcript)
58
(No Transcript)
59
(No Transcript)
60
FORMATIONS

• Large enough to show on a map
• Distinctive from neighboring rock units
• Named after geographic locations
• CONTACT
• separation between 2 distinct rock units
• Sedimentary contact
• Other contacts

61
(No Transcript)
62
INTERPRETATION OF SEDIMENTARY ROCKS

• Source Area
• Environment of Deposition
• Glacial environments
• Tillites
• Alluvial fan
• Arkose
• River channel and flood plain
• Interbedded shales and sandstones cross-bedded
• Lake
• Shales interbedded siltstones and mudstones
• Delta

63
(No Transcript)
64
INTERPRETATION OF SEDIMENTARY ROCKS

• Source Area
• Environment of Deposition
• Glacial environments
• Tillites
• Alluvial fan
• Arkose
• River channel and flood plain
• Interbedded shales and sandstones cross-bedded
• Lake
• Shales interbedded siltstones and mudstones
• Delta

65
(No Transcript)
66
Glacial Environment Till
67
(No Transcript)
68
(No Transcript)
69
INTERPRETATION OF SEDIMENTARY ROCK

• Environment of Deposition
• Beach, Barrier Island, Dune
• Very well sorted quartz sandstones
• Lagoon
• Shales
• Shallow marine shelf
• Interbedded sandstones and shales burrowed
• Reef
• Skeletal Limestones
• Deep marine environment
• Turbidites- sequence of GRADED sandstones to
  shales

70
(No Transcript)
71
INTERPRETATION OF SEDIMENTARY ROCK

• Environment of Deposition
• Beach, Barrier Island, Dune
• Very well sorted quartz sandstones
• Lagoon
• fine grained sediment
• Shallow marine shelf
• Interbedded sandstones and shales burrowed
• Reef
• Skeletal Limestones
• Deep marine environment
• Turbidites- sequence of GRADED sandstones to
  shales

72
(No Transcript)
73
(No Transcript)
74
CALCAREOUS
75
(No Transcript)
76
(No Transcript)
77
INTERPRETATION OF SEDIMENTARY ROCK

• Environment of Deposition
• Beach, Barrier Island, Dune
• Very well sorted quartz sandstones
• Lagoon
• Shales
• Shallow marine shelf
• Interbedded sandstones and shales burrowed
• Reef
• Skeletal Limestones
• Deep marine environment
• Turbidites- sequence of GRADED sandstones to
  shales

78
(No Transcript)
79
(No Transcript)
80
INTERPRETATION OF SEDIMENTARY ROCK

• Plate Tectonics and Sedimentary Rocks
• At convergent boundaries
• Uplift results in
• Very rapid rates of erosion
• Thick accumulations of clastic sediment
• At transform boundaries
• Rapid rates of erosion, deposition and burial
• Good basins for petroleum exploration
• At divergent boundaries
• Initial stages of rifting- thick wedges of gravel
  and coarse sediment

81
Resources

• Non-Metallic
• Sand and gravel
• Limestone
• Clay
• Gypsum
• Energy Resources
• Oil and gas
• Coal

82
Formation of Oil and Gas
83
(No Transcript)
84
(No Transcript)
85
(No Transcript)
86
(No Transcript)
87
U.S. Coal Production
