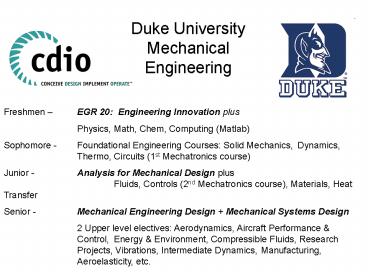

Duke University Mechanical Engineering

1
Duke UniversityMechanical Engineering
Freshmen EGR 20 Engineering Innovation
plus Physics, Math, Chem, Computing
(Matlab) Sophomore - Foundational Engineering
Courses Solid Mechanics, Dynamics, Thermo,
Circuits (1st Mechatronics course) Junior -
Analysis for Mechanical Design plus
Fluids, Controls
(2nd Mechatronics course), Materials, Heat
Transfer Senior - Mechanical Engineering Design
Mechanical Systems Design 2 Upper level
electives Aerodynamics, Aircraft Performance
Control, Energy Environment, Compressible
Fluids, Research Projects, Vibrations,
Intermediate Dynamics, Manufacturing,
Aeroelasticity, etc.
2
CDIO Course Descriptions

• Engineering Innovation 5 hands on design
  challenges (1 reverse engineering, 4 design
  build prototypes), teamwork, SolidWorks, sensors
  microchips, RapidPrototyping, written reports
  presentations
• Analysis for Mechanical Design Adv. Solid
  Mechanics topics, Fatigue, Fracture, Analysis for
  displacement strength, CosmosWorks (FEA),
  failure analysis of components
• Mechanical Engineering Design Components
  Bearings, Gears, Cams Mechanisms, Bolts, Belts,
  Shafts, etc. Project work in teams w/ machining.
  Written reports presentations required. Often
  involves a class competition.
• Mechanical Systems Design Design, Analysis
  Testing of an entire system to meet a clients
  needs. Team-work, machining, realistic
  constraints, etc.

3
Engineering Innovation Examples
Above Save the Astronauts (Eggs). Device needed
to rescue without killing the astronauts. It
landed on one table astronauts were on other
table. Device could only be powered by potential
energy started with the cutting of a string.
Extra points gained from lighting LEDs using
magnetic sensors.
Right Chain Reaction Design Challenge. 4
sub-groups design a separate component which is
started by the previous one and ends by starting
the next. Must have action a common theme.
4
Mechanical Engineering Design Examples
Mrs. Smiths Apple Pie Helper Using an Apple
Slicer Design a machine to slice the apple,
remove the core transport apple slices 1 foot
away into a dish for apple pie. Can only use
rotary mechanical motion to power the device.
Skeeball Competition Design a machine, powered
by a cordless screwdriver to throw/launch plastic
air-filled balls at a target 6 feet away. Pts
for accuracy quantity.
5
Mechanical Systems Design Example - RAT
Ram Air Turbine -- RAT
Projects include Solid Modeling (CAD),
RapidPrototyping, Machining, Analysis (FEA),
Testing in Wind Tunnel Team work, Written Oral
Reports
6
Energy Environment Design
Greenback Team AS Engineering Solar
Energy used to charge bank of batteries for
back-up power during a blackout .. Design of
cabinet system electronics, etc. testing,
stress analysis
Sustainable Neighborhood Vehicle
Interdisciplinary Team Solar Energy to power
the vehicle
7
Future Projects ???
From Lockheed Martin

• QSST Door/Stairs
• JSF Insulating Material
• Landing Gear Deployment and Storage
• Front Landing Gear Shimmy Damper
• Emergency Arresting Hook

Spin chute
Other customers

• Design of an Integrated Crew Health Care System
  for Lunar Outpost Missions www.aiaa.org/content.cf
  m?pageid221)
• NASA (education.ksc.nasa.gov/ESMDspacegrant/Sr_Des
  ign.htm)
• Non-Prehensile Mobile Manipulation
• Thermal Control System for Lunar (or Mars)
  Rovers
• Hand-held magnetic lunar dust removal brush
• Freeze Back Radiator
• Vacuum Cleaner for Spacecraft Cabin Housekeeping
  for Lunar Surface Missions
• FAA (www.faa.gov/runwaysafety/design_competition.h
  tm)

Water ingestion test bed
