Title: Evoked Potentials (EP)


1

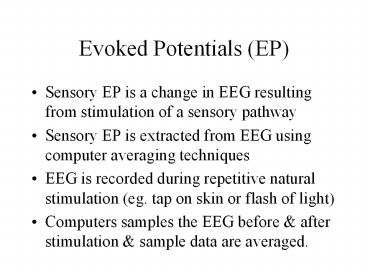

Evoked Potentials (EP)
  • Sensory EP is a change in EEG resulting from
    stimulation of a sensory pathway
  • Sensory EP is extracted from EEG using computer
    averaging techniques
  • EEG is recorded during repetitive natural
    stimulation (eg. tap on skin or flash of light)
  • Computers samples the EEG before after
    stimulation sample data are averaged.

2
Evoked Potentials (cont)
  • Sensory EP consist of multiple components related
    to various aspects of subcortical cortical
    processing (scalp electrodes)
  • Clinically useful for assessing the function of
    sensory systems or evaluating demyelinating
    diseases (eg. M.S.)
  • Destruction of myelin causes conduction velocity
    to decrease which increase latencies

3
Somatosensory Evoked Potential
  • Repetative electrical stimulation of a peripheral
    nerve is used to elicit the SSEP which are
    recorded over the scalp spine
  • Configuration latency of the responses depend
    on the nerve that is stimulated

4
Clinical uses for EP
  • Detection of lesions in multiple sclerosis
  • functional status sometimes undetected with MRI
  • Detection of other CNS disorders
  • e.g. Spinocerebellar degeneration
  • Assessment prognosis following CNS injury
    (trauma or hypoxia)
  • Intraoperative monitoring

5
Electromyography
  • The electrical activity within an accessible
    muscle can be recorded via insertion of a needle
    electrode into it.
  • Patterns of activity at rest and during
    contraction have been characterized under normal
    and abnormal conditions

6
Electromyography (EMG)
  • Activity at rest
  • Normal
  • no spontaneous electrical activity except at the
    end-plate region (neuromuscular junctions)
  • Abnormal
  • fibrillation potentials positive sharp waves
    are associated with muscle fiber irritability
    are typically found in denervated muscle or
    sometimes in myopathies (especially in
    inflammation)
  • fasciculation potentials - spntaneous activation
    of individual motor units (occasionally in normal
    muscle), characteristic of neuropathic disorders
    with primary involvement of anterior horn cells
    (e.g. ALS)

7
EMG
  • Activity during voluntary muscle contraction
  • Normal
  • a slight voluntary contraction of a muscle
    activates a small number of motor units
  • normal motor unit potentials have limits of
    duration, amplitude, configuration, firing
    rates characteristic for muscle tested of
    motor units activated
  • Abnormal
  • in many myopathies- ? incidence small short
    duration polyphasic motor units increased
    number of motor units activated for a given
    degree of voluntary activity
  • in neuropathies- loss of motor units ? of units
    activated

8
Sensory nerve conduction studies
  • Stimulation of nerve to measure conduction
    velocity amplitude of action potentials in
    sensory fibers when these fibers are stimulated
    at one point and response recorded at another
    point along course of the nerve
  • provide a means of confirming the presence
    extent of peripheral nerve damage
