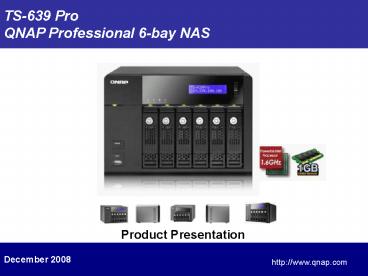

TS639 Pro QNAP Professional 6bay NAS

1
TS-639 ProQNAP Professional 6-bay NAS
Product Presentation
December 2008
http//www.qnap.com
2
About QNAP

• QNAP, with more than 8 years experience in
  embedded systems, is devoted to be world's
  leading company in IA (Internet Appliance) field.
• Successful experience in developing innovative IA
  products.
• Most Advanced Digital Surveillance Systems
  (Digital Video Recorder, Network Video Recorder)
• Best synergy in storage and surveillance
• Most Extensive Networking Storage (RAID, NAS)

Awards
3
Core Competence
The Top-notch RD Team in the Industry!!!

• Software Team (over 25 engineers)
• Pioneer in embedded Linux technology
• High performance and high reliability server
  video technology
• Extensive experience in RISC I/O processor
• Experts in TCP/IP offload engine technology
• Most complete self-developed management software
• Advanced network distributed management
  technology
• Hardware Team (over 10 engineers)
• Top notch E/E and ME design engineer team
• Partner with major chipset vendors
  Intel/VIA/Freescale/Marvell/Silicon Image
• ID/ME/Thermal in house design simulation
  capability

Quality, Reliability and Compatibility are the
Key Factors for the Success of QNAP and Our
Partners

• Hardware Test
• Rigid stress test, reliability/stability test
• Performance test, function test
• Compatibility test
• EMI test
• Software Test
• Full function test
• Compatibility test
• Real environment 32 clients NetBench test
• Most Stringent Quality Controlled Manufacturing
• SMT/DIP Facility/Assembly Facility
• Well setup IQC/IPQC/OQC system

32 Clients Simulation
Chamber
EMI Lab
4
Recognition from Media around the World-1

• QNAP TS-109 Series is the powerful 1-bay NAS with
  unique fanless, absolutely quiet design for SOHO
  and home.
• Unique fanless design
• Q-RAID 1 mirroring
• All-in-one NAS Server
• Secure data access and sharing
• Home multimedia features
• PHP MySQL supported

5
Recognition from Media around the World-2

• QNAP TS-209 Series is the first
• 2-bay SOHO NAS with hot-swap design for SOHO and
  home.
• RAID 0/1/JBOD and Single Disk
• All-in-one NAS Server
• Secure data access and sharing
• Home multimedia features

6
Recognition from Media around the World-3

• QNAP TS-409 Series is the 4-bay hot-swappable NAS
  with Online RAID Capacity Expansion, Online RAID
  Migration RAID 6 Support
• 4-Bay Hot-swappable
• RAID 0/1/5/6/5spare/JBOD
• Online RAID Capacity Expansion
• Online RAID Level Migration

7
Recognition from Media around the World-4

• QNAP TS-509 Pro is powered by Intel 1.6GHz CPU
  and 1GB DDRII memory, a powerful NAS system
  designed for business users.

• Dual Gigabit LAN ports
• LCD panel
• RAID 0/1/5/6/5Spare/JBOD
• Online RAID Capacity Expansion
• Online RAID Level Migration
• Wake on LAN Schedule Power on/off

8
QNAP NAS Market Positioning
QNAP NAS Servers are Positioned at High End
Market Segmentation. It is a Powerful and
Professional All-in-1 NAS Server for Corporate,
Mid-sized Business, SOHO, Educational Market and
Home Users!!!

• TS-409/ 509/ 639 Pro for Business Users
• Online RAID Capacity Expansion
• Online RAID Level Migration
• RAID 0, 1, 5, 6, JBOD

• TS-209 Pro for Business Users
• 2-bay, hot-swappable NAS Server
• RAID 1 Mirroring

• TS-109 Pro for Business Users
• 1-bay, Fanless NAS Server
• Unique Q-RAID 1

Other Storage Products in the Market

9
QNAP NAS Satisfying Diverse Segments
Application Servers

• Solutions for Enterprise Entry
• iSCSI IP-SAN
• Backup Storage Expansion
• File Server, FTP Server
• Rsync for remote backup

• SMB All-in-1 Server Solutions
• FTP server, File Server, Printer Sharing, Backup
  Server and more

RAID Protection
Easy to Manage
Media Sharing

• Digital Home Solutions
• Home theater CIFS/NFS DLNA sharing (PS3, DMA,
  Xbox360)
• Music Server SqueezeCenter 7 music server,
  iTunes Server
• PC-less P2P download
• Photo sharing
• Surveillance Station

• Professional Applications
• Video Storage Server
• Database Server
• Server Virtualization over NFS
• Add-on Installations, e.g. Version control,
  X-Mail Server, etc.

Storage Backup
10
QNAP Storage Product Line

• 6-bay Hot-swappable
• Intel 1.6GHz CPU 1GB DDRII RAM
• Dual Gigabit LAN ports
• LCD panel
• RAID 0/1/5/6/5Spare/JBOD
• Online RAID Capacity Expansion
• Online RAID Level Migration
• Wake on LAN Schedule Power on/off
• Volume-based On-disk Encryption
• iSCSI for IP-SAN applications

6-Bay
TS-639 Pro
5-Bay
TS-509 Pro
4-Bay
TS-401T
TS-409U
TS-409 Pro
TS-409
Home/ SOHO
SMB/ Enterprise
TS-209 Pro I / II
2-Bay
TS-201
TS-209 I / II
Personal
TS-109 Pro I / II
TS-109 I / II
1-Bay
TS-101
QBack-25
QBack-25S
QBack-35S
11
TS-639 Pro, Advanced Security 6-bay NAS for
Business-1
TS-409U- The best price performance ratio 1U NAS
Features at a Glance-1

• The TS-639 Pro is an ideal powerful network
  storage solution designed for SMB and Enterprise.
  Powered by Intel 1.6GHz CPU and 1GB DDRII memory,
  it delivers superior performance for multiple
  business applications and intensive concurrent
  data access.
• With Dual Gigabit LAN ports, it supports Load
  Balancing, Failover, and Multi-LAN for more
  deployment options.
• The LCD panel provides an extremely easy
  Touch-N-Go RAID configuration for the
  first-time installation. Besides, it displays
  clear system information to minimize the
  management effort.
• DOM architecture with embedded fail-safe dual OS

12
TS-639 Pro, Advanced Security 6-bay NAS for
Business-2
TS-409U- The best price performance ratio 1U NAS
Features at a Glance-2

• Secure Data Protection by AES 256-bit
  Volume-based Encryption
• Volume-based AES 256-bit on-disk encryption to
  protect sensitive digital asset !!!
• Built-in iSCSI Target Service
• The most affordable and flexible IP-SAN (Storage
  Area Network) solution designed for Mid-sized
  business for storage expansion server
  virtualization !!!
• Policy-based Unauthorized IP Blocking
• The protocol-based unauthorized accesses can be
  flexibly defined blocked to prevent malicious
  attacks.

13
TS-639 Pro, Advanced Security 6-bay NAS for
Business-3
TS-409U- The best price performance ratio 1U NAS
Features at a Glance-3

• The advanced RAID (RAID 0/ 1/ 5/ 6/ 5spare/
  JBOD) provides a highly reliable data protection
• High expandability and upgradeability
• - Online RAID Capacity Expansion
• - Online RAID Level Migration
• Value-added All-in-one business features
• - FTP, File Server, Printer Server, Encrypted
  Remote Replication, etc)
• Easy management for IT administrators
• Schedule Power on/off
• HDD S.M.A.R.T.
• Comprehensive Log System
• Instant SMS/Email Alert Notification

14
TS-639 Pro, Advanced Security 6-bay NAS for
Business-4
TS-409U- The best price performance ratio 1U NAS
Features at a Glance-4

• Advanced FTP Access Control (Write Only)
• Import SSL Secure Certificate
• Network Share Status Report
• Syslog Settings

15
NEW!- AES 256-bit Volume-based Encryption-1
If the hard disks or NAS machines are stolen, the
stored sensitive data might be leaked !!! On
Turbo NAS, the AES 256-bit Volume-based
Encryption feature allows server managers to
encrypt each storage volume. It can prevent the
sensitive data loss caused by thief. All the data
is encrypted by AES 256-bit, malicious persons
can only find scramble code on the encrypted hard
disks.
Application bank, government, medical data,
financial information, private photos, etc.
Volume 1
Unlock by encryption password or importing
encryption key file
Encryption Key 1
Volume 2
Unlock by encryption password or importing
encryption key file
Encryption Key 2
Volume 3
Non-encrypted volume
16
NEW!- AES 256-bit Volume-based Encryption -2
Server managers can choose different levels of
security.
A. High security (manually unlock the volume)
Manual unlock Server manager log in to
management page to input password or import key
file to unlock the volume when the system boot up
Volume 1
Encryption Key 1
Server manager keep the encryption key
? If the machine or hard disks are stolen, all
the data cannot be accessed without encryption key
B. Mid security (automatically unlock the volume)
Auto Unlock The Encryption Key can be saved on
the NAS system that the volume can be unlocked
and mounted to the system automatically.
Volume 2
Encryption Key 2

• If the hard disks are stolen, the data cannot be
  accessed.
• Cannot fully prevent the risk of machine be
  stolen but it is more convenient

The encryption key is saved on the NAS
17
NEW!- iSCSI solution for mid-sized business-1

• Business Challenge
• For many smaller enterprises or branch offices, a
  high-performance and flexible storage expansion
  solution for their existing application servers
  is required.
• DAS (direct attached storage) is not an efficient
  solution. A fiber channel SAN was too expensive
  and too complicated to implement.
• iSCSI can use existing networks and resources.

Users
Users
Affordable yet powerful
LAN
LAN
Application Servers with iSCSI Initiators
Application Servers with iSCSI Initiators
Gigabit Ethernet Switch
IP-SAN
iSCSI Storage Systems
Turbo NAS with iSCSI
18
NEW!- iSCSI solution for mid-sized business- 2
The iSCSI features allow server administrators
can easily create an IP-SAN (Storage Area
Network). LUN (Logical Unit Number) can be
defined as storage expansion or backup targets of
their existing application servers.
iSCSI Application Storage Expansion for
application servers
iSCSI Target
Application Example
Volume 1
LUN1 for server 1
IP-SAN
Application Server 1
Application Server 2
LUN2 for server 2
NAS Application Share File through SMB/CIFS,
AFP and NFS
Public
Partner
Office
Volume 2
Sales
19
NEW!- iSCSI Solution for mid-sized business- 3
TS-409U- The best price performance ratio 1U NAS
The Virtual Space Allocation (Thin
Provisioning) feature is provided which allows
the server manager to flexibly allocate the
capacity of iSCSI LUN at the beginning stage
without the limitation of the volume space.
When the physical storage capacity of the
volume is going to be full, the server manager
can easily expand the storage capacity by online
RAID capacity expansion, or adjust/ remove the
current unused volume space according to the
demands.
20
NEW!- SMS Alert Notification
TS-409U- The best price performance ratio 1U NAS
The instant system alerts would be sent via the
SMS Service provided by the SMS Provider. Server
manager could enter 2 sets of mobile phone number
worldwide at most to receive the message and
manage the system in time.
System Error!!
21
NEW!- Policy-based Automatic IP Blocking- 1
TS-409U- The best price performance ratio 1U NAS
To prevent the NAS from malicious attacks, the
server manager can create an IP filter policy to
allow, deny, or auto-blocking the IP address or
network domain which attempts to connect to the
NAS via SSH/ Telnet/HTTP(S)/ FTP/ samba/AFP.
22
NEW!- Policy-based Automatic IP Blocking- 2
Users can control the access to the server
according to the number of times an IP fails to
login the server via a certain connection method.
The connection type includes SSH, Telnet,
HTTP(S), FTP, SAMBA, and AFP.
23
NEW!- Volume Status Report

• Users can check the status of the network share
  folders of the system including the storage
  capacity, number of folders and files etc.
• Clicking on Name, Size, No. of Folders,
  No. of Files, or Hidden to sort the contents
  in ascending or descending order.

24
NEW!- Syslog Server Settings Supported
Syslog is a standard for forwarding log messages
in an IP network. Users can save the event logs
and connection logs to a remote syslog server.
25
NEW!- Import SSL Secure Certificate
TS-409U- The best price performance ratio 1U NAS
The administrator can upload a secure certificate
and an RSA private key in X.509PEM format issued
by a trusted provider in order to allow the users
to access the NAS by secure SSL login
26
NEW!- UPS (Feature Enhancement)
Users can set the time for the server to enter
standby mode when an abnormal AC power supply is
detected. When the power resumes, the server
resumes to the operation status.
27
TS-639 Pros Excellent Hardware Design-1
Rock Solid Hot-swap Design !!!
The TS-639 Pro offers you non-stop service and
easy maintenance. The hard disk drives can be
replaced by hot swapping without turning off the
server. The intelligent data rebuilding
capability allows users to replace a failed drive
by hot-swap. This enables automatic data
rebuilding to the new drive without suffering
from any system downtime.
The lockable extraction levers protect the hard
drives from being removed by non-administrative
persons.
28
TS-639 Pros Excellent Hardware Design-2

• Compact-sized form factor (mini-ITX sized main
  board) with built-in power supply unit
• 5 x USB 2.0 and 2 x eSATA interface are
  supported for high expandability!
• Lockable HDD tray provides a physical level hard
  drive protection
• Configurable One Touch Copy Button offers more
  backup convenience
• 12cm cooling fan provides quiet and efficient
  heat dissipation
• Dual Gigabit LAN ports allow more business
  deployment options

29
Dual Gigabit LAN Port
Dual Gigabit LAN Ports for More Deployment Options
A. Network Failover Failover allows the NAS to
sustain the failure of one network port to
provide continuous services. B.
Load-Balancing Bandwidth aggregation is supported
to boost the file transfer speed (works with
managed Ethernet switch with 802.3ad
configured) C. Multi-IP Setting The NAS can
be deployed with two different IP settings for
sharing among different workgroups in two
different subnets.
30
Superior Performance (NetBench)
File Server Performance - NetBench
The test results show that the TS-639 Pro
delivers superior performance (over 300Mbps when
serving 16 clients), under single disk
configuration. The throughput of other NAS brands
of the same level only reaches a half or less
than that of QNAP TS-639 Pro.
NetBench is a benchmark program that measures the
performance of a file server in handling file I/O
requests. It is a useful indicator of the
performance of NAS device/ file server when it is
simultaneously accessed by multiple users.
31
TS-639 Pros Reliable Software Platform
DOM Architecture with Embedded Fail-safe Dual OS
All the OS and applications are embedded on the
DOM. The TS-639 Pro allows system booting
without accessing the physical disk sectors and
that prevents unsuccessful system startup caused
by bad block sectors or file errors on the hard
drives.
? Unlike other NAS systems, the TS-639 Pros OS
applications are embedded on DOM and requires no
installation on the hard disks.
Two operating systems are built on the DOM for
system booting alternatively upon every system
startup. When one fails, the other one will be
used to boot up instead, and the failed OS is
recoverable from the other healthy OS.
? Users dont need to worry about unintended
system power outage when upgrading the firmware.
32
The Most Reliable HDD Protection Mechanism

• Advanced Disk Configurations RAID 0, 1, 5, 6,
  5Spare, Single, and JBOD
• Online RAID Capacity Expansion
• Online RAID Level Migration
• 4. HDD S.M.A.R.T.
• 5. Bad Block Scan Disk Checking

33
The Most Advanced RAID Management - 1
Advanced disk configurations RAID 0, 1, 5, 6,
5Spare, Single, and JBOD
Single disk
RAID 0
RAID 1 RAID 5

(disk stripping)
(disk mirroring) (disk stripping with
parity)
Parity
RAID 5 mode Each entire data block is written
on a data disk parity for blocks in the same
rank is generated on Writes, recorded in a
distributed location and checked on Reads.RAID
Level 5 requires a minimum of 3 drives to
implement.
RAID 0 mode It recognizes 5 hard drives as one
large drive, yielding higher performance than
single disk mode. No redundancy provided.
RAID 1 mode All drives are paired and mirrored.
All data is duplicated 100 on a separate drive
of the equivalent size.
Single disk General mode System recognizes
each drive as individual drive.

34
The Most Advanced RAID Management - 2
Advanced disk configurations RAID 0, 1, 5, 6,
5Spare, Single, and JBOD
RAID 6 RAID
5 hot spare JBOD



2 Parity
You can configure RAID 5 with 3 hard disk volume
at the beginning stage and leave 1 hard disk as
spare in case one of the disks in RAID 5 volume
fails. The spare disk can quickly replace the
failed one without turning off the NAS.
You can combine two or more disks into one larger
disk. During file saving, the file will be saved
on physical disks sequentially but does not have
a disk failure file protection function. The
overall capacity of linear disk is the sum of all
disks. Linear disk is generally used for storing
large data and is not appropriate to use for file
protection of sensitive data.
RAID 6 disk volume is ideal for important data
protection.To create a RAID 6 disk volume, a
minimum of 4 hard disks are required. The total
capacity of RAID 6 disk volume the size of the
smallest capacity disk in the array x (no. of
hard disk 2). It's recommended that you use
same brand and same capacity hard drive to
establish the most efficient hard drive
capacity.RAID 6 can survive 2 disk failure and
system can still operate properly.
35
The Most Advanced RAID Management - 3
Online RAID Capacity Expansion
The storage capacity of a RAID configuration can
be expanded by replacing the hard drives with
larger ones. All the data will be kept and
seamlessly moved to the newly installed hard
drives. There is no need to turn off the server
during the process.
36
The Most Advanced RAID Management - 4
Online RAID Level Migration
Users can upgrade the disk configuration to
higher RAID level with the data retained. There
is no need to turn off the server during the
process.
37
The Most Advanced RAID Management - 5
Touch-N-Go PC-less RAID setup for the first time
installation!!!
You can use the handy LCD to finish the first
time installation in 3 simple steps. The NAS will
automatically complete the hard disk formatting
and RAID building.
Step 1 Turn on the NAS
Step 2 Select the RAID Configuration
Step 3 Execute the RAID Configuration
38
Hard Drive Protection HDD S.M.A.R.T.-1
HDD S.M.A.R.T. (Self-monitoring Analysis and
Reporting Technology) offers a quick overview of
the hard drive status which enables users to
monitor the hard drives and check potential
problems. This tool helps prevent unexpected HDD
failure and avoid critical data loss.
Select the hard disk to check the HDD health
status.
In the summary page, users can view the health
status of the selected drive.
39
Hard Drive Protection HDD S.M.A.R.T. -2
The S.M.A.R.T. information helps the server
managers to easily monitor the health status of
the hard disks.
40
Hard Drive Protection HDD S.M.A.R.T. -3
Server managers can select to execute the
diagnostic testing by rapid or complete test.
The NAS will provide a health status result
after the testing process is done.

• Rapid Test Check the first 1.5 GB of the hard
  disk drive
• Complete Test Check the complete hard disk drive

41
Hard Drive Protection HDD S.M.A.R.T. -4
Server managers can set the schedule for
S.M.A.R.T. test (rapid or complete) to ensure the
health of the hard disks. The regular job can be
done by the NAS automatically according to the
configured policy.
Alert emails will be automatically sent to server
managers in case of any potential problems
42
Hard Drive Protection Bad Block Scan Disk
Checking
Advanced Hard Drive Protection (HHS)
The embedded HHS (HDD health scan) technology
help users discover the abnormal issue of hard
disks to prevent disaster. It is a dual insurance
for valuable data on the NAS.

• Bad Block Scanning reports bad blocks of a HDD.
• Disk Checking performs Linux file system
  checking and fixes any potential errors.

43
Ease of Management for IT Administrator-1
Wake on LAN
Users can enable this option to power on the NAS
remotely by Wake on LAN. Wake on LAN helps you
manage your NAS conveniently.
Schedule Power on/off
The most flexible schedule power on/off feature
is now provided to manage the NAS servers up
time according to the working hours. IT
administrators can set the time for automatic
system power on, power off, or restart on any
days of the week.
Handy LCD Display Design
The handy LCD display shows the IP address and
important info of the NAS. The IP setting can be
configured directly without accessing to PC.
44
Ease of Management for IT Administrator-2

• Comprehensive Event Log System

Detailed logs of file-level data access to the
TS-639 Pro via Samba, FTP, AFP, HTTP(HTTPS),
Telnet, and SSH, and network services accessed by
the online users are all recorded. IT
administrators can easily control detailed logs
of each file (who, when, and what actions were
done).
The logs can also be exported as Excel (csv) file
for analysis.
45
The Most Complete Backup Solution-1
3rd party backup software supported

• Encrypted Remote Replication
• NAS-to-NAS Backup over the Network
• Advanced Encrypted Remote Replication

QNAP Backup Software - NetBak Replicator
USB One Touch Backup (USB OTB)
Standard Rsync supported
46
The Most Complete Backup Solution-2
Encrypted Remote Replication
1. NAS-to-NAS Backup over the Network Files
can be backed up from the TS-639 Pro to other
QNAP NAS products in remote locations. 2.
Advanced Encrypted Remote Replication
Advanced options including data compression,
block level incremental backup, and data
synchronization which save tremendous
bandwidth and time for data backup.
QNAP TS-109
A
Headquarters
Remote Office
Internet
B
B
QNAP TS-639 Pro
QNAP TS-209 Pro
Remote Office
47
The Most Complete Backup Solution-3
Standard Rsync supported
Data on the NAS can be backed up to or from
another Turbo NAS or Rsync server over the
network securely.
3rd party backup software supported
QNAPs Turbo NAS provides a great alternative for
tape replacement. Several well-known backup
software have been verified that they could
smoothly work with QNAP NAS server.

• CA BrightStor ARCserve Backup
• Acronis True Image
• EMC Retrospect
• Symantec Backup Exec
• LaCie SilverKeeper (backup)

48
The Most Complete Backup Solution-4
QNAP Backup Software - NetBak Replicator
The intelligent automatic backup software- NetBak
Replicator is provided for the NAS users to
perform real-time synchronization or schedule
backup from multiple PCs to the NAS. There is no
license issue about user account limitation.
Easy Selection Select All or My Document
Select Backup Destination
Backup Level Folder or File Level
Backup Log Record Errors
Backup option Real Time/ Schedule/Instant
49
The Most Complete Backup Solution-5
USB One Touch Backup (USB OTB)
Intelligent One Touch Auto Copy When USB device
is installed, simply press the copy button and
all USB data can be copied to the TS-639 Pro
independent of PC.
Flexible data backup to external storage
device An external storage can be connected to
the TS-639 Pro via the USB port for alternative
data backup
50
All-in-one Turbo NAS Features for Business
Powerful All-in-one Server!!!
Applications for Business

• File Server
• FTP Server
• Backup Server
• Web Server
• MySQL Server
• Remote Replication
• Mirror Server
• Printer Server
• more

51
A. All-in-one Server File Server -1
1. Sharing File Across Windows, Mac, and Linux
QNAPs Turbo NAS supports NFS, AFP, and
SMB/CIFS. You can share files among PCs with
different OS easily!
(Mac OS X/ Mac 10.5.x Supported!)
52
A. All-in-one Server File Server -2
2. Store Files with Access Right
Control Centralized management of documents.
Access right of users and user groups can be
configured easily. Only authorized parties can
read or modify files, which greatly enhances the
security of data access.
53
A. All-in-one Server File Server -3
3. Easy-to-use Web-based Management Interface You
can create user ID and password, and define the
authority and quota for each user by web browser
easily without MIS help.
54
A. All-in-one Server File Server -4
4. Web File Manager More than just a disk on
your local network, you can also access your
stored files anytime, anywhere by web browser!
IP
A
A
55
B. All-in-one Server FTP Server -1
Having troubles with sending large files by
e-mails due to the limited capacity? 1.
Establish Your Own FTP Server to Share Your
Files. Just a few installation steps, you can
manage the access authority of the FTP server and
share your files with your customers easily!
Turbo NAS FTP Service
SMB Users
56
B. All-in-one Server FTP Server -2
2. Sharing File over the Internet Securely
Besides access right control, the FTP server
supports secure encryption (FTP over SSL/ TLS).
Passive mode FTP port range setup is also
supported.
57
C. All-in-one Server Web Server
Create Your Forum, Blog, and Online Store
Easily Exclusive Built-in phpMyAdmin, Joomla!,
MySQL SQLite Dual Support! Users can either
develop programs by themselves or download a
variety of open-sourced applications, such as
online shops, forums, blogs over the Internet.
Blog
Web album
Community Website
58
D. All-in-one Server Remote Replication
NAS-to-NAS Backup over the Network Files can be
backed up from the TS-639 Pro to other QNAP NAS
products (or Rsync Servers) in remote locations.
Headquarters
A
QNAP TS-109
B
Remote Office
QNAP TS-639 Pro
A
Internet
QNAP TS-109 Pro II
Remote Office
Remote Replication
B
QNAP TS-209
Remote Office
59
E. All-in-one Server MySQL Server
Great Solution for System Integrators QNAP Turbo
NAS can be an ideal alternative solution of
standalone MySQL database server.

• It can be flexibly applied in various deployments
  such as
• a database server of another web server in remote
  site
• an additional backup database server to achieve
  system redundancy.

Lower investment in smaller scale deployment
(SMB/SOHO)
MySQL DB server
MySQL DB server
Application server
Application server
60
F. All-in-one Server Printer Server
Share Your Printer Resource by Printer Server You
can share your printer device over the network
without duplicating investment by simply
connecting a USB printer to NASs USB port and
enabling the printer sharing function.
Network Printer
USB Printer
USB printer can be shared through the high-speed
USB 2.0 port
Small Office
61
About Turbo NAS on Surveillance Station
Live Audio Video Monitoring, Recording and
Playback over the Internet

• Application
• Remote monitoring of childcare situation,
• Elder care,
• Home and office security,
• long-term environmental monitoring

62
Surveillance Station Features- 1
High quality video recording in MPEG4 and Motion
JPEG Format
Real-time monitoring and recording for up to 30
frames/ Sec per channel
Live 2-way audio supported for real-time
monitoring, and voice broadcasting
Complete recording function

• Motion Detection
• Recording is triggered when a moving object is
  detected by the camera.
• Continuous / Schedule recording
• Synchronized audio recording

63
Surveillance Station Features- 2

• Alarm schedule recording
• Different recording modes can be defined for
  different time periods, e.g. alarm recording at
  daytime and continuous recording at night time.

• E-mail notification
• Alert emails will be sent to administrator
  immediately when a system error or emergent event
  takes place.

• Standard video recording format with Time Stamp
• The recordings are saved in AVI format (codec
  provided) for easy playing by Windows Media
  Player. Time stamp on the video is provided for
  convenient data search and can be used as legal
  evidence.

• Flexible adjustment of the length of recording
  files
• Users can adjust the length of the recording
  files flexibly
• (1-15 minutes)

64
Surveillance Station Features-3
Live real-time monitoring
Varity Live video monitoring Single-channel,
2-channel and Picture-in-picture (PIP) monitoring
modes are supported for flexible and key-location
monitoring
Support live 2-way audio Real-time audio and
video monitoring, voice broadcasting
Smart PTZ camera control by direct clicking on
the control panel Users can zoom in/ zoom out and
control cameras direction by the click and go
intuitive control panel. Preset positions can be
easily and precisely controlled.
Picture-in-picture mode
65
Set up the Surveillance Station
How to set up the home surveillance by yourself?

• Plan your home network topology
• Set up the IP Cameras
• Configure the camera settings on NAS
• Configure the NAT router (for remote monitoring
  over the Internet)

66
Surveillance Station Settings-1
A. Home Page
Log in the Surveillance Station, this home page
is shown and the preview images of the connected
IP cameras will be displayed. The camera
status refreshes every 5 seconds and the
information of the recording file size is updated
every 15 minutes.
67
Surveillance Station Settings-2
B-1 Settings/ Camera Settings
Enter the information of the IP cameras ready on
the network so that the NAS can connect to the
cameras.
68
Surveillance Station Settings-3
B-2 Settings/ Recording Settings
You can configure the resolution, frame rate, and
quality of the IP cameras on Surveillance Station
69
Surveillance Station Settings-4
B-3 Settings/ Schedule Settings

• Configure the recording schedule of each
  camera. Users can flexibly define the recording
  settings according their security plan.
• You can select continuous recording, motion
  detection recording, or not recording for each
  time period.

70
Surveillance Station Settings-5
B-4 Settings/ Advanced Settings

• Alarm recordings (Buffer storage for alarm
  images)
• Users can set the number of seconds the video
  recording
• before or after events.

71
Surveillance Station Settings-6
C. Live View
Display mode
PTZ camera control panel

• Display mode
• Single channel
• 2 channel mode
• PIP mode for advanced settings
• Adjust window size
• Full screen
• Sequential mode

• PTZ
• Adjust the camera angle
• Select the preset monitoring angles of the camera
• Zoom in
• Adjust the focus of the camera
• Zoom out

72
Surveillance Station Settings-7
D. Playback

• The system will create a default share folder
  Qrecordings for Surveillance Station.
• Users can access the Qrecordings via
• SMB/ CIFS
• HTTP
• FTP

The Surveillance Station provides an intuitive
web interface to search and play recording files
no extra software installation is required. Users
can also use network file services to access the
recorded video files directly.
73
Surveillance Station Settings-8
E. Log
This page shows the errors, warning, and error
messages of the Surveillance Station. Users can
choose the type from the drop-down menu next to
Display.
All events All event logs are shown. Warnings
and errors Display only warnings and
errors. Errors only Display errors only.
74
About QPKG of Turbo NAS Series
Explore the unlimited possibilities of your QNAP
NAS! The QPKG is a convenient platform developed
by QNAP to enable users to install lots of useful
software applications. The software developed
from the users and community worldwide By a few
simple clicks and uploading on the user-friendly
GUI, all these applications can be installed.
There is no need to go through the hassles of any
complicated programming.
75
How to Install Software of QPKG? -1
All the available applications of QPKG will be
announced through RSS.
Simply click the button you can get the most
updated package information
76
How to Install Software of QPKG? -2
It is as easy as uploading a firmware file to
your NAS!
77
Turbo NAS Series Valuable Features- 1

• Windows AD (Active Directory)

The Windows AD feature enables server manager to
import user accounts from AD domain to NAS to
reduce the time and effort for account setup, and
users can use the same set of login name and
password.
SSL Security (HTTPS). All connections between PC
and NAS including user ID, password, files,
download tasks etc. are encrypted in SSL tunnels
and are well protected
USB UPS Support The NAS supports both APC and MGE
UPS devices which help users store the data in
time and avoid critical data loss when power
outage occurs during data transfer.
RSS Keep users posted about any news, update or
improvement of QNAP products.
78
Turbo NAS Series Valuable Features- 2

• QNAP Finder (Powerful utility for setup and
  management)
• The setting of Turbo NAS Series can be easily
  accomplished by QNAP Finder.
• Users can also restart, shut down, remote wake
  up the server (via WOL) , map disk, etc. on the
  single console of the powerful tool.

Batch Creation of Users and Corresponding
Folders The NAS administrator can create a serial
of user accounts and dedicated shared folders in
one shot.
Network Recycle Bin Can you imagine if you delete
an important file on the NAS by mistake and lose
it forever? You dont need to worry now! The
files deleted from the network shares of the
Turbo NAS Series will be moved to a particular
recycle bin folder. You can restore your data
anytime in case of unintended file deletion.
79
QNAP NAS Community Forum
QNAP forum is the largest NAS community with more
than 13,000 people (Oct, 2008). QNAP users can
share experience, find answers, get direct
support and receive the latest update information
here.
80
Thank you !!!
http//www.qnap.com
