Information Resources Management

1

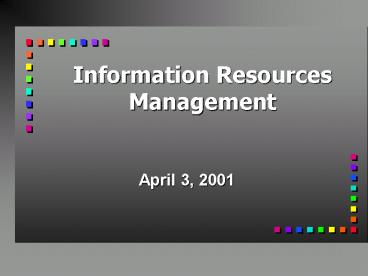

Information Resources Management

• April 3, 2001

2
Agenda

• Administrivia
• Physical Database Design
• Database Integrity
• Performance

3
Administrivia

• Exam 2

4
Regrade Requests Exam SQL

• Create Database
• Enter query(s) as submitted
• Submit to me
• Database (electronic)
• Graded homework (paper)
• Reserve the right to change test data and
  reexecute query

5
Foreign Keys

• Inserts require all FK values be the value of a
  primary key in the reference table
• Update and delete constraints are also possible

6
Referential Integrity

• ON DELETE CASCADE/RESTRICT/SET NULL
• ON UPDATE CASCADE/RESTRICT/SET NULL
• Default
• ON DELETE RESTRICT
• ON UPDATE CASCADE

7
Example

• CREATE TABLE PCAccess
• (PC INTEGER,
• EmpID CHAR(9),
• AccessType CHAR(15),
• PRIMARY KEY (PC, EmpID),
• FOREIGN KEY (EmpID) REFERENCES (Employee),
• FOREIGN KEY (PC) REFERENCES (PC))

8
Example - PCAccess Table
9
Example 1
INSERT INTO PCAccess (PC) VALUES (4)
10
Example 2
INSERT INTO PCAccess (PC, EmpID) VALUES (4,5)
11
Example 3
UPDATE Employee SET EmpID 10 WHERE EmpID 1
12
Example 4
UPDATE PCAccess SET EmpID 10 WHERE EmpID 1
13
Example 5
DELETE FROM Employee WHERE EmpID 2
14
Example 6
DELETE FROM PCAccess WHERE EmpID 2
15
Example 7
DELETE FROM PC WHERE PC 3
16
Cascading

• Chain followed until the end
• Especially for deletes
• If mix of CASCADE, RESTRICT, SET NULL
• Will get all or nothing

17
Update Delete Constraints

• CREATE TABLE T1
• (A CHAR(5)
• B CHAR(5)
• PRIMARY KEY (A,B)
• FOREIGN KEY (A) REFERENCES (T2)
• ON DELETE RESTRICT
• ON UPDATE RESTRICT)
• CREATE TABLE T2
• (C CHAR(5)
• D VARCHAR(30) PRIMARY KEY (C))

18
Constraints
T1
T2
Want to update the value of X1 to be X11. What
has to happen?
19
Performance

• Requires Knowledge of
• DBMS
• Applications
• Data
• Users Expectations
• Environment

20
Performance Classes

• OLTP
• On-Line Transaction Processing
• OLAP
• On-Line Analytic Processing
• Mix of OLTP and OLAP

21
OLTP

• Throughput Driven
• Throughput - number of transactions per unit of
  time
• Lots of Transactions
• Mix of Update and Query
• High Concurrency

22
OLAP

• Response Time Driven
• Response Time - single transaction
• Very Large, Possibly Complex, Transactions
• Query Evaluation and Optimization

23
Performance Tuning

• Consider the Mix of OLTP OLAP
• Interference Between Types
• Example
• Single daily large analytic transaction, rest
  simple transactions, locking could prevent others
  from running.

24
Tuning Levels

• DBMS
• Hardware
• Design
• Interactions Between Levels

25
DBMS Parameter Tuning

• Specific to DBMS
• Buffers - Buffer Pool
• Logging - Checkpoints
• Lock Management
• Space Allocation - Log, Data, Freespace
• Thread Management
• Operating System Tuning

26
Hardware Tuning

• Memory
• CPU
• Disk
• RAID
• Number of Drives
• Partitioning
• Architecture -- Parallel Systems?

27
RAID

• Redundant Array of Inexpensive Disks
• Appears as single disk
• Physical storage difference - no database
  differences
• Increase performance
• Provide recovery from disk failure

28
Negative Effect of RAID

• MTBF (mean time between failures)
• Increase by factor of drives used

29
How RAID Works

• Striping - dividing equally across all disks

1
2
3
4
1
2
3
4
Stripe 1
5
6
7
8
Stripe 2
9
10
11
12
Stripe 3
Stripe n
30
RAID Levels

• RAID-0
• RAID-1
• RAID-2
• RAID-3
• RAID-4
• RAID-5
• RAID-6

31
RAID-0

• All disks store unique data
• Very fast
• No fault tolerance or recovery

32
RAID-1

• Fully Redundant
• Faster Reads/Slower Writes
• High fault tolerance -- easy recovery

33
RAID-2

• Each record spans all drives
• Some disks store ECC (error correction codes)
• Parity checks allow error detection and correction

34
RAID-3

• Each record spans all drives
• One disk stores ECC
• Single-User

35
RAID-4

• Each record stored on a single disk
• One drive for ECC
• Multi-user reads Single-User writes

36
RAID-5 (Rotating Parity Array)

• Drive has both data and ECC
• ECCs rotate to different drive
• Multi-user reads and writes

1
2
3
4
1
2
3
ECC
ECC
4
5
6
ECC
6
7
8
ECC
11
10
9
ECC
12
13
14
37
RAID-6 PQ Redundancy

• P - parity
• Q - extra parity
• 2 bits of ECC per 4 bits of data
• Handles multiple disk failures
• Reed-Solomon codes
• Introduction to the Theory of Error-Correcting
  Codes, Pless (1989)

38
Your Mileage May Vary
We note that numerous improvements have been
proposed to the basic RAID schemes described
here. As a result, sometimes there is confusion
about the exact definitions of the different RAID
levels.
39
RAID Usage

• 1, 3, and 5 outperform others
• RAID-1 - fastest, no storage cost, but not fault
  tolerant
• RAID-3 - single-user only
• RAID-5 - higher speed than single disk, fault
  tolerant, multi-user, but some storage cost and
  slower write times

40
Design Tuning

• Transactions
• Physical Database

41
Transaction Tuning

• The DBMS optimizes so why worry?
• An optimized poorly written transaction can
  always be outperformed by a well-written
  nonoptimized one.
• EXPLAIN (DB2)
• What did the optimizer come up with?

42
Transaction Tuning

• Distributed Databases
• Client-Server
• Network performance becomes an additional concern

43
Transaction Tuning

• DBA participation in program reviews and
  walkthroughs
• Continuous Monitoring

44
Transaction Tuning Heuristics

• Single query instead of multiple queries
• multiple includes sub-queries
• Avoid long-running transactions
• Avoid large quantities of updates
• Locking and logging
• Reduce number of tables joined

45
Transaction Tuning Heuristics

• Reduce sorting
• Return less data rather than more
• Dont shift logic from query to program
• Optimizer is likely to be faster
• Less data is returned

46
Transaction Tuning Example

• Get the names of all managers whose offices have
  property listed in Pgh.
• SELECT
• FROM Property as P, Office as O, Manager as M,
  Employee as E
• WHERE P.OfficeNbr O.OfficeNbr AND O.OfficeNbr
  M.OfficeNbr AND M.EmpID E.EmpID AND
• PropertyID IN (SELECT PropertyID FROM Property
  as P2 WHERE P2.City Pgh AND P2.OfficeNbr
  M.OfficeNbr)

47
Transaction Tuning Example

• SELECT
• FROM Property as P, Office as O, Manager as M,
  Employee as E
• WHERE P.OfficeNbr O.OfficeNbr AND O.OfficeNbr
  M.OfficeNbr AND M.EmpID E.EmpID AND
• PropertyID IN (SELECT PropertyID FROM Property
  as P2 WHERE P2.City Pgh AND P2.OfficeNbr
  M.OfficeNbr)
• More is selected than is needed.

48
Transaction Tuning Example

• SELECT
• FROM Property as P, Office as O, Manager as M,
  Employee as E
• WHERE P.OfficeNbr O.OfficeNbr AND O.OfficeNbr
  M.OfficeNbr AND M.EmpID E.EmpID AND
• PropertyID IN (SELECT PropertyID FROM Property
  as P2 WHERE P2.City Pgh AND P2.OfficeNbr
  M.OfficeNbr)
• Some joined tables can be eliminated.

49
Transaction Tuning Example

• SELECT
• FROM Property as P, Office as O, Manager as M,
  Employee as E
• WHERE P.OfficeNbr O.OfficeNbr AND O.OfficeNbr
  M.OfficeNbr AND M.EmpID E.EmpID AND
• PropertyID IN (SELECT PropertyID FROM Property
  as P2 WHERE P2.City Pgh AND P2.OfficeNbr
  M.OfficeNbr)
• Subquery is executed once per office.

50
Transaction Tuning Example

• SELECT E.Name
• FROM Employee as E
• WHERE E.MgrFlag 1 AND OfficeNbr IN
• (SELECT OfficeNbr FROM Property as P
• WHERE P.City Pgh)
• Version without any joins - 2 single table
  queries only.

51
Transaction Tuning Example

• SELECT DISTINCT E.Name
• FROM Property as P, Employee as E
• WHERE P.OfficeNbr E.OfficeNbr AND E.MgrFlag
  1 AND
• P.City Pgh
• Single query with join.

52
Transaction Tuning

• Explain (or similar tool) can help to identify
  how each transaction will access the data and
  what temporary tables will have to be created to
  execute the query
• With multiple options, test them
• Order of conditions in WHERE can affect the
  optimization and performance
• I.E., put MgrFlag 1 first

53
Physical Database Tuning

• Indices
• Schema Tuning
• Retaining Normalization
• Denormalization

54
Indices

• Unique
• Nonunique
• Single Attribute
• Multiple Attributes
• (concatenated or composite key)

• Primary Key
• Secondary Index

55
Additional Indices

• Index decreases read time but increases update
  time
• Based on queries - even single query
• (EXPLAIN)
• Indices need reorganization
• Inserts, Updates, Deletes
• Specify freespace
• Reduce frequency of reorganizations

56
Schema Tuning - Staying Normal

• Split Tables - Vertical Partitioning
• Highly used vs. infrequently used columns
• Dont partition if result will be more joins
• Keys are duplicated

57
Schema Tuning -Staying Normal

• Variable length fields (VARCHAR, others)
• Indeterminant record lengths
• Row locations vary
• Vertically partition row into two tables, one
  with fixed and one with variable columns

58
Schema Tuning -Leaving Normal

• Normalization
• Eliminates duplication
• Reduces anomalies
• Does not result in efficiency
• Denormalize for performance

59
Denormalization Warnings

• Increases chance of errors or inconsistencies
• May result in reprogramming if business rules
  change
• Optimizes based on current transaction mix
• Increases duplication and space required
• Increases programming complexity
• Always normalize first then denormalize

60
Denormalization

• Partition Rows
• Combine Tables
• Combine and Partition
• Replicate Data

61
Combining Opportunities

• One-to-one (optional)
• allow nulls
• Many-to-many (assoc. entity)
• 2 tables instead of 3
• Reference data (one-to-many)
• one not use elsewhere
• few of many

62
Combining Examples

• Employee-Spouse (name and SSN only)
• Owner-PctOwned - Property
• few owners with multiple properties
• Property-Type (description)
• one type per property

63
Partitioning

• Horizontal
• By row type
• Separate processing by type
• Supertype/subtype decision
• Vertical (already seen)
• Both

64
Replication

• Intentionally repeating data
• Example Owner-PctOwned-Property
• Owner includes PctOwned PropertyID
• Property includes majority OwnerSSN and PctOwned

65
Performance Tuning

• Not a one-time event
• Monitoring probably more important
• Things change
• applications, database (table) sizes, data
  characteristics
• hardware, operating system, DBMS
