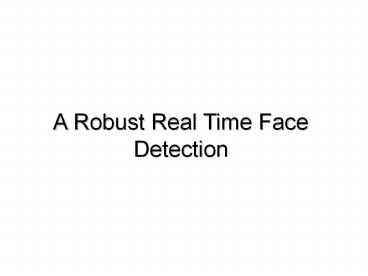

A Robust Real Time Face Detection

1
A Robust Real Time Face Detection
2
Outline

• AdaBoost Learning Algorithm
• Face Detection in real life
• Using AdaBoost for Face Detection
• Improvements
• Demonstration

3
AdaBoost

• A short Introduction to Boosting (Freund
  Schapire, 1999)
• Logistic Regression, AdaBoost and Bregman
  Distances (Collins, Schapire, Singer, 2002)

4
Boosting

• The Horse-Racing Gambler Problem
• Rules of thumb for a set of races
• How should we choose the set of races in order to
  get the best rules of thumb?
• How should the rules be combined into a single
  highly accurate prediction rule?
• Boosting !

5

• Boosting

6
AdaBoost - the idea

• AdaBoost agglomerates many weak classifiers into
  one strong classifier.

• Initialize sample weights
• For each cycle
• Find a classifier that performs well on the
  weighted sample
• Increase weights of misclassified examples
• Return a weighted list of classifiers

IQ
Shoe size
Shoe size
7
AdaBoost - algorithm
distribution
example
decision
step
8
AdaBoost training error

• Freund and Schapire (1997) proved that
• AdaBoost adapts to the error rates of the
  individual weak hypotheses.
• Therefore it is called ADABoost.

9
AdaBoost generalization error

• Freund and Schapire (1997) showed that

10
AdaBoost generalization error

• The analysis implies that boosting will overfit
  if the algorithm is run for too many rounds
• However, it was observed empirically that
  AdaBoost does not overfit,
• even when run thousands of rounds.
• Moreover, it was observed that the generalization
  error continues to drive down long after training
  error reached zero

11
AdaBoost generalization error

• An alternative analysis was presented by Schapire
  et al. (1998), that suits the empirical findings

12
AdaBoost different point of view

• We try to solve the problem of approximating the
  ys using a linear combination of weak hypotheses
• In other words, we are interested in the problem
  of finding a vector of parameters a such that
  is a good approximation of yi
• For classification problems we try to match the
  sign of f(xi) to yi

13
AdaBoost different point of view

• Sometimes it is advantageous to minimize some
  other (non-negative) loss function instead of the
  number of classification errors
• For AdaBoost the loss function is
• This point of view was used by Collins, Schapire
  and Singer (2002) to demonstrate that AdaBoost
  converges to optimality

14
Face Detection (not face recognition)
15
Face Detection in Monkeys

• There are cells that detect faces

16
Face Detection in Human

• There are processes of face detection

17
Faces Are Special

• We humans analyze faces in a different way

18
Faces Are Special

• We humans analyze faces in a different way

19
Faces Are Special
We analyze faces in a different way
20
Face Recognition in Human

• We analyze faces in a specific location

21
Robust Real-Time Face Detection

• Viola and Jones, 2003

22
Features

• Picture analysis, Integral Image

23
Features

• The system classifies images based on the value
  of simple features

Two-rectangle
Value ? (pixels in white area) - ? (pixels in
black area)
Three-rectangle
Four-rectangle
24
Contrast Features
Source
Result
Notice that each feature is related to a special
location in the sub-window
25
Features

• Notice that each feature is related to a special
  location in the sub-window
• Why features and not pixels?
• Encode domain knowledge
• Feature based system operates faster
• Inspiration from human vision

26
Features

• Later we will see that there are other features
  that can be used to implement an efficient face
  detector
• The original system of Viola and Jones used only
  rectangle features

27
Computing Features

• Given a detection resolution of 24x24, and size
  of 200x200, the set of rectangle features is
  160,000 !
• We need to find a way to rapidly compute the
  features

28
Integral Image

• Intermediate representation of the image
• Computed in one pass over the original image

29
Integral Image
Using the integral image representation one can
compute the value of any rectangular sum in
constant time. For example the integral sum
inside rectangle D we can compute as ii(4)
ii(1) ii(2) ii(3)
30
Integral Image
Integral Image
31
Building a Detector

• Cascading, training a cascade

32
Main Ideas

• The Features will be used as weak classifiers
• We will concatenate several detectors serially
  into a cascade
• We will boost (using a version of AdaBoost) a
  number of features to get good enough detectors

33
Weak Classifiers

• Weak Classifier A feature which best separates
  the examples
• Given a sub-window (x), a feature (f), a
  threshold (T), and a polarity (p) indicating the
  direction of the inequality

Probability for this threshold
34
Weak Classifiers

• A weak classifier is a combination of a feature
  and a threshold
• We have K features
• We have N thresholds where N is the number of
  examples
• Thus there are KN weak classifiers

35
Weak Classifier Selection

• For each feature sort the examples based on
  feature value
• For each element evaluate the total sum of
  positive/negative example weights (T/T-) and the
  sum of positive/negative weights below the
  current example (S/S-)
• The error for a threshold which splits the range
  between the current and previous example in the
  sorted list is

36
An example
positive/negative example weights
the sum of positive/negative weights below the
current example
For e calculation
weight
Feature value

e B A S- S T- T W f y x
2/5 3/5 2/5 0 0 2/5 3/5 1/5 2 -1 X1
1/5 4/5 1/5 1/5 0 2/5 3/5 1/5 3 -1 X2
0 5/5 0 2/5 0 2/5 3/5 1/5 5 1 X3
1/5 4/5 1/5 2/5 1/5 2/5 3/5 1/5 7 1 X4
2/5 3/5 2/5 2/5 2/5 2/5 3/5 1/5 8 1 X5
Error min(A,B)
examples
decision
37
Main Ideas Cascading

• The Features will be used as weak classifiers
• We will concatenate several detectors serially
  into a cascade
• We will boost (using a version of AdaBoost) a
  number of features to get good enough detectors

38
Cascading

• We start with simple classifiers which reject
  many of the negative sub-windows while detecting
  almost all positive sub-windows
• Positive results from the first classifier
  triggers the evaluation of a second (more
  complex) classifier, and so on
• A negative outcome at any point leads to the
  immediate rejection of the sub-window

39
Cascading
40
Main Ideas Boosting

• The Features will be used as weak classifiers
• We will concatenate several detectors serially
  into a cascade
• We will boost (using a version of AdaBoost) a
  number of features to get good enough detectors

41
Training a cascade

• User selects values for
• Maximum acceptable false positive rate per layer
• Minimum acceptable detection rate per layer
• Target overall false positive rate
• User gives a set of positive and negative examples

42
Training a cascade (cont.)

• While the overall false positive rate is not met
• While the false positive rate of current layer is
  less than the maximum per layer
• Train a classifier with n features using AdaBoost
  on a set of positive and negative examples
• Decrease threshold when the current classifier
  detection rate of the layer is more than the
  minimum
• Evaluate current cascade classifier on validation
  set
• Evaluate current cascade detector on a set of non
  faces images and put any false detections into
  the negative training set

43
Results
44
Training Data Set

• 4916 hand labeled faces
• Aligned to base resolution (24x24)
• Non faces for first layer were collected from
  9500 non faces images
• Non faces for subsequent layers were obtained by
  scanning the partial cascade across non faces and
  collecting false positives (max 6000 for each
  layer)

45
Structure of the Detector

• 38 layer cascade
• 6060 features

46
Speed of final Detector

• On a 700Mhz Pentium III processor, the face
  detector can process a 384 by 288 pixel image in
  about .067 seconds

47
Improvements

• Learning Object Detection from a Small Number of
  Examples the Importance of Good Features (Levy
  Weiss, 2004)

48
Improvements

• Performance depends crucially on the features
  that are used to represent the objects (Levy
  Weiss, 2004)
• Good Features imply
• Good results from small training databases
• Better generalization abilities
• Shorter (faster) classifiers

49
Edge Orientation Histogram

• Invariant to global illumination changes
• Captures geometric properties of faces
• Domain knowledge represented
• Inner part of the face includes more horizontal
  edges then vertical
• The ration between vertical and horizontal edges
  is bounded
• The area of the eyes includes mainly horizontal
  edges
• The chin has more or less the same number of
  oblique edges on both sides

50
Edge Orientation Histogram

• Called EOH
• The EOH can be calculated using some kind of
  Integral Image
• We find the gradients at the point (x,y) using
  Sobel masks
• We calculate the orientation of the edge (x,y)
• We divide the edges into K bins
• The result is stored in K matrices
• We use the same idea of Integral Image for the
  matrices

51
EOH Features

• The ratio between two orientations
• The dominance of a given orientation
• Symmetry Features

52
Results

• Already with only 250 positive examples we can
  see above 90 detection rate
• Faster classifier
• Better performance in profile faces

53
DemoImplementing Viola Jones systemFrank
Fritze, 2004
