Title: Congestion Control for Streaming Media


1

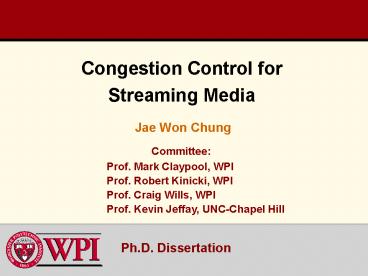

Congestion Control forStreaming Media
  • Jae Won Chung

Committee Prof. Mark Claypool,
WPI Prof. Robert Kinicki, WPI Prof. Craig Wills,
WPI Prof. Kevin Jeffay, UNC-Chapel Hill
Ph.D. Dissertation
2
Internet Congestion Control (CC)
  • Little Support From The Router
  • Packet Drop Implicit Congestion Signal
  • TCP Congestion Avoidance
  • Respond to Congestion Signal

3
Efficient Congestion Control Feedback
Active Queue Management (AQM)
Queue
  • Active Queue Management (AQM)
  • Low Delay High Utilization
  • Reduce Packet Loss
  • Reduce Queue Overflow
  • Explicit Congestion Notification (ECN)
  • Stability and Configuration Issue

Outbound Link
Router
Inbound Link
4
Bandwidth Usage Control
  • Bandwidth Control Mechanism
  • Protect network and fairness
  • Extend AQM Feature
  • Scalability Issue

5
Efficient Bandwidth Usage Control
TCP-Friendly Transport Protocol
Queue
  • TCP-Friendly Transport Protocol
  • Average throughput does not exceed
  • that of conforming TCP flow under the
  • same network condition
  • Application-Friendly also?

Outbound Link
Router
Inbound Link
6
Outline
  • Internet Congestion Control
  • Problem Statement
  • The Crimson Architecture
  • Aggregate Rate Control
  • Summary

7
Problem Statement
  • The Internet does not provide a
    streaming-friendly transport protocol (TCP is
    streaming-unfriendly).
  • TCP API hides network information.
  • TCPs reliable in-order delivery service incurs
    extra delays.
  • The Internet stability is vulnerable to
    misbehaving high-bandwidth UDP streams.
  • Streaming media applications often use UDP
    without a proper congestion control mechanism.
  • Internet video has potentially high demand for
    bandwidth.
  • ISPs provide broadband Internet connections (? 3
    Mbps).
  • The Internet does not guarantee low transmission
    delays required by streaming media applications.
  • Large queuing delays at IP routers in congestion.

8
The Crimson Architecture
TCP
TCP
Active Queue Management (IP Router)
Best-Delay-Effort
Protection
TCP
TCP
Multimedia Transport Protocol
Multimedia Transport Protocol
Bandwidth Controller
Congestion Controller
In
Filtered
Out
MTP
MTP
UDP
UDP
SFG
ARC
UDP
UDP
  • MTP Multimedia Transport Protocol
  • SFG Stochastic Fairness Guardian
  • ARC Aggregate Rate Controller

9
Contributions (1 of 2)
  • Internet measurement study
  • Compare commercial Internet TCP UDP video
    streams
  • Characterize streaming transport protocol
    requirements.
  • Chung, 2003 Packet Video Workshop (PV)
  • Chung, 2004 Kluwer Multimedia Tools and
    Applications
  • Multimedia Transport Protocol (MTP)
  • Modify TCP (Reno in NS) not to retransmit.
  • Add streaming-friendly API.
  • Chung, 2000 SCS Euromedia Conference
  • Goddard streaming media client and server
  • Design and implement a realistic streaming
    application in Network Simulator (NS).
  • Simulates bandwidth estimation, media scaling and
    playout.

10
Contributions (2 of 2)
  • Stochastic Fairness guardian (SFG)
  • Design a lightweight bandwidth controller
    (statistical packet filter) that limits
    misbehaving high-bandwidth UDP traffic.
  • Chung, 2000 NOSSDAV
  • Chung, 2000 ACM Multimedia
  • Chung, 2002 IEEE Symposium on Computers and
    Comm.
  • Aggregate Rate Controller (ARC)
  • Design a congestion controller that minimizes
    queuing delay while achieving high link
    utilization.
  • Provide complete and practical configuration
    guidelines.
  • Chung, 2003 Network Computing and
    Applications
  • Chung, 2004 ACM SIGCOMM, (Poster)
  • Integration of the Crimson components
  • Evaluate Goddard over MTP with the Crimson
    (SFGARC).

11
Outline
  • Internet Congestion Control
  • Problem Statement
  • The Crimson Architecture
  • Aggregate Rate Control
  • Summary

12
Random Early Detection (RED)
  • RED (Floyd, 1993) 1G AQM congestion controller
  • Uses a low pass filter on the queue length to
    detect and compute congestion notification
    probability (p).
  • RED configuration problems
  • Lack of configuration guidelines ? Queue law
    (Firoiu, 2000 Chung, 2003)
  • Stability margin is small (Hollot, 2001) ?
    Gentle extension, self-configuring RED (add-hoc
    approaches).
  • Proportional Integral (PI) AQM Controllers Apply
    control engineering paradigm to design AQM
  • Large stability margin and prompt response.
  • AVQ (Kunniyur, 2001),
  • PI (Hollot, 2001) and REM (Athuraliya, 2001)

13
Aggregate Rate Control (ARC)
  • Problem with current PI-based congestion
    controllers
  • Difficult to configure PI controller for a
    time-delay system.
  • Incomplete stability analysis measurement epoch.
  • Queue sample-based control information
    acquisition
  • ? Induce control noise when link is not fully
    utilized.
  • Aggregated Rate Controller (ARC)
  • Parameter reduced PI controller for TCP System
  • ? Ease the control parameter configuration.
  • Complete stability analysis
  • ? Practical configuration guidelines
    recommendations.
  • Rate-based control information acquisition
  • ? Noise reduction flexible configuration
  • ? Minimized queuing delay.

14
Rate-Based Implementation of PI
  • Every d seconds
  • 2 b ? 0
  • Every packet arrival
  • 3 if (uniform (0,1) ? p)
  • 4 if (mark (packet) false)
  • 5 drop (packet)
  • 6 return
  • 7
  • 8 b ? b sizeof (packet)
  • 9 if (enqueue (packet) false) drop
    (packet)
  • p notification probability
  • q queue length
  • b bytes received this epoch
  • C link capacity
  • target utilization (C0/C)
  • q0 target queue length
  • d measurement interval
  • ? virtual queue control const.
  • ? queue control const.

15
TCP-ARC Feedback Control Model
(Hollot, 2001)
16
TCP-ARC Stability Conditions
17
ARC Configuration Guidelines
  • Configure ARC (? /d ) for your
    average case lower boundary ( )
    condition.
  • Set the measurement interval ( d ) close to the
    maximum expected system RTT (
    ).
  • Check to see if the chosen ? meets the
    minimum stability condition.

18
Evaluation of ARC
  • Evaluate ARC with other PI-based AQM congestion
    controllers (AVQ and PI) and Drop-Tail
  • Over a wide range of realistic traffic mixes and
    loads.
  • Show two simulation study results in this
    presentation.
  • AQM Configurations
  • AVQ
  • ? 0.98, ? 0.15
  • PI
  • q0 50, ? 1.822 ?10-5, ? 1.816?10-5, ?
    170
  • ARC
  • ? 0.98, q0 0, d 1 sec, ? 1.42?10-5

19
Web Flash Crowd Simulation
  • C 10Mbps
  • Q 500 Kbytes
  • RTLD 60, 1000 ms
  • Nftp_fw 25, Nftp_bw 50
  • Nweb 300 (OL0.25) ? 1300 (OL1.10) ? 300
  • Nweb 10 sessions/min (from 100 sec)
  • ? Nweb ? 10 sessions/min (from 6100 sec)
  • Flash Rate (FIFA World Cup 98 Data)
  • ? Peak Flash Rate 2M ? 10M reqs/h in 2 hours
  • Web session setting (H-Campos, 2003)
  • ? Sizeavg 5KB, Shape 1.2, Tavg_think 7sec
    (expo)
  • Simulation time 12100 sec

20
Web Flash Crowd Queue Dynamics
21
Web Flash Crowd Data Losses
22
Light Traffic Load Simulation
  • Simulation Objectives
  • Compare PI-based AQMs on everyday light traffic
    load.
  • Simulate sudden increase in delay (due to routing
    change).
  • C 10Mbps
  • Q 500 Kbytes
  • Nftp_fw 5, Nftp_bw 10
  • Nweb 300 sessions
  • RTLD 100, 500 ms ? 2200, 2600 ms
  • Increase the congested link RTLD 300 ms every
    200 secs.
  • Average RTLD 300 ? 600 ? ? 2100 ? 2400 (ms)

23
Light Traffic Load Queue Dynamics
24
Light Traffic Load Throughput
25
Summary of ARC
  • Minimize queuing delay at IP routers.
  • Provide best-delay-effort Internet service to
    support streaming media and other delay sensitive
    applications.
  • Practical and complete configuration guidelines
    and recommendations.
  • Ease the controller parameter configuration
    through the PI parameter reduction.
  • Provide configuration guidelines and
    recommendations that works for a wide range of
    traffic condition
  • Robust congestion control performance over wide
    range of traffic conditions.
  • Rate-based control information acquisition.
  • High (flash crowd) and low (everyday) traffic
    loads.

26
Outline
  • Internet Congestion Control
  • Problem Statement
  • The Crimson Architecture
  • Aggregate Rate Control
  • Summary

27
Conclusions (1 of 2)
  • Internet measurement study
  • Compare Internet TCP and UDP media streams.
  • Characterize commercial video stream behavors.
  • Identify streaming unfriendly features of TCP.
  • Multimedia Transport Protocol (MTP)
  • TCP-friendly TCP modification not to retransmit.
  • API Streaming-friendly transport protocol.
  • MTP offers streaming performance comparable to
    that provided by UDP, while doing so under a
    TCP-Friendly rate.
  • Goddard streaming media client and server
  • Design and build a realistic streaming
    application in NS.
  • Simulates bandwidth estimation, media scaling and
    playout.

28
Conclusions (2 of 2)
  • Stochastic Fairness guardian (SFG)
  • Lightweight bandwidth controller that filters
    misbehaving high-bandwidth UDP traffic without
    flow monitoring.
  • SFG outperforms other statistical traffic
    filters, and performs as well as bandwidth
    controllers using per-flow information.
  • Aggregate Rate Controller (ARC)
  • Minimizes queuing delay with high link
    utilization.
  • Complete and practical configuration guidelines.
  • Robust performance over wide range of traffic
    conditions.
  • Evaluation of the Crimson network (SFG ARC)
  • Goddard over MTP achieves the best stream
    quality.
  • SFG controls high-bandwidth UDP Goddard streams.
  • ARC minimizes the queuing delay.

29
Questions?
Thank You
30
Congestion Control forStreaming Media
  • Jae Won Chung

Committee Prof. Mark Claypool,
WPI Prof. Robert Kinicki, WPI Prof. Craig Wills,
WPI Prof. Kevin Jeffay, UNC-Chapel Hill
Ph.D. Dissertation
31
Outline
  • Internet Congestion Control
  • Problem Statement
  • The Crimson Architecture
  • Aggregate Rate Control
  • Summary
  • ARC Leftovers

32
Block diagram of a TCP connection
Congested queue
__
1
N
?
TCP load factor
Control law (e.g. AQM)
Time Delay t
TCP window control
(Misra, 2000)
33
PID Controller for AQM
  • PI Controller
  • AVQ (Kunniyur, 2001)
  • PI (Hollot, 2001)
  • REM (Athuraliya, 2001)
  • Other Designs
  • SFC (Gao, 2003) PQPL Controller

34
Web Flash Crowd Queue CDF
35
Web Flash Crowd Throughput
36
Web Flash Crowd Service Time
37
Streaming Media Applications
  • Popular use of streaming media in the Internet.
  • Archived Jukebox, Video on Demand (VoD)
  • Live Internet Radio, Internet TV
  • Interactive Voice over IP (VoIP), Video
    Conferencing
  • Streaming media applications estimate available
    network bandwidth to control the stream quality.
  • Media scaling Choose a media of which the
    encoded bitrate is less than the available
    bandwidth.
  • Monitor network information (loss rate, delay,
    throughput).
  • Streaming media applications are sensitive to
    delay.
  • There exist media playout deadlines to meet.
  • Interactive streaming has even tighter delay
    requirements.
Write a Comment
User Comments (0)
About PowerShow.com
