Mobile DVR VSS-8

1

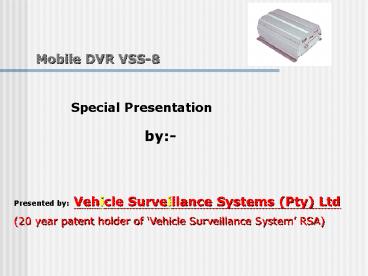

Mobile DVR VSS-8
Special Presentation by-
Presented by Vehicle Surveillance Systems (Pty)
Ltd (20 year patent holder of Vehicle
Surveillance System RSA)
2
Introduction
Rugged and ultra compact mobile DVR VSS-8 is a
very affordable industrial grade Digital Video
Recorder . It is specially designed to withstand
harsh environment and ultra-high impact, making
it ideal for diversified application of mobile
security .
JM-L Series
3
Why VSS-8
Cost-effective Who says owning a Digital
Video Recorder with cutting edge design has to be
expensive . Other systems sell for
twice as much and offer half the features,
VSS-8 is a most affordable industrial grade
DVR for your mobile security. User-friendly
operation and configuration , required no special
training before using VSS-8 supports
menu driven operation , is easy to operate and
saved files to Hard drive can be over
written again and again , no tape to replace or
store , saves you time and money .
Reliable performance VSS-8 is non-PC based
DVR , highly stable in performance , saves you
time and money on maintenance. Its fairly
rugged design makes it exceptionally superior
under harsh environment.
4
Why VSS-8
High quality in video and Audio vss-8
provides sharp pictures and clear audio quality
for evidence or action. Video quality is
selectable in accordance with your needs .
Diversified application Its compact size and
multifunctional features make it suitable for
various types of vehicles, such us school
bus , ambulance , tow truck , police patrol car ,
public transportation , taxi , fire engine ,
cash in transit vehicle , airplane , van ,
ship , etc
5
Why VSS-8
Multiple function, supports GPS, GPRS/GSM,
GIS, G-Sensor and Wi-Fi interface VSS-8
provides plug-and-play GPS, GPRS, GIS, G-Sensor
Wi-Fi interface . GPS gives vehicle
location and speed data to be mapped with GIS
(option) with actual video for enhanced fleet
tracking and event response. GPRS/GSM
wireless modem for streaming live video to a
central monitoring or storage location as
well as 20 second video Panic button send for
emergencies. GIS helps to precisely locate
your location with e-map. (option) G-Sensor,
an 3 axis inertia sensor with supporting
software, to analyze driver habits and
provide evidence for accident reconstruction and
prevention. Wi-Fi for access to wireless
network for downloads of recorded video data.
6
Features
Suitable for all kinds of vehicle ,
rugged and will withstand industrial temperature
range Two-to-eight-channel system
2 audio inputs Menu driven , easy to
operate Alert for full hard drive or
default for over-writing . Compact
flash memory backup . (option) Video
can be played back in VSS-8 directly or on PC
GPS, GPRS/GSM, GIS, G-Sensor Wi-Fi
interface , plug-and-play functions
Date, time, GPS data ( coordination, speed ) and
GIS (E-Map) on-screen while playing back
Quick video retrieval by time , date and event
. Programmable recording speed, video
quality and recording schedule
External device activation ( DI/O connectors )
IR controller Back to
recording mode automatically (auto-resume) after
a power failure during recording .
AV/VGA Monitor Support
7
Features
Viewing View an incident in-vehicle with AV/VGA
monitor , no special viewers required. Archiving
Saving video audio clips in IDE hard drive .
Playback Playing video directly in VSS-8 or
play in PC . Configuration Use menu-driven
programming screens to customize the features
based on user preferences. Backup Video can be
manually backed up to compact flash card (option)
or retrieved to PC.
8
Special, time synchronised 4-way-view software is
also available.
9
Specification - 1
Format MPEG4, M-JPG Recording medium Removable
2.5 IDE Capacity 2.5 HDD, 40G 100G Audio 2
inputs and 1 output Synchronized Recording time
Up to 24 hours average with 5G at 30f/s Display
Time , Date , Vehicle speed , latitude ,
longitude , 24 hours clock format USB Port USB
2.0 x2 Resolution 320x240, 640x480(NTSC)
384x288, 768x576(PAL) selectable Video input
1/2/4/8 input(s) , 1 V p-p / 75 ohm Video output
1 output (A/V ), 1 output(VGA) Alarm input 4
alarm inputs Alarm output 4 alarm outputs
Display rate Up to 30FPS Recording Rate Up to
60FPS Recording mode Continuous, motion detection
, scheduled or event recording

10
Specification - 2
Playback search By alarm or time segment Video
loss detection Yes Event log Yes User interface
Menu driven Timer Build-in real time clock
Title Alphanumeric Characters Archive Compact
flash memory (opt), USB RS232 GPS, G-Sensor,
GPRS/GSM/WIFI interface G Shock/Vibration
200g/2g Power source 9V-36V DC input Power
consumption 40W Dimension 270mm x 205mm x 100mm
Weight 3.5kgs
FRONT PANEL
BACK PANEL
11
Application
Law enforcement Capture videos while handling a
case to provide video for both police officers
and the persons involved. Our Mobile DVR has
been field tested in multiple police
departments and is currently being used
throughout the country. (overseas)
Tow truck Car owners may need tow truck company
to provide records of towing away while theres
suspicious collisions, damageetc. Several
tow truck companies have applied our Mobile DVR
as their standard device.
12
Application
Fire engine VSS-8 offers complete networking
features. Optional GPRS/CDMA can send streaming
live video to a central monitoring centre for
event evaluation, response and rescue. National
Fire Agency has adopted VSS-8 as standard
equipment. (overseas)
Ambulance VSS-8 can help to send live video to
the hospital for first aid advice, medical
arrangementetc. Moreover it provides valuable
surveillance recordings to protect against
litigation.
13
Application
Cash in transit vehicle Cash in transit vehicles
are more likely than others to suffer assault.
VSS-8 is a means of protecting personal safety,
cash security and deterring criminal activity.
Mass rapid transit system VSS-8 helps
authorities, observe and monitor passengers as
they travel and to protect passengers and have
evidence of passengers damaging the trains.
14
Application
Taxi Taxi and delivery drivers are more likely
than other workers to suffer a fatality while
on the job. They also suffer the highest rates
of nonfatal assault, next only to police and
private security guards. VSS-8 is a means of
protecting personal safety and deterring criminal
activity.
Public transportation VSS-8 was tested in an
Algoa Bus Co bus for 10 months, with great
results and much interest from other companies.
It may soon be introduced to protect drivers,
protect against collusion and to identify bad
driving behavior as well as to ensure passenger
safety as part of the countrys ITS system.
15
Application
Telematics/ Fleet Management Integrated
with GIS, fleet management can now pinpoint
the exact location of their en-route
vehicles. The VSS-8 enables monitoring and
recording of the vehicle location and route
progress. (OPTION)
Precise location
Stream film
Time/Speed Curve
16
Application
Court Evidence The G-Sensor detects the G
values of X, Y and Z axes simultaneously. To
monitor drivers driving habits as well as for
accident reconstruction evidence. This data
could also be presented as evidence if an
accident occurs.
Date/time data
Coordination
G Value of 3 Axes
Curve of 3 Axes
17
More applications
Train
Ship
Loading cargo
Airplane
5
18
Optional Peripherals
Waterproof CCD This mini CCD cameras specially
designed for mobile conditions. Not only is it
tiny and waterproof, its features make it
specially suitable for outdoor vehicle use.
GPS receiver GPS RS232 receiver provides data
of latitude, longitude , GMT and speed of
vehicle.
GPRS/GSM transmitter For live (GPRS)
on-the-move views from the cameras (depending on
GSM coverage) and Panic button GPRS video send to
the RMS servers (can be re-routed to a PDA or
compatible mobile phone. )
G-Sensor G-Sensor detects G values of X, Y and
Z axes simultaneously, and you can monitor
drivers habits via this device. The recorded
data can be presented as evidence if an accident
happens.
19
Peripherals for option
GIS Software Geographic Information System,
this software provides you precise location and
direction of a vehicle movement. (E-MAPS)
20
Fleet Options

• Auto download of video to servers
• Wireless links between depots/branches
• Fleet (video) management software
• Back-Office management equipment
• Re-view software and equipment
• Bureau service (as required)
• Video vehicle tracking service (as required)
• Armed response Recovery service (as required)
• Integration with fare-management equipment
• possible (depending on compatibility)

21
VSS-8 Mobile DVR - conclusion
Presented by Vehicle Surveillance Systems Port
Elizabeth Eastern Cape 082 931 4953 (Sub-office
and Agent in KZN) email specializ_at_aerosat.co.za
