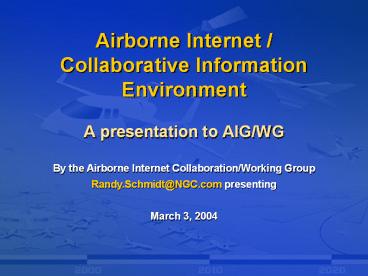

Title: Airborne Internet / Collaborative Information Environment


1
Airborne Internet / Collaborative
InformationEnvironment
  • A presentation to AIG/WG

By the Airborne Internet Collaboration/Working
Group Randy.Schmidt_at_NGC.com presenting March 3,
2004
2
Three Main Points
  • If the right aviation information at the right
    time is the goal
  • Discovery on Demand usingXML Web Services is
    the solution
  • Allowing the transformation to a Collaborative
    Information Environment (CIE)

3
The right aviation informationat the right time
  • Led to the concept of an AirborneInternet (AI)
  • A private, secure, and reliable peer-to-peer
    aircraft communications network that uses the
    same technologies as the commercial Internet
  • However, the AI does not currently provide a
    universal way to find
  • Decision quality information

4
Knowledge Management and theArt of Decision
Wisdom
Decision Maker
Decision quality information
Knowledge
Knowledge Executive
Information
Information Worker
Data
Data Entry Worker
5
Getting decision quality informationto the
Decision Maker
Traditional methods Publish and
Subscribe Push versus Pull Client / Server
Discovery on Demand
6
Discovery on Demand
  • Accomplished through XML Web Services
  • Software components that can be published,
    located, and run over the Internet using
    Extensible Markup Language (XML)
  • XML definition
  • A markup language that describes data in a
    structured and human-readable text format
  • Example ltaircraftgt
    ltn-numbergtN500EAlt/n-numbergt
    ltmakegtEclipselt/makegt
    ltmodelgt500lt/modelgt lt/aircraftgt

7
XML Web Services
  • Are used to
  • Allow other applications to call modules of code
    remotely with XML
  • Expose data in a database as XML
  • Send XML messages
  • E.g. alerts and notifications
  • Build Service Oriented Architectures (SOA)
  • Flexible, reusable, and lower cost

8
Embrace and Extend
National Wx Service
FAA
Trusted-Table Security DAC Views
Secure Flight Data
Rental Car
Hotels
FBO
FAA Flight Service
Pilot/Info Consumer
9
XML Web Services
Industry standards for interoperability
  • Enable disparate systems to work together
  • Across languages, platforms, applications
  • Computer to computer
  • Inside/outside the firewall
  • Based on open Internet standards
  • XML, SOAP, WSDL, and UDDI
  • Broad industry support
  • Key area of vendor alignment

10
XML Web ServicesNext wave of Internet evolution
XML
HTML
Technology
TCP/IP
Databaseconnectivity
PresentationLegacy scrape
CIE
Connectivity
Email, FTP, etc.
Innovation
Web pages
XML WebServices
Browse the Web
Programthe Internet
11
Collaborative Information Environment (CIE)
  • The transformation of the Internet byXML Web
    Services
  • 2nd generation Web (Web 1 ? Web 2)
  • Military example SharePoint PortalHeads Up
    Display (HUD) experiment
  • Uses XML Web Services to create a CIEthat
    combines information from
  • NASA
  • Synchronized Air Power Management (SAPM)
  • Defense Collaboration Tool Suite (DCTS)
  • JEMPRS-NT

12
Joint Enroute Mission Planning and Rehearsal
System-Near Term (JEMPRS-NT)
  • Operational Needs During Deployment
  • Situational Awareness
  • Collaborative Operating Environment
  • Enroute SITREP/Crisis Action Planning
  • Support of Rapid Decisive Operations

JOA
(In Transit)
JEMPRS-NT KIT
JTF Rear
  • JEMPRS-NT Functions
  • - Voice, Video, and Data
  • Application Sharing
  • Whiteboard and Text Chat
  • Digital Dashboard
  • E-mail and FTP
  • XML Web Services
  • Network Access to Other Systems

13
Collaborative Information Environment Meet us in
the cloud
Airborne Internet
GPS
Navigation
Satcom
  • XM
  • RFID
  • AM/FM
  • 802.xx
  • Airport Services
  • TIS
  • FIS
  • Hospitality
  • Maint.

VHF Radio
Line of sight
VHF Radio
VHF Radio
DATABASE CONNECTIVITY
Gateway
Non-CIE Aircraft
  • Internet
  • Weather Products
  • NOTAMs
  • Flight Service Stations
  • Other
  • NAS Services
  • ATM System
  • HUB Airports
  • TIS-B

VPN
ATC Controller
Original graphic courtesy of Computer Networks
Software, Inc.
14
AI / CIE removes existingaviation information
barriers
Graphic courtesy of C3D Aero, Inc.
15
AI / CIE provides decision quality information
for cockpit displays
Airspace notification
Icing Alert
Discovery on Demand MFD
Traffic Alert
Original graphic courtesy of C3D Aero, Inc.
16
Functional picture of the AI / CIE
Users
Services
Digital connectivity across all types of
communicationsVHF radio, Satellite, Infrared,
etc.
17
AI / CIE ? Internet and Web 1
  • The AI / CIE is about
  • End users, not webmasters
  • Edge devices, not clients and servers
  • XML Web Services, not web pages
  • XML knowledge packets, not just TCP/IP
    connections
  • Types Maintenance, Flight, Entertainment, etc.
  • Built-in security, not security as an afterthought

18
AI / CIE interfaces securely withthe following
networks
  • The commercial Internet
  • Assured extranet connections
  • OnSATS
  • AirTraveler.com (formerly SATS-Net)
  • Carries Assured Aviation XML Web Services
  • Client-side end user intranets

19
AI / CIE End StateEvery aircraft is a network
nodeNetwork In the Sky
A distributed, peer-to-peer aircraft
communications grid that shares decision quality
information
20
Conclusion
  • If the right aviation information at the right
    time is the goal
  • Discovery on Demand usingXML Web Services is
    the solution
  • Allowing the transformation to a Collaborative
    Information Environment (CIE)

21
For more information
  • http//www.airborneinternet.com
  • http//acb100.tc.faa.gov
  • http//www.c3daero.com/presentations
