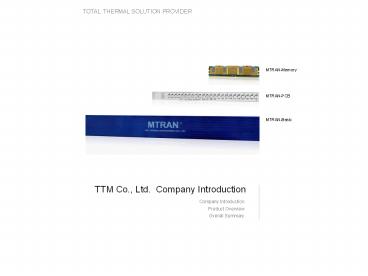

TTM CO., LTD. ?????

1
THERMAL SOLUTION
TOTAL
PROVIDER
MTRAN-Memory
MTRAN-PCB
MTRAN-Basic
TTM Co., Ltd. Company Introduction
Company Introduction Product Overview Overall
Summary
2
MISSION VISION
MISSION
STATEMENT
We will be the leader of technology development
in the field of electronic telecommunication
by providing innovative and competitive Thermal
Solution.
3
CORPORATE IDENTITY
THERMAL SOLUTION
TOTAL
PROVIDER
TTM was founded in November 2003 with our mission
statement We will be the leader of technology
development in the field of electronic
telecommunication by providing innovative and
competitive Thermal Solution. We are the first
total cooling solution provider and we
develop and manufacture optimized cooling
solution for customers with complicated heat flow
problems. With high technologies and heat
flow management experiences, we pioneer a new
field of cutting-edge engineering service for
heat flow area. We put our best effort to develop
future-generation cooling kit using Nano MEMS
technologies.
4
CORPORATE OVERVIEW
General Overview
Organization Structure
RD 34 Manufacture 31
Administration 21 SalesMarketing 14
Human Resources
20 Forces (2006.11)
5
CORPORATE HISTORY
Investment from Venture Capital Conclude a MOU
with LG Micron Headquarter move out to
Metropolitan Area (Anyang City) Selected as
Display Thermal Solution Research Company by
Korean Government Selected as Small Enterprise
Technical Innovation Company by Korean
Government Conclude a Basic Purchase Contract
with Samsung Corporation. Acquired
ISO9001/ISO14001 Acquired Korean New Technology
Mark (KT Mark) Authenticated Venture Company
with Innovative Technology by Korean
Government Selected as The Center of Excellence
by UGS Selected as New Technical Incubation
Company by Korean Government Foundation of TTM
Co., Ltd. Research Development Center Conclude
Technology Transfer Agreement Contract with ETRI
(Electronics Telecommunications Research
Institute) TTM Co., Ltd. Foundation
2006 year
2005 year
2004 year
2003 year
6
INTELLECTUAL PROPERTY RIGHTS
Patents Non-exclusive Patents
Rights Patents on New Device
Liquid Cooler for Microprocessor
(10-2004-0012462) Heat Pipe using Carbon Nano
Tube (10-2004-0017842) Nanofluid with Carbon
Black (10-2005-0015555) Thermal Grease with
Carbon Nano Particle (10-2005-0044712) Printed
Circuit Board for LED Package with Cooling System
(10-2005-0072538) Flat-type Heat Pipe Enclosure
Equipment and Manufacturing Procedure
(10-2005-086991) Multi-side Structure Sectioned
Micro Heat Pipe using Extrusion/Drawing Process
(ETRI Technology Transfer) Multi-side
Structure Sectioned Micro Heat Pipe
Manufacturing Procedure (ETRI Technology
Transfer) Cooling System furnished with Wick
using Photo Etching Process (ETRI Technology
Transfer) Liquid Cooler Using Nanofluid
(0352690) Water Jacket Using Foam Metal (0352695)
Heat Pipe with Foam Metal (0360090) Heat Pipe
with Foam Metal (0361445) Heatsink with Flat
Plate Heat Pipe (0361492) Cooling System
Structure for LCD with LED BLU (0384912) PCB for
LED Package with Cooling Section (0022957) Heat
Dissipating Structure of PCB with Heat
Dissipation Device Package (0400909) LED BLU Unit
furnished with Heat Dissipating Body (0399741)
Heat Dissipating Structure of LCD (0401354) Ram
Module furnished with Heat Dissipating Body
(0031567)
7
CUSTOMER SATISFACTION
Approach Customers with Innovative Mind
We make all of our effort to provide better
quality for our customers by developing novel
technologies. Customers satisfaction is
guaranteed with KT Mark (Korea Good Technology
Mark), ISO9001/14001 authentication, and our
innovative mind with providing flexible terms of
payment and competitive price. All of these are
derived from our commitment, Approach Customers
with Innovative Mind. Throughout continuous
quality innovation, improvement and research, we
will make full customer satisfaction into a
reality.
8
MTRAN
Feature
MEMS Technology Applied Working Fluid Acetone,
Nanofluid Thermal Performance 11W 77W for
TMT-1630A200A Ultra-Slim Flat-Type HEATPIPE
(Thickness1.0 2.5T) Lightweight, Great
Uniformity Customizable Product Sizes for
Various Spec.
Application
Application for Flat-Type Display Cooling Module
exgt LCD-TV, PDP, LED BLU Ultra-Slim
Electronics/Telecommunication Devices exgt Post
PC, PDA, etc High Heat Radiating Memories sized
over 1Gb MTRAN-CPU Cooler , VGA Cooler Research
in Progress
Specification
9
MTRAN
Characteristic
10
MTRAN - PCB
Feature
MEMS Technology Applied Working Fluid Acetone,
Nanofluid Thermal Performance 11W
77W Ultra-Slim Flat Type HEATPIPE (Thickness1.0
2.5T) Lighter Weight than MCPCB Customizable
Sizes
Application
Application for Display Cooling Module using LED
Source Application for Cooling Module for
Lighting System using LED Application for
Electronics/Telecommunication Devices and other
devices need cooling through PCB
Specification
11
MTRAN - MM (Memory Module)
Feature
MEMS Technology Applied Working Fluid
Acetone Thermal Performance 5W 12W Ultra-Slim
Flat Type HEATPIPE (Thickness1.0
2.5T) Excellent Heat Spreader Customizable Sizes
Application
Cooling module for FBDIMM and other RAM
devices Spot cooling for FBDIMMs AMB
Specification
12
NANOTIM THERMAL GREASE (TGS Series)
Feature
Nano Power Material Application mediates devices
small surface imperfections and raises thermal
conductivity Great oxidization stability on high
temperature Patent Pending for lowering the rate
of base oil vaporization. Products Ready to Ship
2 heat radiation type, 1 conductor type
Application
Thermal conductive material between Heatsink and
CPU Used as filler between electronic parts
(diode) and heat radiating unit
Specification
13
NANOTIM PCM (Phase Change Material)
Application
Feature
High thermal conductivity Low thermal
resistance Phase change temperature of 45
? Electrical stability high reliability Meets
international environmental requirements Competiti
ve price
Memory module Micro processor unit Graphic
processor unit Chipsets
Specification
14
CDM THERMAL FLOW CONSULTING
Feature
Overall heat flow analysis consult Suggest
cooling solution methodical thesis appropriate
for characteristics of variable systems
Process
Example
SFT Module / LED BLU System / Home Sever / DVR
System / 1U Server System Burn Wet Scrubber
System / 300mm Dryer
15
CDM CUSTOMIZED DESIGN MODULE
Feature
Customized design module by distinguished heat
flow analysis consult Suggest cooling solution
methodical thesis appropriate for characteristics
of various systems
Process
1.5 U Sever Cooling System / Network Processor
Cooling Module Car PC Cooling Module / Power PC
Cooling Module / IGBT Cooling Module
Example
16
THERMAL SOLUTION
TOTAL
PROVIDER
