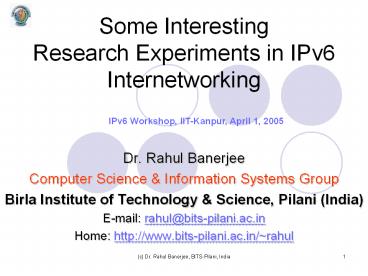

Some Interesting Research Experiments in IPv6 Internetworking

1
Some Interesting Research Experiments in IPv6
Internetworking
IPv6 Workshop, IIT-Kanpur, April 1, 2005

• Dr. Rahul Banerjee
• Computer Science Information Systems Group
• Birla Institute of Technology Science, Pilani
  (India)
• E-mail rahul_at_bits-pilani.ac.in
• Home http//www.bits-pilani.ac.in/rahul

2
Interaction Points

• IPv6 Current Status
• Problems and Issues
• An overview of major IPv6 research experiments
  around the world
• Related Research Experiments at BITS-Pilani
• Project IPv6_at_BITS First few Steps during
  1998-2002
• Project BITS-LifeGuard
• The Grid-One Initiative
• The Road Ahead
• Summary
• References

3
IPv6 Current Status

• A brief overview of the IPv6 workgroups progress
  at the IETF
• The Revised IETF Roadmap for IPv6
• IPv6 Research, Development and Deployments in
  Industry
• Hype versus Reality
• Obstacles Opportunities

4
The IETF IPv6 Working Group Current Progress
Status of IPv6-specific Standardization /
Updating Work (1 of 2)

• Milestones passed ltwork completedgt
• Submission of a flexible method to manage the
  assignment of bits of an IPv6 address block to
  the IESG for Informational RFC.
• Submission of the Flow Label specification to
  IESG for Proposed Standard RFC.
• Submission of the Prefix Delegation requirements
  to IESG for Informational RFC
• Revision of the Aggregatable Unicast Addresses
  (RFC2374) to remove TLA/NLA/SLA terminology.
• Submission of a Draft on Proxy RA solution for
  prefix delegation.
• Submission of the IPv6 Node Requirements to IESG
  for Informational.
• Submission of the Site-Local Deprecation document
  to IESG for Informational.
• Submission of the Unique Local IPv6 Unicast
  Addresses to IESG for Proposed Standard RFC
• Submission of the Link Scoped IPv6 Multicast
  Addresses to IESG for Proposed Standard RFC

5
The IETF IPv6 Working Group Current Progress
Status of IPv6-specific Standardization /
Updating Work (2 of 2)

• Milestones passed ltwork completedgt
• Submission of the IPv6 Scoped Addressing
  Architecture to IESG for Proposed Standard RFC
• Submission of the TCP MIB to IESG for Proposed
  Standard RFC
• Submission of the Site-Local Deprecation document
  to IESG for Informational RFC
• Submission of the Unique Local IPv6 Unicast
  Addresses to IESG for Proposed Standard RFC
• Submission of the Router Preferences,
  More-Specific Routes to IESG for Proposed
  Standard RFC
• Submission of the updates to Auto Configuration
  (RFC2462 to be republished as Draft Standard RFC
• Submission of the update to ICMPv6 (RFC2463) to
  be republished as Draft Standard RFC

6
IPv6 Working Group Roadmap Status

• Milestones originally targeted ltwork in
  progress / delayed progressgt lt1 0f 2gt
• Dec 04 Submit document defining DAD
  optimizations to the IESG for Proposed Standard
• Dec 04 Submit Load Sharing to IESG for Proposed
  Standard
• Dec 04 Submit updates to Neighbor Discovery
  (RFC2461) to be republished as Draft Standard
• Jan 05 Submit Centrally Assigned Unique Local
  IPv6 Unicast Addresses to IESG for Proposed
  Standard

7
IPv6 Working Group Roadmap Status

• Milestones originally targeted ltwork in
  progress / delayed progressgt lt2 of 2gt
• Jan 05 Submit Proxy ND to IESG for Informational

• Jan 05 Resubmit Node Information Queries to IESG
  for Experimental status
• Jan 05 Submit update to IPv6 over PPP (RFC2472)
  to IESG for Draft Standard
• Jan 05 Submit Update to Privacy Extensions for
  Stateless Autoconfiguration document (RFC3041) to
  the IESG for Draft Standard
• Mar 05 Submit update to IPv6 Address
  Architecture to the IESG for Draft Standard
• Apr 05 Re-charter or close working group.

8
A Technical Overview of IPv6-specific Research
Experiments
9
Principal Objectives of this Research Overview

• Spreading Awareness of activities in related
  project areas for ease of collaboration (through
  a brief Technical Summary and subsequent
  discussion)
• Avoiding duplication of work-objectives and
  ensuring better utilization of resources
• Ensuring synergy between related projects so as
  to step up their productive output
• Identification of areas of possible collaboration
  between different projects
• Identification of a viable mechanism for ensuring
  such synergy and collaboration

10
Categories of Major IPv6 QoS Projects

• Quality-of-Service at the Infrastructure Level
• Packet-Switching Technology-specific initiatives
• Virtual Circuit -Switching Technology-specific
  initiatives
• Mixed-Mode-specific initiatives
• Quality-of-Service at the Higher Level
• Application-specific initiatives
• Service-specific initiatives
• Application Level Service-specific initiatives
• Transport Level Service-specific initiatives
• Quality-of-Service at both levels
• Survey-based and Analysis-based initiatives
• Implementation and Testing-based initiatives
• In all the categories, some of the ongoing works
  would facilitate standardization, benchmarking
  and derivation of technology roadmaps.

11
Categories of Major IPv6 QoS Projects

• Quality-of-Service at the Infrastructure Level
• Packet-Switching Technology-specific initiatives
• Virtual Circuit -Switching Technology-specific
  initiatives
• Mixed-Mode-specific initiatives
• Quality-of-Service at the Higher Level
• Application-specific initiatives
• Service-specific initiatives
• Application Level Service-specific initiatives
• Transport Level Service-specific initiatives
• Quality-of-Service at both levels
• Survey-based and Analysis-based initiatives
• Implementation and Testing-based initiatives
• In all the categories, some of the ongoing works
  would facilitate standardization, benchmarking
  and derivation of technology roadmaps.

12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
IPv6-based Grid Computing Projects

• Telescience project allowed collaboration with
  the researchers in Argentina with their
  counterparts in Sweden to control the
  Intermediate Voltage Electron Microscope (IVEM
  4000) in the USA.
• This facility also allowed bioinformatic and
  collaborative visualization tools.
• Incidentally, the Telescience project was also
  featuring an all-IPv6 native support-based
  underlying fabric. In that sense, it was
  interesting to see how the researchers approached
  the problem.
• The researchers were able to transfer at the
  1Gbps rate using this all-IPv6 infrastructure.
• However, till date, no international project has
  attempted to capitalize on the experimental QoS
  features for which the IPv6 has good potential.

21
Some Other Projects involving Grid Computing and
IPv6

• Teragrid (NSF funded, partly IPv6 enabled)
• GrangeNet (10 Gbps delivered over IPv6)
• KDDI Labs.-Project WIDE-Osaka University-UCSD
  Research Grid experiment (using native
  IPv6-support)
• Project Grid-One (at BITS-Pilani)

22
First few steps at BITS

• Project IPv6_at_BITS
• Project Home Page
• http//ipv6.bits-pilani.ac.in/
• IPv6-site
• IPV6-BITS-IN
• Origin AS4755
• International Tunnels  Eleven

• BITS was the first from India to be on the
  International IPv6 Backbone known as the 6-Bone
  and was the only University in India that
  acquired the status of a pTLA for IPv6.
• The project has as an active IPv6-oriented
  networking research and development component.
• Has over 24 International Partners participating
  in collaborative research.
• BITS led the IPv6-QoS Research Group at the
  European Commissions Next Generation Networks
  Initiative

23
Some Other Ongoing Projects that already use the
IPv6-enabled Infrastructure

• Project BITS-MOS
• IPv6-VoD Project
• IPv6-DTVC Project
• BITS Digital Library Project
• BITS Virtual University Project

• Technology Transfer Portal Project
• BITS-Linux Project
• JS project for Free Journals
• Project BITS-WearComp

24
Project GridOne An IPv6-QoS-aware Grid
Computing Experiment in Progressat BITS-Pilani
25
Grid computing Architecture

• Grids may be seen as made up of four layers
• Application layer (example collaborative
  biomedical research)
• Middleware layer (examples Schedulers, APIs,
  Authentication schemes, Interfaces, Managing
  elements)
• Computing Infrastructure layer (examples PCs,
  PDAs, Mid-range and Mainframes, Supercomputers as
  individual nodes)
• Distributed Communication / fabric layer
  (example underlying networks)

26
The Grid-One Initiative at BITS-Pilani

• BITS-Pilani is currently involved in a two-part
  experimental project under its Grid-One
  Initiative
• In the first phase, it is building a medium-sized
  campus-wide grid involving
• several Server-class systems,
• about 3000 PCs used inside the institutes
  laboratories and faculty chambers, student hostel
  rooms and
• many of the staff-owned PCs / Laptops / Tablet
  PCs etc.
• (The entire campus is connected using Gigabit
  Ethernet and Wireless LAN technologies.)
• Operating Systems include Linux, FreeBSD, SCO
  Unix, HP-UX, Sun Solaris, Windows 2003 Server,
  Windows 2000/Me/XP, Novell Netware, Win CE ltas
  client nodegt, Palm OS ltas client nodegt.
• The second phase would involve connecting the
  resultant grid to a bigger IPv6-enabled Grid for
  experimentation.

27
Project BITS-LifeGuardA Wearable Computer
Research Project for Saving Human Lives that uses
native IPv6
28
Introduction to the BITS Wearable Computing
Project

• The Project BITS-WearComp research programme
• Conceptualized in 1999
• Started in the early 2000
• First white paper and roadmap published in 2001
• First specific project, the BITS-Lifeguard, begun
  in May 2001 ltBlueprint discussed at the NGNis
  Brussels Meet in May 2001gt
• Objectives
• Saving human lives with the help of non-intrusive
  wearable computing devices
• Using the advances in computer communication and
  networking technologies to complement the
  wearable device capabilities ltincluding the
  native IPv6 support in the wearable as well as
  the cars computergt

29
A little bit about the BITS-Lifeguard system

• This research aims to protect human lives from
  those road accidents that result from the reduced
  levels of the physical fitness or mental
  alertness of the driver.
• Initially, it is focusing on light vehicles and
  their drivers / occupants. However, the concept
  is easily extensible to large vehicles and their
  drivers / occupants as well.
• This research also draws on the works done by
  life scientists on human sensory system, brain
  and select externally measurable parameters (that
  can be measured, calibrated or accurately
  estimated without piercing human body).

30
Motivation behind the BITS-Lifeguard system

• More people die of road accidents than due to
  natural calamities or other reasons
• Out of these road accidents, as per various
  reports,
• About 8 accidents were due to mechanical
  problems / failures in the vehicle
• About 12 accidents were found to be due to
  traffic violations, wrong assessment of the
  situation-on-hand by the driver or activities
  that tend to distract drivers (including changing
  cassettes / CDs / speaking on mobile etc.)
• Approximately, 73 of the accidents were
  attributed to the possibilities that the drivers
  physical and mental alertness levels may have
  been unfit for driving at the time of accident
• Remaining 7 accidents were accounted to various
  reasons including those of suicidal attempts /
  forced accidents etc.

31
The Vision behind the BITS-Lifeguard System (1
of 2)

• The overall life-saving environment in which the
  BITS-Lifeguard is envisioned to work shall have
  two core components
• The wearable computing component The
  BITS-Lifeguard
• The vehicular computing component
• The scenario of action would include
• Part-I
• sensing of select critical parameters that help
  estimate the current level of alertness and
  physical ability to drive safely,
• comparing these with the pre-fed threshold levels
  and generate an alert to the driver
• in case, driver fails to respond quickly enough,
  send and SoS signal to the vehicular computer
  wirelessly
• These responsibilities are handled by the
  wearable computer

32
The Vision behind the BITS-Lifeguard System (2of
2)

• The scenario of action would include
• Part-II
• Taking over control from the driver,
• Safely attempting to move the vehicle as per the
  pre-fed GIS map and GPS data
• Stopping the vehicle on a side
• Sending information wirelessly to the rescue /
  recovery agencies providing the location details,
  vehicles details and drivers details
• Intimating to the pre-registered relative /
  friend about the event and location
• These steps are taken by the vehicles computer

33
Elements of the BITS-Lifeguard Non-Intrusive
Wearable Computing System

• A wearable computing system of this category
  needs at least five basic elements
• Non-Intrusive Sensory elements to sense the
  wearers environment,
• Computing elements to take care of computational
  needs and,
• Communication elements to interconnect these
  computing elements (with mobility)
• Body safe Power Supply / Generation elements to
  provide the necessary power to the wearable
  computing system
• Fabric or placeholder elements to allow
  interconnected elements in place ltcould server
  other purposes alsogt

34
Identifying Challenges

• It was required to identify
• elements of relevance
• Factors influencing the choices
• Roles of Hardware technologies (including CPU,
  Power system, Sensor and Communication)
• Roles of Software technologies (including System
  and Application software)
• Challenge was also to consider Trade-offs between

• functionalities,
• form factor,
• weight and
• cost of device elements

35
Research Issues (1 of 10)Sensory Issues

• Selection of parameters required to be sensed
• Identifying the inter-relationship of these
  parameters with one-another, if any,
• Comparison of these parameters usefulness to the
  target system from the viewpoint of their
  measurability, ease of measurement, estimation or
  calibration
• Identification of any conflicting requirements of
  any two or more of these parameters due their
  measurement process that may interfere with
  each-other

36
Research Issues (2 of 10)Sensory Issues

• Identification of best possible method of direct
  or indirect sensing the chosen parameters
• Evaluating the best candidate methods from the
  viewpoints of their being appropriate to be
  embedded into the wearable computers fabric
• Identifying the best mechanism and location to
  embed one or more of these sensory elements in
  the fabric
• Identify the reliable interfacing mechanism to
  connect these elements with the appropriate part
  of the target system

37
Research Issues (3 of 10)Processing Issues

• Ascertaining the exact scope of real-time
  processing
• Estimating average and peak processing power
  needed
• Identifying the level and mechanism of
  fault-tolerance required
• Evaluating the available processor families and
  short listing the candidate choices
• Deciding about a safe and secure embedding
  mechanism, deciding the location of placement of
  processors, integration of the chosen processors
  with the rest of the target system
• Planning power needs of the processing sub-system

38
Research Issues (4 of 10)System Software Issues

• Identifying the critical and optional features
  needed to be supported by the Operating System
• Evaluating available Operating Systems on the
  chosen processors with respect to
• real-time support in the scheduling mechanism,
• power-management support,
• efficiency of operation,
• memory requirements,
• availability of ready-to-use device drivers,
• security support,
• robustness (crash-resistance and recovery
  included),
• availability of source code for modification and
  customization,
• application development support available etc.

39
Research Issues (5 of 10)Application Software
Issues

• Identification of techniques and tools that would
  allow
• efficient,
• verifiable,
• self-correcting and
• time-sensitive application level software design
  and development
• Deciding about the critical and optional modules,

• Formulating security (privacy included)
  strategies to be implemented at the application
  level

40
Research Issues (6 of 10)User-specific Issues

• Choice of mechanism to be used for the User
  (Driver in this case) registration and
  authentication prior-to-use
• User-specific critical data acquisition, sensor
  output calibration and verification
  prior-to-first use as well periodically
  afterwards (say every two years or after any
  major injury / prolonged treatment etc.)
• Deciding upon the minimal set of training
  (ideally none) on use of the wearable and
  precautions, if any
• Carefully evaluating the least irritating but
  adequately effective interface to the user for
  alerts (say audio only, audio and vibratory alert
  etc.)

41
Research Issues (7 of 10)Communication
Technology Issues

• Identification of the low-power, short-distance,
  low / medium-speed wireless communication
  mechanism (technology, protocol included) for the
  wearable computing element
• Ensuring that the technology and mechanism work
  even if accidentally an object of common use or
  any body part may come between the wearable
  computers transceiver and vehicles transceiver
• Identification of Higher-level Protocol Stack for
  local as well as global identification of the
  wearable computer as well as that of the
  vehicles computer
• Identification of appropriate wireless mobile
  communication technology that could allow
  vehicles computer to communicate with the
  external world in the event of the need

42
Research Issues (8 of 10)Power-specific Issues

• Identifying the methods and mechanisms to
  minimize the power requirements of the wearable
  computer system since providing power from
  vehicles power system is both impractical and
  unadvisable
• Ensuring that the chosen mechanism of reduced
  power requirement does not adversely affect the
  critical aspects of operation of the wearable
  computing system
• Identifying possible power-system elements that
  could supply required power to the identified
  elements of the wearable computer for reasonably
  long hours before any recharging or replacement
  becomes necessary
• Assessing the robustness of the power-sub-system
  against likely failures / exposures / damages

43
Research Issues (9 of 10)Security Issues

• Identification / development of low-overhead
  based efficient security mechanisms and protocols
  for providing
• Data integrity check
• Failsafe User (driver) authentication
• Implementation of verifiable privacy policy to
  protect privacy of the user from the unscrupulous
  offenders
• Protection against any over-the-network or
  EMI-based attacks on the wearable or vehicular
  subsystems

44
Research Issues (10 of 10)User-Safety Issues

• Evolution of a verifiable framework that could be
  used to ensure that the overall system in its
  entirety or any individual sub-system / element
  of which does not pose any threat to the physical
  security or mental comfort level of the user
• Ensuring that a built-in self-test be executed on
  the wearable computer as well as on the vehicles
  computer at appropriate intervals to ensure that
  the system continues to conform to the specified
  safety norms.

45
Current Status (1 of 2)Vehicular Computing System

• Vehicles communication subsystem design is
  ready, fine tuning and verification are yet to be
  done
• GPS software modules have been developed
• A minimal GIS mechanism is being developed
• Vehicles environment is planned to be simulated
  over next one year
• Real prototype for the vehicles computing system
  is slated for 2008.

46
Current Status (2 of 2)Wearable Computing System

• Architecture for the Sensory Sub-system is ready
  and several sensory simulation tests are under
  way
• First phase of the Processing Subsystem
  Architecture has been completed, verification and
  prototyping is being planned
• Software decisions for the wearable computing
  element have been made, initial choices have been
  frozen and a development environment is ready for
  use
• Application software for the wearable computing
  system is slated for 2006
• Security architecture is nearly complete and
  shall be evaluated within next 6 months

47

• The BITS Virtual University Project

• Opened to public on August 15, 2001
• Initially offerd primarily asynchronous learning
  support
• It now has an advanced facility for providing
• IP-based Live (interactive) Lectures
• On-Demand IP-based interactive delivery of
  recorded sessions
• Over 75 of the software used developed in house
• Currently, in Phase-4

48
The Road Ahead Identification of Common
Grounds and Complementing One-Anothers
Deliverables

• Collaboration Possibilities in breaking new
  grounds
• Identification of Individual Projects perceived
  Barriers as points of possible collaboration
• Identification of Common Grounds for initiating
  an inter-project dialogue
• Sharing the experiences
• Helping each-other in the process of testing,
  benchmarking, standardization and field deployment

49
Concluding Remarks

• Let us begin here now
• Let us know one-another more closely to be able
  to explore synergy!
• Let us brainstorm to evolve a mechanism for such
  collaborative co-existence..

50
Thank you!
51
Select References

• Telescience project portal, OSGA site, NSF
  project site
• Brian Carpenter ISOC Member Briefing 11, Feb.
  2003.
• Rahul Banerjee Internetworking Technologies,
  Prentice-Hall of India, New Delhi, 2003. (Also,
  freely downloadable from http//www.bits-pilani.ac
  .in/rahul and http//ipv6.bits-pilani.ac.in)
• Rahul Banerjee Internetworking Application
  Architectures, BITS-Pilani, 2004. (Freely
  downloadable from http//www.bits-pilani.ac.in/ra
  hul and http//ipv6.bits-pilani.ac.in)
• Rahul Banerjee An Innovative Approach to IPv6
  Quality of Service An OUCS Special Event
  (Invited lecture), Oxford University, Oxford,
  Feb. 2002.

52
References

• Rahul Banerjee. June 2001. THE BITS LifeGuard
• System, First technical meeting of the European
  Commissions
• Next Generation Network Initiative project,
  Brussels.
• 2002 Motor Vehicle Crash Data from FARS and GES.
• January 2004. Traffic Safety Facts 2002 A
  Compilation
• of Motor Vehicle Crash Data from the Fatality
  Analysis
• Reporting System and the General Estimates
  System.
• Annual Report. Washington, D.C. National Highway
• Traffic Safety Administration.
• European Transport Safety Council. 2001. The Role
  of
• Driver Fatigue in Commercial Road Transport
  Crashes. Technical Report, ISBN 90-76024-09-X.
  European Transport Safety Council, Rue du Cornet
  34, B-1040, Brussels.

53
References

• NCSDR / NHTSA Expert Panel on Driver Fatigue and
  Sleepiness. 1998. Drowsy Driving and Automobile
  Crashes. URL http//www.nhlbi.nih.gov/health/prof
  /sleep/drsy_drv.pdf
• The Royal Society for the Prevention of Accidents
  (RoSPA). February 2001. Driver Fatigue and Road
  Accidents A Literature Review and Position
  Paper. URL
• http//www.rospa.com/pdfs/road/fatigue.pdf

54
References

• Lizzy MIT's Wearable Computer Design 2.0.5. URL
• http//www.media.mit.edu/wearables/lizzy/lizzy/.
• Steve Mann, 1997 Smart Clothing The Wearable
• Computer and WearCam, URL
• http//wearcam.org/personaltechnologies/
• Rhodes, B. J. 1997. The Wearable Remembrance
• Agent A system for augmented memory. Personal
• Technologies Journal, Special Issue on Wearable
• Computing 1 218-224.
• Abowd, G., Atkeson, C., Hong, J., Long, S.,
  Kooper,
• R., and Pinkerton, M. 1997. Cyberguide A mobile
• context-aware tour guide. ACM Wireless Networks
  3
• 421-433.
