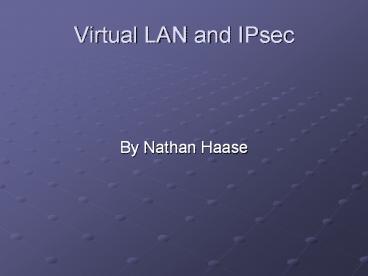

Virtual LAN and IPsec

• By Nathan Haase

2
What is VLAN?

• Group of devices on different physical LAN
  segments that can communicate as if they were on
  the same LAN segment.
• Trunks provide the option of having multiple
  VLANs. Use 4-byte tags.

3
Advantages of VLANs

• Number of devices for a specific network topology
  reduced.
• Managing of physical devices becomes less
  complex.
• Increased security options by separation and
  specific frame delivery

4
Disadvantages / Security Issues

• VLANs rely on switches to do the right thing.
• Packet leaks from one VLAN to the next.
• Injected packet meant for an attack.
• Solved by IPsec

5
Linux and VLAN

• vconfig add eth0 1
• vlan_proto_init
• find_vlan_dev
• unregister_vlan_device
• vlan_setup
• register_vlan_device

6
IPsec

• Extension of IP protocol Authenticated Header
  (AH) and Encapsulated Security Payload (ESP)
• Transport Mode and Tunnel Mode
• Integrity protected by hash message
  authenticating codes (HMAC)
• Encryption achieved with 3DES and AES
• VPNs and Road Warriors

7
(No Transcript)
8
IKE

• Establish Internet Security Association Key
  Management Security Association (ISAKMP SA) using
  Pre-Shared Keys
• Establish IPsec SA using ISAKMP SA

9
IPsec on Linux (FreeS/WAN)

• KLIPS (kernal IPsec)
• PLUTO (IKE daemon)
• IPv6

10
Interoperability
11
References

• www.freeswan.org
• www.linuxjournal.com
• www.ipsec-howto.org
• Linux Source Code
