55 yr old male

1

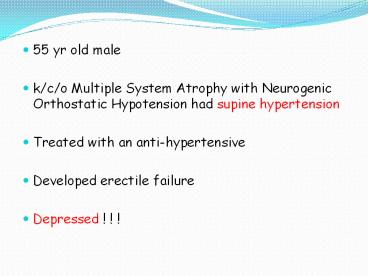

• 55 yr old male
• k/c/o Multiple System Atrophy with Neurogenic
  Orthostatic Hypotension had supine hypertension
• Treated with an anti-hypertensive
• Developed erectile failure
• Depressed ! ! !

2
Went to a doctor

• Prescribed a tricyclic antidepressant
• Patient was still depressed
• Over the counter took a aphrodisiac
• Developed severe headache
• BP 220 / 140 mm Hg
• And DIED .

3
WHY ?

• Possibly due to harmful interaction b/w
  aphrodisiac and drugs used to treat autonomic
  failure syndrome
• Tricyclics block neuronal reuptake of
  norepinephrine
• Aphrodisiac ( yohimbine ) releases norepinephrine
  from sympathetic nerves
• This combination increases norepinephrine
  delivery to its receptors
• In the setting of baroreflex failure, the
  NE-induced increase in BP is unopposed and lethal
  .

4
Autonomic Nervous System Basic Anatomy
Physiology
5
Introduction

• The critical component of central network
  involved in homeostasis adaptation
• 3 subdivisions
• Sympathetic Nervous System
• Parasympathetic Nervous System
• Enteric Nervous System

6

• Peripheral Autonomic Network
• Central Autonomic Network

7
Peripheral Autonomic Network
8
Anatomical Functional Organization

• Sympathetic Parasympathetic efferent pathways
  carry signals from brain to periphery.
• Consisting of 2 neurons
• Pre ganglionic neuron
• Autonomic ganglion that innervates target organ

9

• Pre ganglionic neurons send myelinated axons to
  peripheral autonomic ganglia and to enteric
  nervous system.
• Neurons of the sympathetic or parasympathetic
  ganglia send unmyelinated axons ( post ganglionic
  axons ) that innervate heart, smooth muscle and
  exocrine glands.
• Peripheral parasympathetic ganglia are located
  close to target organs and send short axons to
  innervate these visceral effectors.

10
(No Transcript)
11
Sympathetic System

• Sympathetic preganglionic neurons are primarly
  located in intermediolateral nucleus at the T1 to
  L2 levels of spinal cord
• Distribution of preganglionic fibers does not
  follow dermatomal pattern of somatic nerves.

12
(No Transcript)
13

• Preganglionic sympathetic axons exit through
  ventral roots and pass via white rami
  communicantes on corresponding spinal nerve to
  reach the paravertebral sympathetic chain
• Majority of them run rostrally or caudally along
  the sympathetic chain and synapse on large
  paravertebral ganglia.
• Remaining fibers pass through paravertebral chain
  without synapsing and form splanchnic nerves that
  innervate prevertebral ganglia adrenal glands

14

• Paravertebral sympathetic ganglia primary relay
  stations for preganglionic inputs
• They innervate all tissues and organs except
  those in abdomen, pelvis and perineum
• Eg superior cervical ganglion
• stellate ganglion
• prevertebral ganglion

15
Superior Cervical Ganglion

• Sends postganglionic axons that follow branches
  of carotid arteries
• Innervate eye, facial sweat glands, salivary
  glands, blood vessels of face brain, pineal
  gland, thyroid and parathyroid glands
• Elicit pupil dilatation
• contraction of muller muscle
• facial sweating
• vasoconstriction-facialcerebral
  circulation
• complex effects on salivary
  lacrimal secretion

16
(No Transcript)
17
Stellate Ganglion

• Recieves preganglionic inputs from T2 T6
  segments
• It sends postganglionic axons that join
  peripheral nerve via gray rami communicantes
  follow the distribution of corresponding somatic
  nerve to innervate blood vessels and sweat glands
  in upper limbs trunk
• Elicit vasoconstriction / vasodilatation in skin
  and muscle, sweating, piloerection

18
Stellate Ganglion

• Stellate ganglion together with other cervical
  ganglion thoracic ganglia provides input to
• esophageal plexus,
• pulmonary plexus,
• cardiac plexus.
• Elicit cardiac acceleration
• bronchodilatation

19
(No Transcript)
20
Prevertebral Ganglia

• Located anterior to abdominal aorta
• close to origin of celiac mesenteric
  arteries
• Innervate all abdominal, pelvic perineal organs
• Preganglionic input from spinal seg T5 L2 are
  carried by splanchnic nerves to celiac and
  superior mesenteric ganglia
• Provide postganglionic fibers to celiac plexus
  that innervates all abdominal viscera except
  descending colon and rectum
• Outputs vasoconstriction , inhibition of GI
  MOTILITY

21

• Preganglionic axons from spinal seg L1 L2
  travel in lumbar splanchnic nerves
• Synapse in inferior mesenteric ganglion
• Provide axons to hypogastric plexus innervating
  descending colon, rectum, bladder sexual organs
• Elicit vasoconstriction
• smooth muscle relaxation
• constriction of internal sphincters
  of
• bladder and
  rectum
• ejaculation

22

• The prevertebral sympathetic ganglia integrate
  preganglionic with afferent inputs from dorsal
  root and enteric nervous system
• And they innervate the viscera and blood vessels
  of the abdomen and pelvis .

23
Parasympathetic System

• Parasympathetic outputs arise from preganglionic
  neurons located in nuclei of the brain stem
  sacral spinal cord
• Preganglionic parasympathetic axons travel a long
  distance before eventually reaching their target
  ganglia which are located close to or even within
  the target end organs

24

• Cranial preganglionic parasympathetic nuceli
  project via CN III, VII, IX, X
• Westphal nucleus is a part of occulomotor complex
  in midbrain sends preganglionic axons that
  occupy peripheral portion of the occulomotor
  nerve and synapse on the neurons of ciliary
  ganglion in the orbit
• These neurons innervate iris and ciliary muscles
• Eliciting pupil constriction
• accomodation of eye

25

• Superior salivatory nucleus
• In pons
• projects via facial nerve to sphenopalatine
  ganglion, which innervates -
• lacrimal gland ( lacrimation )
  cerebral blood
  vessels ( vasodilatation )
• to submandibular ganglion
• secretomotor vasodilator inputs to
  corresponding salivary glands

26

• Inferior salivatory nucleus
• In medulla
• Sends axons via glossopharyngeal nerve
• Synapse on Otic ganglion
• Stimulate parotid gland secretion

27

• Most preganglionic parasympathetic output from
  brain stem is mediated by Vagus nerve
• Vagus innervates heart, respiratory tract and
  entire gastrointestinal tract except descending
  colon and rectum
• Most vagal preganglionic neurons situated in
  dorsal motor nucleus of vagus
• provides input to git and respiratory tracts ,
  heart
• Vagal preganglionic output to heart -
  Neurons in ventrolateral portion of
  nucleus ambiguus
• Vagus cardioinhibitory, visceromotor and
  secretomotor effects

28
(No Transcript)
29

• Sacral preganglionic output
• Arises from neurons of sacral preganglionic
  nucleus located in lateral gray matter of spinal
  segments S2 S3
• Their axons pass via ventral roots of pelvic
  splanchnic nerves which join inferior hypogastric
  plexus
• Innervate colon, bladder, sexual organs
• Parasympathetic output contraction of bladder
  detrussor muscle circular smooth muscle of
  rectum.

30

• Sacral parasympathetic output elicits
• Vasodilatation of cavernous tissue of penis
• required for penile erection ,
• whereas sympathetic output controls
  ejaculation

31
Enteric Nervous System

• Consists of sensory neurons, interneurons and
  motor neurons located in the myenteric and the
  submucosal plexus within the walls of the gut
• They form local reflex circuits that mediate
  motility, secretion and blood flow throughout gut
• Also the inputs from vagus and prevertebral
  ganglia modulate it .

32
Visceral Afferents

• Inform CNS about Mechanical Chemical events in
  internal organs
• This information is conveyed to produce conscious
  visceral sensation and initiate visceral reflex
  responses
• Spinal visceral afferents innervate all
  peripheral organs
• Their cell bodies are in dorsal root ganglion

33

• Brain stem visceral afferents are carried
  primarily by glossopharyngeal and vagus nerves
• Cell bodies in petrosal nodose ganglia
• All brain stem visceral afferent nerves relay in
  nucleus of solitary tract ( NTS )
• NTS is a major site of information integration of
  many bodily functions

34

• Rostral portion of NTS receives taste afferents
  via facial nerve( geniculate ganglion ) ,
• glossopharyngeal vagus nerves
• Intermediate portion receives gastrointestinal
  afferents
• Caudal portion of the NTS recieves afferent
  information from baroreceptors, cardioreceptors,
  chemoreceptors and pulmonary receptors

35
Neurochemical Transmission

• Cholinergic Transmission
• Adrenergic Transmission

36
Cholinergic Transmission

• Ach - neurotransmitter in

• all pre-ganglionic neurons,
• parasympathetic ganglion neurons,
• sympathetic neurons innervating sweat glands,
• most enteric nervous system neurons
• Effects of Ach are mediated by Nicotinic and
  Muscarnic Receptors

37
Adrenergic Transmission

• With exception of the sweat glands ,
  Norepinephrine is the primary neurotransmitter in
  sympathetic ganglionic neurons
• Epinephrine is released from chromaffin cells of
  adrenal medulla and acts as a circulating hormone
• Norepinephrine Epinephrine act via Alpha1,
  Alpha2, Beta receptors
• Smooth muscle contraction Alpha1 receptors
• Stimulation of heart Beta1 receptors
• Smooth muscle relaxation Beta2 receptors
• Lipolysis in brown fat Beta3 receptors

38
Denervation Supersensitivity

• In response to loss of innervation by
  postganglionic sympathetic or parasympathetic
  axons there is increased responsiveness of
  visceral target organ to neurotransmitter or
  agonist that stimulates adrenergic / muscarnic
  receptors.
• Leads to exagerrated pressor responses to
  adrenergic agonists.
• Indicates a postganglionic lesion

39
Lets see a case ?
40

• A 65 yr old male
• h/o Diabetes mellitus
• admitted for severe headache
• On ex Pulse 90 / min
• BP 180/100 mm Hg
• patient had no h/o HTN ,
• but had respiratory infection and took
  decongestant pseudoephedrine 1 hour prior to
  development of symptoms

41
This a case of.

• Diabetic autonomic neuropathy with denervation
  supersensitivity !!!
• Affecting adrenergic vasomotor fibers which
  leads to up-regulation of vascular Alpha1
  -adrenergic receptors
• Here even a minimal blood levels of alpha1
  agonist ( pseudoephedrine) lead to exagerrated
  pressor responses.

42
Other Peripheral Autonomic Neurotransmitters

• ATP
• Nitric oxide
• Neuropeptide Y
• Substance P
• Calcitonin gene related peptide

43
Physiology
44
Sympathetic Outflow

• Sympathetic preganglionic neurons organized
  into different functional units which control
  specific targets
• Muscle vasomotor
• Splanchnic vasomotor
• Skin vasoconstrictor
• Skin vasodilator
• Cardiomotor
• Visceromotor preganglionic neurons

45

• Sympathetically induced vasoconstriction of
  skeletal muscle and splanchnic vessels is
  critical to avoid orthostatic hypotension ( alpha
  1 )
• Sympathetic outflow to skin blood vessels and
  sweat glands is critical for thermoregulation
• exposure to cold skin vasoconstriction
• piloerection (
  alpha 1 )
• exposure to heat sweating
• skin
  vasodilatation ( M3 )

46
Parasympathetic Outflow

• Main brain stem parasympathetic outflow is
  mediated by vagus nerve
• Has cardioinhibitory effect ( M2)
• It is critical for beat to beat control of heart
  rate
• Constriction of bronchial smooth muscle
• Stimulate bronchial gland secretion
• Normal motility of oesophagus and stomach (M3)
• Facilitatory role in intestinal motility

47

• Sacral parasympathetic is critical for
• micturition ( M3 )
• defecation ( M3 )
• penile erection ( NO )
• Nociceptive Visceral afferents
• substance P, tachykinin A, CGRP

48
Enteric Nervous System

• Includes several types of sensory neurons,
  interneurons, motor neurons which form
  integrative local reflex circuits
• Controlling motility, secretion, blood flow
  throughout the gut
• The activity of enteric nervous system is largely
  independent of extrinsic innervation but is
  modulated by both
  vagal inputs
  from dorsal vagal nucleus and
  sympathetic inputs from prevertebral ganglia

49
(No Transcript)
50
(No Transcript)
51
Another Case
52

• 55 yr old male
• k/c/o insulin dependent diabetes mellitus
• c/o light headedness upon standing
• particularly early morning and after
  eating
• h/o nausea after eating
• h/o constipation , erectile dysfunction

• On ex
• Pupils fail to dilate in dim light
• Weakness of foot dorsiflexors
• Absent ankle jerks
• Loss of all sensation modalities below mid calf
• Postural hypotension

53

• Autonomic lab tests
• impaired sudomotor axon reflex response
• reduced variation of heart rate to deep
  breathing
• reduced valsalva ratio
• orthostatic hypotension
• gi motility delayed gastric emptying
• usg post void urine 250 cc

54

• A CASE OF DIABETIC AUTONOMIC NEUROPATHY
• Sympathetic failure orthostatic hypotension
• impaired
  sweating
• abnormal BP
  during valsalva
• Vagal impairment delayed gasstric emptying
• constipation
• reduced
  variability of hr
• urinary
  retention
• erectile
  dysfunction

55
Central Autonomic Network
56
Components

• Telencephalic structures insular cortex
• ant
  cingulate cortex
•
  amygdala
• - integration of bodily sensation, emotion,
  decision making
• - anterior cingulate cortex motivation,
•
  goal directed behavior
• - amygdala conditioned fear responses

57

• Hypothalamus central role in integrating
  autonomic and endocrine responses
• Hypothalmus critical role in adaptation to
  internal / external stimuli, while maintaining
  homeostasis
• 3 zones
• Paraventricular zone neuroendocrine control via
  connections to pituitary
• Medial zone thermoregulation, osmoregulation,
  food intake, response to stress
• Lateral zone arousal behaviour, sleep wake cycle

58

• Brain Stem Components
• Periaqueductal gray
• integration of autonomic, somatic and
  antinociceptive responses to external stress.

• coordinates cardiovascular, respiratory,
  thermoregulatory, urinary, reproductive and pain
  control systems
• Parabrachial nucleus taste, salivation, gi
  activity, cardiorespiratory activity,
  thermoregulation
• NTS 1st relay center for taste and visceral
  afferent information carried in CN VII,IX,X
• And also for all medullary, cvs, rs, gi
  reflexes

59
Autonomic dysreflexia

• Interruption of descending inputs to
  preganglionic sympathetic neurons by lesions
  above T5 level may lead to unpatterned excessive
  sympathoexcitation in response to visceral /
  somatic stimuli
• Eg severe hypertension in response to bladder
  distention or other peripheral inputs

60
Baroreceptor reflex

• Powerful moment to moment negative feedback loop
  that regulates arterial blood pressure .
• It minimizes fluctuations in arterial pressure
  during standing, exercise or emotion

61

• RISE IN BP
• DISTENSION OF BLOOD VESSEL
• MECHANOSENSITIVE BARORECEPTORS SITTING IN WALLS
  OF CAROTID SINUS AND AORTIC ARCH
• Afferent information travels from
• carotid baroreceptors in glossopharyngeal n
• aortic arch baroreceptors in vagus
• To NTS
• 3 BARORECEPTIVE PATHWAYS FROM NTS

62

• 1. Projections to cardiac vagal neurons - HR
• 2. Neurons in VLM inhibit sympathetic outflow

• to decrease peripheral vasomotor tone
• 3. Ascending projections to Supraoptic and
• Paraventricular nuclei to inhibit
  vasopressin
• release.
• THE COMBINATION OF BRADYCARDIA PERIPHERAL
  VASODILATATION RESTORES BLOOD PRESSURE

63
(No Transcript)
64
(No Transcript)
65
Thank you HAPPY NEW YEAR
