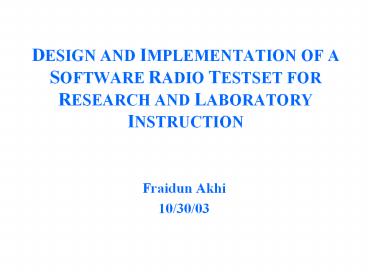

DESIGN AND IMPLEMENTATION OF A SOFTWARE RADIO
TESTSET FOR RESEARCH AND LABORATORY INSTRUCTION
  • Fraidun Akhi
  • 10/30/03

2
CONTENTS..
  • Statement of Purpose
  • Introduction to Software Radios
  • The Software Radio Concept
  • The Wireless Communications Industry
  • Potential Benefits
  • Potential Applications
  • Technological Hurdles to Ideal Software Radio
    Design
  • Practical Software Radio Designs
  • RF Front-Ends
  • Data Converters
  • Signal Processors

3
...CONTENTS
  • Data Converters Circuits
  • Digital to Analog Converter
  • RF Measurements
  • Transmitter measurements
  • Project Status and Future Development
  • What has been accomplished
  • What remains to be done
  • The potential benefits of this project to AU

4
CONTENTS
  • RF Front-End Design and Implementation
  • The RFMD WLAN Chipset

5
STATEMENT OF PURPOSE
  • To explore the design and implementation of a
    software radio testset that could be used for an
    undergraduate teaching lab, or as the foundation
    for a graduate-level research lab
  • Emphasize on
  • RF design and measurement capability
  • DSP algorithm design and implementation
  • Integration of the RF and DSP sections through
    the use of data converter circuits
  • Evaluation Modules and Circuit Assembly
  • Shielding and Grounding Issues
  • DSP Starter Kits
  • Serial Ports
  • Code Composer Studio

6
SOFTWARE RADIO, THE CONCEPT
  • Transfer transceiver functionality from the
    hardware to the software domain, eliminate RF
    front-end
  • Filtering
  • Equalization
  • Encoding/decoding
  • Modulation/demodulation
  • ..All done by software in DSP

7
THE WIRELESS PHONE INDUSTRY
  • More than 1.3 billion cellular phone users in
    2003

2001 PCS Market
2005 PCS Market
8
GSM v.s. CDMA
  • GSM
  • Time Division Multiplexing
  • 200 KHz wide channels
  • GMSK Modulation
  • CDMA
  • DSSS
  • 1.25 MHz wide channels
  • QPSK Modulation

9
THE WLAN INDUSTRY
  • More than 4 million Wireless Local Area Network
    (WLAN) users in North America, and growing
  • Many different standards competing for the market
  • IEEE 802.11b DSSS, 2.4 GHz, 11 Mbps
  • Bluetooth FHSS, 2.4 GHz, 1 Mbps
  • IEEE 802.11a OFDM, 5.8 GHz, 54 Mbps
  • IEEE 802.11g OFDM, 2.4-2.483 GHz, 54 Mbps
  • Backward compatible with 802.11b
  • IEEE 802.15.3a UWB, 3.1 GHz 7.1 GHz, 110 Mbps
  • Still in development

10
POTENTIAL BENEFITS OF SOFTWARE RADIO
  • Real-time Configuration
  • Download new features into handsets
  • All phone features can become adaptive to
    environment
  • Adaptive control of power emissions
  • Adaptive signal processing
  • Multi-Standard Operation
  • Cellular basestations and handsets no longer
    becomes obsolete with changing standards
  • Interoperability between standards

11
MORE POTENTIAL BENEFITS
  • Power Efficiency
  • Some 70 of wireless transceiver power
    consumption is due to RF front-end, which
    software radio eliminates
  • Digital Performance Advantage
  • Digital technology is more predictable, reliable,
    and immune to environmental factors
  • Fewer Components, no RF-Front-End
  • Cost savings
  • More compact designs

12
POTENTIAL SOFTWARE RADIO APPLICATIONS
  • Cellular Phone Systems
  • Can help reduce migration costs in basestations
  • Can improve the performance and price of handsets
  • Military / Law Enforcement
  • Interoperability between different units radios
  • An effective intelligence gathering device
  • Academia
  • Real-world implementation and analysis of signal
    processing algorithms

13
TECHNOLOGICAL HURDLES TO IDEAL SOFTWARE RADIO
DESIGN
  • Analog to Digital Conversion
  • Fastest low power ADCs with reasonable
    bit-resolution sample at 300 Msamples/s
  • The Ideal software radio requires at least 10
    Gsamples/s
  • Processing Power
  • If the ADC problem was solved, could the
    transceiver process so many samples?
  • Multi-processor units can handle large processing
    loads, but these are only possible in static
    units such as basestations, not in handsets where
    low power consumption is key

14
PRACTICAL SOFTWARE RADIO DESIGN
  • Include an RF front end to ease the requirements
    placed on the data converters and thus ease the
    processing load
  • The drawbacks are bandwidth limitations of the
    front-end, and the loss of control over
    modulation/demodulation

15
SUPER-HETERODYNE RF FRONT-END
  • Modulate/demodulate in more than one stage
  • Low Power, high performance, no DC offset, very
    few high-performance parts needed
  • Drawbacks include the high chip count, bulkier
    design, narrower bandwidth

16
DIRECT CONVERSION RF FRONT-END
  • Low chip count, less cost, more compact design
  • No image rejection problem
  • Drawbacks include DC offset caused by LO
    self-mixing, I/Q balancing issues at RF

17
LOW-IF RF FRONT-END
  • Fewer components than Super-heterodyne, no DC
    offset problem, design is partly digital
  • Currently the best option for software radios
  • Drawbacks are that a higher performance ADC is
    needed, I/Q imbalance problem at RF

18
DATA CONVERTERS
  • Low power digital to analog converters available
    at speeds of 800 MHz, DACs lead ADCs in speed
  • The lack of fast, low-power, high-resolution ADCs
    is holding up the realization of software radios
  • Most software radios include a low-IF RF
    front-end, usually with an IF less than 100 MHz
  • Subsampling, whereby under-sampling of the IF (or
    potentially RF) carrier leads to the sampling of
    its image near baseband, is a potential solution
    to the shortfall in ADC performance

19
SIGNAL PROCESSORS
  • ASIC (Application Specific Integrated Circuit)
  • Highest performance, lowest programmability
  • FPGA (Field Programmable Gate Array)
  • Very high performance, programmability
  • Ideal for semi
  • DSP (Digital Signal Processor)
  • High performance, real-time programmability
  • The ideal engine for a software radio because of
    its real-time configurable features

20
RF FRONT-END CHIPSET
21
RF TRANSMITTER ASSEMBLY
22
RF RECEIVER ASSEMBLY
23
SHIELDING AND GROUNDING
RF Transmitter
24
SHIELDING AND GROUNDING
RF Receiver
25
DSP STARTER KITS
26
DSP TESTING
27
CODE COMPOSER STUDIO
28
MCBSP CABABILITIES
  • Transfer serial data stream as fast as 35 Mbps
  • Implement a number of standard or custom serial
    port interfaces
  • Can be used to send data and sync channels
    through RF link, in DSSS implementation

29
DSSS IMPLEMENTATION
Figure 4.4 Data processing at the transmitter
  Figure 4.5 Data processing at the receiver
30
MULTI-CHANNEL BUFFERED SERIAL PORTS
31
DIGITAL TO ANALOG CONVERTER
32
DAC PERFORMANCE
Output at 1.25 MHz
33
RF TESTING
34
RF MEASUREMENTS
Direct Sequence Spread Spectrum Processing Gain
Data Signal Spectrum
Spread Signal Spectrum
35
PROCESSING GAIN
  • Processing (PG) is a comparison of the bandwidth
    of the symbol stream to that of the spread chip
    stream
  • In the previous slide, a 16-bit PN sequence was
    used to spread the data sequence so
  • Measured Processing gain is 7.83 dB (17.33 -
    9.5), from spectrum analyzer measurements

36
ACCOMPLISHMENTS
  • Successfully wrote and tested the DSSS programs
    on the MCBSPs in wired mode
  • Successfully built and tested the DAC circuit
    with the DSK and the RF transmitter
  • Successfully built and tested the RF transmitter
    and receiver units

37
LESSONS LEARNED
  • The initial reason that the RFMD chipset was
    chosen, was that its super-heterodyne structure
    offered many test points for RF measurements
  • EVMs were very sensitive to static and voltage
    surges, and thus many chips were accidentally
    destroyed
  • Debugging of the RF circuitry took up most of the
    time spent on the project, and limited further
    software development
  • If a suitable RF front end is not commercially
    available, perhaps a more compact chipset such as
    the MAX2822 single-chip direct conversion
    transceiver should be looked into

38
REMAINING WORK
  • Test the ADC circuit that is currently under
    construction this will close the loop
  • Build a rigid single-board RF front-end in a
    chassis
  • Use ADC and DAC daughter-cards as data
    converters, improve performance
  • Add processing power by adding FPGAs into the
    mix

39
WHY THE SOFTWARE RADIO PROJECT SHOULD BE CONTINUED
  • Software radio is the future of the wireless
    industry and thus should be a focus of the
    Wireless Engineering program at Auburn University
  • An active software radio project or lab at AU
    would put the it at the forefront of wireless
    research and development with the likes of MIT
    and GA Tech, both of whom put lots of research
    emphasis into software radio
  • It would provide an educational/research setting
    for undergraduate/graduate students who seek to
    study design and implementation of wireless
    systems with DSPs, FPGAs, RF front-ends,
    antennas, and data converters
