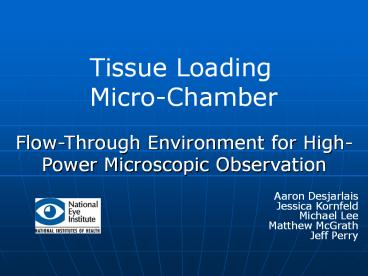

Title: Tissue Loading, Flow Through Microchamber for Microscope Observation


1
Tissue Loading Micro-Chamber
Flow-Through Environment for High-Power
Microscopic Observation
Aaron Desjarlais Jessica Kornfeld Michael
Lee Matthew McGrath Jeff Perry
2
Problem Statement
  • Mechanism to apply small uniaxial load to live
    tissue sample
  • Record strain, load, displacement while operation
    is underway
  • Provide interface with the Nikon TE2000E Inverted
    Optical Microscope
  • Temperature-controlled environment
  • Provide for media flow through device to sustain
    specimen for long time periods

3
Background - Collagen
  • Collagen is the most abundant protein on Earth
  • Structural molecule of choice for vertebrates
  • Bears and transmits tensile loads applied to the
    body
  • Connective collagenous tissue naturally
    degenerates
  • Decline of usable collagen-based tissue
  • Increase in growing tissue in the laboratory
    environment

4
Background - Project
  • Collagenous tissue adapts to its environment
  • When applying a load, extracellular matrix
    remodels in response to strain
  • Difficult to observe in vivo due to need for
    high-power objectives

5
Literature Search
Instron Planar-Biaxial Soft Tissue Test System
Instron - BioPuls Submersible Pneumatic Grips and
Temperature-Controlled Bath
Bose BioDynamic test systems
Capstone Project (Spring 2005) Refined by Kelli
Church for masters thesis (Spring 2007)
Bioptechs Chamber
6
Requirements - Specifications
  • Must be attachable to Nikon TE2000E stage
  • Placement 200µm from objective lens
  • Micro-chamber volume lt200 micro-liters
  • Temperature 37C 0.5
  • Tissue size 1cm x 1cm x 10 - 1000µm
  • Uni-axial Load minimum 0.1N
  • Strain Accuracy 1µm
  • Record displacement, load, strain, and temperature

7
Prototype Mounted on Microscope
8
Proposed Design
9
(No Transcript)
10
Linear Guide System
11
Guide System - Design Constraints
  • Linearity
  • The system must remain in camber
  • Rigidity
  • The system must be rigid enough so any
    displacement in the system does not add error to
    the measurement
  • Size constraint
  • Must fit under the condenser of the microscope

12
Micro-Chamber Base
13
Micro-Chamber Base - Design Constraints
  • Rigidity
  • The system must be rigid enough so any
    displacement in the system does not add error to
    the measurement
  • Size
  • The base must interface with existing mounting
    location on the microscope stage

14
Micro-Chamber - Interior
15
Material Selection
  • 316 Stainless Steel
  • High thermal conductivity
  • 16.3 W/m-K (113 BTU-in/hr-ft²-F)
  • Operate at environmental temperature
  • Melting Point 1370 - 1400 C (2500 - 2550 F)
  • Corrosion resistant
  • Can survive repeated common sterilization methods

16
Micro-Chamber Exterior
17
Material Selection
  • Polycarbonate
  • Low thermal conductivity
  • 0.142 - 0.26 W/m-K (0.985 1.8 BTU-in/hr-ft²F)
  • Corrosion resistant
  • Sterilization
  • Compatible with common clinical disinfectants
    isopropyl alcohol (rubbing alcohol)
  • Low permeability
  • Water absorption 0.0500 - 0.700

18
Micro-Chamber Bacteria Sealing
  • Dynamic elements two seals with antibacterial
    solution injected in between both seals
  • Static elements single seal or gasket through
    compression to fill the gap
  • 0.1 pounds of force is required per bolt on the
    Top Cover

19
Drive/Sensor System
20
Drive System Design Concepts
Pulley Drive Mechanism
Rack and Pinion Mechanism
Direct Drive Mechanism
Direct Drive with Spring Mechanism
21
Linear Actuator
  • Chosen Motor
  • Zaber Technologies T-LA60A
  • Accuracy 0.1 µm
  • Already used on existing system
  • Has manual control to ease setup
  • Holds up to 15N continuous load
  • Requirements
  • Control and measure strain to 1 µm
  • Allow for minimum 10mm of travel

22
Force Transducer
  • Requirements
  • Uni-axial Load minimum 0.1N
  • Miniature
  • Submersible
  • Corrosion resistant
  • Selected Load Cell
  • Sensotec Model 31
  • Load capacity range from 50 g to 500 g (0.5 N to
    5 N)
  • 17-4 PH stainless steel

23
Control System
  • LabView Control System
  • Capable of Load or Strain Control
  • Adjustable PID Parameters

24
Control System
NI Labview Data Acquisition
  • PID Toolkit
  • Uses existing interface as baseline
  • Signal conditioning card

25
Load Control Tests
  • Used Med-4720 silicone elastomer as specimen
  • Tested using 0.1N as required load
  • Max. error of 0.002N once steady state reached

26
Tissue Grip Mechanism
27
Grip Design
  • Requirements
  • Apply even clamping pressure
  • Easy to operate
  • Accommodate specimens up to 10mm wide, 10 µm to
    1000 µm thick
  • Must be small to minimize chamber volume
  • No part of the clamp must be lower than the sample

28
Grip Design
Hinged Clamp
Sliding Plates
Sliding Bar Clamp
29
Grip Design
Chosen Design Sliding Bar Clamp
30
Thermal Control
31
Selected Temperature Controller
  • Omega CNi 3222-C24
  • AutoTune PID High Accuracy 0.5C (0.9F), 0.03
    Reading
  • 2 Outputs
  • Dual Alarm
  • Universal Input - Accepts all t/c and RTDs
  • PC RS-232 output
  • Free Software
  • Ramp to Setpoint
  • Cartridge Heaters
  • Do not restrict design evolution
  • Versatile, easily mounted
  • Compact Design
  • Powerful Element

From Spring 2005 Capstone Design Group
32
Previous System
Cartridge heater Embedded in Copper Block
Quartz glass environmental Chamber
Drawings From Spring 2005 Capstone Design Group
33
Heating System Components
34
Heat Transfer Model Comparison
Previous Model
Present Model
Rcond,conv,fin (Top)
Rcond,conv (Top)
Rcond,conv, fin (Back)
Rcond,conv,fin (Front)
Rcond,conv (Back)
Rcond,conv (Front)
UP
Rcond,conv Robj cond, conv (Bottom)
UP
Rcond,conv,fin (Bottom)
35
Temperature Controller Testing
36
Temperature Testing Results
37
Future Work
  • Finish machining parts to specifications,
    primarily the adjustable piston
  • Program system to operate in parameters of strain
    control
  • Fully functional testing including, cornea
    loading and fluid heating assessment
  • Micro-Chamber volume minimization

38
Questions?
39
Backup Slides
40
Linear ActuatorTrade Study
From Spring 2005 Capstone Design Group
41
Heat Source
From Spring 2005 Capstone Design Group
42
Temperature ControllerTrade Study
From Spring 2005 Capstone Design Group
43
Results of Heat Transfer Analysis Heating Chamber
From Spring 2005 Capstone Design Group
44
Nodal Analysis
  • System Divided into 37 Nodes, 6 fluid Nodes
  • Boundary Conditions
  • System begins at ambient temperature in air
  • Fluid enters at room temperature and exits into
    large reservoir at room temperature
  • System is symmetrical on either side of the
    chamber.

From Spring 2005 Capstone Design Group
45
Equivalent Circuit Analysis
  • Equivalent Circuit for Node 1
  • qin qout qstored
  • (?cV)cudT SCij(Tji) (q A)
  • dt
  • (?cV)cu?T SCij(Tji) (q A)
  • ?t
  • ?T ?t SCij(Tji) (q A)
  • (?cV)cu
  • Tf -Ti ?t SCij(Tji) (q A)
  • (?cV)cu
  • Tf Ti ?t SCij(Tji) (q
    A)
  • Equivalent Circuit for Node 31
  • Ein Eout Estored
  • qin qout qstored , q qcond qe
  • (qc qe)in (qc qe)out qstored
  • (?c)l ve Af dT/dt q31-32 q31-cu qe
  • (?c)l ve Af ?T/?t q31-32 q31-cu qe
  • ?T ?t / (?c)l ve Af (q31-32 q31-cu
    qe)

1/hA (kA/L)ins (kA/L)cu
T8, h8 (Top face) (Left face) (Back face)
qheater
C12kA/L
1
2 (right face)
C16kA/L
6 (front face)
C1-11
11 (bottom face)
32
?cveAf(T32T31)/2
1/hlAf
2prcukcu/ln(rcu/ro)
22
2prcukcu/ln(rcu/ro)
23
27
28
?cveAf(T8Ti)/2
ri ro rcu
T8, h8
From Spring 2005 Capstone Design Group
46
Results of Heat Transfer Analysis Chamber Fluid
From Spring 2005 Capstone Design Group
47
Results of Heat Transfer Analysis Tubing Fluid
Temperature
From Spring 2005 Capstone Design Group
48
Translation Block Stress Analysis
49
Base Stress Analysis
50
Base Deflection Analysis
51
Stainless Steel 316
  • Thermal Conductivity
  • 16.3 W/m-K (113 BTU-in/hr-ft²-F)
  • Melting Point
  • 1370 - 1400 C (2500 - 2550 F)
  • Common Applications
  • Food and pharmaceutical processing equipment
  • Marine exterior trim
  • Surgical implants
  • Industrial equipment for corrosive process
    chemicals

http//www.matweb.com/search/SpecificMaterial.asp?
bassnumMQ316J
52
Polycarbonate
  • Low permeability
  • Water absorption 0.0500 - 0.700
  • Low thermal conductivity
  • 0.142 - 0.26 W/m-K (0.985 1.8 BTU-in/hr-ft²F)
  • Sterilization dependent on the grade
  • Ethylene oxide (EtO), Irradiation (both gamma and
    electron-beam), Steam autoclaving
  • Cannot withstand repeated autoclaving
  • Can be disinfected with common clinical
    disinfectants, isopropyl alcohol (rubbing
    alcohol)
  • Common Applications
  • IV connectors Surgical Instruments/Products

http//devicelink.com/mpb/archive/98/09/003.html
53
Clamp Force Calculation for Gasket
54
Internal Chamber Pressure
55
Gasket Calculations
56
Gasket Calculations
0.1 pounds of force is required per bolt
57
Spring
  • Actuator limits the displacement
  • Used to exert the force
  • Must not exceed capabilities of actuator
  • Small Parts Part No. CSMW-0154-10
  • OD 0.36 in.
  • Wire Size 0.026 in.
  • Free Length 2 in.
  • Spring Rate 2.1 lbs/in
