20.1 The Transition Metals: A Survey

1

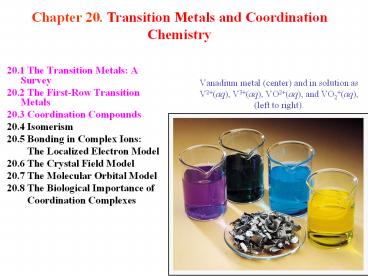

Vanadium metal (center) and in solution as
V2(aq), V3(aq), VO2(aq), and VO2(aq), (left
to right).
Chapter 20. Transition Metals and Coordination
Chemistry

• 20.1 The Transition Metals A Survey
• 20.2 The First-Row Transition Metals
• 20.3 Coordination Compounds
• 20.4 Isomerism
• 20.5 Bonding in Complex Ions
• The Localized Electron Model
• 20.6 The Crystal Field Model
• 20.7 The Molecular Orbital Model
• 20.8 The Biological Importance of
• Coordination Complexes

2
Figure 18.1 The periodic table.
3
Figure 12.39 Special names for groups in the
periodic table
4
Figure 12.39 Special names for groups in the
periodic table (contd)
5
Figure 20.1 Transition elements on the periodic
table
6
Figure 12.28 The orbitals filled for elements
in various parts
7
Some Transition Metals Important to the U.S.
Economy and Defense
8
20.1 A Survey of the Transition Metals

• Recall the Representative Elements, Groups 1A
  8A
• Chemical similarities occur within the vertical
  groups

• Large changes in chemistry across a given
  period as the number of valence electrons changes
• E.g. Na Mg Al Si P S Cl Ar

• increasing metallic character
• decreasing ionization energy

• Transition Metals
• Similarities within a given period as well as
  within a given vertical group.
• this huge contrast with the representative
  elements is due to the fact that the last
  electrons added to the transition metal elements
  are inner electrons
• d electrons in d block transition metals
• f electrons in the lanthanides and actinides

9

• the inner d and f electrons cannot participate in
  bonding as readily as the s and p electrons.
• Characteristics of the transition metals
• typical metals
• metallic luster
• high electrical and thermal conductivities
• Differences in Physical Properties among the
  transition metals can be large
• E.g. W, tungsten (mp 3400?) vs Hg,
  mercury (mp lt 25?)
• hard and high strength vs soft
• Fe, iron and Ti Cu, Au, Ag
• ready rxn w/ O2 to form oxides vs no rxn with
  O2
• Cr, Ni, Co, Al, Fe Au,
  Ag, Pt, Pd
• Ionic compounds with nonmetals
• Often more than one oxidation state
• E.g. FeCl2 FeCl3
• 2 3
• the cations are often complex ions, species in
  which the transition metal ion is surrounded by a
  number of ligands.

10
Molecular model The CO(NH3)63 ion
11

• Ligands are molecules or ions that behave
• as Lewis bases, i.e. have a lone pair of
  electrons.
• Most compounds of the transition metals are
  colored.
• the transition metal ion can absorb visible
  light.
• Many transition metal compounds are
  paramagnetic.
• because they contain unpaired electrons
• Electron Configurations (See Section 12.13)
• The 3d orbitals begin to fill after the 4s
  orbital is complete.
• e.g. Sc Ar4s23d1
• Ti 4s23d2
• Y 4s23d3
• Cr 4s13d5
• Mn 4s23d5
• Cu 4s13d10
• Zn 4s23d10
• for most elements of the first-row transition
  metals 4s23dn has a lower energy than 4s13dn1
  except chromium and copper.
• The 4s and 3d orbital energies are very similar.

Co2, Mn2, Cr3, Fe3, Ni2
(See Table 20.2)
12
Table 20.2 Selected Properties of the First-Row
Transition Metals
13

• Electron configurations of ions of the first-row
  transition metals
• the energy of the 3d orbitals is significantly
  less than that of the 4s orbital.
• E.g. Sc 4s23d1 Sc2 3d1
• Ti 4s23d2 Ti3 3d1
• Zn 4s23d10 Zn2 3d10
• these ions do not have 4s electrons (since the
  3d orbitals are lower in energy)
• Oxidation States and Ionization Energies
• Various ions formed by losing electrons
• E.g. Ti ? Ti2, Ti3, Ti4
• 4s23d2 most
  common
• (See Table 20.2)
• to the right of the row the higher oxidation
  states are not observed because the 3d orbitals
  become lower in energy as the nuclear charge
  increases, making electrons difficult to remove.
• e.g. Zn ? Zn2 Zn3,
  Zn6, Zn10, etc ? NOT OBSERVED
• 4s23d10 observed
• (See Figure 20.2)

14
Figure 20.2 plots of the first (red dots) and
third (blue dots) ionization energies for the
first-row transition metals
15

• Standard Reduction Potentials
• The potential of the half-reaction
• M(s) ? Mn ne-
• characterizes the reducing ability of the metal.

• this is the reverse of usually tabulated
  half-reactions and the potentials are opposite in
  sign to tabulated values in Table 20.2.

• Since by definition ?o 0 for
• 2H 2e- ? H2
• all the first-row transition metals, except
  copper, can reduce H ions to hydrogen gas in 1M
  aqueous solutions of strong acids
• M(s) 2H(aq) ? H2 (g) M2(aq)

16

• The 4d and 5d Transition Series
• Comparison of the atomic radii of 3d, 4d, and 5d
  elements
• See Figure 20.3
• general decrease in size in going from left to
  right across each series
• significant increase in size from 3d to 4d
• 4d and 5d metals are very similar in size
• this is due to the lanthanide contraction.
• lanthanide series elements between lanthanum
  (La) and hafnium (Hf)
• ?
• filling of 4f orbitals which are in the interior
  of the atoms do not affect size of the 5d
  elements
• 4d and 5d transition metals, though not as
  common as 3d metals, have some very useful
  properties.
• E.g. The platinum group metals Ru, Os, Rh,
  Ir, Pd and Pt are widely used as catalysts in
  many industrial processes.

17
Figure 12.28 The orbitals filled for elements
in various parts
18
Figure 12.31 The positions of the elements
considered in Example 12.8
19
Figure 20.3 Atomic radii of the 3d, 4d, and 5d
transition series.
20
Figure 20.1 Transition elements on the periodic
table
21
20.2 The First-Row Transition Metals

• Highlights of some properties or chemistry of the
  10 3d transition metals.
• Scandium, Sc
• 3 oxidation state in compounds, e.g. ScCl3,
  Sc2O3, etc
• most of its compounds are colorless and
  diamagnetic.
• Titanium, Ti
• fairly abundant (0.6 by mass of the earths
  crust)
• low density high strength high mp (1,672?)

excellent structural material jet engines,
Boeing 747 jetliners, etc.

• titanium (?) oxide (or titanium dioxide), TiO2
  is the most common compound.
• -- white pigment used in many products paper,
• paint, linoleum, plastics, cosmetics, etc.

3. Vanadium, V The most common oxidation state
is 5 as in V2O5 (orange, mp 650 ?) and VF5.
22
Figure 20.4 Titanium bicycle
23

• Chromium, Cr
• Main ore is chromite (FeCr2O4)
• FeCr2O4 (s) 4 C (s) ? 4 CO (g) Fe (s) 2Cr
  (s)

• common oxidation states in compounds 2, 3,
  and 6
• Cr2 (chromous ion)
• Cr3 (chromic ion)
• chromium (IV) oxide conc. sulfuric acid

• 5. Manganese, Mn
• The only member of the 3d metals that can exist
  in all oxidation states from 2 to 7.
• Manganese (VII) ion MnO4-
• permanganate ion
• ( a strong oxidizing agent in solution)

24
Manganese nodules on the sea floor
Source Visuals Unlimited
25

• Iron, Fe
• Quite abundant (4.7 of the earths crust)
• Its chemistry mainly involve its 2 and 3
  oxidation states.

• 7. Cobalt, Co
• mainly 2 and 3 states
• compounds with 0, 1 and 4 states are also known

• 8. Nickel, Ni
• mainly in the 2 oxidation state.
• aqueous solutions of nickel (II) salts contain
  Ni(H2O)62 ion,
• characteristic emerald green color

26
Aqueous solution containing the Ni2 ion
27

• 9. Copper, Cu
• widely available in ores (sulfides,
• chlorides, carbonates etc.)
• used in electrical applications (wires, cables,
  etc)
• also used in water pipes in homes
• many common alloys contain copper
• e.g. brass, bronze, sterling silver, 18- and 14-
  Karat gold
• chemistry involves 2 oxidation state,
• but also some compounds with the 1 oxidation
  state.

• 10. Zinc, Zn
• 2 oxidation state only
• used mainly for producing galvanized steel.
• Zinc (II) salts are colorless.

28
20.3 Coordination Compounds

• A coordination compound consists of a complex ion
  and counter ions.
• it is an ionic compound, electrically neutral.
• complex ion transition metal ion attached
  ligands.
• E.g. Co(NH3)5ClCl2
• Co(NH3)5Cl2 ? complex ion
• 2 Cl- ? counter ions (anions)
• coordination compounds ionize in solutions
  (similar to simple salts)
• Co(NH3)5ClCl2 (s)
  Co(NH3)5Cl2(aq) 2 Cl- (aq)
• Coordination Number of Metal Ions
• The number of bonds formed between a metal ion
  and the ligands in the complex ion is termed the
  coordination number.
• depending on the size, charge, and electron
  configuration of the transition metal ion, the
  coordination number can be from 2 to 8.

29

• many metal ions show more than one coordination
  number.
• for the typical geometries for the various
  typical coordination numbers see Figure 20.6.
• Ligands
• a neutral molecule or ion having a lone pair that
  can be used to form a bond with a metal ion.
• Lewis bases by definition are ligands
• the metal ion is a Lewis acid
• a metal ligand bond is called a coordinative
  covalent bond.
• it results from a Lewis acid base interaction
  in which a ligand donates an electron pair to an
  empty orbital on a metal ion.

30
Figure 20.6 Ligand arrangements for
coordination numbers 2, 4, and 6
