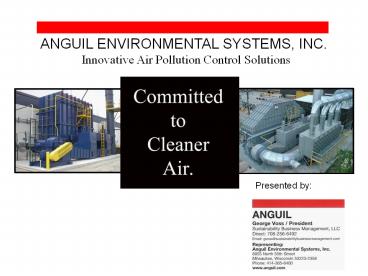

ANGUIL ENVIRONMENTAL SYSTEMS, INC. Innovative Air Pollution Control Solutions

1
ANGUIL ENVIRONMENTAL SYSTEMS, INC. Innovative
Air Pollution Control Solutions
Presented by
2
Sustainability Business Management,
LLChttp//twitter.com/SustBusnMgmtLLC
www.sustainabilitybusinessmanagement.com

• The presenter, George Voss is President and
  Founder of Sustainability Business Management,
  LLC, a Chicago headquartered energy and
  environmental management company whose mission is
  to embrace the culture of sustainability to
  reduce energy consumption, operating costs and
  environmental impact. Prior to founding
  Sustainability Business Management, LLC, George
  was a top performer in several business
  development positions, patented inventor of
  renewable fuels combustion equipment, and has had
  experience as an environmental engineer with the
  Illinois EPA and Bechtel Power Corporation.
  George is a graduate of the University of
  Illinois, ChampaignUrbana, IL with a M.S. Degree
  in Environmental Engineering and B.S. Degree in
  General Engineering . Sustainability Business
  Management, LLC accomplishes its mission by
  representing powerful and appropriate client
  solutions in the marketplace
• Anguil Environmental Systems - Industrial air
  pollution control energy recovery systems.
• CENERGY Modular cogeneration power plants
  combined heat and power (CHP)
• EnergyCAP - Energy efficiency management
  software with GHG emission tracking
• Optimum Energy - Ultra high performance HVAC
  optimization software
• In this presentation we are focused on Anguil
  Environmental Systems, Inc.

3
Presentation Overview

• Industry Oxidizer Applicability
• Technology Review

4
Background

• Founded in 1978
• Family owned and operated
• Headquartered in Milwaukee, WI with additional
  offices across the world
• Committed to quality and application-driven
  engineering

Deb,Gene and Chris Anguil
5
Oxidizer Applicability
Chemical Phenol Production PA (Pthalic
Anhydride) Production Ethylene Oxide
Sterilization PTA (Pure Terephtalic Acid)
Production Formaldehyde Production PET
(Polyethylene Terephthalate) Production
Organic Chemical Manufacturing Specialty
Chemicals
Coating / Converting / Laminating Aluminum
Can Coil Drum Fabric Film
Metal Plastic Tape Lacquering
Dipping / Coating Process
Composites Carbon Fiber Composites
Manufacturing Fiberglass Products
6
Oxidizer Applicability
Electronics Printed Circuit Board
Production Semiconductor Plants
Ethanol Ethanol Processing Production
Plants Bakery Emissions
Odor Control Lost Foam Casting
Polyethylene Odor Styrene Odor Food Odor
Oil / Natural Gas Amine Strippers Natural
Gas Processing Oil Refineries
Paint Continuous Paint Lines Paint
Finishing Paint Manufacturing Paint Spray
Applications
7
Oxidizer Applicability
Printing Flexographic Lithographic
Laminating Letter Press Printers
Rotogravure Security Printing Web Offset
Remediation Air Strippers Chlorinated
Vent Streams Remediation Sites Refineries
Anguil Guarantees Regulatory Compliance
For VOCs (Volatile Organic Compounds) HAPs
(Hazardous Air Pollutants) NOx (Nitrogen Oxides)
8
What is Oxidation?
Definition CnH2m (n m/2) O2 ? n
CO2 mH2O heat
Temperature Based on the VOCs that need to be
destroyed there is a temperature at which the
compounds can be oxidized. Time Relates to how
long a compound needs to be at a certain
temperature in order for it to be oxidized.
Turbulence A fixed condition built into the
equipment design that ensures a proper mixture of
VOCs and oxygen for combustion.
Specific compounds and desired destruction rate
efficiency determine temperature and residence
time. Proper Oxidation converts hydrocarbons to
CO2 and H2O (vapor).
9
Oxidizer Technology Overview
Regenerative Thermal Oxidizers (RTO)
Direct-Fired Thermal Oxidizers / Flares
Concentrators
Thermal Recuperative Oxidizers
Catalytic Recuperative Oxidizers
10
Regenerative Thermal Oxidizer
Typical Applications Chemical, Composites, Metal
Decorating, Expanded Polystyrene, Painting,
Pharmaceutical, Wood Finishing, Coating,
Printing Air Flow Range 3,000-70,000scfm /
Single Unit 70,000-500,000scfm / Multiple
Units Concentration Range 0-25 LEL
Energy-Efficient Operation (True 95
Thermal Energy Recovery) High Destruction Rate
Efficiency (DRE)
11
RTO Mode of Operation
12
RTO Options Benefits

• Options
• Random Packed or Structured Ceramic Heat
  Transfer Media
• Forced or Induced Draft Configurations
• Standard Steel or Alloy Construction for
  Corrosive Applications
• Supplemental Fuel Injection
• Benefits
• Factory Tested
• PLC-Based Controls with Multiple Safety
  Functions and Recording Features
• Fast Acting, Reliable Valves
• Self Sustains at LELs as low as 3, Reducing
  Operating Costs
• Low Pressure Drop Reduces Electrical Consumption

13
Valves
Types of Valves Poppet Valves (Horizontal and
Vertical) Butterfly Valves Rotating (Single)
Valves Modes of Operation Pneumatic
Hydraulic
Why Vertical Poppet Valves? Maintenance
Design Cost
14
Anguil Poppet Valve Operation
15
Types of RTO Heat Recovery Media

• Random Packing
• Typically 1 or 1½
• ½ 3 Available
• Extruded Honeycomb Monolith
• Variety of cell sizes and wall widths
• Typical block size 150 x 150 x 300
• Multi-Layered Media
• Style and Size Options

16
Media Installation / Replacement

• Heat Recovery Media
• Multi-Layered Media
• / Block Media
• Random Media

17
Option Supplemental Fuel Injection (SFI)

• Why Use Supplemental Fuel Injection?
• Reduces combustion air- flow, lowering operating
  costs
• Lower pilot rate for large burners
• Ultralow NOx emissions

18
Insulation
1
2

• Anguils Technique
• Provides cooler outer skin temperatures
• Reduces risk of outer skin hot spots

3
19
InsulationCombustion Chamber
20
Option Puff / Purge Chamber

• A three way poppet valve and purge chamber is
  installed at the RTO outlet
• Used for visible emissions, odorous emissions
  or higher DRE
• Captures uncontrolled VOC emissions during
  valve switch and routes them back to fan inlet

21
Option Multi-Chamber RTO

• Six controlled butterfly valves
• Third can is purged following valve change to
  direct untreated VOCs into purification chamber
• 90 second cycle time per bed
• Shorter cycle time leads to higher thermal
  efficiency
• Higher destruction efficiencies than 2 chamber
  design
• Higher capital cost than 2 chamber

22
3 CHAMBER DESIGN 99.5 D.R.E.
23
RTO Installations
Regenerative Thermal Oxidizer Model 50 5,000
SCFM Coating Application
24
RTO Installations
Regenerative Thermal Oxidizer Model 75 7,500
SCFM Gas Oil Production
25
RTO Installations
Regenerative Thermal Oxidizer Model 500 50,000
SCFM Metal Decorating Application
26
Concentrators

• Technology Applicability
• Airflows gt 5,000 SCFM. Lower flow rates
  generally make this technology uneconomical.
• Inlet Temperature lt 100ºF (40ºC)
• VOC Concentrations lt 500 ppm. Higher
  concentrations reduce concentration factor making
  this technology uneconomical.
• DREs lt 99
• Relative Humidity lt 90

27
What Does A Concentrator Do?
ANGUIL
28
How Do They Work?
ANGUIL

• Adsorption process gas flows into this section
  where the VOCs are adsorbed onto the zeolite.
  The purified process gas leaving this section is
  directed into the exhaust stack

29
How Do They Work?
ANGUIL

• Cooling A small volume of process gas is passed
  through this section of the wheel to cool the
  zeolite. This preheated process gas is then sent
  to a heat exchanger or another heat source and
  used as the desorption gas. This volume of gas
  for cooling is related to the concentration
  factor. With a 101 Concentration factor, 10 of
  the process gas is used for cooling/desorption.

30
How Do They Work?
ANGUIL

• Desorption A small volume of process gas is
  heated and used to desorb the VOCs from the
  wheel.

31
Concentrator Applicability
ANGUIL

• Airflows gt 5,000 SCFM (7,900 Nm³/h).
• Inlet Temperature lt 100ºF (40ºC)
• VOC Concentrations lt 500 ppmv.
• DRE lt 99
• Relative Humidity lt 90
• The higher the VOC boiling point, the better it
  adsorbs and the harder it is to desorb
• Must be a liquid at room temperature in order to
  adsorb
• Appropriate Solvents

32
Components Wheel
ANGUIL

• Honeycomb structure minimizes pressure drop,
  operating costs
• Impregnated with adsorbent material Zeolite or
  Carbon

• Consists of aluminum, silicon and oxygen
• Hydrophobic zeolite must be synthesized

33

• Components Wheel Installation

ANGUIL
34
Components Wheel Pre-Filter Plenums
35
Components Desorb Heater
ANGUIL
36
Concentrator Installations
Adhesive Manufacturer 30,000 SCFM Concentrator
Wheel with Model 50 RTO Natural gas duct heater
used for desorption
37
Concentrator Installations
Model 400 40,000 SCFM Rotor
Concentrator Coupled with an 5,000 SCFM
Regenerative Thermal Oxidizer
38
Concentrator Installations
Model 800 80,000 SCFM Rotor
Concentrator Grouped with two Model 250 25,000
SCFM Regenerative Thermal Oxidizer Paint Spray
Emissions
39
Concentrator Installations
Model 1300 127,000 SCFM Rotor Concentrator
Coupled with a Model 75 7,500 SCFM Thermal
Recuperative Oxidizer Treating Emissions From An
Automotive Spray Coating Operation
40
Catalytic Oxidizers
Typical Applications Include Bakery,
Chemical, Coating, Laminating, Painting,
Pharmaceutical, Printing Air Flow Range
100-100,000scfm Concentration Range 0-25
LEL

• Generally Used With
• Low Process Volume
• High VOC Concentrations
• Weight Capital Cost Limitations
• Dilution Air Is Available No Catalyst
  Poisons Exist

41
Catalytic Options Benefits

• Multiple Catalyst Offerings
• Pelletized, Monolith, Precious Base Metals

• Catalysts lower oxidation temperature which
• Decreases fuel usage
• Less expensive materials of construction
• Less thermal cycling
• Lowers carbon monoxide emissions
• Lowers NOx emissions
• Smaller equipment footprint

42
Thermal Recuperative Oxidizers

• Typical Applications Include Chemical,
  Silcone Coating, Remediation
• Air Flow Range 100-30,000scfm
• Concentration Range 0-50 LEL
• Generally Used With
• High Process VOC Concentrations
• Capital Cost Limitations

43
Direct Fired Oxidizers

• Typical Applications Include
• Air Flow Range 100-100,000scfm
• Achievable DRE 99
• Concentration Range 15-50 LEL
• Generally Used With
• High VOC Concentrations
• Low Volume
• High Destruction Rate Efficiency Requirements

44
Energy Conservation Techniques

• Why Now?
• Rising Utility Costs
• Tighter Emission Regulations
• Stimulus Grant Money Availability
• Media Coverage (Marketing Bonus)

45
Energy Efficiency Minimizes Greenhouse Gas
Emissions
46
Resources
http//www.anguil.com/company.aspx
Download Energy Recovery or Oxidizer Application
Data Sheets
47
Thank You!
ANGUIL ENVIRONMENTAL SYSTEMS, INC. 8855 N. 55th
Street Milwaukee, Wisconsin 53223 Phone
414-365-6400 Fax [phone]
www.anguil.com
