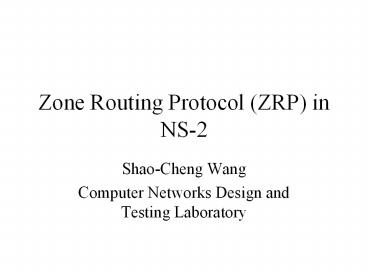

Zone Routing Protocol (ZRP) in NS-2

• Shao-Cheng Wang
• Computer Networks Design and Testing Laboratory

2
Outlines

• Basic ideas of ZRP
• Design diagram of ZRP package
• Utility scripts in ZRP package

3
Routing protocols in ad-hoc networks

• Proactive
• Periodic routing updates
• Pros little delay when route is needed
• Cons lots of overhead in routing updates
  (especially in highly dynamic environment)
• Ex. DSDV, WRP
• Reactive
• Source initiated/ on-demand approach
• Pros no periodic routing update overhead
• Cons
• still considerable control traffic for route
  searching (near flooding)
• long route query delay
• Ex. DSR, AODV

4
The ZRP

• Hybrid architecture
• Routing zone
• Radius r
• Interior nodes and border nodes
• Inter-zone routing
• When the destination can not be found in the
  zone Initiate route query
• bordercasting

5
Design diagram of ZRP NS-2 package
6
Hello and Link-State packets
ZRP
Incoming packets
Link State
Hello
IERP
NDP
IARP
BRP
To Link Layer
7
Route query and reply
ZRP
Incoming packets
reply
query
IERP
NDP
IARP
?
No
yes
BRP
To Link Layer
8
Installation and Operation

• NS-2.1b6
• Follow the README
• example.tcl
• set opt(adhocRouting) ZRP
• Trace format in cmu-trace.cc (/zrp/support_code)
• Useful scripts (in /zrp/scripts) to get
  statistics from trace file
• Very useful debug switches in zrp.h

9
Visualize the ZRP

• To do
• Specify the OID in zrp.h
• Make sure debug16 in zrp.h is on.
• Output file connections, hopsaway, NodeCoord
• Processing engine drawquery.m

10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
Useful scripts

• In /zrp/scripts
• 2count_packets
• echo 'received IARPS...'
• grep 'r 0-9\.0-9.IARP' 1
• additionneur.cc
• process the outputs from 2count_packet and get
  statistics (overheads, sucessful rate, etc.)

18
(No Transcript)
19
Route query and reply (coming from outside)
ZRP
Incoming packets
reply
query
IERP
NDP
IARP
BRP
To Link Layer
