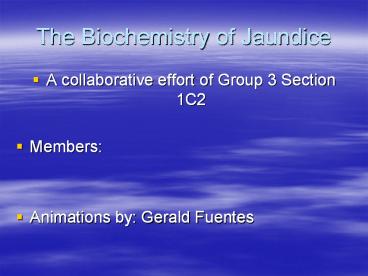

The Biochemistry of Jaundice

1
The Biochemistry of Jaundice

• A collaborative effort of Group 3 Section 1C2
• Members
• Animations by Gerald Fuentes

2
Formation of Bilirubin
3
Bilirubin Metabolism
Heme planar Others not anymore
Heme Oxygenase
Heme
Biliverdin
Bilirubin
Bilirubin Diglucoronide
Urobilinogen
Urobilin
Stercobilin
4
Circulation
Red Blood Cells
5
120 days
Circulation
6
Hemoglobin
globin
globin
globin
globin
heme
heme
heme
heme
7
(No Transcript)
8
Heme Oxygenase
C
NADP
H
O
O
O
O
2
2
9
I
II
III
IV
Biliverdin
10
H
Bilirubin
NADP
H
11
Processing of Bilirubin
12
Excretion of Bilirubin
13
(No Transcript)
14
3 Steps of Biliverdin Metabolism

• Conjugation

• Hepatic Uptake

• Excretion

• Unconjugated bilirubin is presented in the liver
  cell
• The albumin associated with it is dissociated
• Ligandin is delivered to prevent efflux of
  bilirubin back to plasma

15
3 Steps of Biliverdin Metabolism

• Hepatic Uptake

• Conjugation

• Excretion

• Unconjugated bilirubin is presented in the liver
  cell
• The albumin associated with it is dissociated
• Ligandin is delivered to prevent efflux of
  bilirubin back to plasma

• Unconjugated bilirubin (water insoluble) is
  converted to bilirubin diglucoronide (water
  soluble)
• Takes place in the smooth endoplasmic reticulum
  of the liver
• Catalyzed by glucoronyl transferase

• Bilirubin which is now water soluble can now be
  excreted from the liver cell to the biliary
  system.

16
Conjugation with Glucoronates
Glucoronyl transferase
BILIRUBIN DIGLUCORONIDE
17
Role of Blood Proteins in the Metabolism of
Bilirubin
Sparingly soluble in Blood
1. Albumin
Dissolved in Blood
18
Blood
Liver
Ligandin Prevents bilirubin from going back to
plasma
19
Different Causes of Jaundice

• Excessive Production of Bilirubin
• Reduced Hepatocyte Uptake
• Impaired Bilirubin conjugation
• Impaired Bile Flow

20
Diagnosis of Jaundice

• Urine Examination
• Qualitative measurement of bilirubin
• Either Ictotest or Dipstick method
• Foam Test method
• Normal Urine foam is absolutely white
• Hyperbilibirunemia foam is yellow

21
Diagnosis of Jaundice

• Stool Examination
• Special Blood Test
• Radiological

22
Classification of Hyperbilirubinemia

• Retention due to overproduction of bilirubin
• Regurgitation reflux of bilirubin into blood

23
Acholuric Vs. Choluric

• CHOLURIC presence of bile derivatives in the
  urine
• Occurs in regurgitation hyperbilirubinemia
• Obstructive type
• ACHOLURIC absence of bile in urine
• Retention hyperbilirubinemia
• Hemolytic type

24
Hemolytic vs. Hepatocellular vs. Obstructive
Hemolytic Hepatocellular Obstructive
Urine/Fecal Urobilinogen Increased Decreased Absent/ fluctuates
Bilirubin Absent Present Present
Conjugated No Yes Yes
25
Hemolytic Jaundice

• CLINICAL
• Defect in uptake of bilirubin by liver cells
• Immature hepatic conjugating system
• BIOCHEMICAL
• Slight change in liver cells
• Severe increase of Alkaline Phospholipase (APL)

26
Obstructive Jaundice

• CLINICAL
• Presence of tumors, structures
• BIOCHEMICAL
• Mild to severe increase of APL

27
Hepatocellular Jaundice

• CLINICAL
• Liver damage (hepatitis, cirrhosis)
• BIOCHEMICAL
• With marked biochemical change in liver cells
• Marked increase in APL

28
Clinical Conditions Related to Increased
Unconjugated Hyperbilirubinemia

1. Gelberts Syndrome
2. Crigler-Najjar Syndrome (Type I)
3. Crigler-Najjar Syndrome (Type II)
4. Neonatal Jaundice

29
Clinical Conditions Related to Increased
Conjugated Hyperbilirubinemia
Duben-Johnson Syndrome Rotor Syndrome
Defect (hepatocytes) Secretory Transport
Presence of Pigmentation Yes No
Metabolism Abnormal Porphyrin Metabolism None
