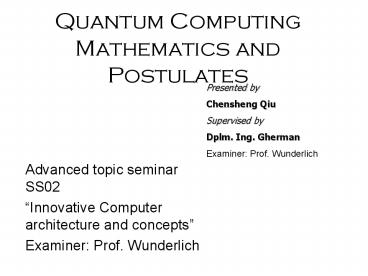

Quantum Computing Mathematics and Postulates

1
Quantum Computing Mathematics and Postulates
Presented by Chensheng Qiu Supervised by Dplm.
Ing. Gherman Examiner Prof. Wunderlich

• Advanced topic seminar SS02
• Innovative Computer architecture and concepts
• Examiner Prof. Wunderlich

2
Requirements On Mathematics Apparatus

• Physical states ? Mathematic entities
• Interference phenomena
• Nondeterministic predictions
• Model the effects of measurement
• Distinction between evolution and measurement

3
Whats Quantum Mechanics

• A mathematical framework
• Description of the world known
• Rather simple rules
• but counterintuitive
• applications

4
Introduction to Linear Algebra

• Quantum mechanics
• The basis for quantum computing and quantum
  information
• Why Linear Algebra?
• Prerequisities
• What is Linear Algebra concerning?
• Vector spaces
• Linear operations

5
Basic linear algebra useful in QM

• Complex numbers
• Vector space
• Linear operators
• Inner products
• Unitary operators
• Tensor products

6
Dirac-notation

• For the sake of simplification
• ket stands for a vector in Hilbert
• bra stands for the adjoint of
• Named after the word bracket

7
Inner Products

• Inner Product is a function combining two vectors

• It yields a complex number
• It obeys the following rules

8
Hilbert Space

• Inner product space linear space equipped with
  inner product
• Hilbert Space (finite dimensional) can be
  considered as inner product space of a quantum
  system
• Orthogonality
• Norm
• Unit vector parallel to

9
Hilbert Space (Contd)

• Orthonormal basis
• a basis set where
• Can be found from an arbitrary basis set by
  Gram-Schmidt Orthogonalization

10
Unitary Operator

• An operator U is unitary, if
• Preserves Inner product

11
Tensor Product

• Larger vector space formed from two smaller ones
• Combining elements from each in all possible ways
• Preserves both linearity and scalar
  multiplication

12
Postulates in QM

• Why are postulates important?
• they provide the connections between the
  physical, real, world and the quantum mechanics
  mathematics used to model these systems
• - Isaak L.
  Chuang

24
13
Physical Systems - Quantum Mechanics Connections
14
Mathematically, what is a qubit ? (1)

• We can form linear combinations of states
• A qubit state is a unit vector in a two
  dimensional complex vector space

15
Qubits Cont'd

• We may rewrite as
• From a single measurement one obtains only a
  single bit of information about the state of the
  qubit
• There is "hidden" quantum information and this
  information grows exponentially

We can ignore eia as it has no observable effect
16
Bloch Sphere
17
How can a qubit be realized?

• Two polarizations of a photon
• Alignment of a nuclear spin in a uniform magnetic
  field
• Two energy states of an electron

18
Qubit in Stern-Gerlach Experiment
Oven
Figure 6 Abstract schematic of the Stern-Gerlach
experiment.
19
Qubit in Stern-Gerlach Exp.
Oven
Figure 7 Three stage cascade Stern-Gerlach
measurements
20
Qubit in Stern-Gerlach Experiment
Figure 8 Assignment of the qubit states
21
Qubit in Stern-Gerlach Experiment
Figure 8 Assignment of the qubit states
