Human Anatomy

1

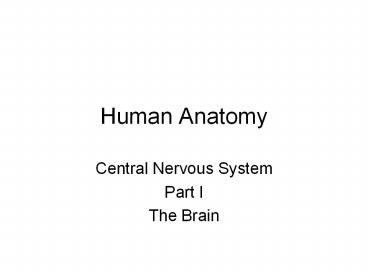

Human Anatomy

• Central Nervous System
• Part I
• The Brain

2
CNS

• Consists of 2 anatomical components

Brain Spinal cord
3
The Brain

• 3 subdivisions
• A. Cerebrum
• B. Cerebellum
• Brainstem
• Additional Structures

4
Subdivisions of the Brain

• A. Cerebrum
• B. Cerebellum
• Brainstem

5
Sagittal Section of Brain

• A. Cerebrum
• B. Cerebellum
• Brainstem
• Additional
• structures

6
A. The Cerebrum

• Surface forms a series of elevated ridges gyri
  (gyrus, sng.)
• Surface also has shallow depressions sulci
  (sulcus, sng.)

7
Gyri of Cerebrum
8
Sulci of Cerebrum
9
Central Sulcus
10
Lateral Sulcus
11
Longitudinal Fissure
12
Cerebral Hemispheres

• Cerebrum consists
• of two cerebral
• hemispheres

Left Right
13
Lobes of the Cerebrum
14
Lobes of the Cerebrum

• Four lobes from the surface

15
Four Lobes of Cerebrum(that can be seen on the
lateral surface)

• Frontal
• Parietal
• Occipital
• Temporal

16
Cerebral Lobes
17
1. Frontal Lobe

• Forms the anterior portion of the cerebral
  hemispheres
• Posterior boundary is central sulcus
• Inferior boundary is lateral sulcus
• Most posterior gyrus is the precentral gyrus
• Precentral gyrus is primarily concerned with
  voluntary motor (skeletal muscles) function. It
  is also known as the primary motor cortex of the
  brain.

18
Frontal Lobe
19
Precentral Gyrus
Precentral Gyrus Central Sulcus
20
Organization of precentral gyrus(primary motor
cortex)
21
Precentral Gyrus
22
Brocas Speech Area(motor speech area)
Controls muscles neccesary for vocalization (word
s)
Usually found in left frontal lobe
23
Frontal Lobe
Frontal eye field
Cognitive activities judgement,
reasoning, planning See Clinical Views on pp.
459 461
24
2. Parietal Lobe

• Posterior to the central sulcus
• Anterior to the occipital lobe
• Most anterior gyrus is the postcentral gyrus
• Postcentral gyrus receives information from the
  body such as touch, pressure, pain and
  temperature. It is also known as the primary
  somatosensory cortex.

25
Parietal Lobe
26
Postcentral gyrus
Central sulcus
Postcentral gyrus
27
Organization of postcentral gyrus(primary
somatosensory cortex)
28
Postcentral gyrus
29
Parietal Lobe
Wernickes area understanding speech and
formulating words to express thoughts and emotions
30
3. Occipital Lobe

• Forms the posterior region of each cerebral
  hemisphere
• Responsible for processing incoming visual
  information and storing visual memories
• Known as the visual cortex

31
Occipital Lobe
32
Occipital Lobe
Occipital lobe
33
4. Temporal Lobe

• Inferior to lateral sulcus
• Involved with hearing, interpreting speech and
  language and smell
• Known as the auditory cortex

34
Temporal Lobe
35
Brodmann Areas (1 century ago)
36
B. The Cerebellum

• 2 cerebellar hemispheres
• Coordinates and fine-tunes skeletal muscle
  movements
• Ensures the pattern of skeletal muscle
  contractions leads to smooth, coordinated
  movements
• Stores memories of previously learned patterns of
  movement (writing, piano playing, ping pong,
  Gameboy)
• Cerebrum sends rough draft of which movement it
  wants and cerebellum coordinates and fine-tunes
  the command.
• Adjusts skeletal muscle activity to maintain
  equilibrium and posture

37
Effects of alcohol and drugson the cerebellum

• Disturbance of gait
• Loss of balance and posture
• Inability to touch your finger to your nose with
  your eyes closed.lack of proper proprioceptive
  information

38
B. The Cerebellum
39
C. Brainstem

• Consists of the following regions
• Mesencephalon
• Pons
• Medulla oblongata
• Brainstem is the most primitive part of the brain.

40
Brainstem
41
1. Mesencephalon
42
Mesencephalon

• Roof is made up of 4 bumps called the corpora
  quadrigemina (4)
• Superior colliculi (2) visual reflex centers,
  help track objects within a visual field and
  coordinates skeletal muscles in order to keep
  object in visual field
• Inferior colliculi (2) audio reflex centers,
  involve reflex turning of head in the direction
  of a sound.BANG!

43
Corpora quadrigemina
44
2. Pons

• Anterior surface of brainstem
• Contains nerve pathways
• Brain Spinal cord

45
3. Medulla oblongata

• Most inferior part of the brainstem and is
  continuous with the spinal cord
• Medulla ends and spinal cord begins at the
  foramen magnum
• Contains several autonomic centers that control
  the following functions
• Cardiac center controls heart rate and strength
  of contraction
• Vasomotor center controls blood pressure by
  regulating constriction or relaxation of
  arteriole walls
• Respiratory center controls rate of respiration

46
Medulla oblongata
47
Medulla oblongata
48
Medulla oblongata

• Descending axons (motor) cross over to the other
  side in the medulla oblongata
• Ascending axons (sensory) cross over to the other
  side in the medulla oblongata
• Therefore, a stroke (CVA) on one side of the
  brain will affect the body on the opposite side

49
D. Additional Structures in the Brain

• Corpus callosum
• Thalamus
• Hypothalamus

50
1. Corpus callosum

• A physical connection between the 2 cerebral
  hemispheres
• A pathway of communication between the 2 cerebral
  hemispheres
• Comprised mainly of myelinated axons traveling
  from one hemisphere to the other hemisphere

51
Corpus callosum
52
Corpus callosum
53
2. Thalamus

• Serves as a processing and final relay point for
  sensory information going to the cerebrum
• Used when you are busy trying to filter out
  visual and auditory input to get the right
  information needed to get you on task
• Sensory thalamus cerebrum

54
Thalamus
55
3. Hypothalamus

• Inferior to the thalamus
• CEO of ANS
• CEO of endocrine system (hormones)
• Regulates body temperature (thermostat)
• Controls emotional behavior, eating and water
  intake
• Regulates sleep-wake (circadian) rhythms

56
Hypothalamus
57
The Meninges

• Consists of 3 layers of connective tissue that
  surround the brain and spinal cord
• Functions as a shock absorber to prevent contact
  w/ surrounding bone (skull and vertebrae)
• From superficial to deep
• Dura mater
• Arachnoid mater
• Pia mater

58
Meningeal Layers
59
1. Dura mater

• Most superficial
• 2 layers
• Periosteal in contact with bone
• Meningeal deeper of the 2 layers, in contact
  with arachnoid mater

60
Dura mater
61
2. Arachnoid mater

• Middle layer, resembles a spider web
• Comprised of collagen and elastin fibers

62
3. Pia mater

• Deepest layer, tightly adhered to brain

63
Epidural and SubduralHemorrhages

• Epidural
• Bleeding between skull and endosteal layer of
  meninges
• Source of blood is usually torn artery
• Artery pressure is high, vein pressure is not as
  high
• Blood builds up in epidural space
• Causes compression of brain
• Presses brainstem against occipital bone

64
2. Subdural Hemorrhage

• Source of blood is usually from torn vein
• Vein pressure is not high
• Not as acute (not rapid)

65
Ventricles of the Brain

• Fluid-filled cavities within the brain
• Filled with CSF (cerebral spinal fluid)
• Store CSF do not make it
• 4 ventricles

66
Ventricles of the Brain

• 2 lateral ventricles
• 3rd ventricle
• 4th ventricle
• Mesencephalic
• aqueduct
• All 4 ventricles
• are connected
• and filled with
• CSF

67
Ventricles of the Brain

• 2 lateral ventricles
• 3rd ventricle
• 4th ventricle
• Mesencephalic
• aqueduct
• All 4 ventricles
• are connected
• and filled with
• CSF

68
Cerebral Spinal Fluid (CSF)

• Liquid similar to plasma
• floats the brain inside skull
• Protects brain by serving as a cushion from
  sudden movements
• Transports chemical messages and nutrients and
  removes waste products to circulatory system

69
Cerebral Spinal Fluid
