Title: INTRO TO THE M9 SERVICE PISTOL


1

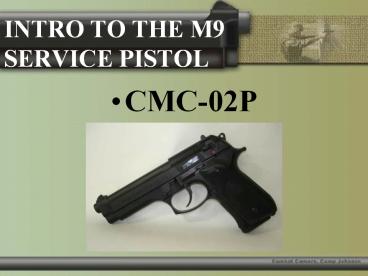

INTRO TO THE M9 SERVICE PISTOL
  • CMC-02P

2
OVERVIEW
  • M9 SERVICE PISTOL OPERATIONAL CHARACTERISTICS
  • M9 SERVICE PISTOL OPERATIONAL CAPABILITIES
  • AMMUNITION
  • PROCEDURES FOR DONNING PISTOL GEAR

3
LEARNING OBJECTIVES
  • THIS LESSON COVERS THE NOMENCLATURE OF THE M9
    SERVICE PISTOL AND ITS ASSOCIATED GEAR.
  • THERE ARE NO TERMINAL LEARNING OBJECTIVES
  • THERE ARE NO ENABLING LEARNING OBJECTIVES

4
METHOD MEDIA
  • THIS LESSON WILL BE TAUGHT USING THE LECTURE
    METHOD WITH THE AID OF POWER POINT

5
EVALUATION
  • TOPICS FROM THIS LESSON ARE EVALUATED BY
    QUESTIONS AND BY A COMPREHENSIVE TEST.

6
QUESTIONS ?
7
INTRO TO THE M9 SERVICE PISTOL
  • Operational Characteristics and Capabilities
  • DESCRIPTION
  • Semi-Automatic
  • Magazine Fed
  • Recoil Operated
  • Double Action Pistol
  • Chambered for 9mm ball, NATO M882

8
INTRO TO THE M9 SERVICE PISTOL
  • Double/Single Action
  • Magazine Capacity 15 rounds
  • Max Effective Range 50 meters

9
INTRO TO THE M9 SERVICE PISTOL
  • Major Components
  • Slide Assembly
  • Barrel Assembly
  • Recoil Spring/Recoil Spring Guide
  • Receiver

10
INTRO TO THE M9 SERVICE PISTOL
  • Safety Features
  • De-cocking/Safety Lever
  • Firing Pin Block
  • Half-cock notch

11
INTRO TO THE M9 SERVICE PISTOL
  • Functional Capabilities
  • Single Action Mode
  • Hammer is cocked
  • Double Action Mode
  • Trigger pull cocks the hammer (semi-auto)

12
INTRO TO THE M9 SERVICE PISTOL
  • Nomenclature
  • Safety, de-cocking lever
  • Firing Pin Block
  • Extractor/ Loaded Chamber Indicator
  • Disassembly Button
  • Front Sight
  • Slide Assembly
  • Disassembly Lever
  • Slide Stop

13
INTRO TO THE M9 SERVICE PISTOL
  • Nomenclature (cont)
  • Rear Sight
  • Hammer
  • Receiver
  • Grip
  • Lanyard Loop
  • Magazine
  • Magazine Catch Assembly
  • Magazine Release Button
  • Trigger

14
INTRO TO THE M9 SERVICE PISTOL
  • Cycle of Operation
  • Firing
  • Unlocking
  • Extracting
  • Ejecting
  • Cocking
  • Feeding
  • Chambering
  • Locking

15
INTRO TO THE M9 SERVICE PISTOL
  • Ammunition
  • Only authorized ammunition 9mm ball (NATO, M882)
  • Keep dry and clean
  • Wipe off light corrosion
  • No long exposure to light
  • Keep ammo free of any oil and grease

16
INTRO TO THE M9 SERVICE PISTOL
QUESTIONS ?
17
INTRO TO THE M9 SERVICE PISTOL
  • M9 SERVICE PISTOL GEAR
  • M12 Holster
  • Holster
  • Removable Holster Flap
  • Metal Retaining Clip (changeable)
  • Position
  • Let arm hang
  • Slightly in Front
  • Duty Set-up

18
INTRO TO THE M9 SERVICE PISTOL
  • Ammunition Pocket
  • Opposite Holster
  • Natural Position
  • Magazine Rounds Down/Inboard

19
QUESTIONS
20
SUMMARY
  • M9 SERVICE PISTOL OPERATIONAL CHARACTERISTICS
  • M9 SERVICE PISTOL OPERATIONAL CAPABILITIES
  • AMMUNITION
  • PROCEDURES FOR DONNING PISTOL GEAR
